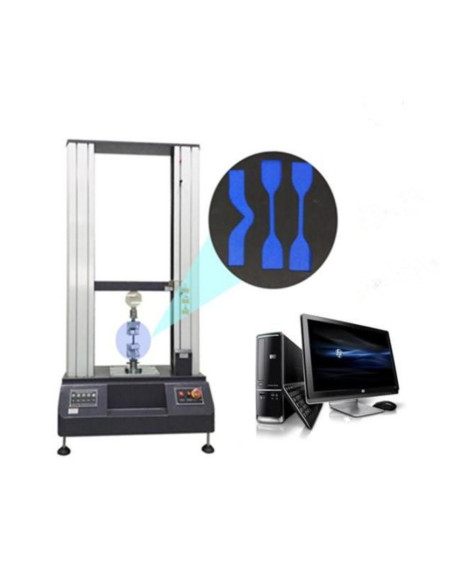

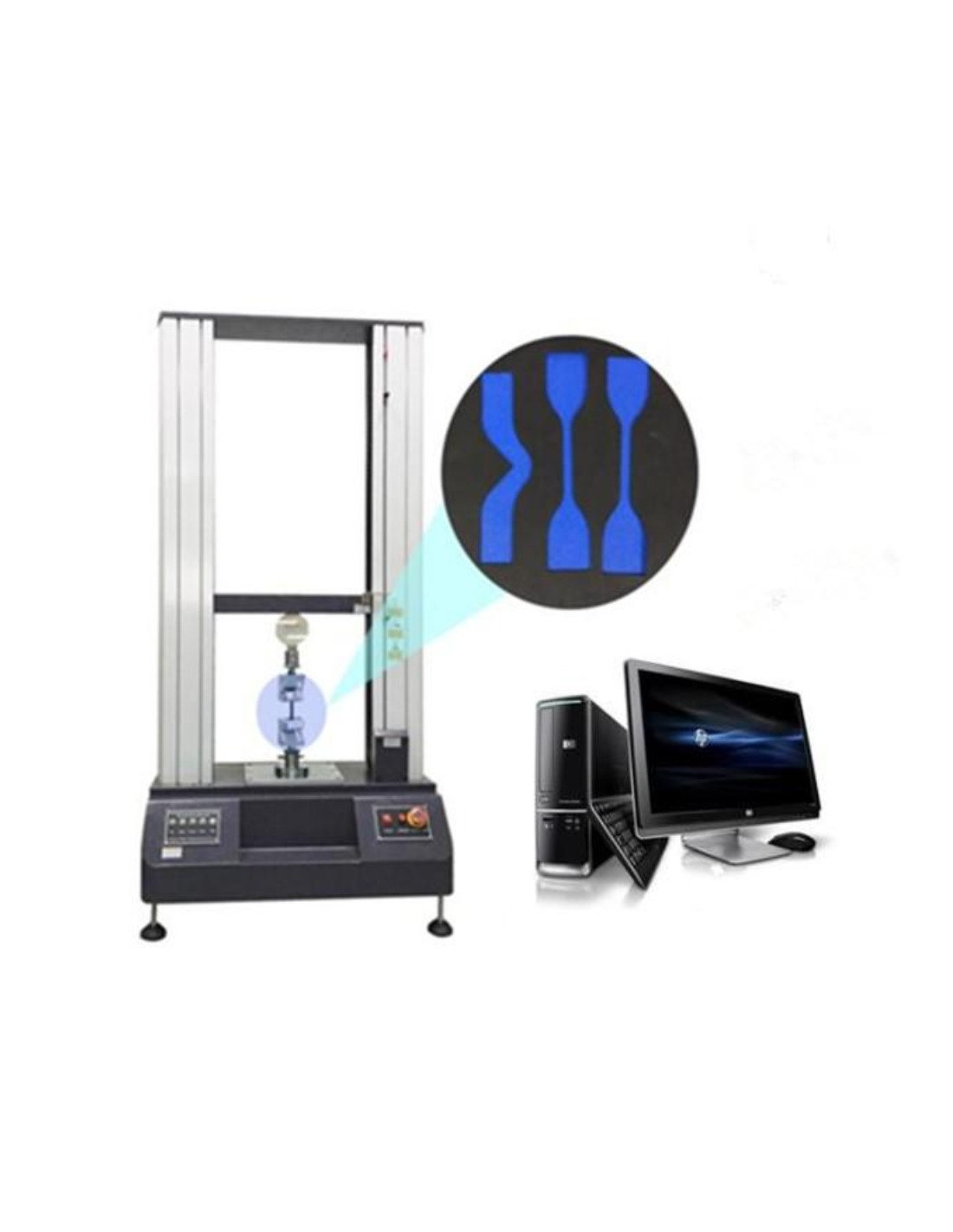

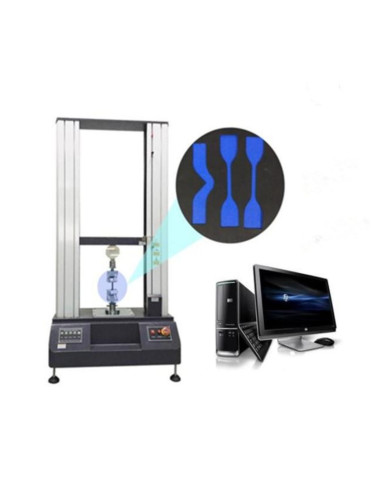

UTM-1004B 20KN Universal Testing Machine

Reference: UTM-1004B - Manufacturer: GOTESTER

20KN universal testing machine for large-deformation materials, with servo control, precise load and displacement measurement, and advanced software analysis.

help_outlineAsk for Quote

UTM-1004B 20KN Universal Testing Machine

I accept privacy policy rules



Equipment summary

The UTM-1004B 20KN Universal Testing Machine combines electronic technology and mechanical transmission to provide accurate load speed, wide force measuring range, high sensitivity for load and displacement control, and support for constant-velocity loading and constant-velocity displacement testing. It is particularly suitable for quality control in production lines and for testing metallic and non-metallic materials with loads below 2 tons.

Main functions

The machine is designed for flexible materials with large deformation, such as rubber, plastics, and leather, to perform tensile, tear, adhesive strength, peel, and related tests. It can be equipped with a large-deformation extensometer specialized for specimen measurement in high-deformation applications.

Main features

  • Photoelectric encoder for displacement measurement.
  • Embedded single-chip microcomputer controller integrating measurement, control, calculation, and storage.
  • Automatic calculation of stress, elongation rate with extensometer, tensile strength, elastic modulus, and statistical results.
  • Automatic recording of the maximum point, breaking point, designated point values, and elongation rate.
  • Computer display of dynamic test curves and post-test data reanalysis with graphics processing and reporting.
  • Product performance reaches an internationally advanced level according to the manufacturer.

Software features

  • Modular software covering GB, ASTM, DIN, JIS, BS, and other standards.
  • Reusable tested product data input with formula-based correction for improved accuracy.
  • Dual report editor with Excel output support.
  • Exchangeable units for force and length.
  • Automatic graphic scale optimization and multiple comparison graphs including load-displacement, load-time, displacement-time, stress-strain, and two-point extension maps.
  • Automatic and manual storage of results with calculations for strengths, modulus, extensions, and energy values.
  • Capability to output previous test data.

Accessories and test items

Standard accessories include a one-year warranty book, operating instructions, a group of fixtures, testing software, a branded computer, and a color printer. Typical test items include tensile stress, tensile strength, elongation at break, fixed stress, stress at break, tear strength, force at any point, elongation at any point, pull-out strength, and adhesion force peak.

Specifications

  • Model: UTM-1004B 20KN Universal Testing Machine.
  • Maximum load: 5KN, 10KN, or 20KN.
  • Accuracy grade: 1% or 0.5%.
  • Effective measuring range: 0.2% to 100% for grade 1, 0.4% to 100% for grade 0.5.
  • Measuring accuracy: displayed value ±1% or ±0.5%.
  • Tester resolution: max load 1/200000 with constant resolution inside and outside the range.
  • Load sensor: one standard sensor, with option to add more sensors.
  • Effective testing width: 390 mm, can be widened according to customer requirements.
  • Effective tensile stroke: 800 mm, 1000 mm, or 1200 mm, customizable.
  • Testing speed range: 0.001 to 200 mm/min, 500 mm/min, optional 1000 mm/min.
  • Displacement measurement accuracy: tolerance ±0.5% or ±0.2%.
  • Measured deformation system: minimum span 10 mm, maximum deformation range 800 mm; extended minimum spans 25 mm, 50 mm, 100 mm with deformation ranges 5 mm, 10 mm, 25 mm.
  • Measured deformation accuracy: tolerance ±0.5% depending on selected deformation range.
  • Safety: electronic limit protection.
  • Testing platform movement: fast and slow two-speed control with jog.
  • Return: manual or automatic return to initial position at highest speed after test.
  • Overload protection: 10% overload automatic protection.
  • Fixture: one set of tensile fixtures.
  • Machine size: 80 x 55 x 220 cm.
  • Power system: Panasonic AC servo motor, driver, and high-precision ball screw.
  • Power supply: 220V, 50Hz.
  • Power: 0.4 kW depending on force demand and motor selection.
