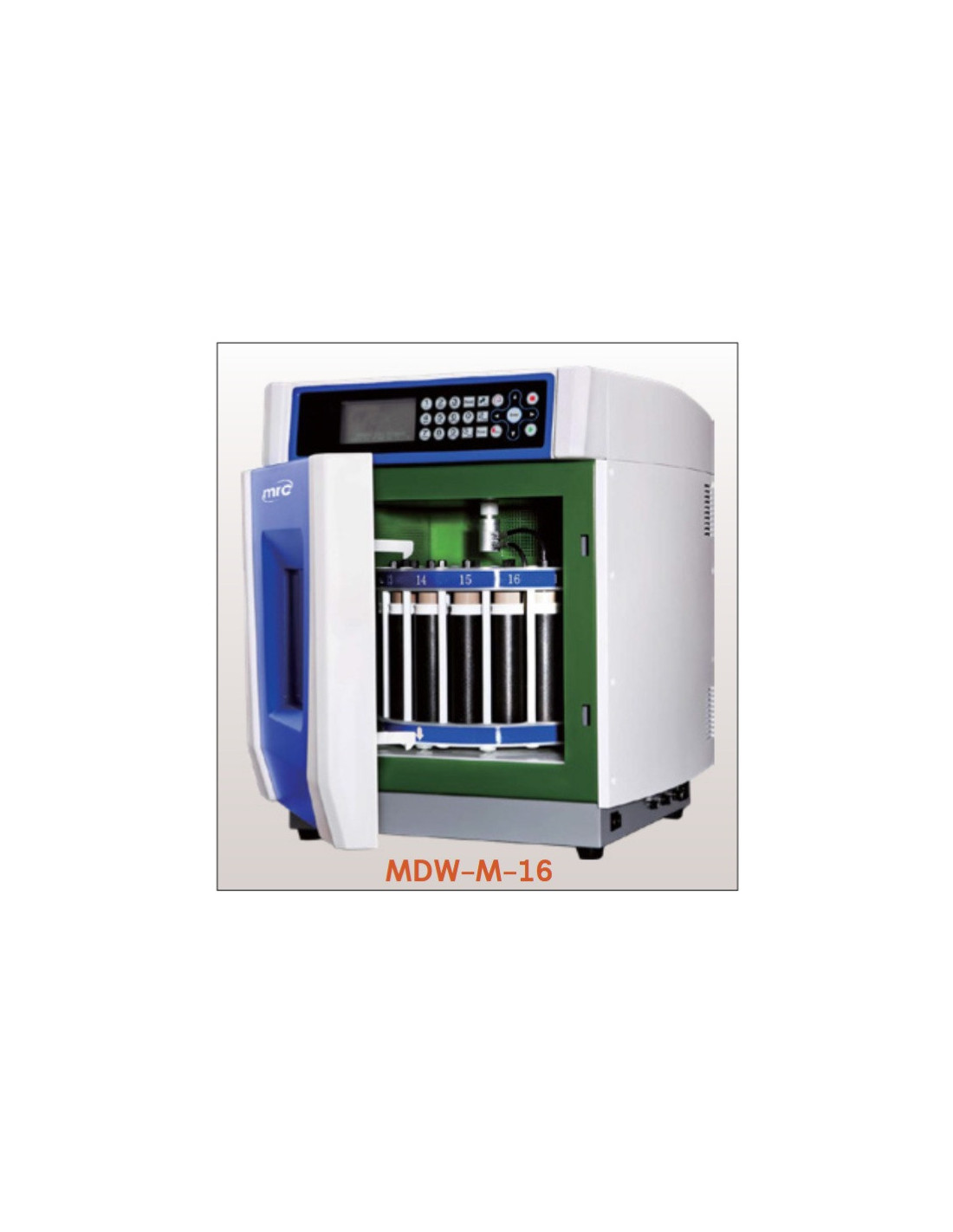

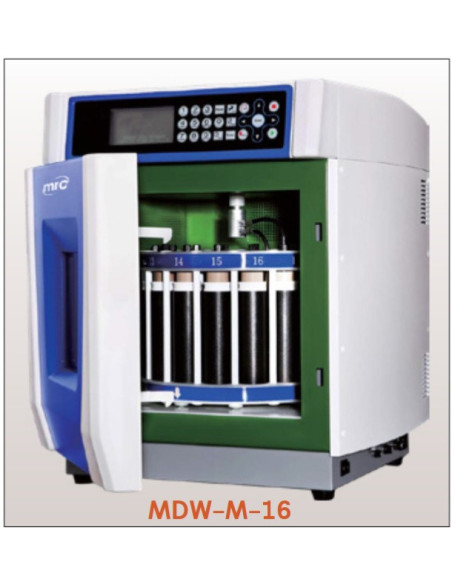

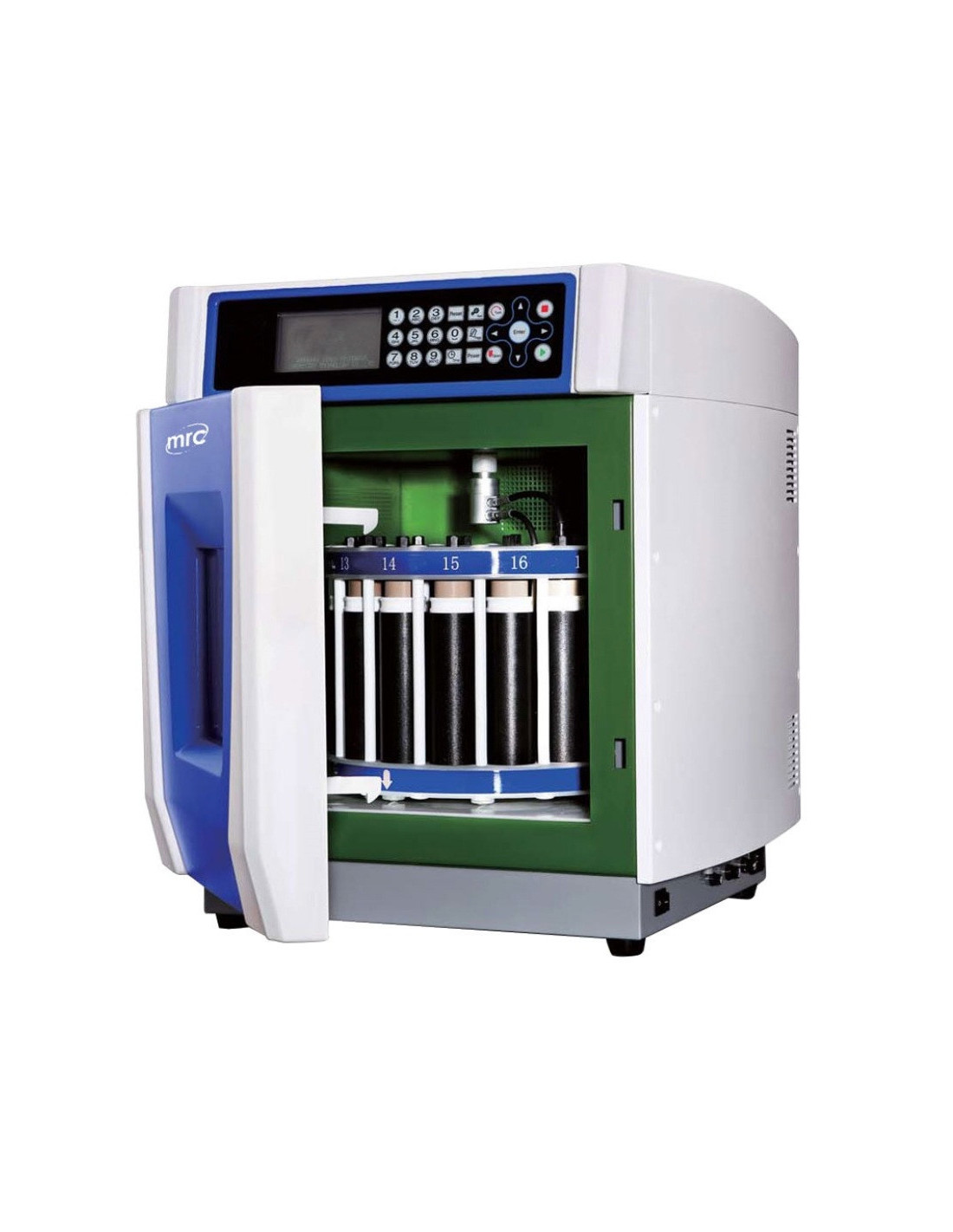

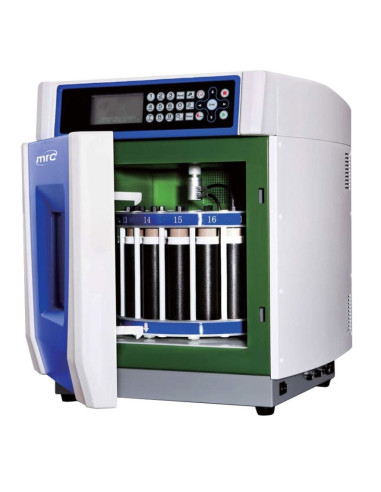

MDW-M-16 Ultra High Throughput Closed Microwave Digestion/Extraction Workstation- 16 vessels

Reference: MDW-M-16 - Manufacturer: MRC

Closed microwave digestion/extraction system for 16 vessels, designed for high throughput and precise laboratory control.

Operates with 100 ml GP-100 vessels, up to 15 MPa and 310 °C for challenging samples including food, soil, metals, alloys, plastics, and semiconductors.

help_outlineAsk for Quote

MDW-M-16 Ultra High Throughput Closed Microwave Digestion/Extraction Workstation- 16 vessels

I accept privacy policy rules



Overview

The MDW-M-16 ultra high throughput closed microwave digestion/extraction workstation is designed for laboratories that need to process multiple samples in a single run while maintaining precise pressure and temperature control. It uses 16 GP-100 reaction vessels with an independent frame structure for each vessel, without magnetic stirring, and is optimized for digestion or extraction tasks in complex matrices.

The configuration combines a TFM inner vessel, an Xtra Fiber outer vessel, and a rotor design with an independent frame structure for each digestion vessel. The system supports a processing capacity of 16 samples per batch, a 100 ml reaction vessel volume, a maximum design pressure of 15 MPa (2200 psi), and a maximum design temperature of 310 °C.

Applications

  • Food digestion and extraction.
  • Soil sample preparation.
  • Metals and alloys treatment.
  • Plastics processing.
  • Cosmetics analysis.
  • Agricultural product preparation.
  • Semiconductor-related sample work.

Operational advantages

  • 16-vessel batch processing for high throughput.
  • Independent frame structure for each vessel in the rotor.
  • Resistant materials, with TFM inner vessel and Xtra Fiber outer vessel.
  • High working conditions up to 15 MPa and 310 °C.
  • Suitable for complex samples in analytical laboratory environments.

Specifications

  • Reference: MDW-M-16.
  • Reaction vessel model: GP-100.
  • Processing capacity per batch: 16.
  • Magnetic stirring function: none.
  • Inner vessel material: TFM.
  • Outer vessel material: Xtra Fiber.
  • Rotor frame structure: independent frame structure for each digestion vessel.
  • Reaction vessel volume: 100 ml.
  • Maximum design pressure: 15 MPa (2200 psi).
  • Maximum design temperature: 310 °C.
  • Maximum sample amount: 0.5-1.0 g.
  • Typical application: foods, soil, metal, alloy, plastics, cosmetics, agricultural products, and semiconductor.
  • Weight: 60 kg.
  • Approximate shipping dimensions: 0.41 x 0.74 x 0.89 m.
