Name: Dymas 32 Lite SolGeo seismic acquisition system
Brand: SolGeo
SKU: DYMAS 32 LITE

Reference: DYMAS 32 LITE - Manufacturer: SolGeo

SolGeo Dymas 32 - Lite is a low-power, high-resolution 6-channel digital acquisition system designed for short- and long-term dynamic, seismic, and microseismic monitoring of civil, industrial, and monumental structures, as well as seismic and microseismic networks.

Ask for Quote

Dymas 32 Lite

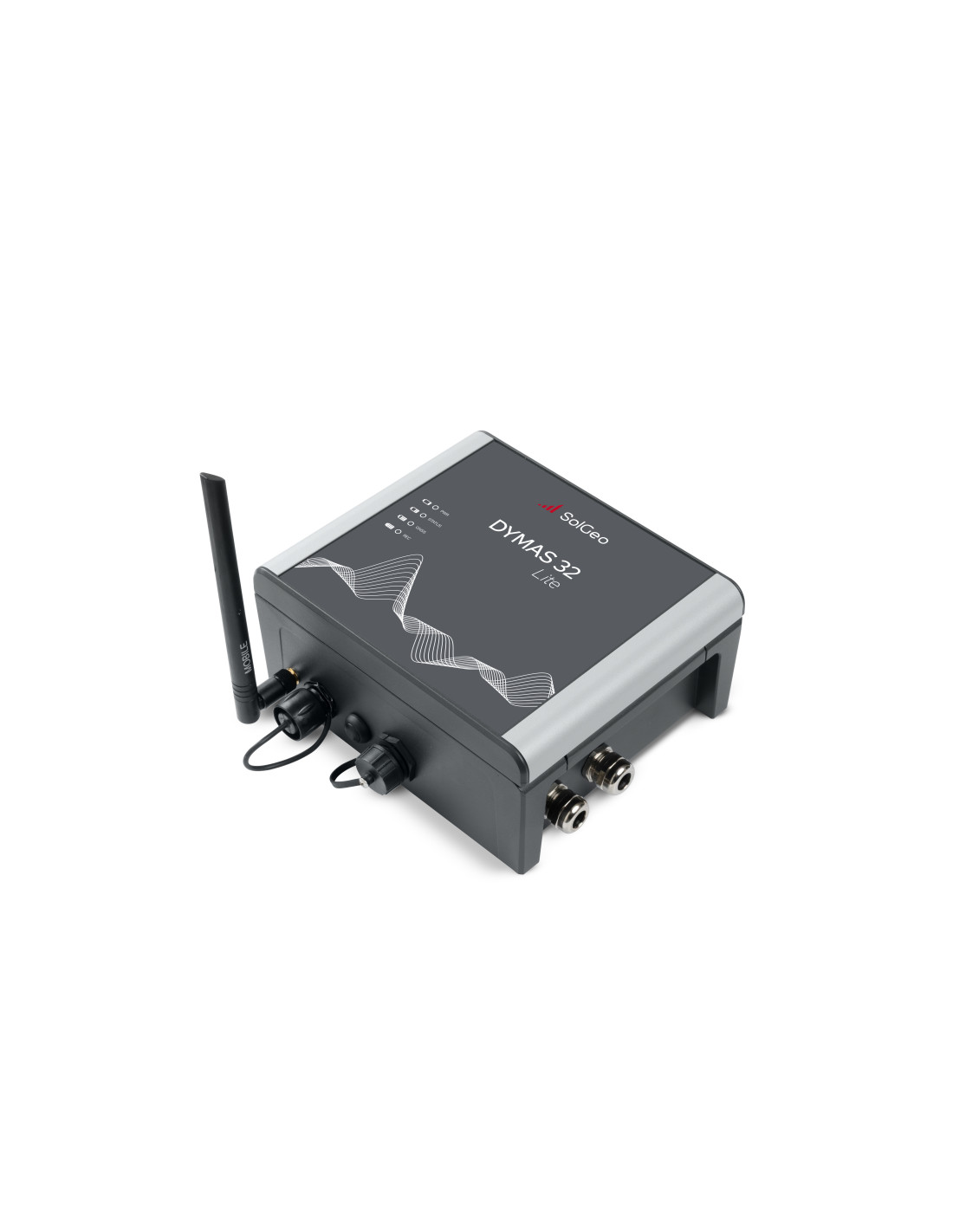

Dymas 32 Lite by SolGeo is a low-power, high-resolution digital acquisition system designed for short- and long-term dynamic, seismic and microseismic monitoring of civil, industrial and monumental structures, as well as seismic and microseismic networks.

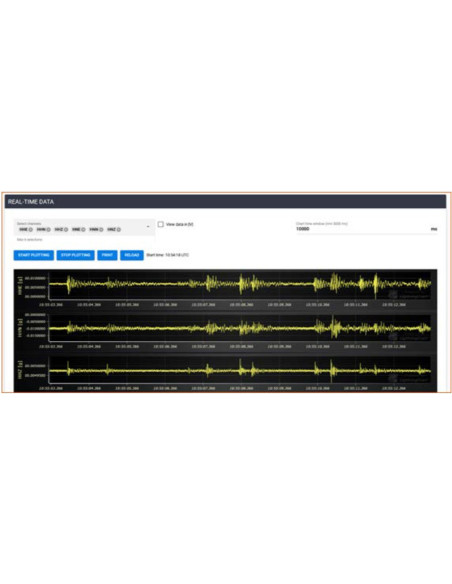

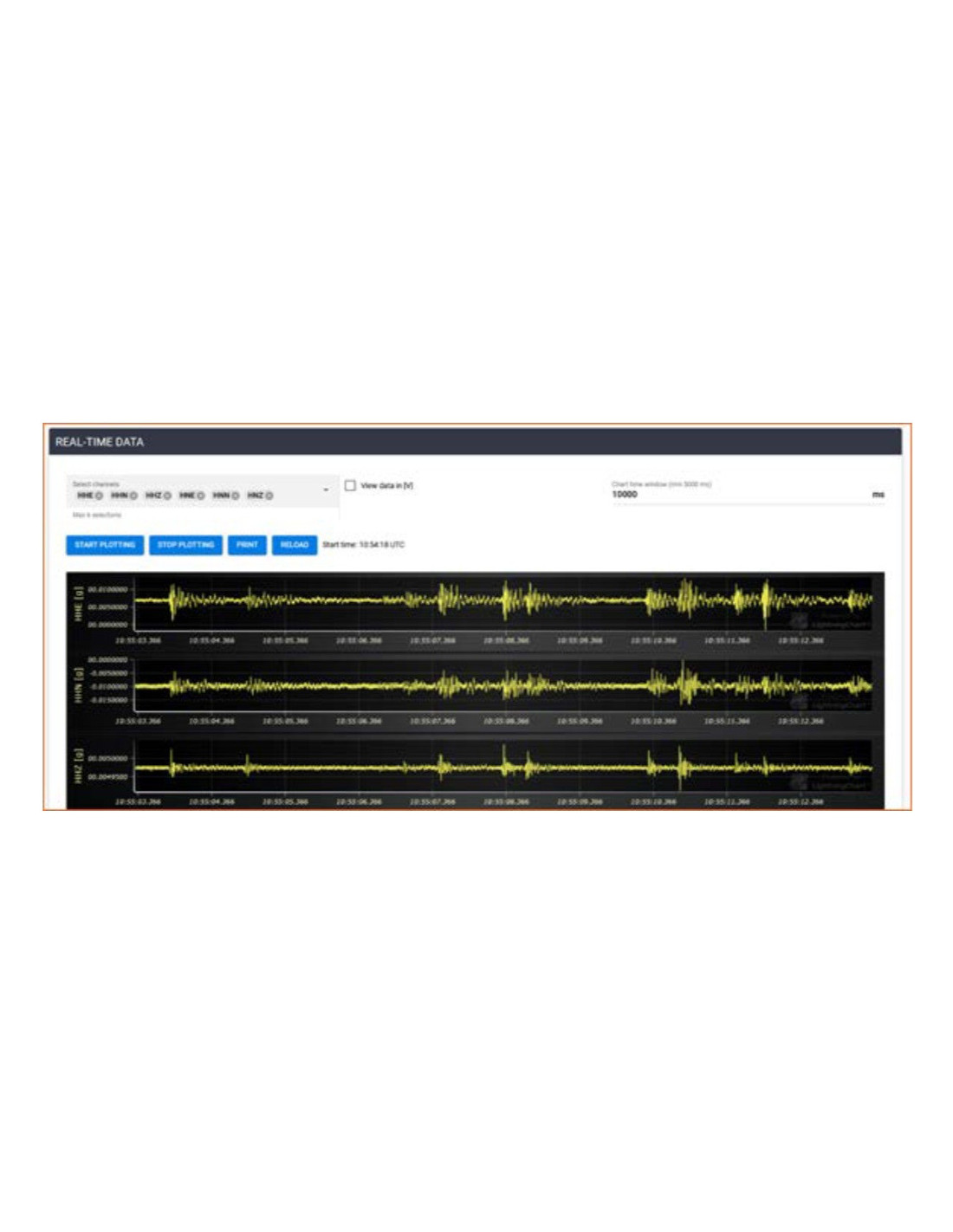

The unit combines a 6-channel acquisition module with 32-bit A/D conversion, internal microSD storage and communication features that allow it to operate as a digital recorder for microseismic and accelerometric signals. Configuration is handled through an integrated web interface compatible with standard browsers.

The official source highlights continuous recording with the SeedLink protocol, event recording when configurable thresholds are exceeded, signal statistics logging and options such as an internal GNSS receiver, MIL analog input connectors, PoE power and WiFi connectivity.

Type	6-channel digital seismic and accelerometric acquisition system.
Resolution	Independent 32-bit A/D module per channel, with oversampling and integrated anti-aliasing filter.
Inputs	6 analog sensor inputs; analog inputs with MIL connectors as an optional configuration.
Sampling rate	10, 25, 50, 100, 200, 250, 500 and 1000 samples per second.
Input level	20 Vpp, +/-10 V differential input.
Input resolution	32 bit, 4.6 nV LSB at 20 Vpp with gain 1.
Frequency response	DC up to 125 Hz.
Dynamic range	142 dB at 100 sps, peak value / RMS noise.
Programmable gain	1, 2, 4 and 8.
Recording	Continuous recording with SeedLink protocol and event recording when configurable thresholds are exceeded.
Events	Threshold level and/or STA/LTA triggering, selectable HP filter for each channel and selectable pre/post-trigger length.
Statistics	Min, max, average and RMS signal statistics with selectable intervals from 10 to 100 s.
Memory	Internal 32 GB microSD for 6 channels, optional up to 128 GB.
Synchronization	Internal oscillator with 0.5 ppm drift and NTP synchronization; simultaneous acquisition on all channels.
GNSS	Optional internal GNSS receiver for time synchronization.
Communications	Ethernet, integrated 4G modem, optional WiFi Access Point/Station connectivity and optional PoE.
Formats	Solgeo EVE, MiniSEED, ASCII and CSV.
Software	Integrated web configurator; optional SeisComP.
Diagnostics	Supply voltage, temperature, sensor test and battery charge level.
Power supply	120/240 VAC battery charger included; possible external 10-15 VDC supply.
Power consumption	3.7 W, sensors excluded.
Enclosure	Painted aluminium.
Environment	Operating temperature -20 °C to +60 °C; humidity 0-100 %.
Dimensions	170 x 200 x 90 mm.
Weight	2.5 kg.
Applications	Vibration monitoring on buildings, OMA modal analysis, SHM and EEW.
