MS-80SH Pyranometer Class A

Key Features:

• <1.4 W Integrated High-Efficiency Dome Heater for dew & frost resistance

• ISO 9060:2018 Class A, Spectrally Flat & Fast Response

• <0.5 s Response Time for accurate irradiance capture

• <1 W/m² Zero Offset A – one of the lowest in the industry

• <0.5% Non-Stability over 5 Years

• Internal Diagnostics: Tilt, Roll, Temperature, and Humidity

• Surge Protection with Level A EMI/EMC Filter

• 5-Year Warranty & 5-Year Recalibration Interval

• ISO 17025 Accredited Calibration

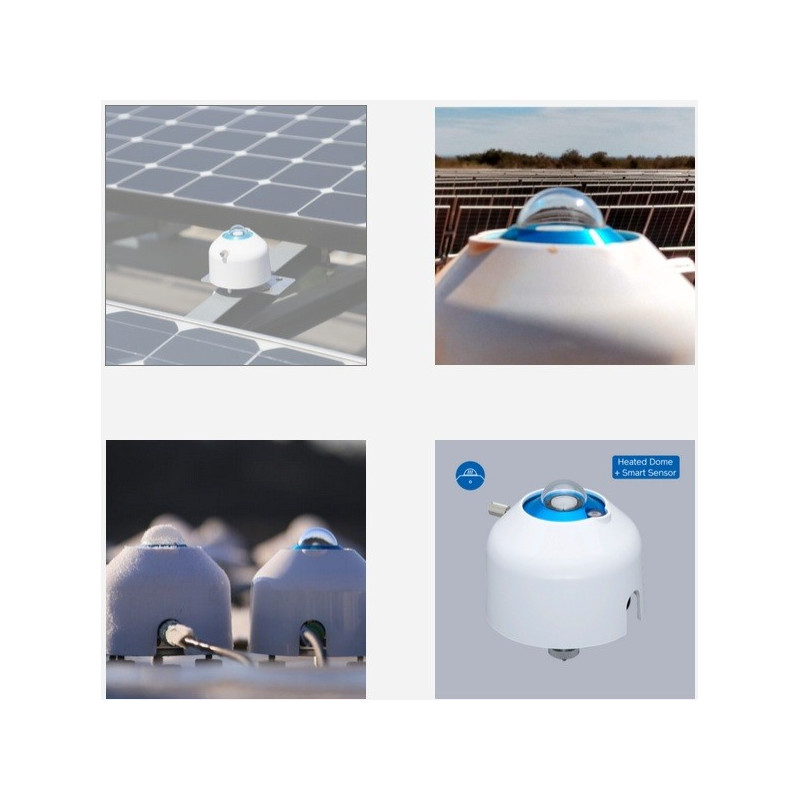

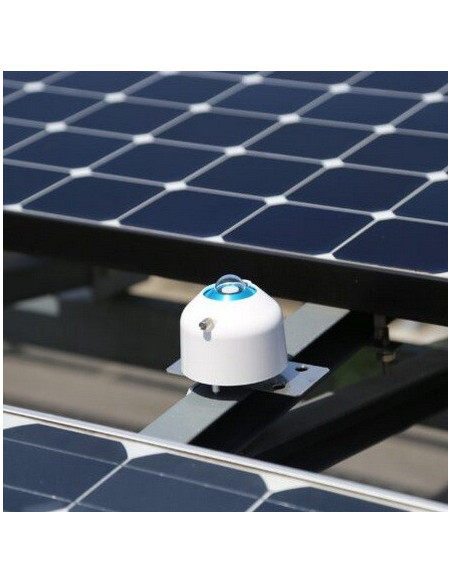

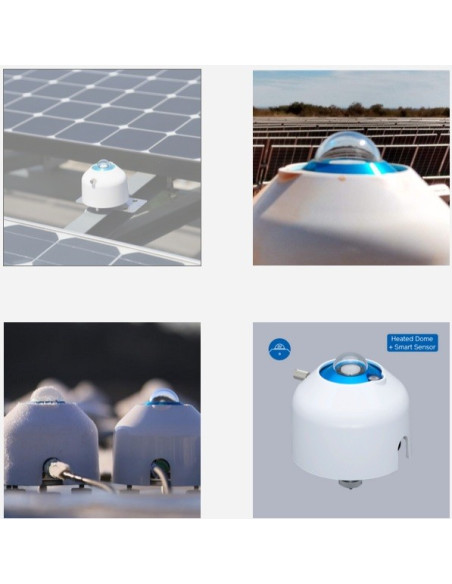

The MS-80SH pyranometer is EKO Instruments’ most advanced Class A solar irradiance sensor, engineered for precision, durability, and long-term field stability. As part of the S-Series family, it delivers ISO 9060:2018 Class A, spectrally flat, and fast-response performance — ideal for PV monitoring, solar resource assessment, and research applications.

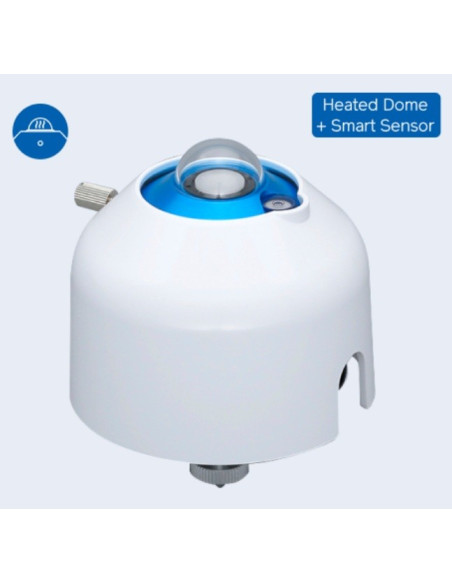

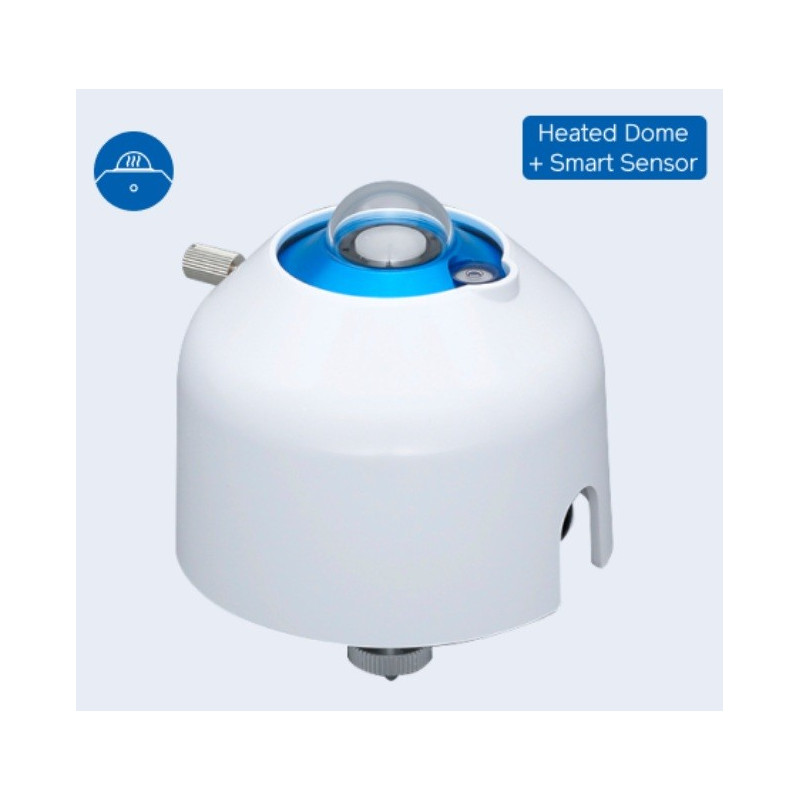

Building on the industry-defining MS-80, the MS-80SH adds Modbus 485 RTU and SDI-12 digital outputs, improving compatibility with modern data loggers and SCADA systems. It features an integrated low-power dome heater (<1.4 W) to prevent dew and frost, enabling consistent data capture in all weather conditions.

The MS-80SH also includes internal diagnostics for temperature, humidity, tilt, and roll — reducing the need for manual inspections and ensuring system integrity in remote or hard-to-access locations. With the lowest zero offset A (<1 W/m²) and <0.5% long-term non-stability, it sets a benchmark for accuracy and reliability.

Every unit is factory calibrated at EKO’s ISO 17025-accredited facility and comes with a 5-year warranty and 5-year recommended recalibration interval, delivering best-in-class value and the lowest total cost of ownership among Class A pyranometers.
