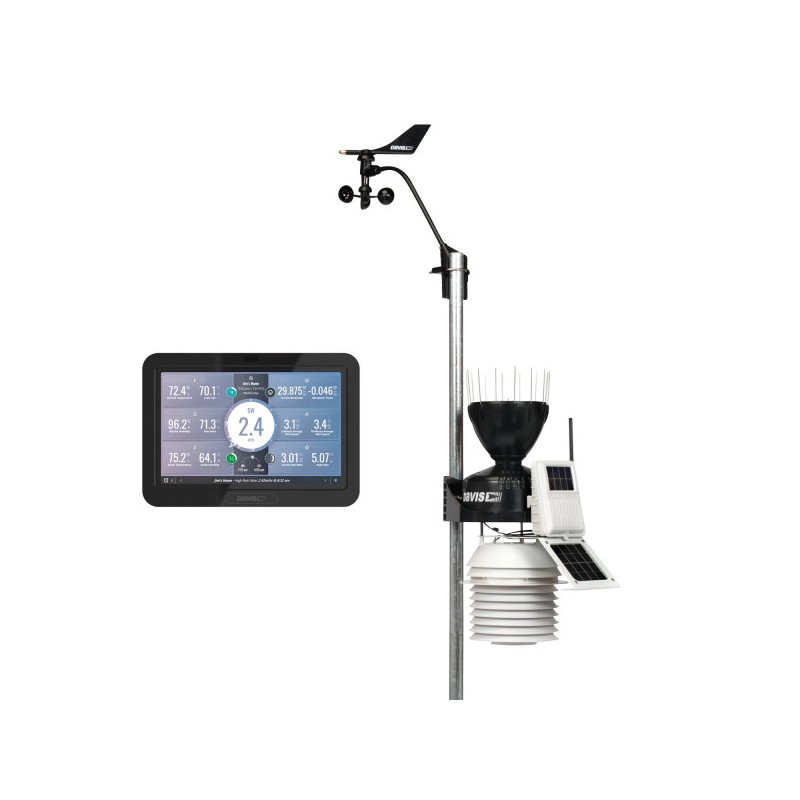

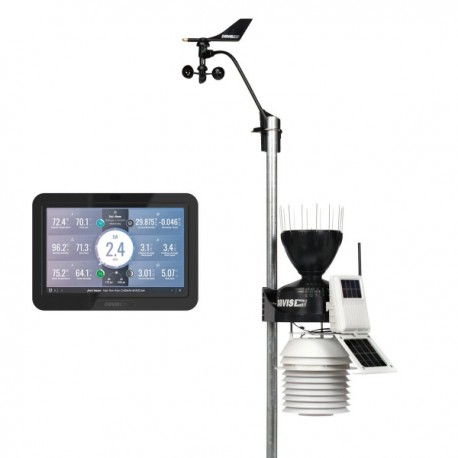

Vantage Pro 2 Plus Wireless Weather Station

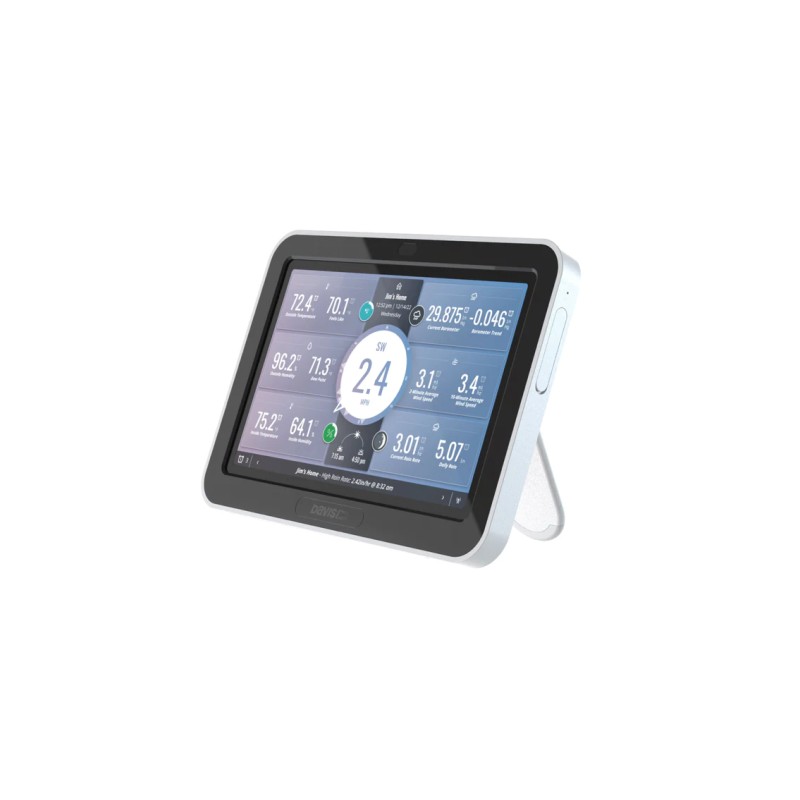

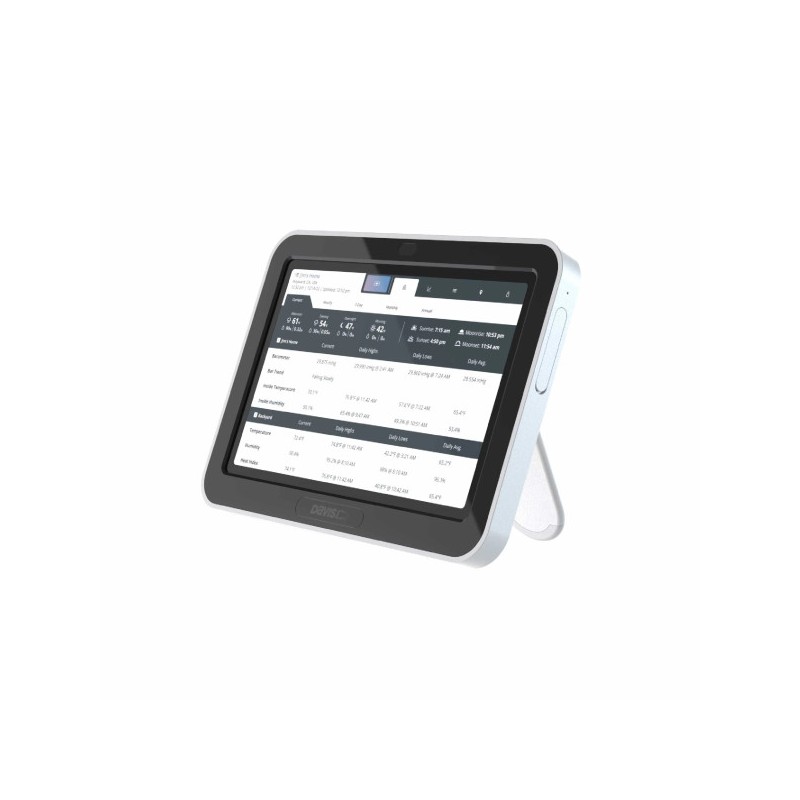

► The WeatherLink console combines all the features of the older Vantage Pro 2 consoles and the non-display WeatherLink Live datalogger. It provides immediate access to all the latest measurements from the weather station (it can also receive data from Airlink or auxiliary temperature stations, for example). It displays graphs and tables for the day, month, and year. Alarms can be set. And much more! It can be connected to a Weatherlink.com account to export data to the Weatherlink cloud.

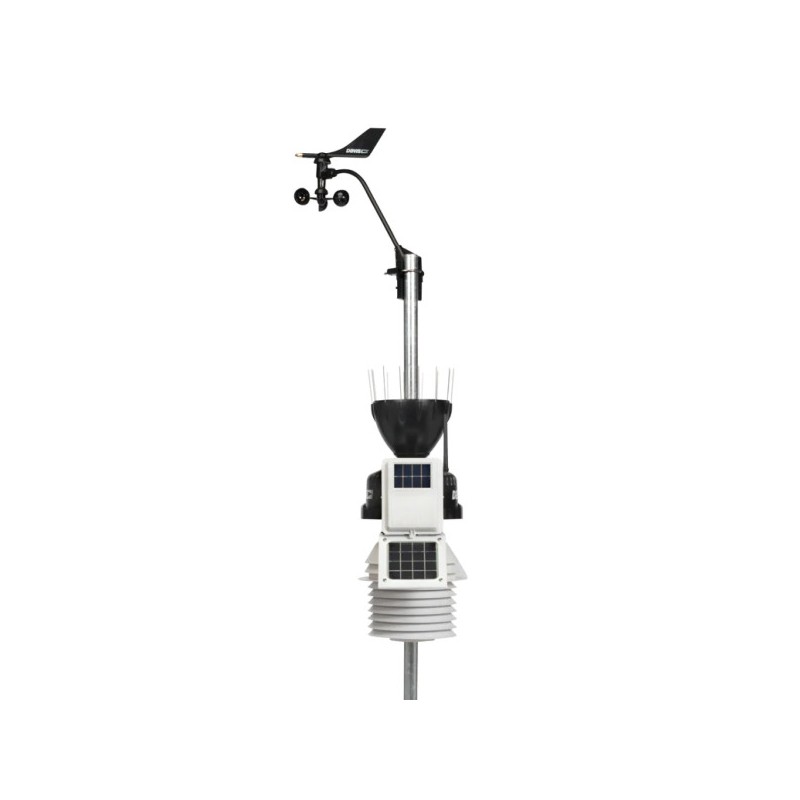

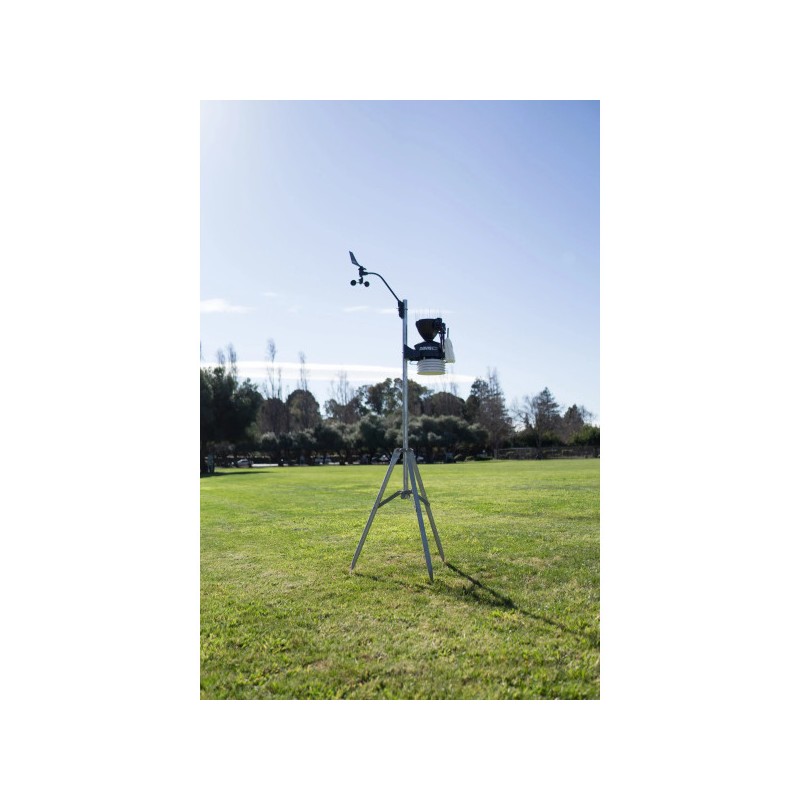

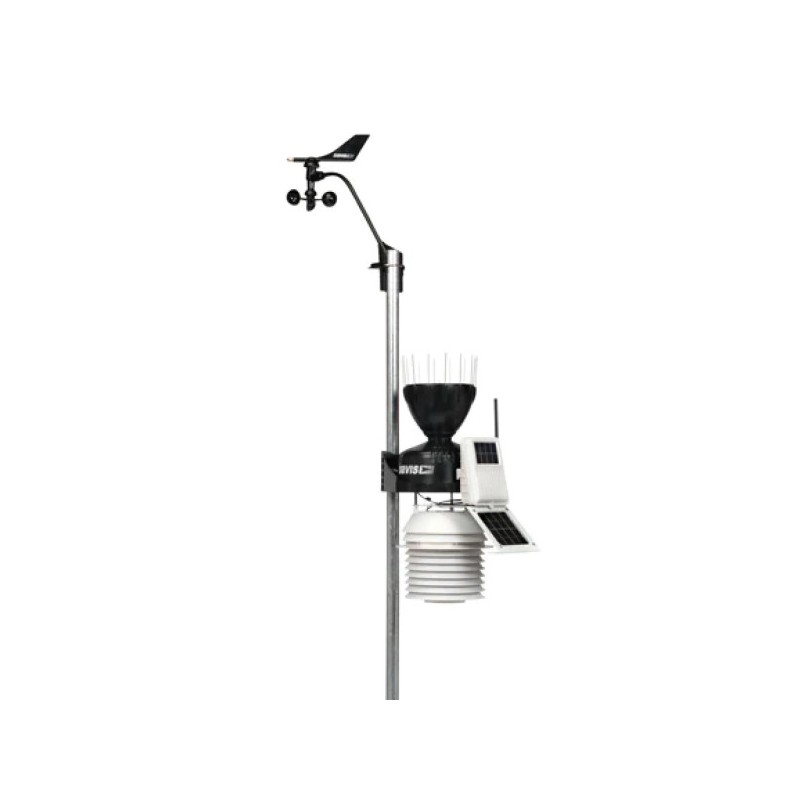

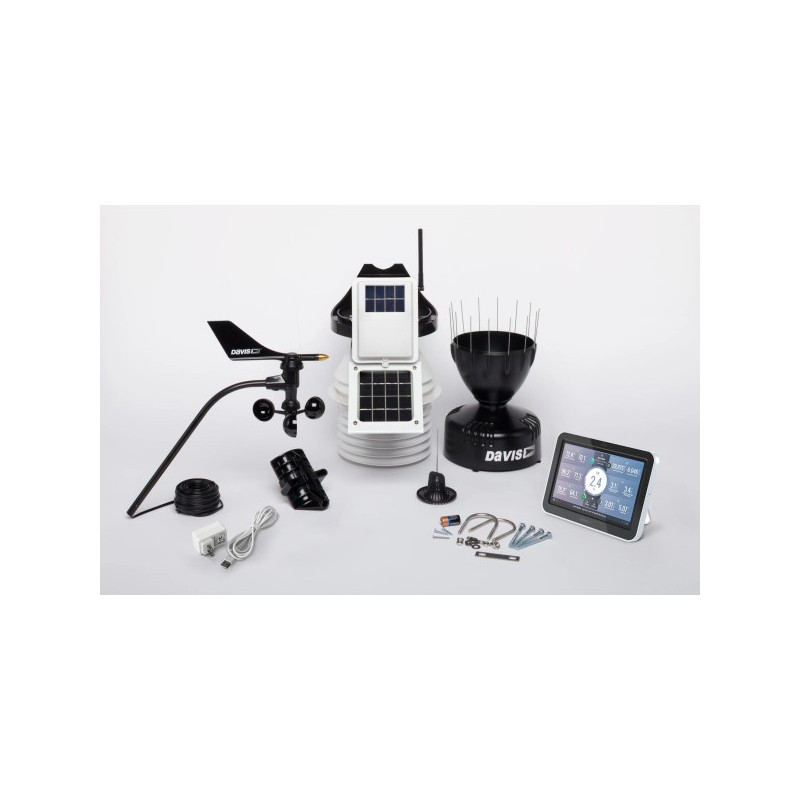

► The ISS is very robust and can be mounted on a pole or wooden post. A dual sensor is mounted on a standard radiation (solar) shelter to measure outdoor temperature and humidity. The rain gauge is equipped with a tipping bucket system to measure precipitation. The wind vane anemometer can be detached from the ISS and mounted on a roof, for example, using its 12-meter cable. The ISS is equipped with a UV probe to measure the UV index and a pyranometer to measure solar radiation and potential evapotranspiration (used in agriculture).

► The 6327OV sensor array is used in this complete 6262EU weather station. Other models are available with the Vantage Vue or Vantage Pro 2 sensor arrays (without the UV sensor and pyranometer).
Connect up to 8 weather stations simultaneously

► Another highly anticipated new feature, WeatherLink Wi-Fi offers the ability to receive data from up to 8 transmitters simultaneously (8 Vantage Pro 2 or Vantage Vue sensor arrays, or 8 transmitters with a selection of sensors, etc.). While previously only the anemometer could be remotely controlled from the sensor array, all sensors can now be remotely controlled independently. With the 6332OV transmitter (e.g., remote anemometer) or the 6331EU transmitter (powered version), you can increase the number of measurement points to 8. Also note that it is possible to transmit up to 8 6345OV agricultural auxiliary stations. In any case, you can have a maximum of 8 measurement points.

► Radio transmitters:
● 6332OV solar-powered transmitter (e.g., remote anemometer)
● 6331EU AC-powered transmitter
● 6345OV agricultural auxiliary station transmitter

► A weather purchasing service: MétéoData

● To meet the demands of our private and professional customers, we have developed a complementary data query platform for weatherlink.com: MétéoData. It allows you to store unlimited files from your weather station and export them in spreadsheet format.

● A WeatherLink.com Pro or Pro+ subscription is not required to archive your data. However, in the event of an internet outage and no data communication on weatherlink.com, we can only complete your file for Pro or Pro+ subscription holders.

● Registration on our platform is free by default. Professionals have a subscription to access decision-support tools and customized reports.

● Dimensions: 445 x 264 x 406 mm
● Weight: 5.4 kg
● Warranty: 2 years
● Radio Frequency: 868.0 - 868.6 MHz FHSS, below 8 mW
● Radio Range: 300 m visual, 60 to 120 m with obstacles

► Wind
● Measurement Units: mph, km/h, m/s, Node
● Resolution: 1 mph, 1 km/h, 0.5 m/s, or 1 node
● Accuracy: ±3 km/h
● Measurement Range: 3 to 290 km/h
● Measurement Frequency: 2.5 to 3 seconds
● Wiring: 12 m long, maximum recommended 165 m
● Measurement Principle: Wind Cubes, Hall Effect Sensor

► Wind Direction
● Resolution: 16 Points (22.5°) on the compass rose, 1° digital display
● Accuracy: ±3°
● Measuring range: 0 to 360°
● Measuring frequency: 2.5 to 3 seconds
● Measuring principle: Vane with potentiometer

► Atmospheric pressure
● Measuring units: in Hg, mm Hg, hPa/mb
● Resolution: 0.01 in Hg, 0.1 mm Hg, 0.1 hPa/mb
● Accuracy: ±1.0 hPa
● Measuring range: 540 to 1100 hPa
● Measuring frequency: 1 minute

► UV index
● Resolution: 0.1
● Accuracy: ±5% of full scale
● Measuring range: 0 to 16 index
● Measuring frequency: 50 seconds to 1 minute (5 minutes when set to (dark)
● Drift: up to ±2% per year

► Outdoor Temperature
● Measuring Units: °C or °F
● Resolution: 0.1
● Accuracy: ±0.3°C
● Measuring Range: -40°C to 65°C
● Measuring Frequency: 10 seconds
● Measuring Principle: Silicon PN Junction Diode

► Windchill Temperature
● Resolution: 1
● Accuracy: ±1
● Measuring Frequency: 10 seconds
● Measuring Principle: Calculation, Osczevski's formula (1995)

► Indoor Temperature
● Measuring Units: °C or °F
● Resolution: 0.1
● Accuracy: ±0.2°C
● Measuring Range: 0 to 50°C
● Measuring Frequency: 1 minute

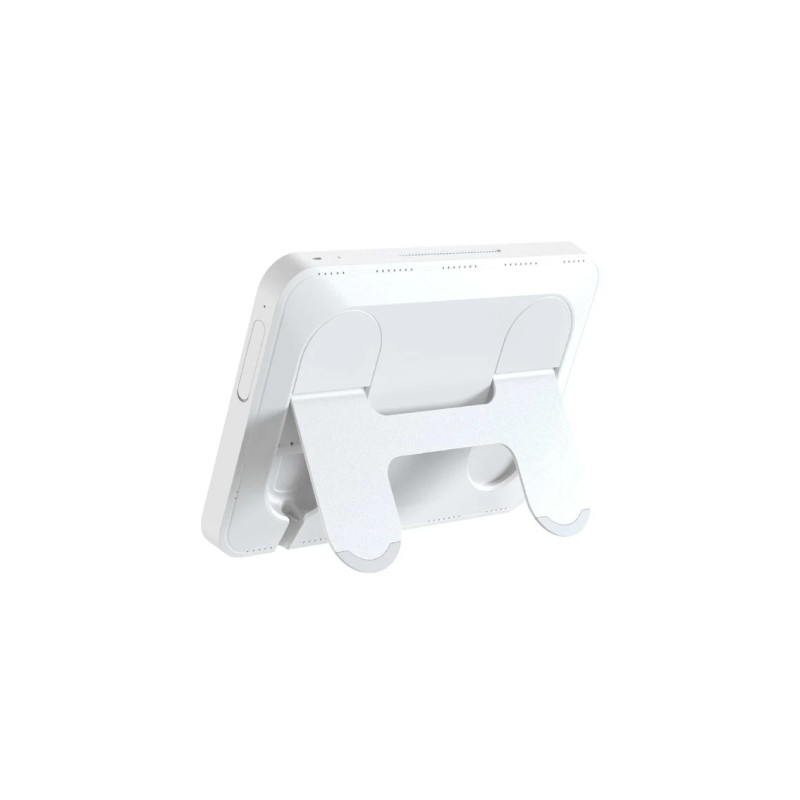

► Console
● Measurement: Temperature; Humidity; Atmospheric Pressure
● Power: AC adapter, 5V DC, 2000mA
● Dimensions: 210mm x 152mm x 19mm
● Weight: 0.501kg
● Power Autonomy: Less than 1 day
● Operating Temperature: 0 to 50°C
● Current Consumption: 2A max
● Emergency Power Supply: Lithium Polymer
● Display: Touch-sensitive LED

► Integrated Sensor Array (ISS)
● Composition: UV-resistant ABS and ASA plastics
● Measurement: Temperature; Humidity; Wind Speed; Wind Direction; Rain; UV; Solar Radiation; Perceived Temperature; Wind gusts
● Power: Solar panel, 10F rechargeable battery, backup battery
● Power autonomy: 8 months without sunlight, more than 2 years depending on sunlight
● Operating temperature: -40 to 65°C
● Current consumption: 5 mA (average) from 4 to 6 V DC for ISS only. 10 mA average between the console and the ISS
● Emergency power supply: 3 V CR123 lithium battery (not included)

► UV radiation dose
● Measurement units: MEDs
● Resolution: 0.1 MEDs to 19.9 MEDs, every 1 MED above 19.9 MEDS
● Accuracy: ±5% for the daily total
● Measurement frequency: 50 seconds
● Drift: up to ±2% per year

► Outdoor humidity
● Measurement units: % RH
● Resolution: 1%
● Accuracy: ±2%
● Measurement range: 1 to 100% RH
● Measurement frequency: 50 seconds
● Measurement principle: Film capacitor
● Drift: less than 0.25% per year

► Solar radiation
● Measurement units: W/m²
● Resolution: 1 W/m²
● Accuracy: ±5% of full scale
● Measuring range: 0 to 1800 W/m²
● Drift: Up to ±2% per year

► Cloud WeatherLink (weatherlink.com)

► Access to real-time data does not require a subscription. Access to your archive of charts and graphs on weatherlink.com requires a Pro or Pro+ subscription.

► Basic Subscription:

● Real-time data, daily extremes, daily, monthly, and yearly totals
● Dashboard with gauges, graphs, and a wind rose
● WeatherLink mobile app for Android and iOS.
● Data broadcast to third-party sites or apps (via API) every 15 minutes
● NOTE: Archived charts and graphs are not available with this offer.

► Pro Subscription:

● Same as the Basic subscription
● Archive table
● Customizable charts
● Up to 5-minute archiving intervals
● Shared file access with up to 6 other users
● Access to the Mobilize application: OADs (Decision Support Tools for Agriculture: Irrigation, Frost, Plant Growth)
● Data dissemination to third-party sites or applications (via API) every 5 minutes

► Pro+ Subscription:

● Same as the Pro+ subscription
● Up to 1-minute archiving intervals
● Shared file access with up to 10 other users
● Access to additional OADs on plant diseases and pest risks
● Data dissemination to third-party sites or applications (via API) every 1 minute
