6263
New

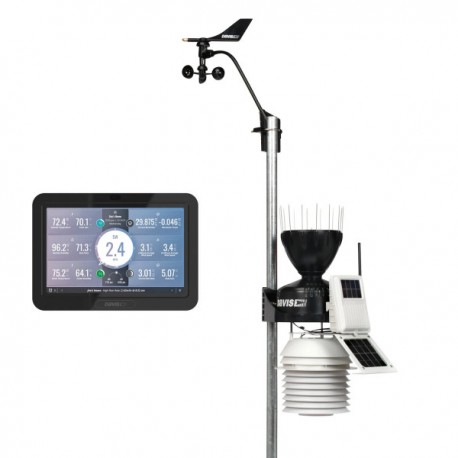

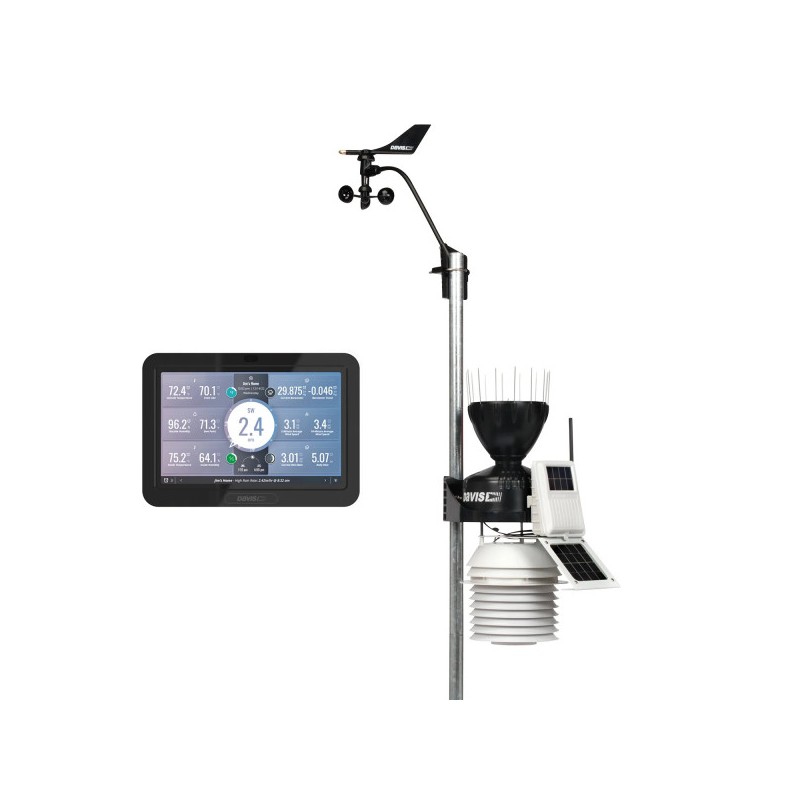

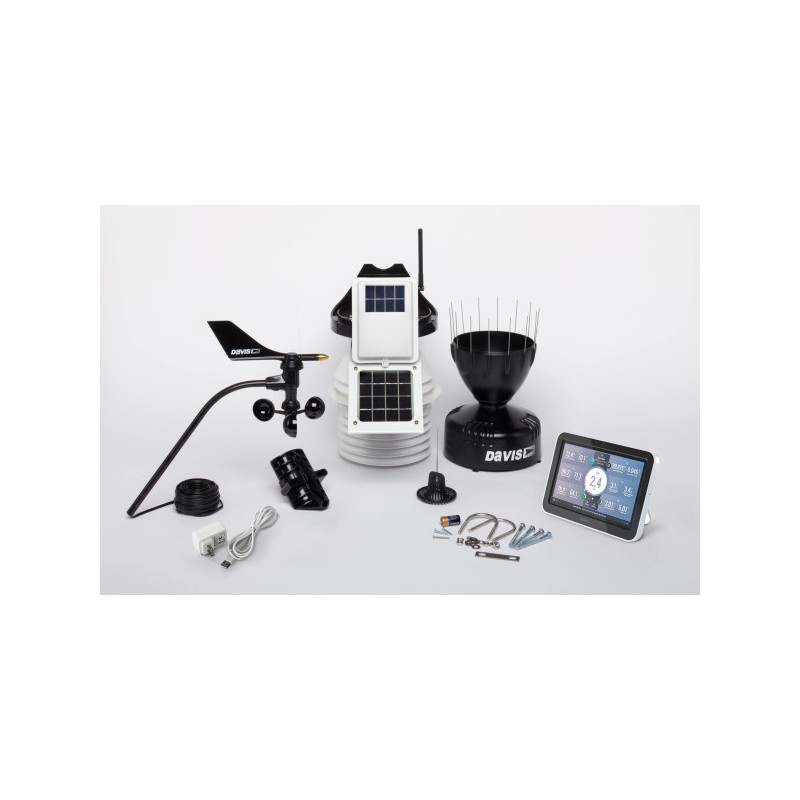

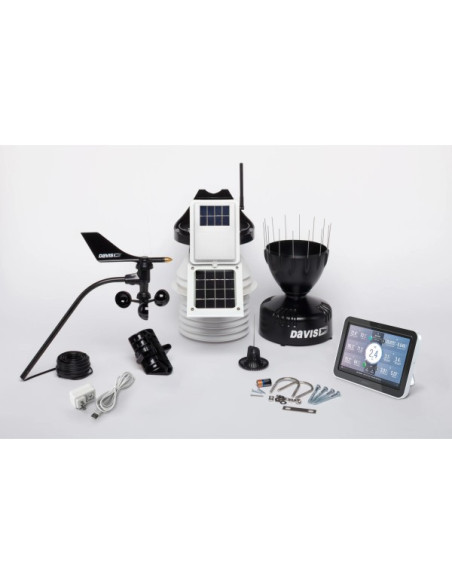

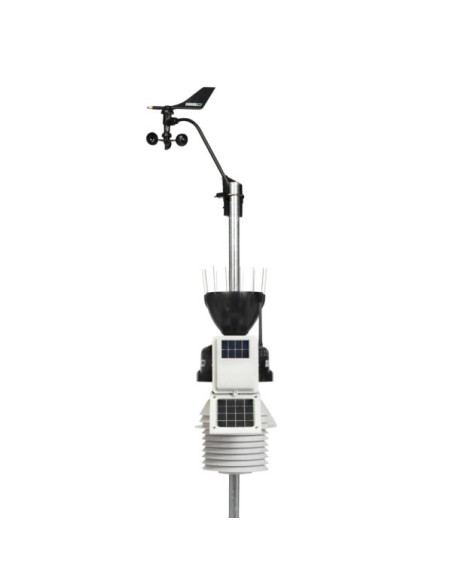

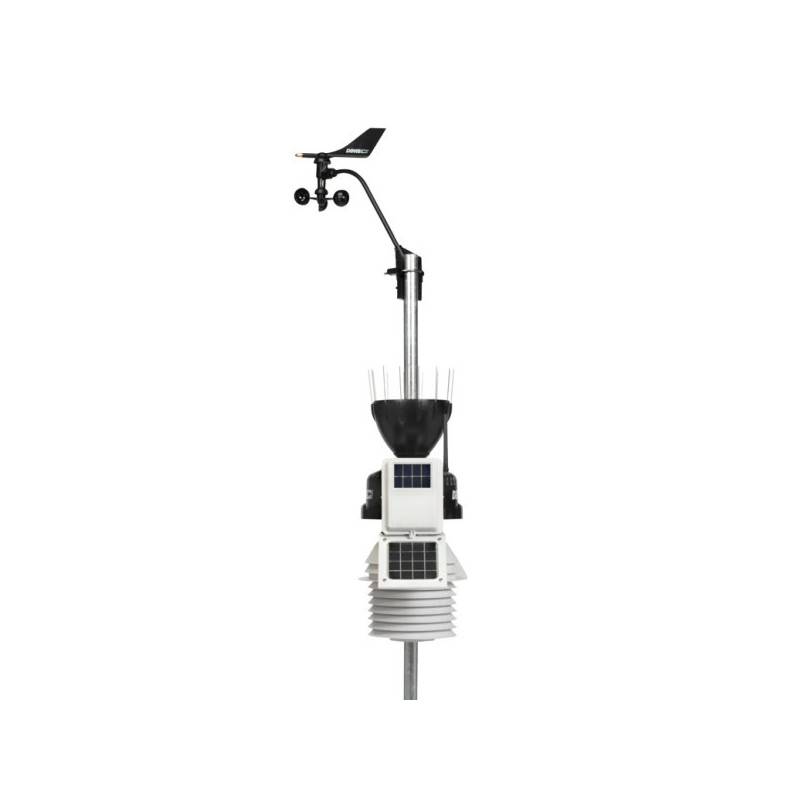

◆ Davis Instruments 6263EU Vantage Pro 2 Plus Professional Weather Station with 24-hour fan-drawn radiation shield.

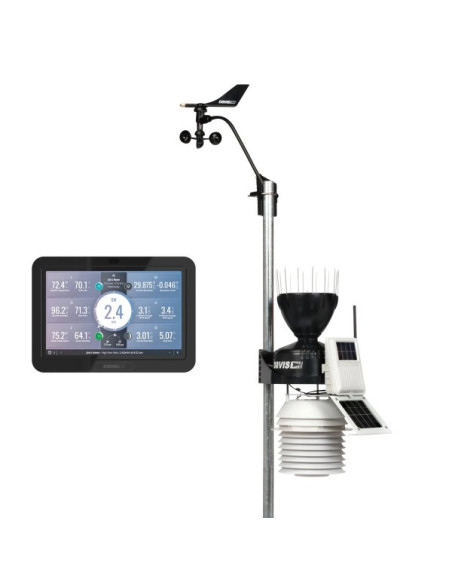

◆ This is the new wireless version of the Vantage Pro 2 stations, combined with the console connected to the Weatherlink touchscreen.
◆ Model with 24-hour fan-drawn radiation shield and solar probes (pyranometer and UV probe). The pyranometer also calculates evapotranspiration (ETP).
This product is no longer in stock
Availability date:

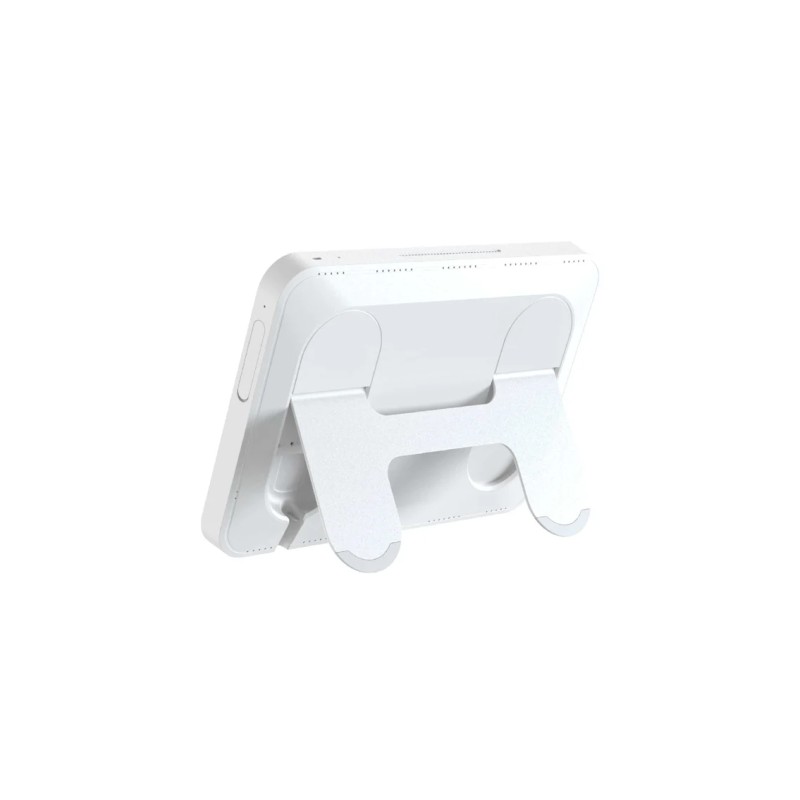

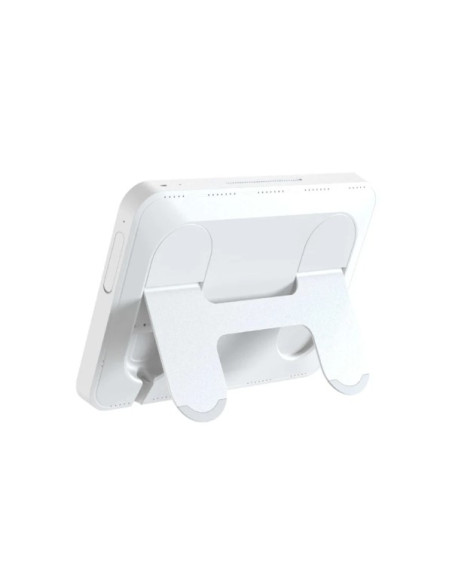

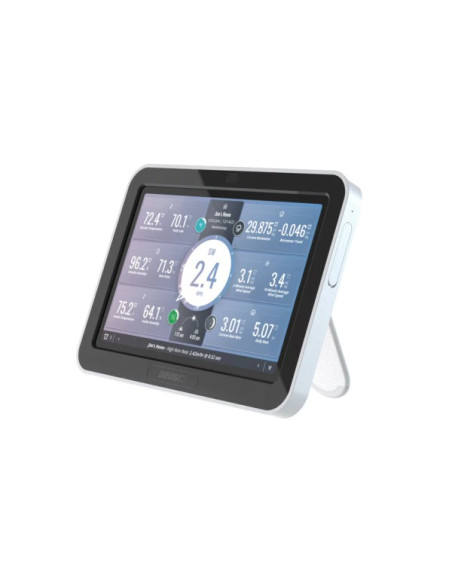

► The connection between the outdoor sensors (ISS) and the console is via radio waves on the 868.0-868.6 MHz frequency with a range of up to 300 meters. The console is equipped with a large touchscreen and can be wall-mounted or placed on a table or shelf.

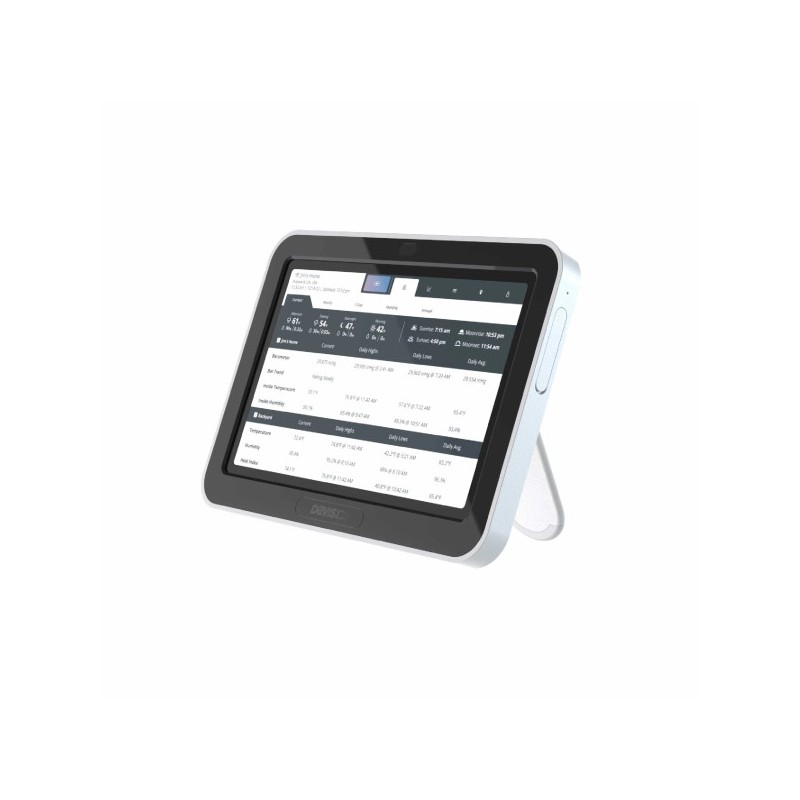

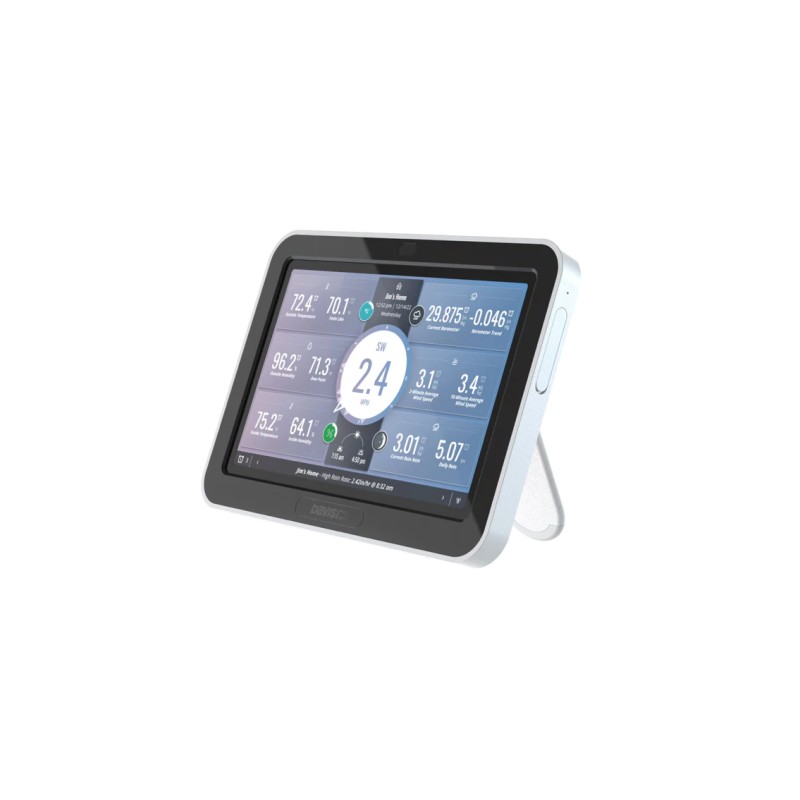

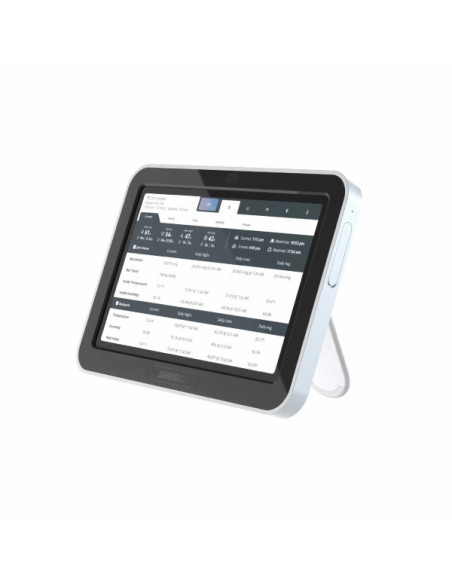

► The WeatherLink console combines all the features of the older Vantage Pro 2 consoles and the non-display WeatherLink Live datalogger. It provides immediate access to all the latest measurements from the weather station (it can also receive data from Airlink or auxiliary temperature stations, for example). It displays graphs and tables for the day, month, and year. It allows you to set alarms. And much more! It can be connected to a Weatherlink.com account to export data to the Weatherlink cloud.

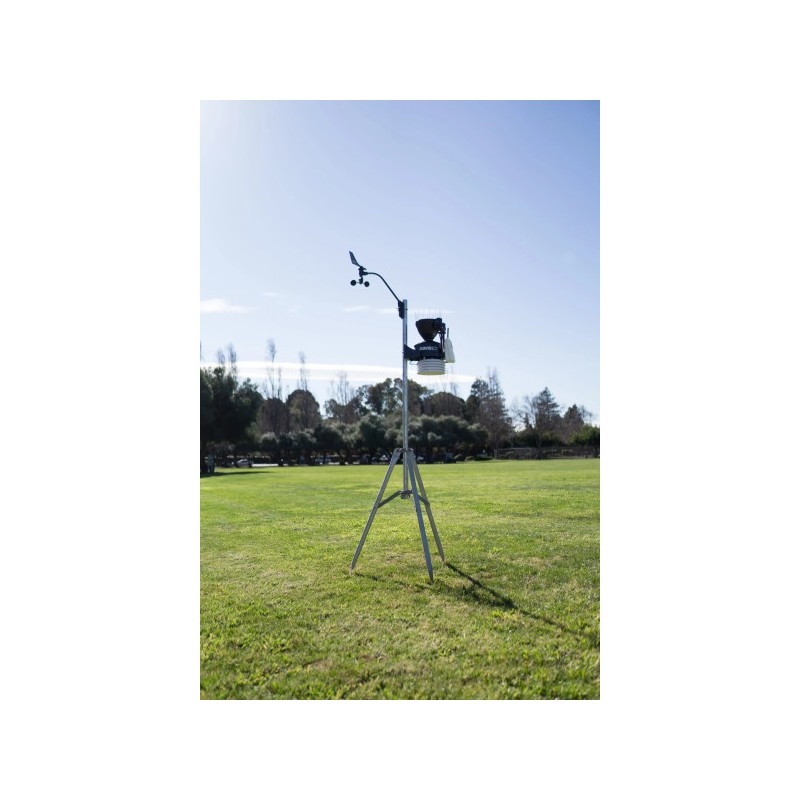

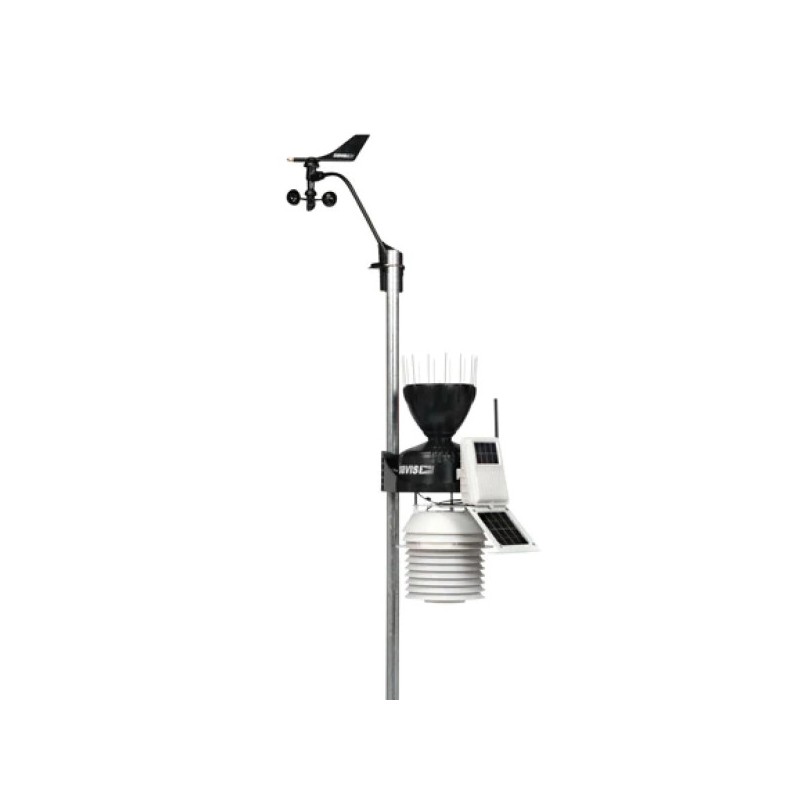

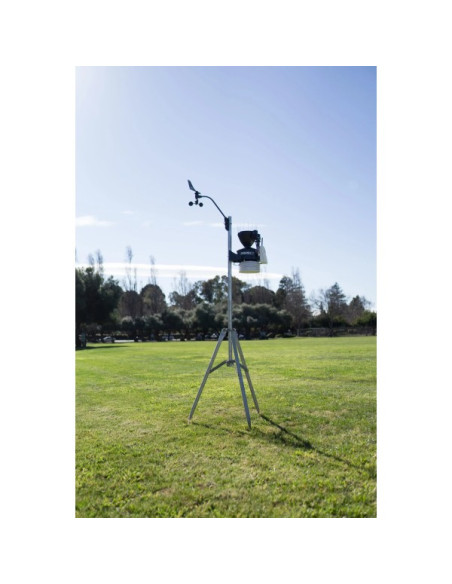

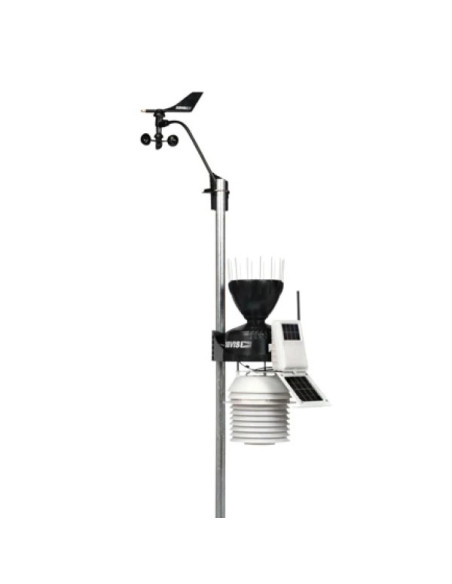

► The ISS is very robust and can be installed on a mast (pipe) or a wooden post. A dual sensor is mounted on a standard radiation (solar) shelter to measure outdoor temperature and humidity. This model is equipped with a 24-hour fan that continuously renews the air inside the shelter. The rain gauge uses a tipping bucket system to measure precipitation. The wind vane anemometer can be detached from the ISS and installed on a roof, for example, using its 12-meter cable. The ISS is equipped with a UV probe to measure the UV index and a pyranometer to measure solar radiation and potential evapotranspiration (used in agriculture).
► The 6328OV sensor array is used in this 6263EU complete weather station. Other models are available with the Vantage Vue or Vantage Pro 2 Plus sensor arrays (without the UV sensor and pyranometer).
Connect up to 8 weather stations simultaneously
► Another highly anticipated new feature, WeatherLink Wi-Fi offers you the ability to receive data from up to 8 transmitters simultaneously (8 Vantage Pro 2 or Vantage Vue sensor arrays, or 8 transmitters with a selection of sensors, etc.). While previously it was only possible to remotely control the anemometer from the sensor array, now all sensors can be remotely controlled independently. With the 6332OV transmitter (e.g., remote anemometer) or the 6331EU transmitter (powered version), you can multiply the number of measurement points up to 8. Also note that it is possible to transmit up to 8 6345OV agricultural auxiliary stations. In either case, you can have a maximum of 8 measurement points.
► Radio Transmitters:
● 6332OV Solar-Powered Transmitter (e.g., remote anemometer)
● 6331EU AC-Powered Transmitter
● 6345OV Agricultural Auxiliary Station Transmitter
● A Weather Purchasing Service: MétéoData
● To meet the demands of our private and professional customers, we have developed a complementary data query platform for weatherlink.com: MétéoData. It allows you to store your weather station files unlimitedly and export them in spreadsheet format.
● A WeatherLink.com Pro or Pro+ subscription is not required to archive your data. However, in the event of an internet outage and the absence of data communication on weatherlink.com, we can only complete your archive for Pro or Pro+ subscription holders.
● Registration on our platform is free by default. Professionals have a subscription to access decision-support tools and customized reports.
● Dimensions: 378 mm x 327 mm x 594 mm
● Weight: 7.9 kg
● Warranty: 2 years
● Radio Frequency: 868.0 - 868.6 MHz FHSS, below 8 mW
● Radio Range: 300 m visual, 60 to 120 m with obstacles
► Wind
● Measurement Units: mph, km/h, m/s, Node
● Resolution: 1 mph, 1 km/h, 0.5 m/s, or 1 node
● Accuracy: ±3 km/h
● Measurement Range: 3 to 290 km/h
● Measurement Frequency: 2.5 to 3 seconds
● Wiring: 12 m long, maximum recommended 165 m
● Measurement Principle: Wind Cubes, Hall Effect Sensor
► Wind Direction
● Resolution: 16 points (22.5°) on the compass rose, 1° digital display
● Accuracy: ±3°
● Measuring range: 0 to 360°
● Measuring frequency: 2.5 to 3 seconds
● Measuring principle: Vane with potentiometer
► Atmospheric pressure
● Measuring units: in Hg, mm Hg, hPa/mb
● Resolution: 0.01 in Hg, 0.1 mm Hg, 0.1 hPa/mb
● Accuracy: ±1.0 hPa
● Measuring range: 540 to 1100 hPa
● Measuring frequency: 1 minute
► UV index
● Resolution: 0.1
● Accuracy: ±5% of full scale
● Measuring range: 0 to 16 index
● Measuring frequency: 50 seconds to 1 minute (5 minutes when set to (dark)
● Drift: up to ±2% per year
► Outdoor Temperature
● Measuring Units: °C or °F
● Resolution: 0.1
● Accuracy: ±0.3°C
● Measuring Range: -40°C to 65°C
● Measuring Frequency: 10 seconds
● Measuring Principle: Silicon PN Junction Diode
► Windchill Temperature
● Resolution: 1
● Accuracy: ±1
● Measuring Frequency: 10 seconds
● Measuring Principle: Calculation, Osczevski's formula (1995)
► Indoor Temperature
● Measuring Units: °C or °F
● Resolution: 0.1
● Accuracy: ±0.2°C
● Measuring Range: 0 to 50°C
● Measuring Frequency: 1 minute
► Console
● Measurement: Temperature; Humidity; Atmospheric Pressure
● Power: AC adapter, 5V DC, 2000mA
● Dimensions: 210mm x 152mm x 19mm
● Weight: 0.501kg
● Power Autonomy: Less than 1 day
● Operating Temperature: 0 to 50°C
● Current Consumption: 2A max
● Emergency Power Supply: Lithium Polymer
● Display: Touch-sensitive LED
► Integrated Sensor Array (ISS)
● Composition: UV-resistant ABS and ASA plastics
● Measurement: Wind gusts; Temperature; Humidity; Wind speed; Wind direction; Rain; UV; Solar radiation; Sensed Temperature
● Power: Solar panel, 10F rechargeable battery, backup battery
● Power autonomy: 8 months without sunlight, more than 2 years depending on sunlight
● Operating temperature: -40 to 65°C
● Current consumption: 5 mA (average) from 4 to 6 VDC for the ISS only. 10 mA average between the console and the ISS
● Emergency Power Supply: 3 V CR123 lithium battery (not included)
► UV Radiation Dose
● Measurement Units: MEDs
● Resolution: 0.1 MEDs to 19.9 MEDs, every 1 MED above 19.9 MEDS
● Accuracy: ±5% for the daily total
● Measurement Frequency: 50 seconds
● Drift: up to ±2% per year
► Outdoor Humidity
● Measurement Units: % RH
● Resolution: 1%
● Accuracy: ±2%
● Measurement Range: 1 to 100% RH
● Measurement Frequency: 50 seconds
● Measurement Principle: Film Capacitor
● Drift: less than 0.25% per year
► Solar Radiation
● Measurement Units: W/m²
● Resolution: 1 W/m²
● Accuracy: ±5% of full scale
● Measuring range: 0 to 1800 W/m²
● Drift: Up to ±2% per year
► Precipitation
● Measuring units: mm or inches
● Resolution: 0.2 mm or 0.01 in
<span style="font-s
► Cloud WeatherLink (weatherlink.com)
► Access to real-time data does not require a subscription. Access to your archive of charts and graphs on weatherlink.com requires a Pro or Pro+ subscription.
► Basic Subscription:
● Real-time data, daily extremes, daily, monthly, and yearly totals
● Dashboard with gauges, graphs, and a wind rose
● WeatherLink mobile app for Android and iOS.
● Data broadcast to third-party sites or apps (via API) every 15 minutes
● NOTE: Archived charts and graphs are not available with this offer.
► Pro Subscription:
● Same as the Basic subscription
● Archive table
● Customizable charts
● Up to 5-minute archiving intervals
● Shared file access with up to 6 other users
● Access to the Mobilize application: OADs (Decision Support Tools for Agriculture: Irrigation, Frost, Plant Growth)
● Data dissemination to third-party sites or applications (via API) every 5 minutes
► Pro+ Subscription:
● Same as the Pro+ subscription
● Up to 1-minute archiving intervals
● Shared file access with up to 10 other users
● Access to additional OADs on plant diseases and pest risks
● Data dissemination to third-party sites or applications (via API) every 1 minute
