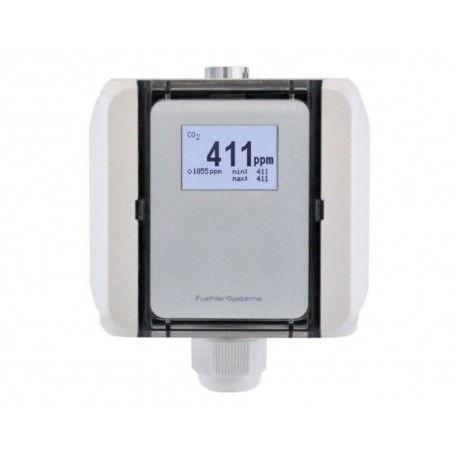

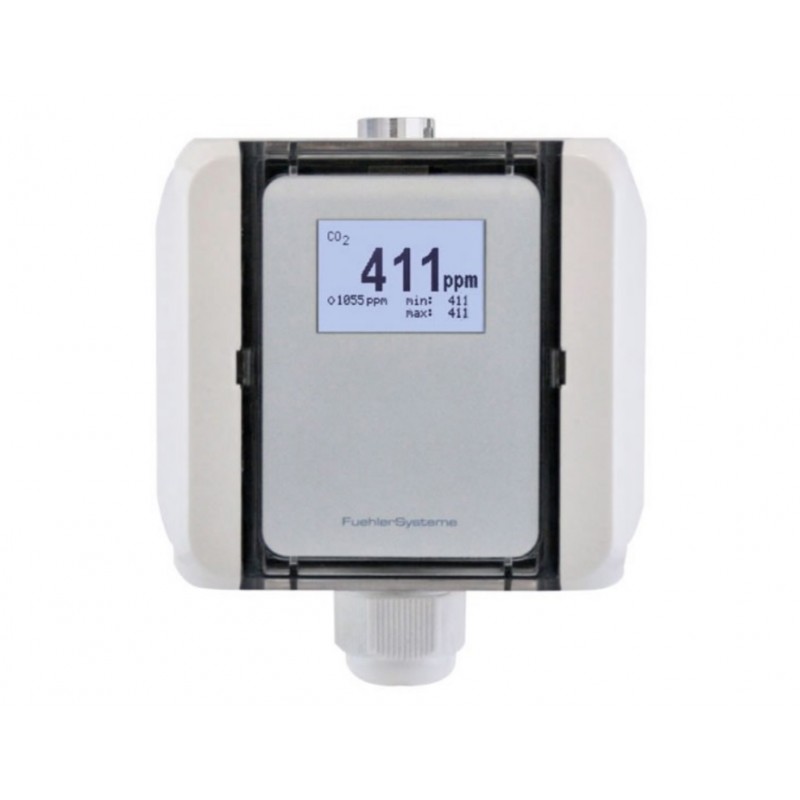

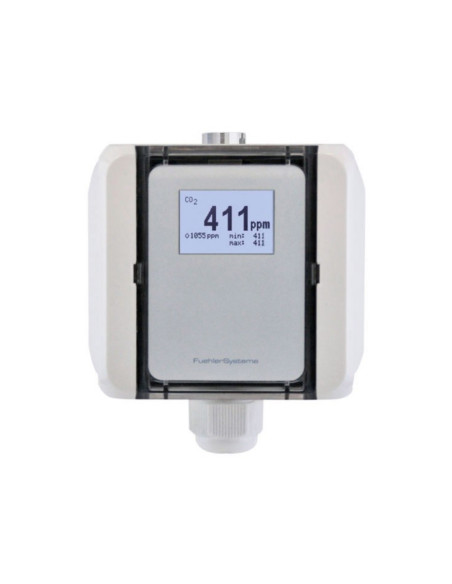

CO2-A/A CO2 air quality sensor with measurement range switch (with/without display)

Reference

Condition: New

◆ The CO2-A / A air quality sensor records the concentration of CO2 in the air around 3 different measuring ranges (0-2000 ppm, 0-5000 ppm, 0-10000 ppm) via an infrared sensor non-dispersive (NDIR) and converts this measured value into a linear 0-10 V or 4-20 mA output signal.
◆ Protection type IP65.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

340,00 €

tax excl.

Quantity

Select Model

Add to wishlist

OVERVIEW
SPECIFICATIONS
order matrix
Download

CO2-A/A Download (813k)

► As an option the air quality sensor has a potential-free changeover contact and a backlit display. The display content can be rotated in 90° steps using a menu and the measured value, the switching threshold set, the state of the relay, the MIN/MAX measured values for the selected intervals (1 h / 6 h / 12 h / 24 h) etc. can be read out.

► 3 different measuring ranges can be selected (0-2000 ppm, 0-5000 ppm, 0-10000 ppm) which can be switched, according to requirements, by the innovative DIP switching technology.

► The zero point balance depending on the actual ambient conditions can be performed on the device by manual calibration. The quality sensor performs an automatic self-calibration at regular interval, thus ensuring a long-term stable CO2 measurement.

Measurement range CO2	0-10000 ppm
Scales	0-2000/5000/10000 ppm
Accuracy	0-2000 ppm: ±50 ppm + 2% f. mv, 0-5000 ppm: ±50 ppm + 3% f. mv, else: ±100 ppm + 5% f. mv (at 20°C, 1013 mbar, auto-calibration ON)
Temperature dependency	CO2: 5 ppm / K
Pressure dependency	CO2: 1,6% f. mv/kPa
Response time (t90)	< 5 min
Long term stability	±1% FS/year
Sensor	Non-dispersiver Infrarot Sensor (NDIR)
Sensor protection	sinter filter
Running-in time	10 min
Supply voltage	24 V AC/DC (±5%)
Current consumption	Ø 100 mA
Analogue output 0-10 V	3-wire connection
Analogue output 4-20 mA	3-wire connection
Alarm output	1 x potential-free change-over contact, 48 V, 1 A
Electrical connection	screw terminals max. 1,5 mm²
Housing	Polycarbonate PC UL 94 V0 with hinge locks, color signal white similar to RAL 9003
Cable gland	PG11 high-strength cable gland with strain relief
Display	optional LCD display with backlight on/off/auto
Dimensions	Housing: L 89 x W 80 x H 47 mm
Protection type	IP65
Protection class	III
Working range r.H.	0...98% r.H. in contaminant-free, non-condensing air
Working temperature	0...+50°C
Storage temperature	-20...+50°C
Initial operation	After switch-on of the device follows a self-test and the tempering, which takes ca. 10 minutes depending on the environmental conditions. At this time the analogue output drifts from the actual measurement value.
Automatic calibration	To ensure an excellent long-term stability, in the interval of 7 days starts an automatic recalibration. This feature can be disabled on the device by DIP switch.
Manual calibration	The manual calibration of the output signal to 400 ppm (zero point) will be started by pushing the button on the circuit board (push ca. 5 s until LED is blinking). Before this it is to ensure a non-stop operating of min. 10 minutes on fresh air. After successful calibration the LED will be deactivated.
Installation	screw fastening
Approvals	CE, EAC, RoHS
