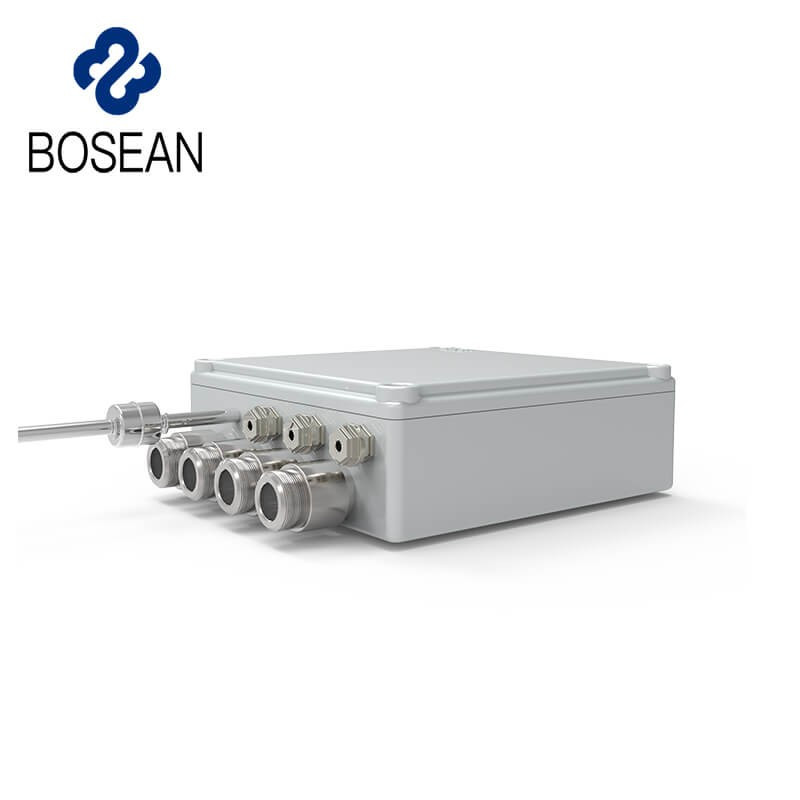

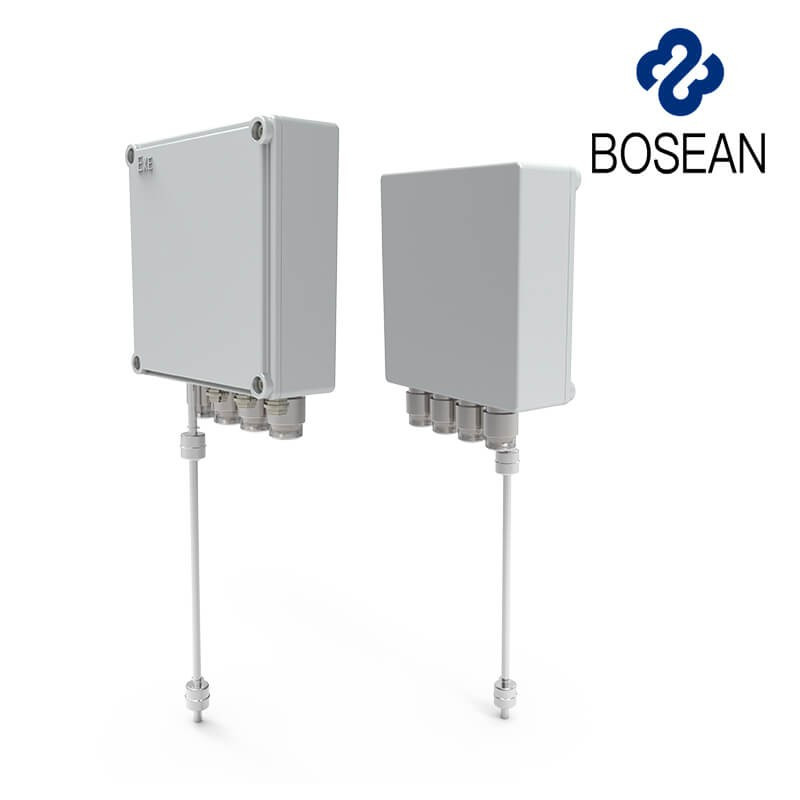

AO-K-G70 Valve Well Multi-function Detection Terminal
Multi-function detection terminal designed for gas valve wells, power cable trenches, rain and sewage wells, tunnels, and underground pipe corridors where 220V AC setup is inconvenient and continuous gas testing is needed.
The AO-K-G70 multi-function detection terminal is widely applicable to city gas valve wells, power cable trenches, rain and sewage wells, tunnels, pipe corridors, etc., in underground environments where it is inconvenient to set up 220V AC and continuous gas testing is needed.
- 17520h enhanced battery lifetime
- Suitable for harsh environments
- GPRS satellite positioning
- Remote wireless data transmission
- Self-test function
- Remote wireless operation
GENERAL FEATURES
| Monitoring Parameters | oxygen (O2), carbon monoxide (CO), hydrogen sulfide (H2S), combustible gas (EX), water level |
|---|---|
| Working time | continuous working for 24 months without external power supply |
| Response time | ≤1min |
| Explosion-proof level | Exdibllbt6 Gb |
| Power Supply | lithium sub-battery |
| Protection level | IP65 |
| Communication Protocol | NB-IoT |
| Dimensions | 23+23*10cm (host) |
| Operating Voltage | 3.6V |
| Host N.W | 3KG |
| Detectable Gas | Measuring Range | Unit | Resolution |
|---|---|---|---|
| EX | 1-100 | %LEL | 1% LEL |
| H2S | 0-100 | PPM | 1 PPM |
| CO | 0-1000 | PPM | 1 PPM |
| O2 | 0.0-30.0 | %VOL | 0.1% VOL |
