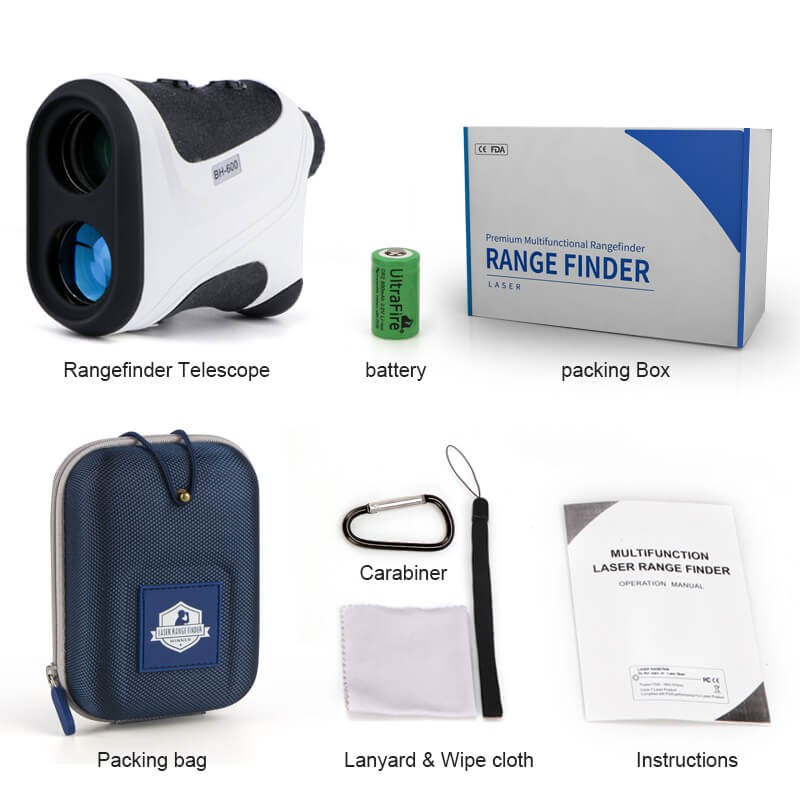

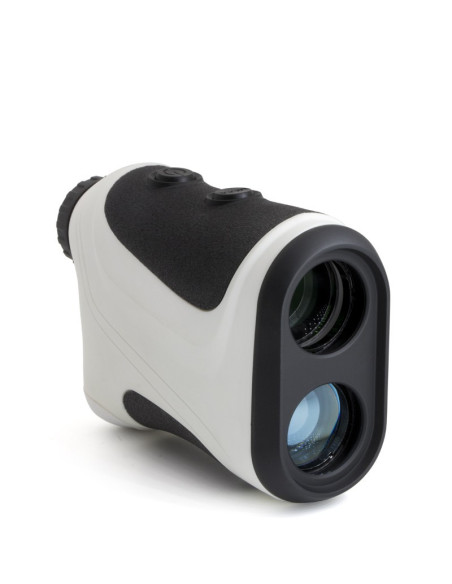

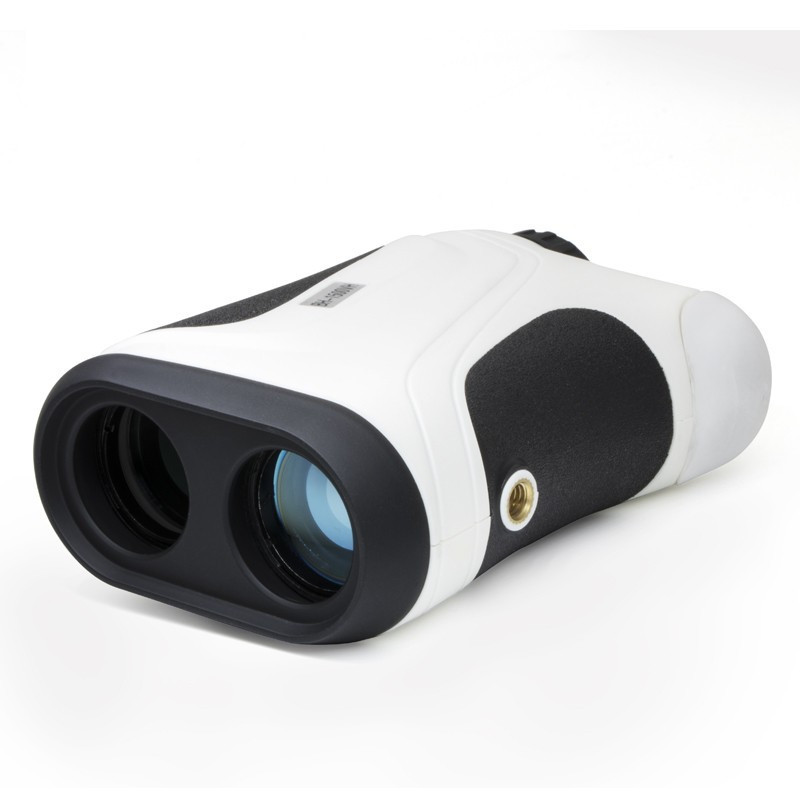

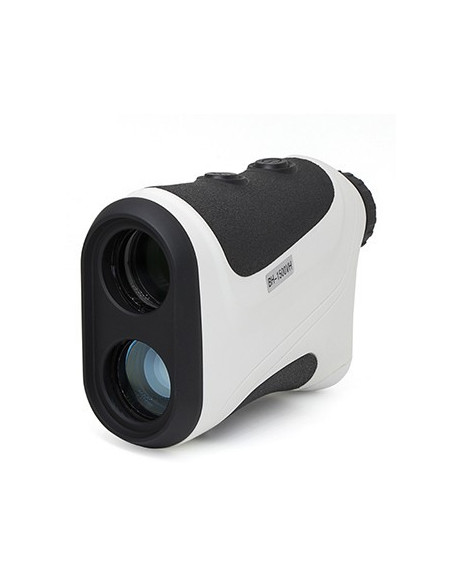

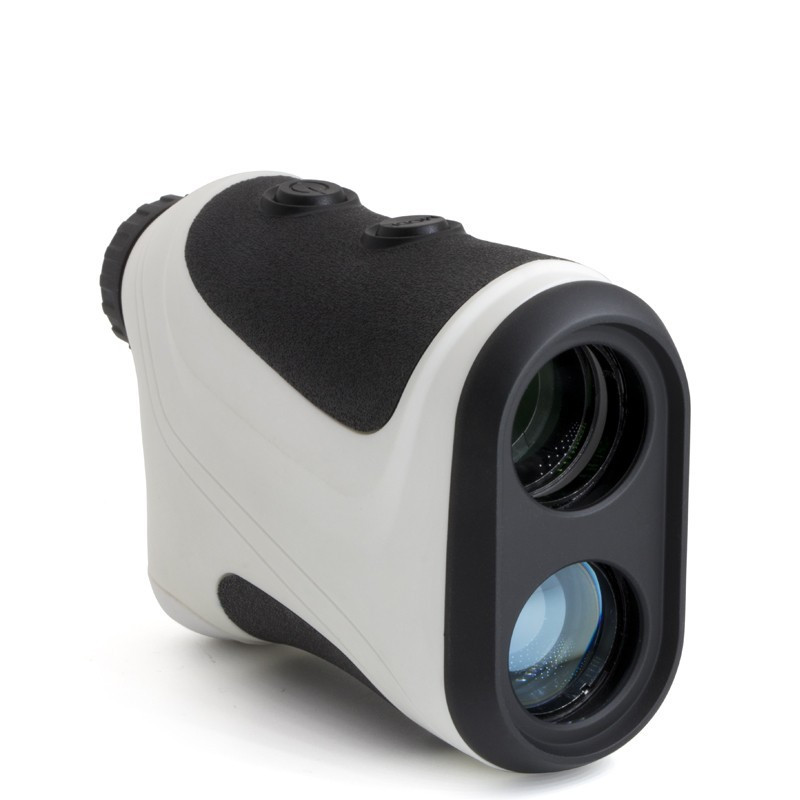

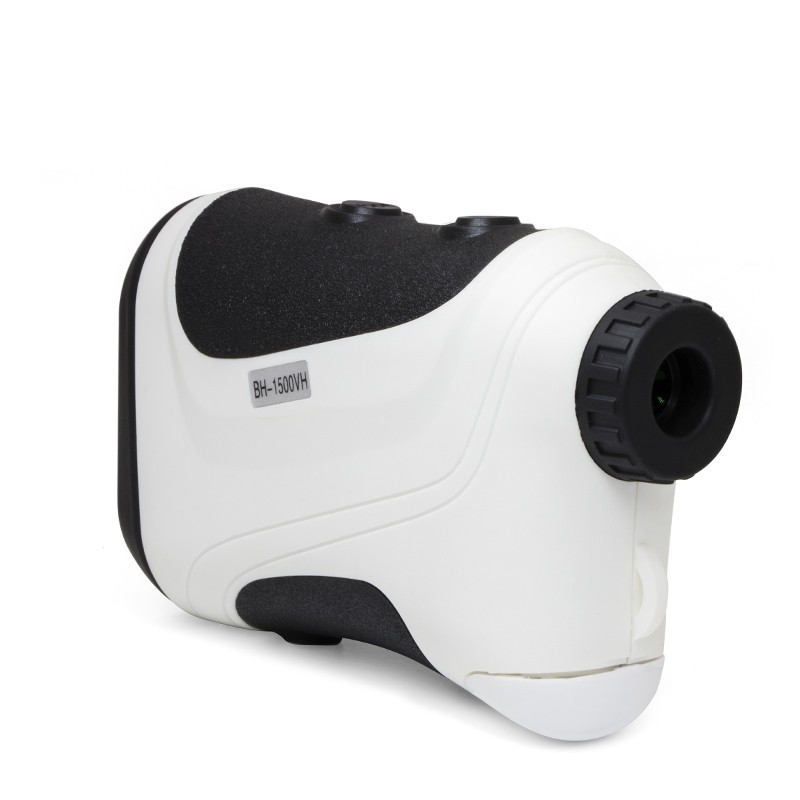

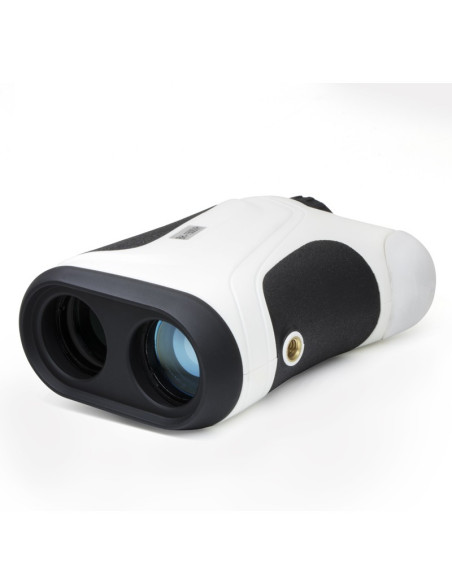

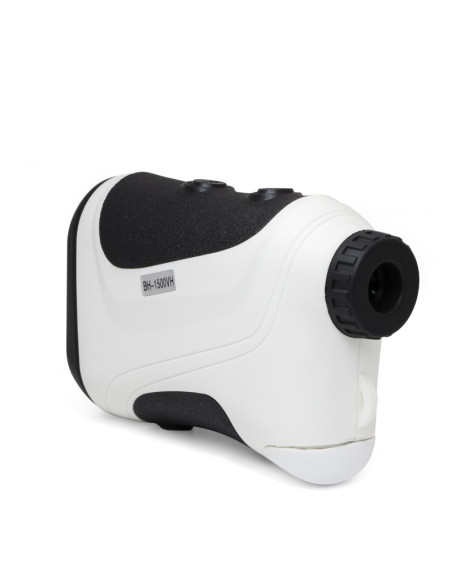

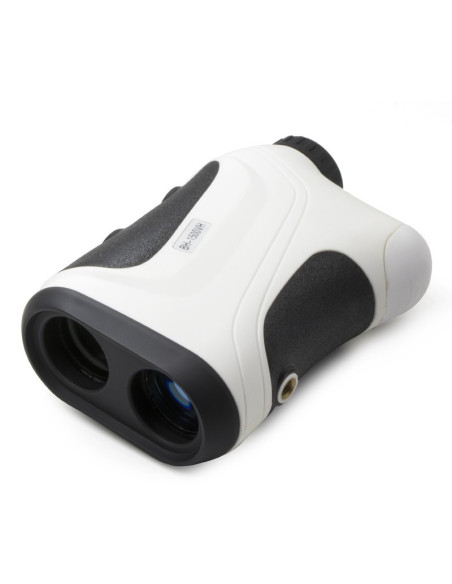

AO-BH-VH Laser Rangefinder
The AO-BH-VH Laser Rangefinder is a high-precision device for long-distance measurements. Ideal for military, surveying, and industrial applications requiring maximum accuracy.
The AO-BH-VH Laser Rangefinder is a versatile, high-precision device designed for a wide range of applications, including golf courses, road measurements, electrical installations, construction, and various industries. This advanced instrument offers accurate measurements of distance, area, and volume, proving especially useful in large spaces such as rooms, apartments, buildings, factories, warehouses, gardens, and infrastructure.
- 7x optical viewing system for clear and detailed visualization.
- Basic functions include distance and speed measurement, with a flagpole mode for golf.
- Additional height and angle measurement options available in higher series models.
- Simultaneous display of horizontal distance and height, ideal for golfers.
- Ergonomic and modern design for comfortable grip and prolonged use.
- Measurement results configurable in meters or yards, easily interchangeable.
The AO-BH-VH combines precision, versatility, and ease of use, making it the ideal tool for professionals and enthusiasts requiring accurate measurements in various situations and environments.
| Feature | Specification |
|---|---|
| Model | AO-BH-VH Series High Accuracy Digital Laser Rangefinder |
| Measurement Range | 5-600m/1000m/1500m |
| Measurement Accuracy | 1m (yd) |
| Measurement Time | 0.1 - 0.3s |
| Operating Temperature Range | 0°C ~ 40°C |
| Storage Temperature Range | -20°C ~ 50°C |
| Unit Selection | M/YD |
| Laser Light Type | 905nm |
| Eye Relief | 3.8mm |
| Objective Caliber | 24mm |
| Eyepiece Caliber | 16mm |
| Magnification | 7X |
| Range of Angle Measurement | <±90º |
| Field of View Angle | 7º |
| Diopter Adjustable Range | ±3º |
| Battery Type | CR2/3V*1 |
| Dimensions | 115*77*45 mm |
| Weight | 178 g |
