ME231 Three-phase multifunctional smart meter

Reference: ME231 - Manufacturer: Meatrol

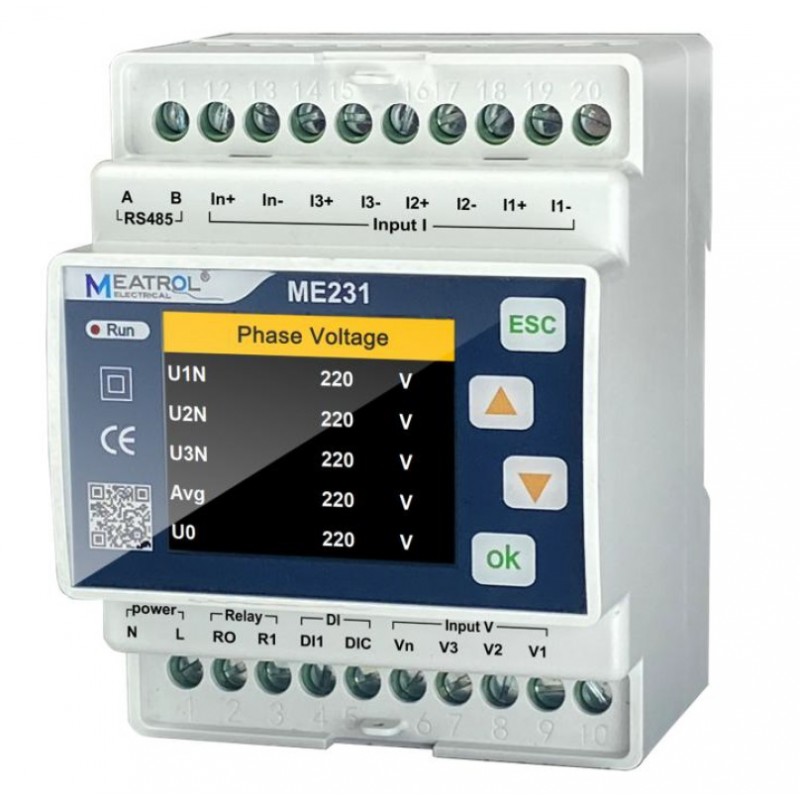

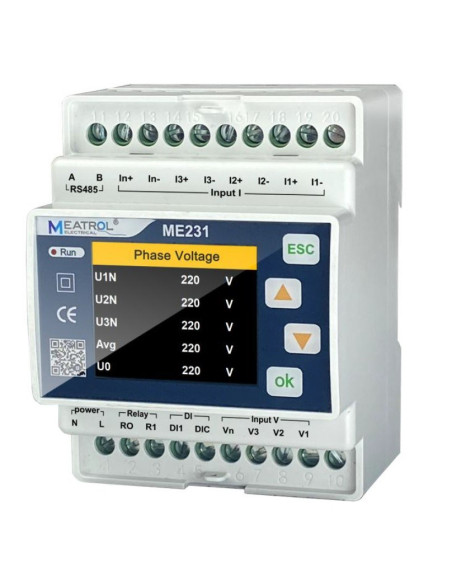

◆ ME231 is a DIN-Rail three-phase multifunctional smart meter that supports externally connected open type Rogowski coils or voltage type CT's.

◆ It can realize no-dismantling wire tests, simplify test steps, save construction costs and it is more convenient for engineering test as well as for inspection and maintenance of distribution systems.

€70.00

Tax excluded Envío: 3 a 6 semanas

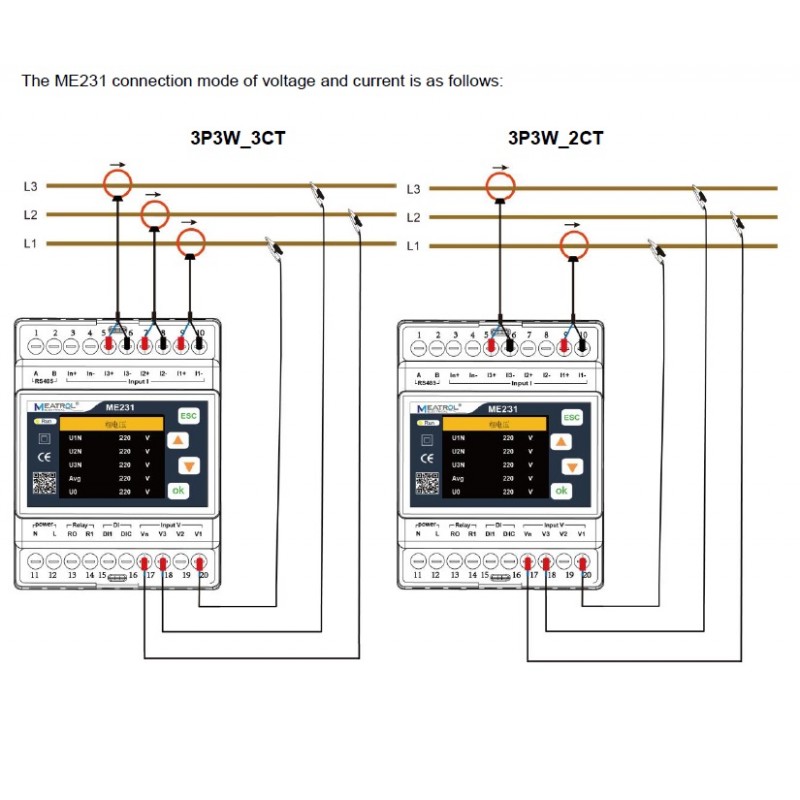

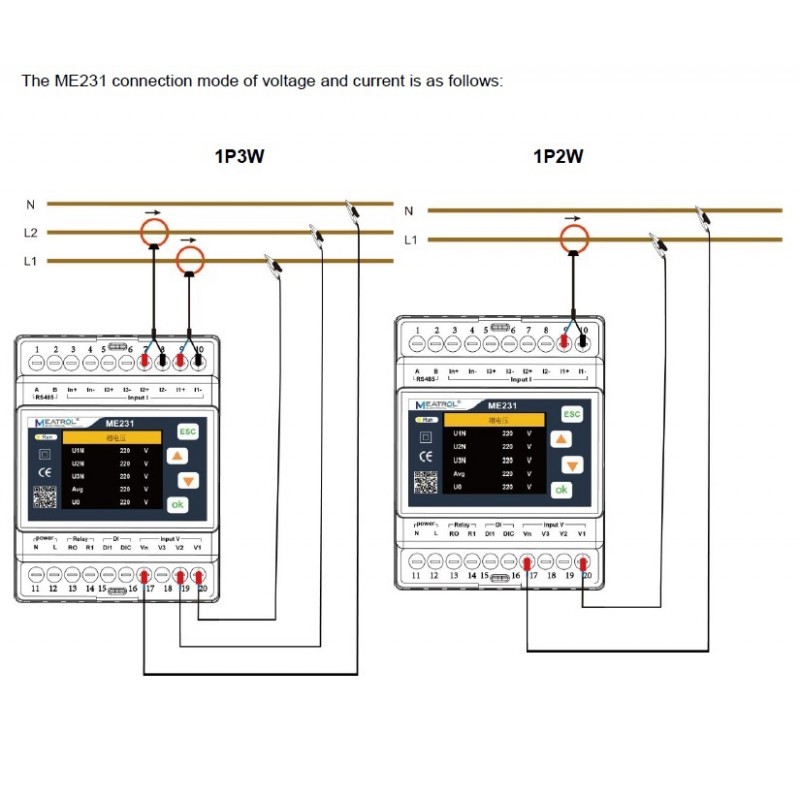

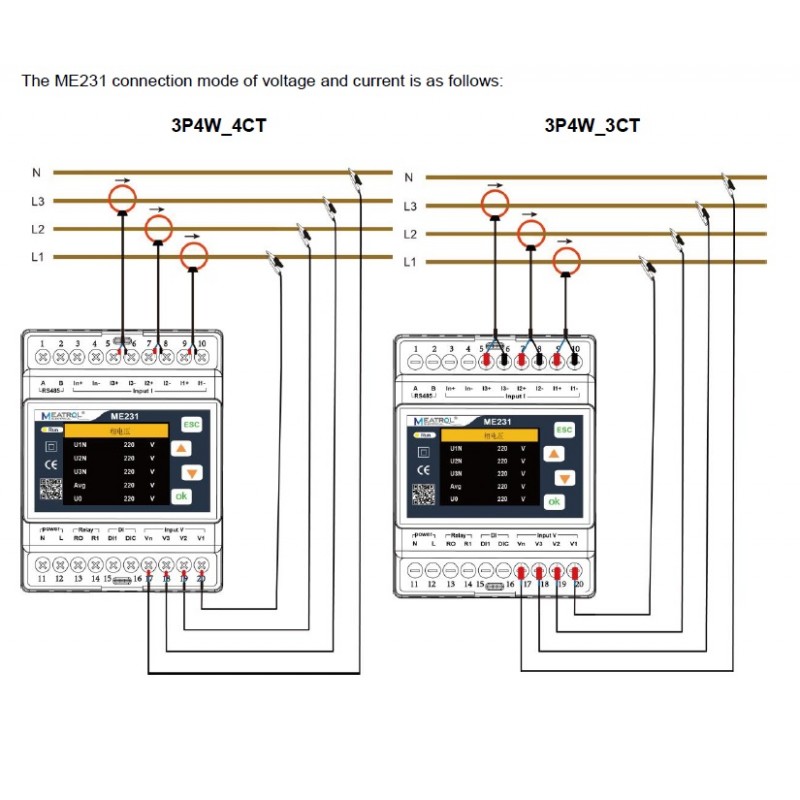

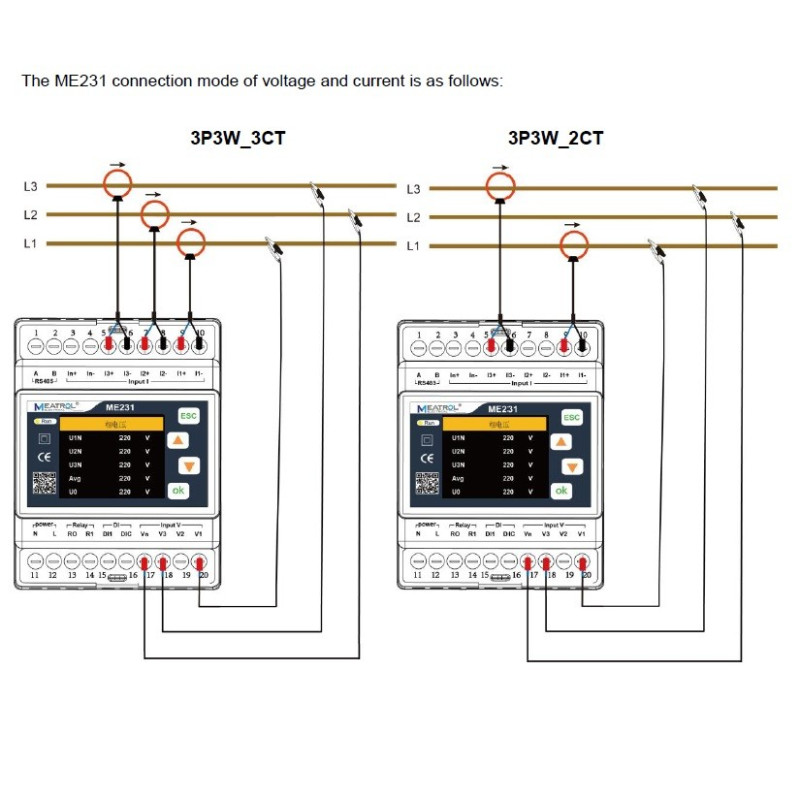

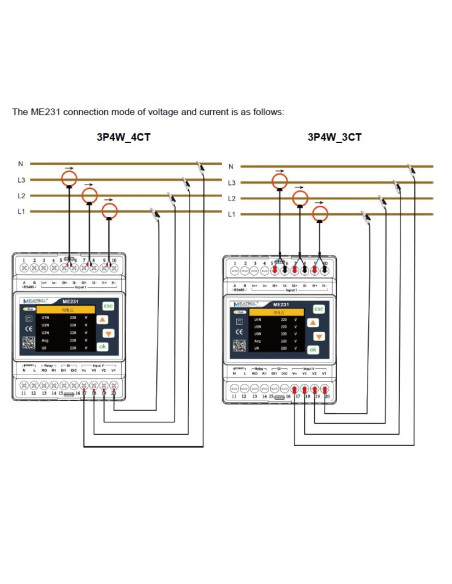

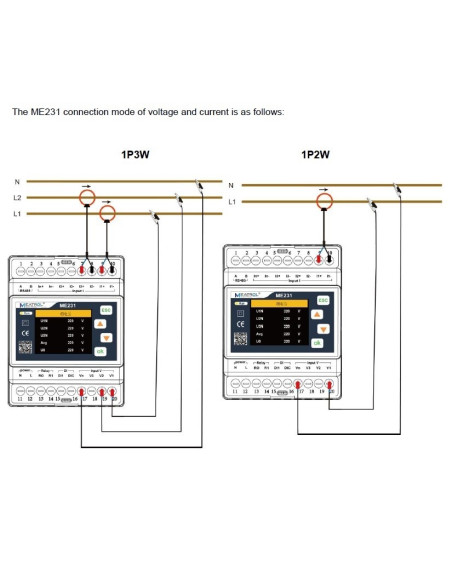

► The ME231 meter supports single-phase and three-phase systems.
► It can measure multiple electrical parameters such as current, voltage, harmonics, power factor, power, energy and other electrical parameters for L1, L2, L3.
► The standard RS485 communication interface can be compatible with various configuration systems through standard MODBUS-RTU protocols.

► ME231 is widely adapted to a variety of Rogowski coils and can be set autonomously.
► Current measurement accuracy: 0.1% + Accuracy of the current sensor.

► Below are some models of current sensors and recommended models and current ratings that are for reference only:

Environment of Use: Indoor
Type of Logger: Electric Power
Measured Parameters: Multiple Parameters
Application: Energy
With Display: LCD
Communications: RS485 Modbus RTU

ME231 Data Sheet

Download (1.96MB)

ME231 Modbus-RTU Protocol

Download (1.24MB)
