MSAS02 Lighting Educational Trainer (OBD 16 Pin)

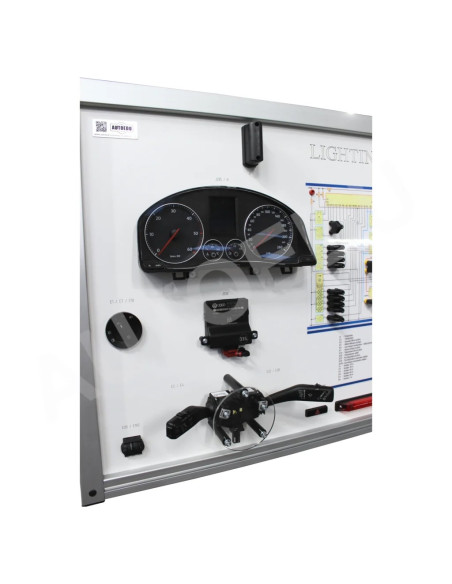

► A fully functional lighting training system board, based on VW/AUDI OEM components.

► The training board simulator is a great educational tool that allows students to learn the structure of the lighting system, study its components, and perform various measurements, tests, and other diagnostic procedures.

► Automotive training stands.

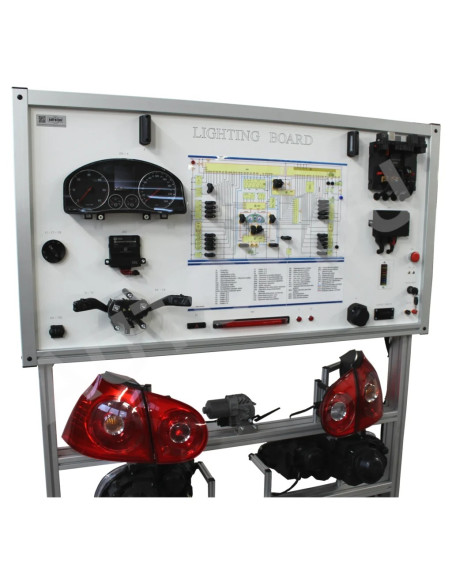

► Fully functional lighting training system is installed in a mobile aluminum frame.

► The educational training board is based on VW/AUDI OEM components.

► The training board-simulator is a great educational tool that allows students to learn the structure of lighting system, study its components, and perform various measurements, tests and other diagnostic procedures.

► Value for Students

● Understand automotive lighting systems by examining the structure, operation, and components of front and rear lighting assemblies, including fog lights and high-beam brake lights.

● Use the built-in 16-pin OBD diagnostic connector to diagnose and troubleshoot lighting system problems. Learn to read and clear fault codes, identify electronic control units (ECUs), and view real-time system data.

● Use banana plugs and open contacts to take measurements and connect system components accurately. Use oscilloscopes and multimeters to measure electrical signal parameters and analyze system behavior.

● Perform practical tests on various lighting components and control units, including headlight range control, trailer detection, and signaling devices. Simulate faults by removing the jumpers and observe how they affect system operation.

● Practice adjusting headlight light levels with integrated motors. Optionally, use a headlight tester to refine and confirm beam alignment.

► Value for Instructors

● The use of OEM components and realistic control interfaces on the stand provides an authentic learning experience, replicating real-life vehicle lighting systems.

● The clear layout of control buttons, electrical diagrams, and diagnostic interfaces simplifies instruction and enables efficient setup and operation of training sessions.

● The OEM-based system allows students to conduct diagnostic training using virtually any multi-brand, specialty, or OEM scan tool, ensuring a safe and high-quality learning environment.

● The wheeled version, mobile and compact in the classroom, allows simultaneous use by multiple students, promoting collaborative learning and hands-on training opportunities.

● Simulate faults and measure system parameters to create dynamic, interactive lessons that enhance student engagement and understanding.

● The training stand is designed to be simple, requiring only minor adjustments to restore default settings, making it easy to set up and start each lesson quickly and efficiently.

● Its ready-to-use design requires no additional setup, assembly, or special preparation for operation.

► Electric wiring diagram with built – in banana plug jumpers for measurements and connecting or disconnecting the components
► Open contacts for measuring of system's components and circuits
► Diagnosis through OBD (J1962) 16 – pin diagnostic connector (CAN – GATEWAY, instrument cluster and central electronics)
► Adjustable beam levels with the motors of front headlights
► Possible adjustments training with the headlight tester (optional)

Diagnostic and measurement

Oscilloscope/multimeter

► Ability to measure electrical signal parameters of system component

Control unit diagnosis

► Diagnosis through OBD (J1962) 16–pin diagnostic connector
► Electronic control unit (ECU) identification
► Reading/erasing fault codes
► Displaying the operating system parameters (live data)
► Activating the actuators (Depends on the control unit)

Other

► The stand has a closed structure– internal wiring is not visible
► Power supply: 12V from the battery (optional)
► Dimensions approx.: (HxLxW) 1820x1360x500 mm
► Nett weight approx.: 60 Kg
► Made in Lithuania
► CE certificate

Optional accessories

► 12 V battery
► 220/12 V Power supply unit
► Automotive oscilloscope
► OBD diagnostic scan tool
