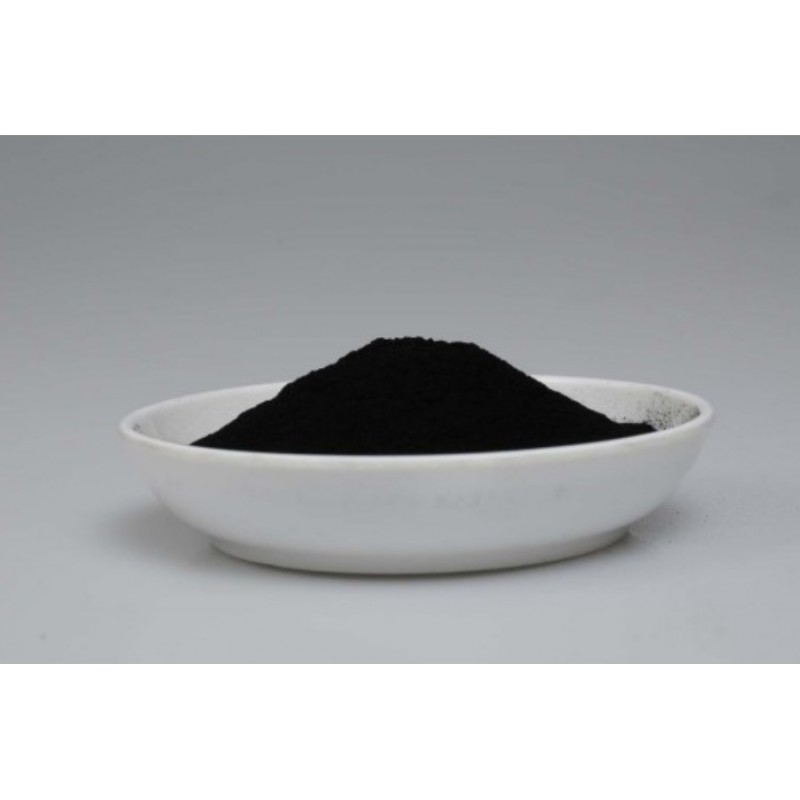

Platinum on Carbon XC-72 Fuel Cell Catalyst

5%   XC-72, Ref: AO-57080184:
Catalyst Properties
Platinum Content:     4.9-5.1%
Metal Surface Area:     ~200
Crystallite Size:     ~ 1 nm
Impurities (ppm):     < 500

10% XC-72 Ref: AO-57080019:
Catalyst Properties:
Platinum Content:     9.5-10.5%
Metal Surface Area:     ~120
Crystallite Size:     ~1.5 nm
Impurities (ppm):     < 500

20% XC-72 Ref: AO- 57080081:
Catalyst Properties:
Platinum Content:     19.5-20.5%
Metal Surface Area:     ~110
Crystallite Size:     2 - 3 nm
Impurities (ppm):     < 500

30% XC-72 Ref: AO-57080109:
Catalyst Properties:
Platinum Content:     29.0-30.5%
Metal Surface Area:     ~80
Crystallite Size:     2 - 3 nm
Impurities (ppm):     < 500

40% XC-72 Ref: AO-57080154:
Catalyst Properties:
Platinum Content:     38.5-40.5%
Metal Surface Area:     ~70
Crystallite Size:     3 - 4 nm
Impurities (ppm):     < 500

50% XC-72 Ref: AO-57080192:
Catalyst Properties:
Platinum Content:     48.0-50.5%
Metal Surface Area:     ~65
Crystallite Size:     3 - 4 nm
Impurities (ppm):     < 500

60% XC-72 Ref: AO-57080214:
Catalyst Properties:
Platinum Content:     57.5-60.5%
Metal Surface Area:     ~60
Crystallite Size:     4 - 5 nm
Impurities (ppm):     < 500

80% XC-72 Ref: AO-57080239:
Catalyst Properties:
Platinum Content:     76.0-80.5%
Metal Surface Area:     ~55
Crystallite Size:     5 - 6 nm
Impurities (ppm):     < 500

Suggested Uses:

► 5% Platinum on Vulcan XC 72 (Carbon) is most commonly used for Polymer Electrolyte Fuel Cell (PEMFC), Direct Methanol Fuel Cell (DMFC), Microbial Fuel Cell (MFC), and Phosphoric Acid Fuel Cell (PAFC) applications (as the cathode catalyst or anode catalyst).  It is also used as a recombination catalyst for hydrogen elimination.  Platinum on Vulcan can also be used as a building block for sensor elements.

► 10% Platinum on Vulcan XC 72 (Carbon) is most commonly used for Polymer Electrolyte Fuel Cell (PEMFC), Microbial Fuel Cell, and Phosphoric Acid Fuel Cell applications (as the cathode catalyst or anode catalyst).  It is also used as a recombination catalyst for hydrogen elimination.  Platinum on Vulcan can also be used as a building block for sensor elements.

► 20% Platinum on Vulcan XC 72 (Carbon) is most commonly used for Polymer Electrolyte Fuel Cell (PEMFC), Microbial Fuel Cell, and Phosphoric Acid Fuel Cell applications (as the cathode catalyst or anode catalyst).  It is also used as a recombination catalyst for hydrogen elimination.  Platinum on Vulcan XC 72 can also be used as a building block for sensor elements.

► 30% Platinum on Vulcan XC 72 (Carbon) is most commonly used for Polymer Electrolyte Fuel Cell (PEMFC), Direct Methanol Fuel Cell (DMFC), Microbial Fuel Cell (MFC), and Phosphoric Acid Fuel Cell (PAFC) applications (as the cathode catalyst or anode catalyst).  It is also used as a recombination catalyst for hydrogen elimination.  Platinum on Vulcan can also be used as a building block for sensor elements.

► 40% Platinum on Vulcan XC 72 (Carbon) is most commonly used for Polymer Electrolyte Fuel Cell (PEMFC), Direct Methanol Fuel Cell (DMFC), Microbial Fuel Cell (MFC), and Phosphoric Acid Fuel Cell (PAFC) applications (as the cathode catalyst or anode catalyst).  It is also used as a recombination catalyst for hydrogen elimination.  Platinum on Vulcan can also be used as a building block for sensor elements.

► 50% Platinum on Vulcan XC 72 (Carbon) is most commonly used for Polymer Electrolyte Fuel Cell (PEMFC), Direct Methanol Fuel Cell (DMFC), Microbial Fuel Cell (MFC), and Phosphoric Acid Fuel Cell (PAFC) applications (as the cathode catalyst or anode catalyst).  It is also used as a recombination catalyst for hydrogen elimination.  Platinum on Vulcan can also be used as a building block for sensor elements.

► 60% Platinum on Vulcan XC 72 (Carbon) is most commonly used for Polymer Electrolyte Fuel Cell (PEMFC), Direct Methanol Fuel Cell (DMFC), Microbial Fuel Cell (MFC), and Phosphoric Acid Fuel Cell (PAFC) applications (as the cathode catalyst or anode catalyst).  It is also used as a recombination catalyst for hydrogen elimination.  Platinum on Vulcan can also be used as a building block for sensor elements.

► 80% Platinum on Vulcan XC 72 (Carbon) is most commonly used for Polymer Electrolyte Fuel Cell (PEMFC), Direct Methanol Fuel Cell (DMFC), Microbial Fuel Cell (MFC), and Phosphoric Acid Fuel Cell (PAFC) applications (as the cathode catalyst or anode catalyst).  It is also used as a recombination catalyst for hydrogen elimination.  Platinum on Vulcan can also be used as a building block for sensor elements.

5%   Platinum on Carbon XC-72, Ref: AO-57080184
10% Platinum on Carbon XC-72, Ref: AO-57080019
20% Platinum on Carbon XC-72, Ref: AO- 57080081
30% Platinum on Carbon XC-72, Ref: AO-57080109
40% Platinum on Carbon XC-72, Ref: AO-57080154
50% Platinum on Carbon XC-72, Ref: AO-57080192
60% Platinum on Carbon XC-72, Ref: AO-57080214
80% Platinum on Carbon XC-72, Ref: AO-57080239
