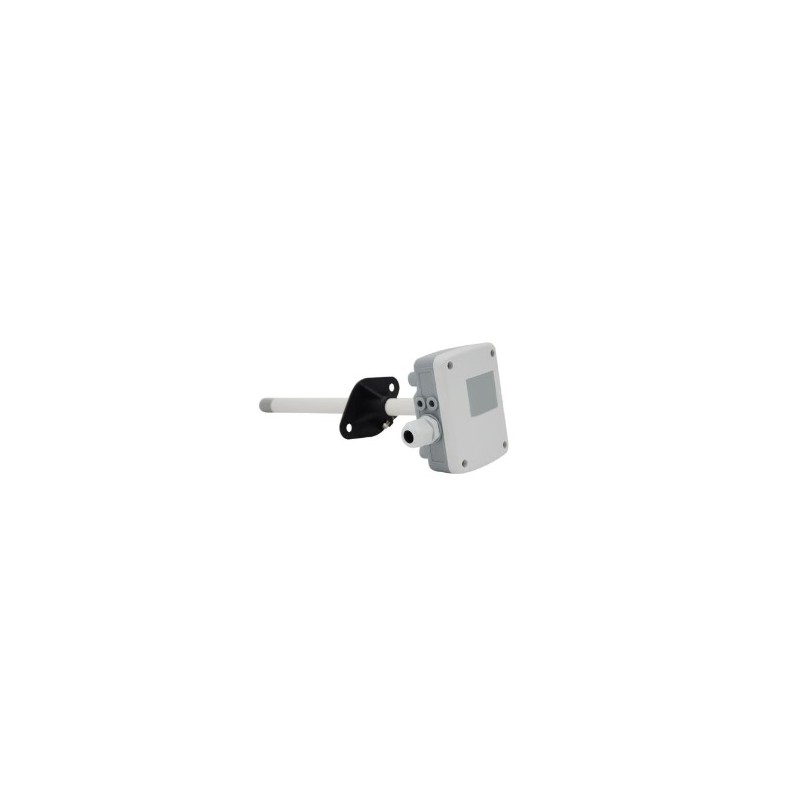

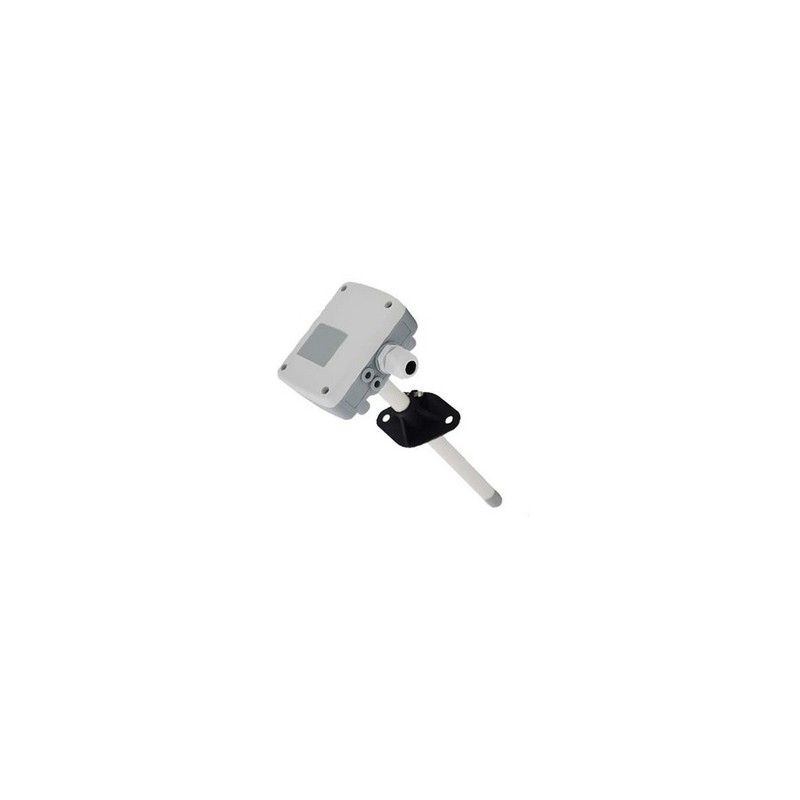

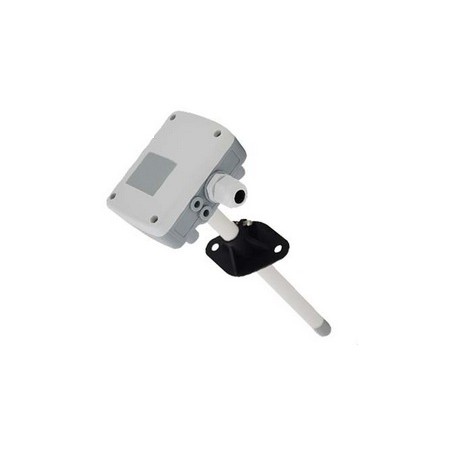

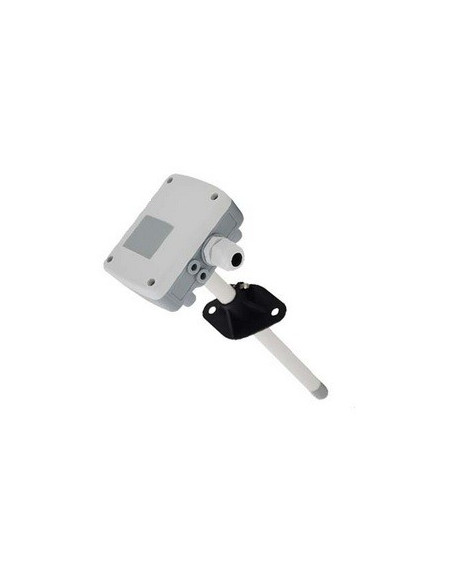

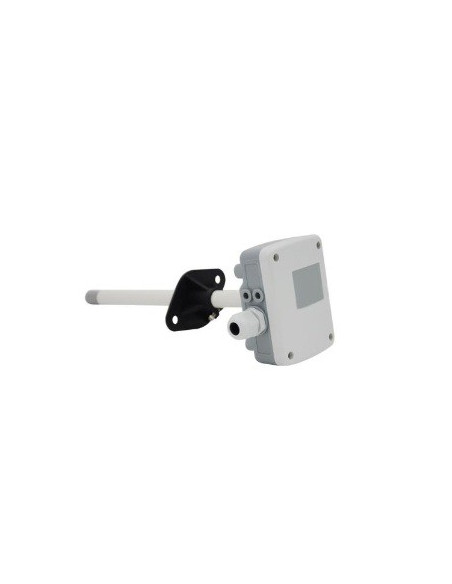

AO-100-05 HVAC Pipe Wind Speed Sensor
◆ The AO-100-05 pipeline wind speed sensor is designed based on the hot-wire principle, with the probe and housing made of high-temperature and anti-corrosion materials.
► In harsh environments, it can also operate stably and reliably. It can quickly and accurately measure miniature airflow. The product has achieved high accuracy and high resolution through internal linear compensation and temperature calibration, and its long-term stability is extremely good, so it can be installed directly.
● High accuracy at low speed
● High resistance to instantaneous wind speed
● Strong corrosion resistance
● Wide range, good stability
● Various output signals optional

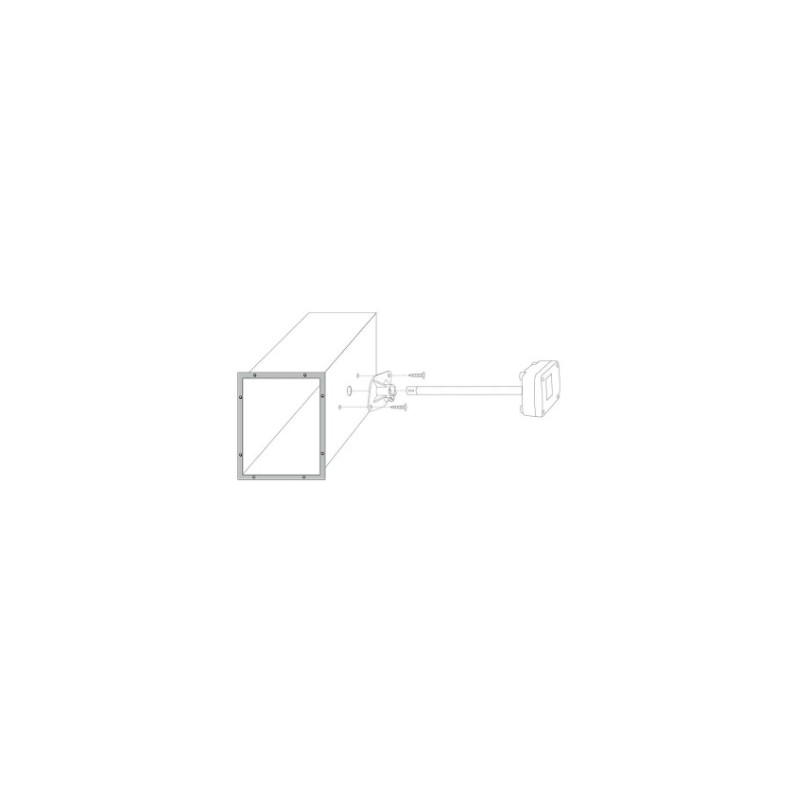

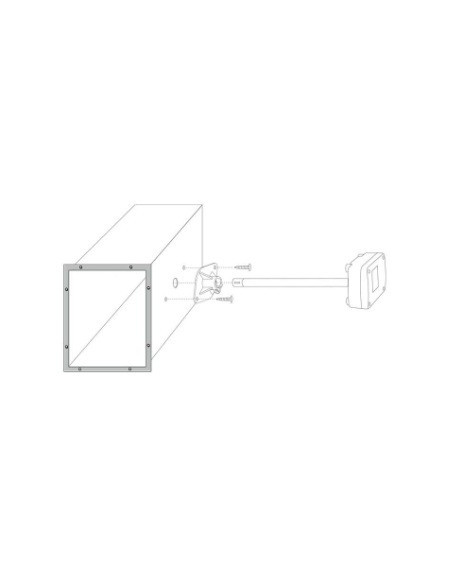

● Easy installation
● Output: 4-20 mA, 0-10 V, RS485, 0-5 V
● Power Supply: 2-24 VDC
● Range: 0-5 m/s, 0-10 m/s, 0-20 m/s, 0-30 m/s
● Response Time: <1 s
● Accuracy (0-50 °C): ±3% FS
● Resolution: <0.05 m/s
● Power Consumption: <80 mA at 24 VDC (4-20 mA) <60 mA at 24 VDC (RS485, 0-5 V, 0-10 V)
● Long-Term Stability: ±0.1 m/s per year
● Display: Optional
● Ingress Protection: IP55
● Operating Temperature: -20 °C to +70 °C
● Material Main body: ABS

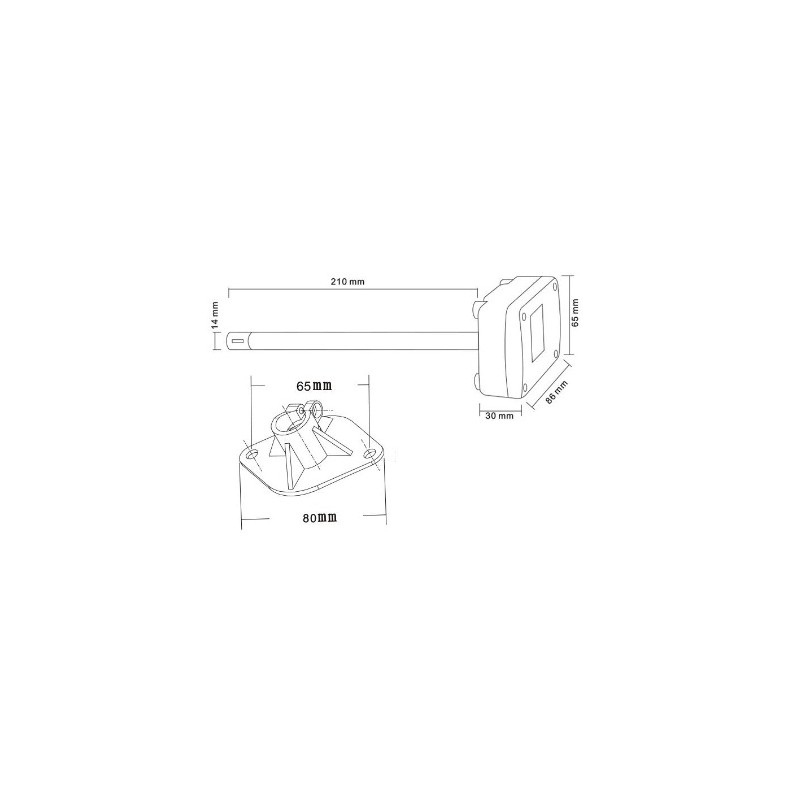

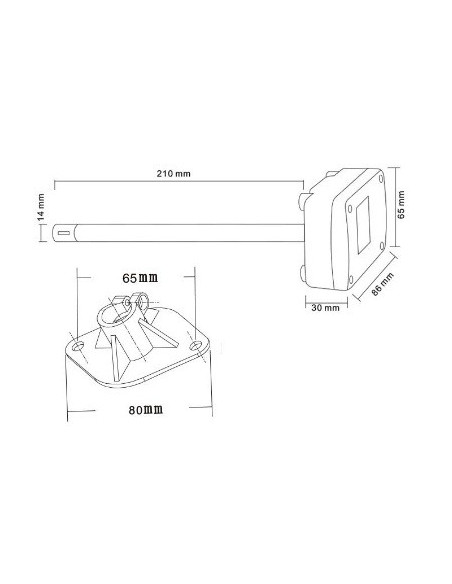

● Probe length: 210 mm (typical), other lengths can be customized
● Storage conditions: 10℃-50℃ @ 20%-90% RH
► APPLICATIONS
● HVAC
● Air conditioning
● Ventilating system
● Flue gas cleaning system
● Air purification system
