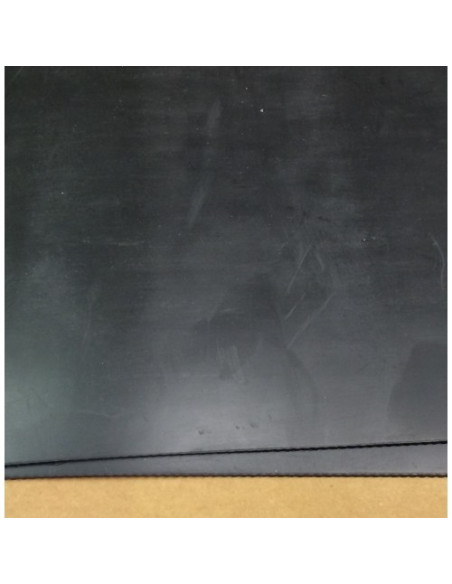

EPDM Rubber Sheet - 12" x 12"

EPDM Rubber Sheet - 12" x 12"

Ref.: 590763 EPDM Rubber Sheet - 12" x 12" (SKU 99030013)

Reference: 590763 - Manufacturer: AO-Electronics

Cut your own gaskets out of this 12 inch x 12 inch sheet of high-performance EPDM (Ethylene Propylene Diene Monomer) Rubber.

Select Size

You can cut your own gaskets out of this 12 inch x 12 inch sheet of high-performance EPDM (Ethylene Propylene Diene Monomer) Rubber.
It provides an excellent seal for both Hydrogen and Direct Methanol Fuel Cells.

It has greater strength than standard Weather-Resistant EPDM Rubber, these sheets provide better shock-absorbing qualities and longer life. The high-performance EPDM sheet are resistant to sunlight, ozone, and water.

EPDM Rubber is peroxide cured for increased temperature resistance.

Meet ASTM D2000 CA.

Gasket Properties
Durometer	50A (medium) ± 5
Thickness Tolerance	At 1/32" ±0.010", At 1/16" ±0.016", At 3/32" ±0.016", At 1/8" ±0.020", At 3/16" ±0.031", At 1/4" ±0.031"
Tensile Strength (psi)	1500
Temperature Range	-55°F to +300° F

Type of Cells: Gaskets
