Reference: FTG-1 - Manufacturer: AO-Electronics

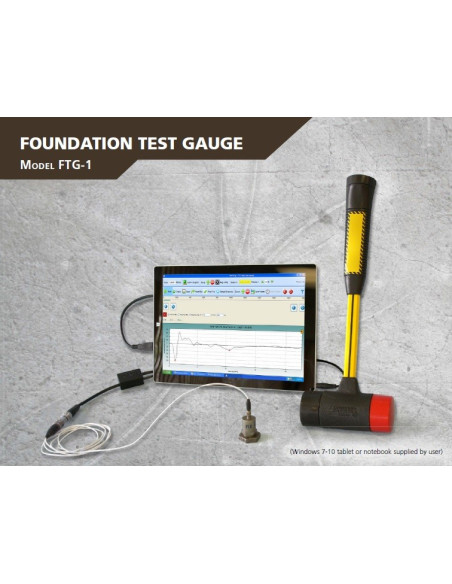

■ FOUNDATION TEST GAUGE

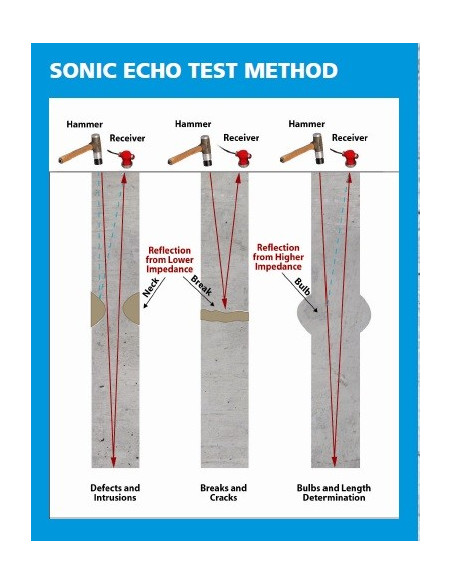

■ Based on the Sonic Echo Principle

- Meets ASTM Standard D5882
- Based on the Sonic Echo Principle
- Measure the depth and integrity of shafts and piles.
- Ideal for testing cell tower foundations.

Features:
◆ Small, lightweight and easily transported
◆ Fast and accurate field measurements

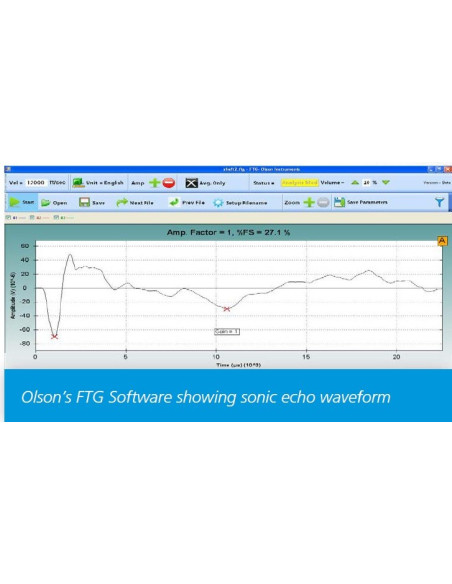

◆ Real-time waveform display while testing
◆ Digital filtering of data
◆ Switch between english and metric units
◆ Save results for later review

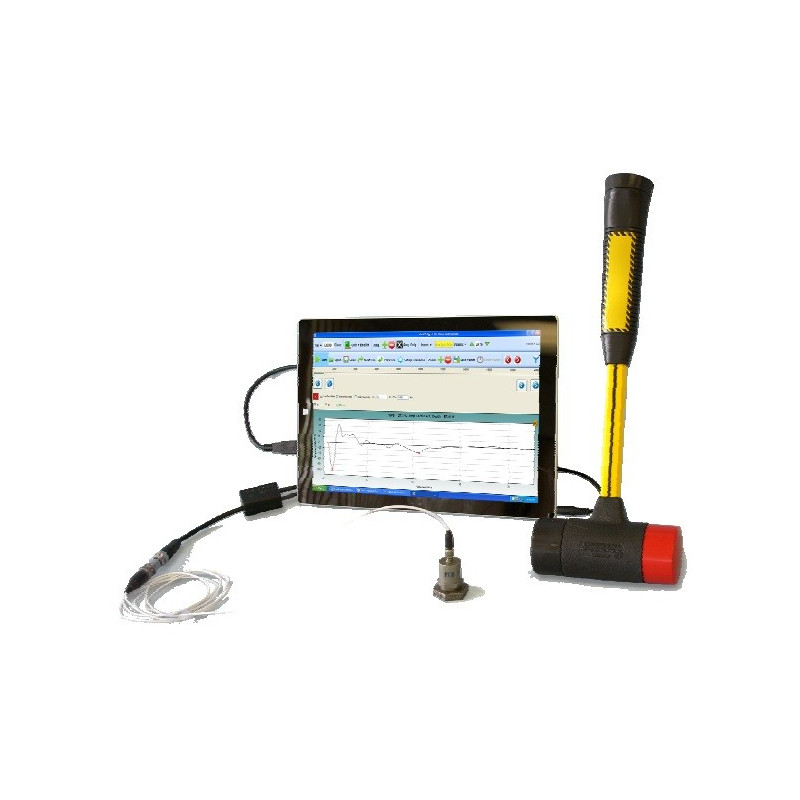

◆ Includes accelerometer receiver and cables
◆ Includes 3 lb (1.4 kg) non-instrumented hammer with
removable tips
◆ The FTG system must be used with a Windows 7-10 device
running Olson Instruments’ FTG software. The computer or
tablet is supplied by the user.

Applicable For:
◆ Drilled Shafts
◆ Driven Concrete Piles
◆ Timber Piles

Test For:
◆ Deep Foundation Depth
◆ Integrity:
- Cracks
- Voids
- Soil/Water Intrusions
- Uncured or Weak Concrete
◆ Diameter Changes (bulb, neck or break)

Type of Instrument: Cross-hole tests Foundation Poles

FTG-1 Data Sheet

Download (1.2MB)

Download (8.56MB)
