Hydrogen Air MEA - 5 Layer, AO-MEA-5L
New

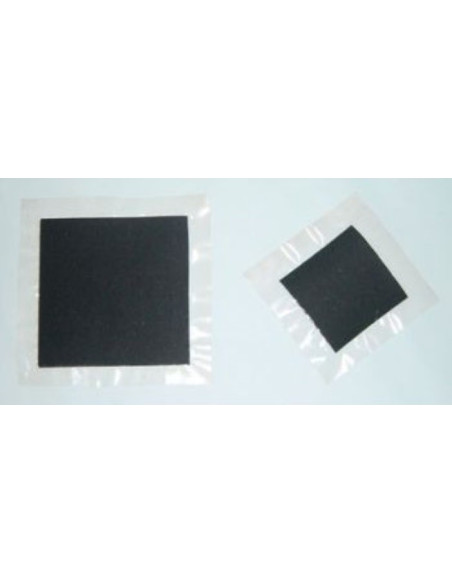

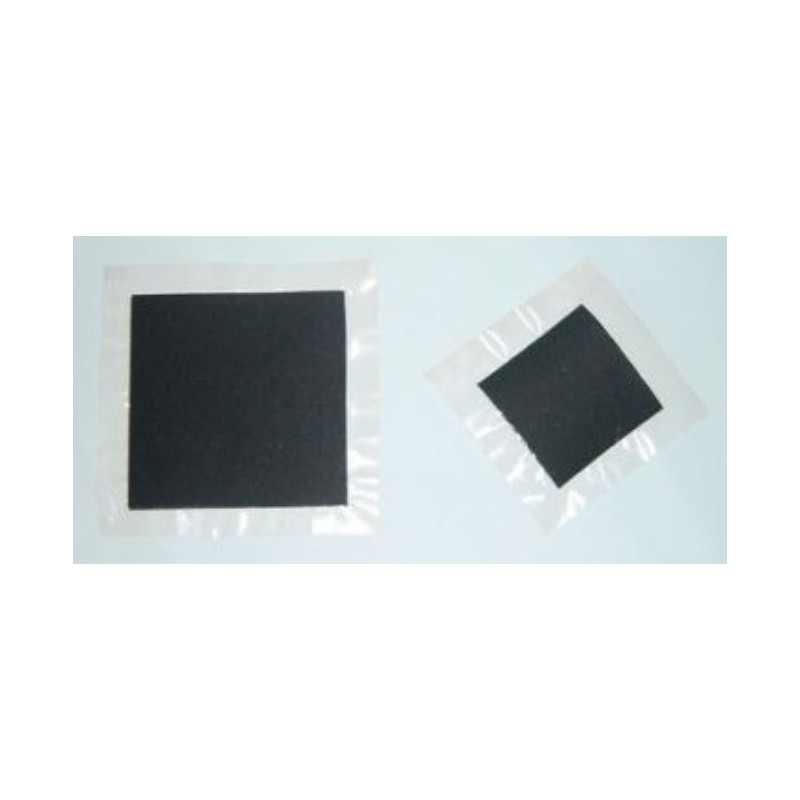

Construct your Own Fuel Cells 5L MEA 5cm2 & 10cm²

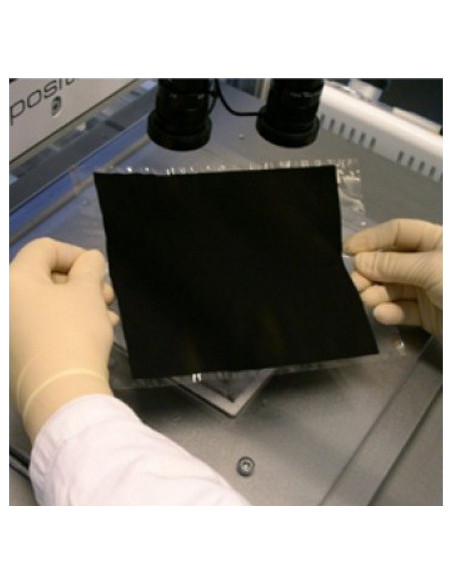

5 Layer Membrane Electrode Assembly with GDL for use in hydrogen air/oxygen fuel cells.
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
| Type of Cells | MEA's & GDL |
5-Layer Membrane Electrode Assembly (MEA) with integrated Gas Diffusion Layers (GDL) for use in Hydrogen/Air Fuel Cells.
One of the most economical and cost effective MEAs on the market, the standard configuration features a mid-range Platinum loading (0.5 mg/cm²) and a 0.002” membrane (Nafion™ 212) and a 365 microns thick woven carbon cloth GDL (others available).
Custom sizes and configurations are also available with no minimum order quantities and typical lead times of 1 to 5 business days, even for custom configurations.
These Hydrogen Air MEAs are 5-Layer.
| Active Area | Membrane Area |
| 2.2cm x 2.2cm | 10.0cm x 10.0cm |
| 5.0cm x 5.0cm | 10.0cm x 10.0cm |
| 7.1cm x 7.1cm | 13.0cm x 13.0cm |
| 10.0cm x 10.0cm | 13.0cm x 13.0cm |
| MEA Properties | |
| MEA Type | Hydrogen Air Fuel Cell |
| Membrane Type | Nafion™ PFSA NR-212 |
| Membrane Thickness | 50.8 micrometers (2 mil) |
| Anode Loading | 0.5 mg/cm² |
| Anode Catalyst | 60wt% Pt on Vulcan (Carbon) |
| Cathode Loading | 0.5 mg/cm² |
| Cathode Catalyst | 60wt% Pt on Vulcan (Carbon) |
| Gas Diffusion Layer | Carbon Cloth with MPL - W1S1010 |
| Gas Diffusion Layer Type | Woven Carbon Fiber Cloth |
| Gas Diffusion Layer Thickness | .365 mm (365 microns) |
