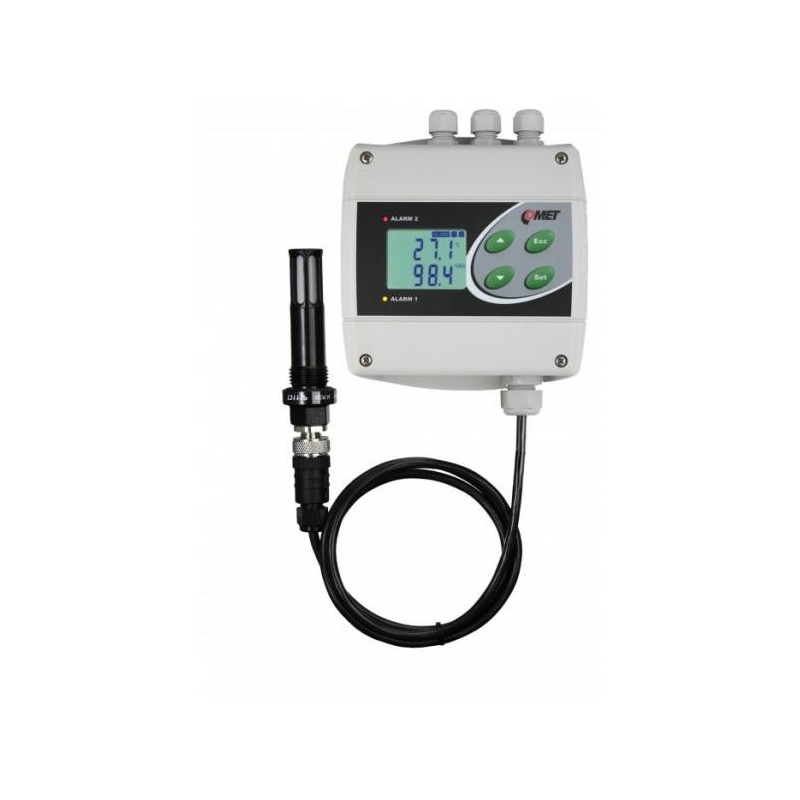

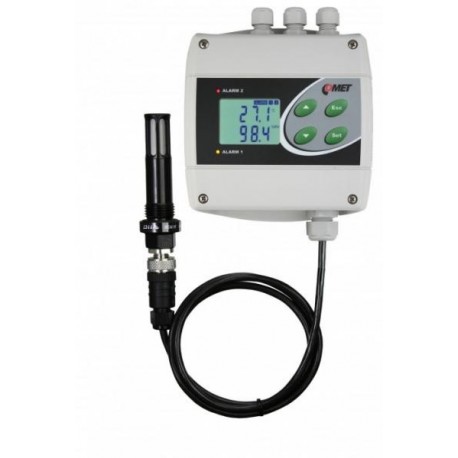

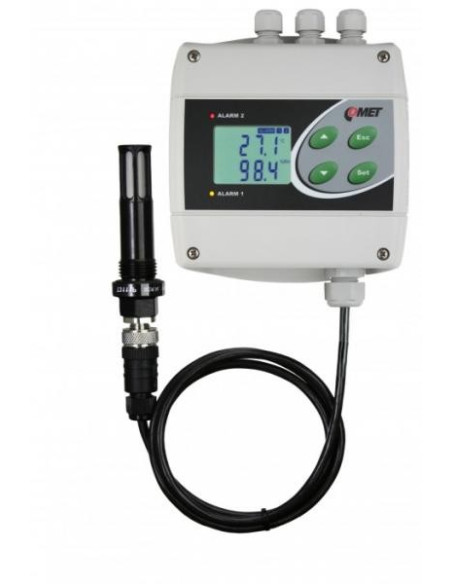

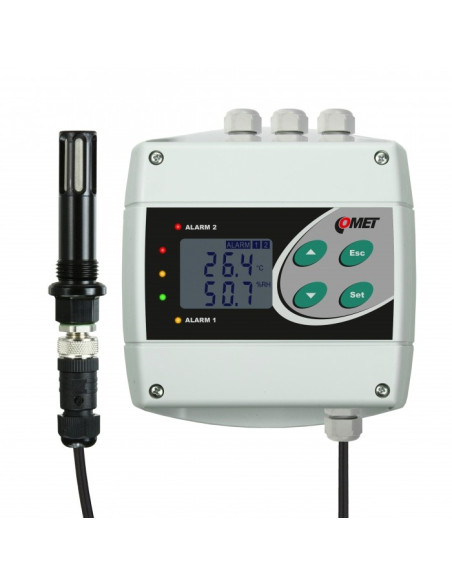

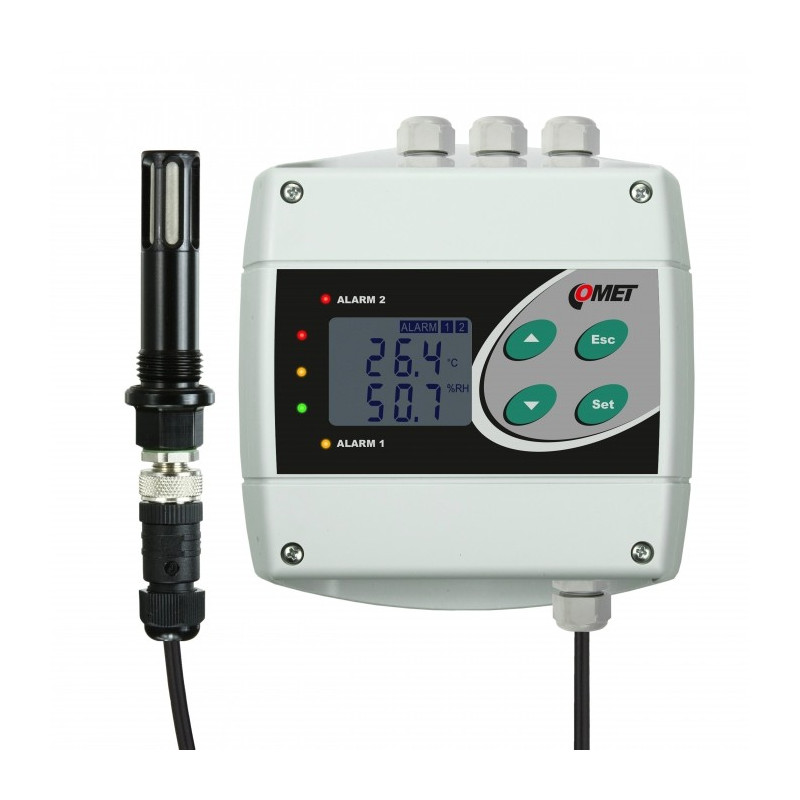

H3021P Transmitter for Compressed Air (temperature and humidity regulator)

Comet System

New

Humidistat, thermostat with two relay outputs. For outdoor or indoor use.
Temp probe & Relative Humidity of hard anodized aluminum, for compressed air up to 25 bar with 1 m cable.
Cables lengths of 2m or 4m available optionally.

Humidity, temperature probe on a cable. Measured values also become another interpretation of humidity: dew point temperature, absolute humidity, specific humidity, proportion, specific enthalpy of the mixture.

435,00 €

tax excl.

Add to wishlist

IP Classification IP65 electronics, IP40 sensors
The Sensor measures: Temp./Rel. Humidity
Output Signal: Relays
Power Supply: 9-30 Vdc

Humidistat is designed for two-state control of e.g. heating, ventilation, humidifier, dehumidifier, etc.
Transmitter is equipped with two relay outputs for alarm indication or control of external devices. Each relay can be assigned to any measured or computed value. For each relay setting of delay, hysteresis, audible alarm is enabled.
Measured temperature and relative humidity is recalculated to other humidity interpretations - dew point temperature, absolute humidity, specific humidity, mixing ratio or specific enthalpy.
Parameters are easy adjustable from regulator keyboard or from the computer. Large dual line LCD for simultaneous display of temperature, relative humidity or other calculated humidity interpretation is an advantage.
State-of-the-art capacitive polymer sensor ensures excellent calibration long term stability, inertia against water and condensation. Transmitter is designed for use in non-aggressive environment.

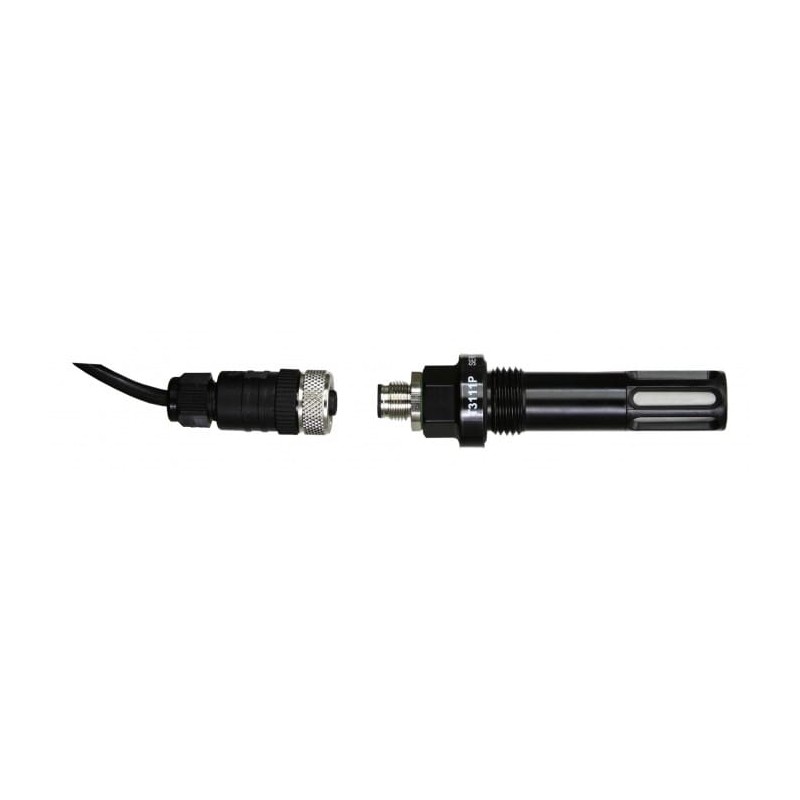

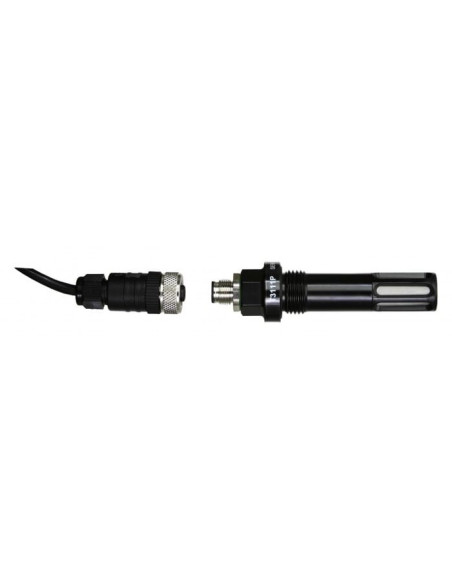

T+RH probe from hard anodized duralumin with 1m cable. Cable lengths 2m or 4m available optionally.






HUMIDISTAT APPLICATIONS

- temperature and humidity control
- monitoring of temperature, humidity:

  • building management and automation
  • server rooms
  • telecommunication devices
  • warehouses, glasshouses
  • manufacturers
  • museums, archives, galleries
  • air-conditioned rooms, HVAC
  • weather stations

    To set regulator easily by the user from the PC program buying of SP003 cable is necessary - see Optional accessory.
    Free configuration program TSensor for regulator adjustment is ready to download anytime.
    It is also enabled to adjust regulator from the instrument keyboard.
    If different adjustment of relay outputs is required, please specify required output values (RH, T, Tdp, ..) in the order. Adjustment is free of charge.

 Relative humidity operating range

Figure: Relative humidity operating range

Output None
Measured Value Relative Humidity + Temperature
Construction Type Compressed Air Humidity Up To 2.5MPa
Design Industrial
Temperature Measuring Range -30 to +105°C
Relay Output Yes
Two-State Input No
Lcd Display Yes
PoE No
Maximum switching voltage, current, power of relay output 50V, 2A, 60VA
Audible alarm from built-in beeper - switchable
Relative humidity range 0 to 100%
Accuracy of relative humidity measurement ±2.5% relative humidity from 5 to 95% at 23°C
Accuracy of temperature output ±0.4°C from -30 to +100°C
±0.4% from reading over +100°C
Available temperature units degrees Celsius, Fahrenheit
Dew point temperature range -60 to +80 °C

Accuracy of dew point temperature output

(for more details see instruction manual)

±1.5°C for dew point temperature +10°C and higher at ambient temperature +25°C
Accuracy of dew point temperature output ±2.0°C for dew point temperature 0°C at ambient temperature +25°C
Accuracy of dew point temperature output ±3.0°C for dew point temperature -10°C at ambient temperature +25°C
Accuracy of dew point temperature output ±6.0°C for dew point temperature -20°C at ambient temperature +25°C
Accuracy and range of absolute humidity output ±1.5g/m3 at ambient temperature T < 25°C
range 0 to 400 g/m3
Accuracy and range of specific humidity output ±2g/kg at ambient temperature T < 35°C
range 0 to 550 g/kg
Accuracy and range of mixing ratio output ±2g/kg at ambient temperature T < 35°C
range 0 to 995 g/kg
Accuracy and range of specific enthalpy output ±3kJ/kg at ambient temperature T < 25°C
range: 0 to 995 kJ/kg
Temperature operating range -30 to +80°C
Temperature operating range of LCD display readable to operating temperature +70°C, it is recommended to switch OFF the LCD over +70°C
Temperature compensation of the humidity sensor all temperature range
Filtering ability of sensor cover 0.025mm - filter with stainless steel mesh
IP protection IP65 electronics, IP40 sensors
Power 9-30Vdc, power consumption approximately 1W

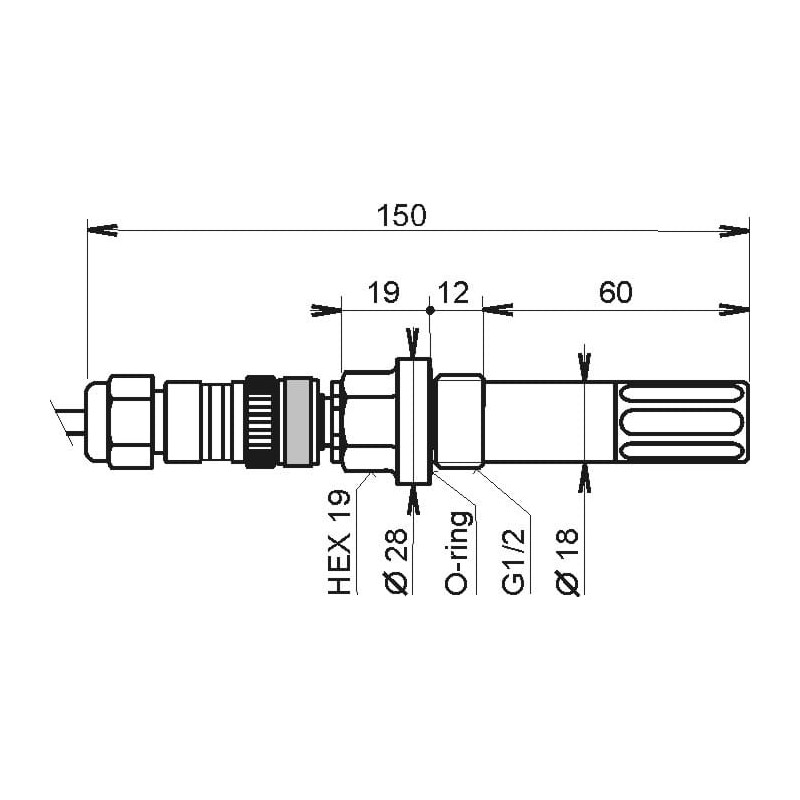

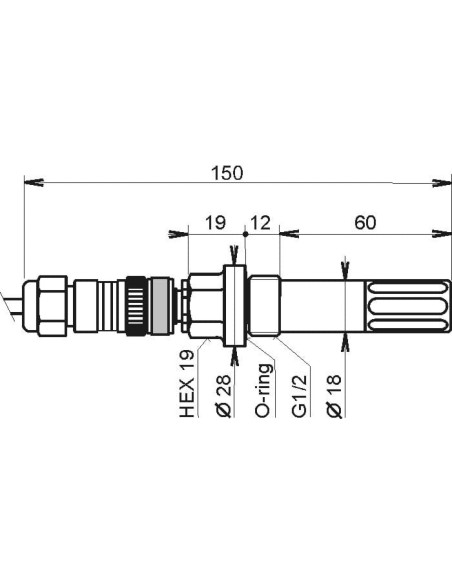

Mechanical connection of probe G1/2 with O-Ring
Length of the probe cable 1m, 2m or 4m optionally
Dimensions 136 x 159 x 45 mm (W x H x D), probe length 150 mm, probe diameter 18mm
Weight approximately 450g
Warranty 2 years
Ac/dc adapter 12V/450mA stabilized
code: A1510
Ac/dc adapter 12V/450mA stabilized
cable for transmitter adjustment via USB port
code: SP003
cable for transmitter adjustment via USB port
Wall holder for external probes DIGIL
code: SP009
Wall holder for external probes DIGIL
plastic sensor protection with stainless filter (black)
code: F5200B
plastic sensor protection with stainless filter (black)
PTFE sensor protection, white
code: F5300
PTFE sensor protection, white
Flow chamber for compressed air measurement up to 25 bars
code: SH-PP
Flow chamber for compressed air measurement up to 25 bars
Tool for easy connection to WAGO terminals 233 for serial output transmitters
code: SP006
Tool for easy connection to WAGO terminals 233 for serial output transmitters
Humidity Standard 10%RH, set 5pcs
code: HM023
Humidity Standard 10%RH, set 5pcs
Humidity Standard 80%RH, set 5pcs
code: HM024
Humidity Standard 80%RH, set 5pcs
Vessel for adjustment and calibration of humidity
code: MD046
Vessel for adjustment and calibration of humidity
