FLOWMETER FOR COMPRESSED-AIR SYSTEMS
- Easy to install
- Housing and display rotate to suit piping orientation
- IP-66 rating; suitable for wet locations
- Milliamp and pulse outputs
- Optional RS-485 output for networking

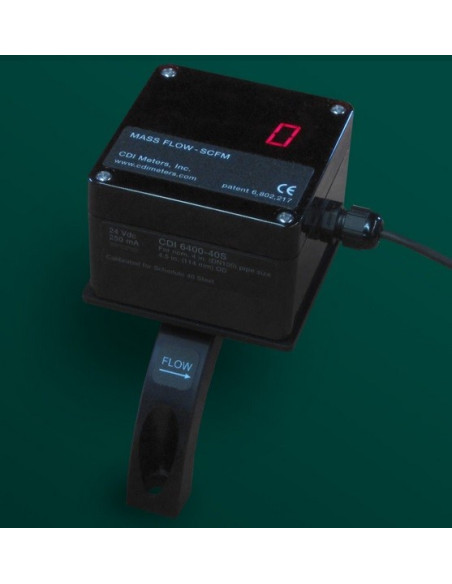

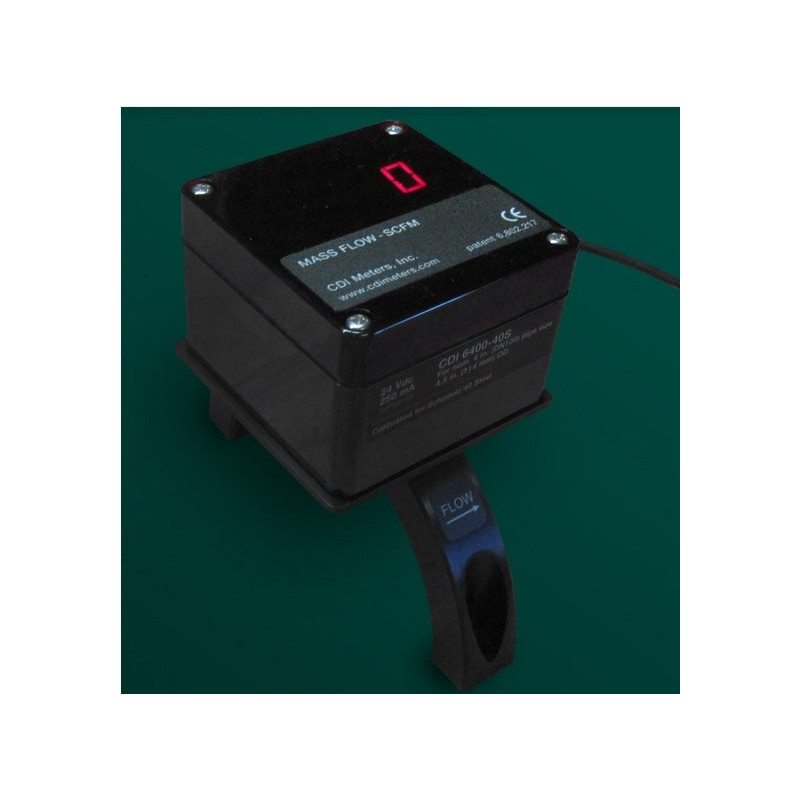

The CDI 6400 is similar to the CDI 6200, except that it has its probes mounted side-by-side in a single ring and it is built for larger pipe sizes. Like the 6200 and the 5000-series meters, it is a thermal mass flow meter in which one probe senses the air temperature and the other is maintained ten degrees above the air temperature. It has the same milliamp and pulse outputs, the same large, bright display, and an optional Modbus RS485 output for networking.
