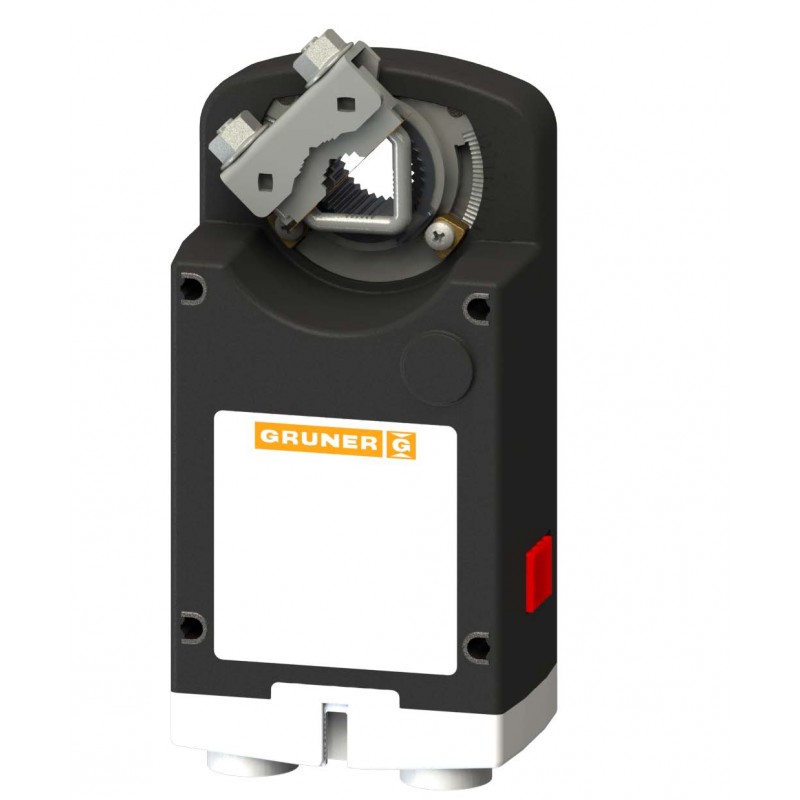

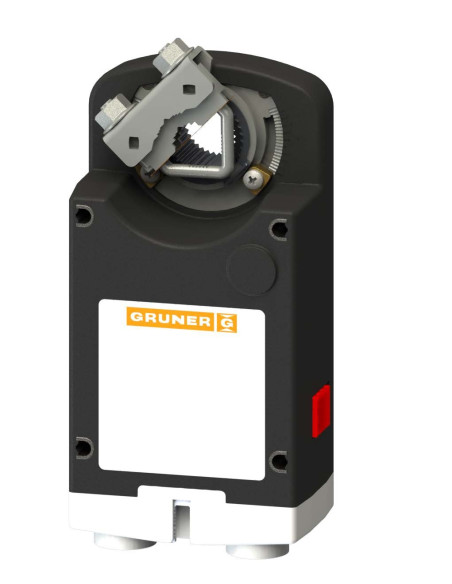

Rotary actuator, Ref.: 363-024-30

Reference

Condition: New

- Rotary actuator without spring return actuator
- 24 VAC/DC, 2/3 point
- Torque 30 Nm
- Running time 150 s/90°
- Connection with 1m cable
- Feedback signal: 2x Auxiliary switch
- Shaft coupling: Round 9-26 mm, square 9-18 mm
- Assembly with mounting strip + screws

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

215 000 000,00 €

tax excl.

Quantity

Options

Add to wishlist

OVERVIEW
SPECIFICATIONS
MODELS
Data sheet
Download

---------- INDUSTRY ------------	Rotary Actuators

EC-Declaration of Conformity Download (159.77k)

Gruner 363-024-30 Specs Download (864.72k)

Rotary actuator for adjusting dampers in HVAC installations

- Running time: 150 s / 90°
- Torque: 30 Nm
- Nominal voltage: 24 VAC/DC
- Control: 2-/3-point
- Damper size: up to approx. 6 m²
- Shaft coupling: clamp square 9-18 mm / round 9-26 mm

Electrical data
Nominal voltage	24 VAC/DC, 50/60 Hz
Nominal voltage range	19...29 VAC/DC
Power consumption motor (motion)	4,5 W
Power consumption standby (end position)	1,5 W
Wire sizing	6,0 VA
Control	2-/3-point
Feedback signal	-
Auxiliary switch	-
Contact load	-
Switching point	-
Connection motor	cable 1000 mm, 3 x 0,75 mm² (halogen free)
Connection feedback potentiometer	-
Connection auxiliary switch	-
Connection GUAC	-
Functional data
Torque	30 Nm
Damper size	up to approx. 6 m²
Synchronised speed	±5%
Direction of rotation	selected by switch
Manual override	gearing latch disengaged with pushbutton, self-resetting
Angle of rotation	0°... max. 95°, can be limited with adjustable mechanical end stops
Running time	150 s / 90°
Sound power level	< 45 dB(A)
Shaft coupling	clamp ◊ 9-18 mm / Ø 9-26 mm
Position indication	mechanical with pointer
Service life	> 60 000 cycles (0°...95°...0°)
Safety
Protection class	III (safety extra-low voltage)
Degree of protection	IP 54
EMC	CE (2014/30/EU)
LVD	CE (2014/30/EU)
RoHS	CE (2011/65/EU - 2015/863/EU - 2017/2102/EU)
Mode of operation	Typ 1 (EN 60730-1)
Rated impulse voltage	0,8 kV (EN 60730-1)
Control pollution degree	3 (EN 60730-1)
Ambient temperature normal operation	–30°C...+50°C
Storage temperature	–30°C...+80°C
Ambient humidity	5...95% r.H., non condensing (EN 60730-1)
Maintenance	maintenance free
Dimensions / Weight

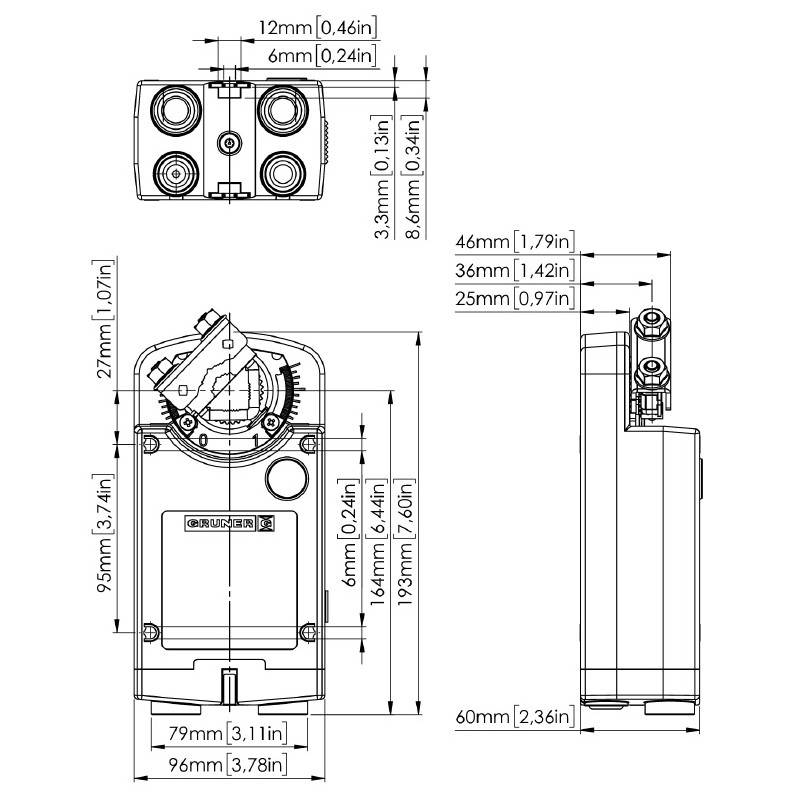

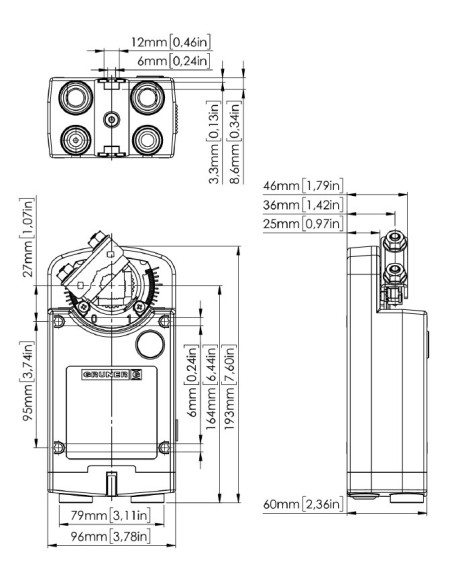

Dimensions	193 x 96 x 60 mm
Weight	1600 g
