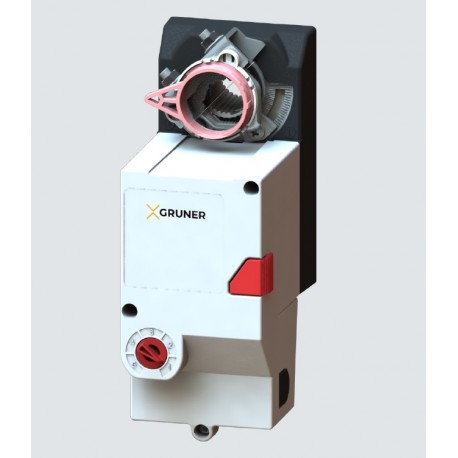

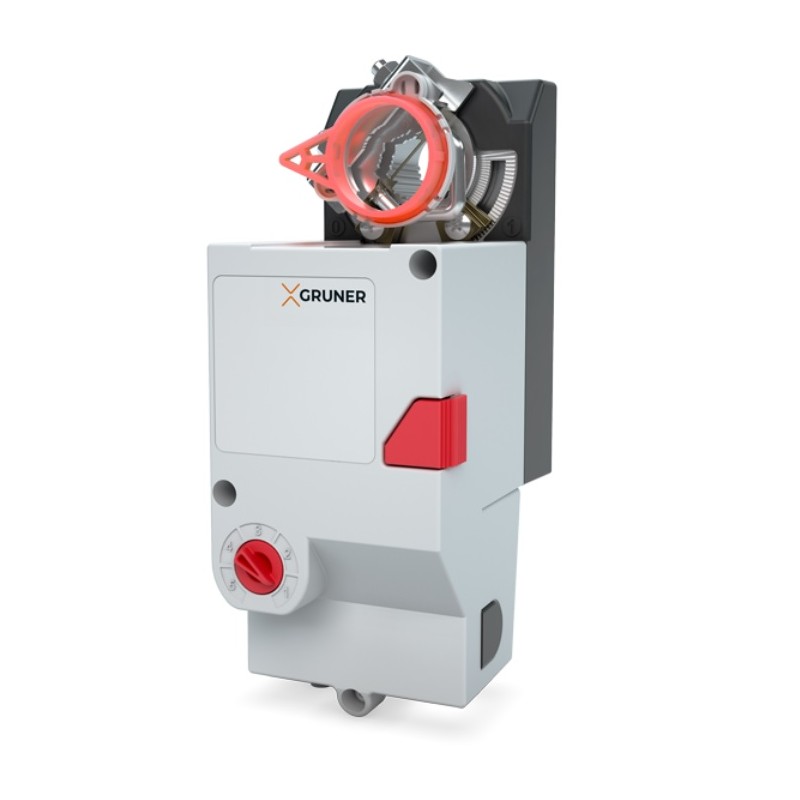

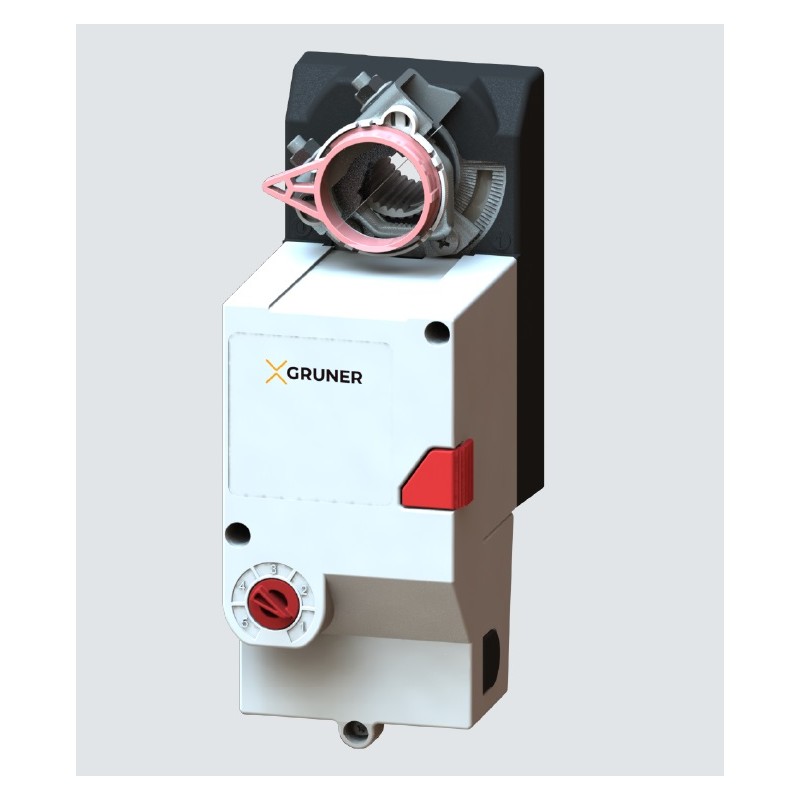

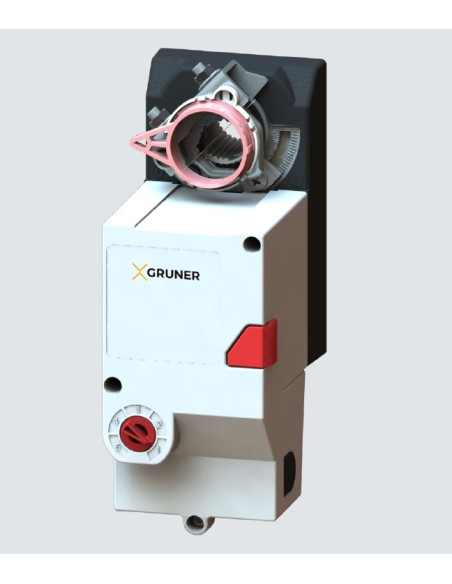

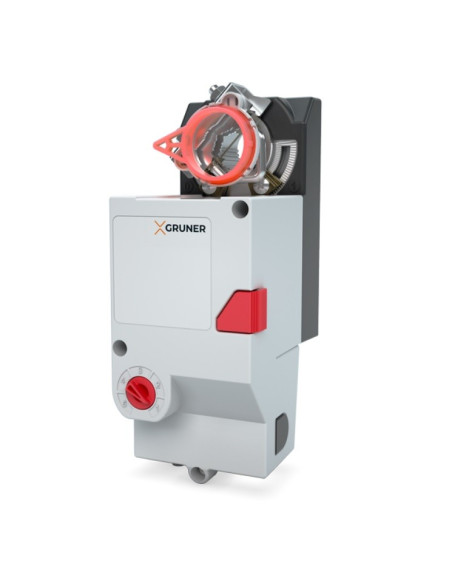

Gruner 328QS-024-15B Rotary actuator with fail-safe position

Reference: 328QS-024-15B - Manufacturer: Gruner

Rotary actuator with fail-safe position for adjusting dampers in HVAC installations

Running time: 3...5 s / 90°
Torque: 15 Nm
Nominal voltage: 24 VAC/DC
Control: continuous control (0)2...10 VDC
Damper size: up to approx. 3 m²
Shaft coupling: clamp square 8-15 mm / round 8-20 mm

€495.00

Tax excluded Envío: 3 a 6 semanas

► Rotary actuator without spring return actuator
► 24 VAC/DC, continuous (0)2…10 V
► Torque 15 Nm
► Running time 3 s/90°
► Connection with 1m cable
► Feedback signal: (0)2…10 V
► Shaft coupling: round 8-20 mm, square 8-15 mm
► Assembly with mounting strip + screws

---------- INDUSTRY ------------: Rotary Actuators

Gruner 328QS-024-15B Data Sheet

Download (2.04MB)

328QS-024-15B EC-Declaration

Download (196.14KB)
