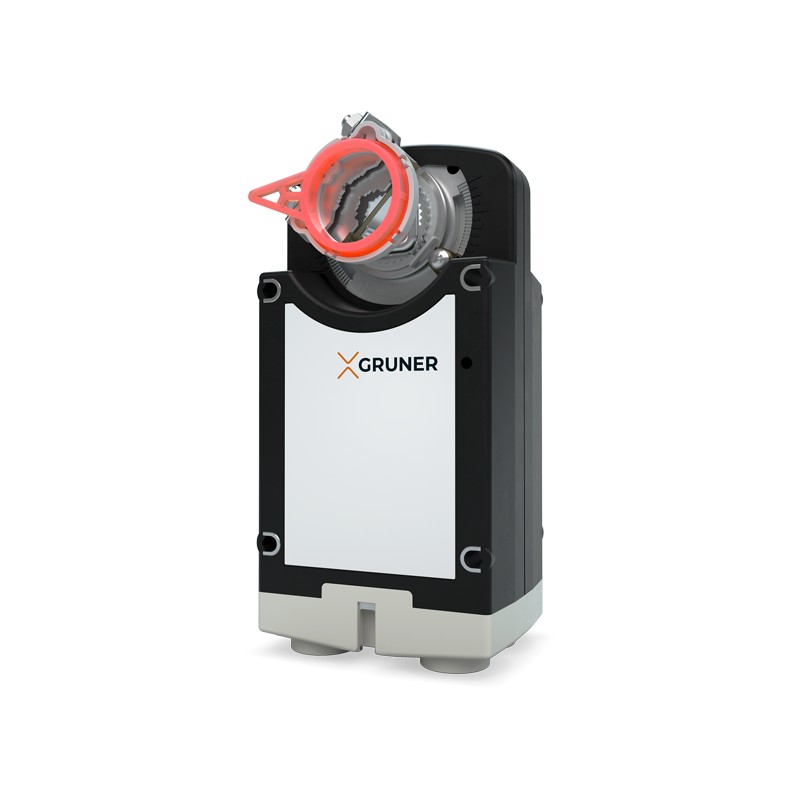

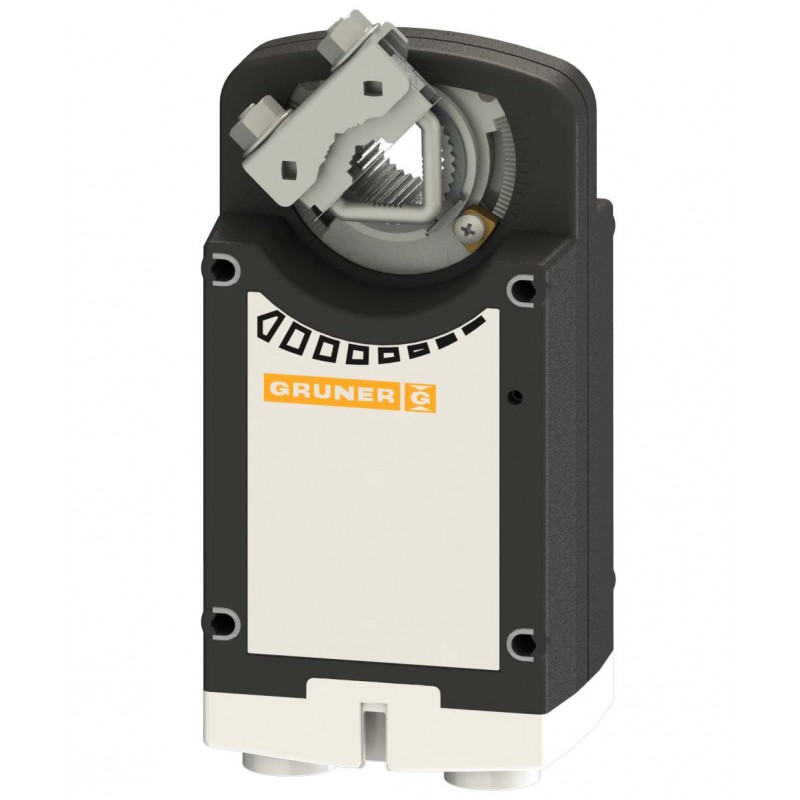

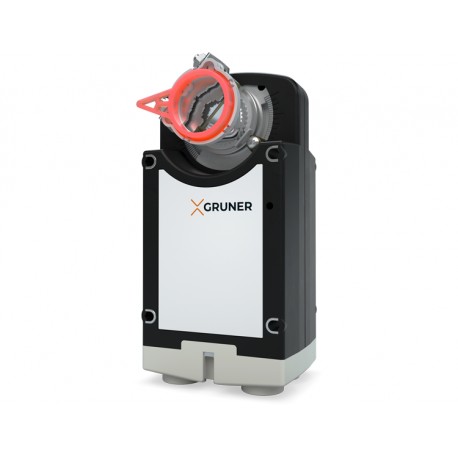

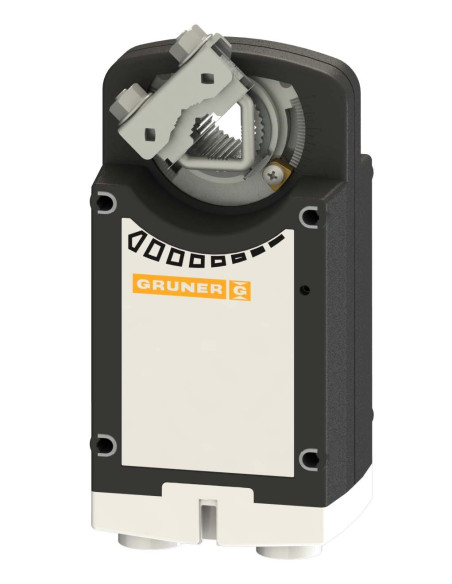

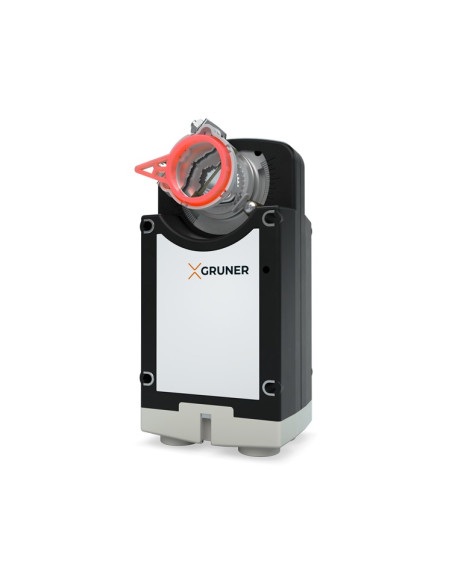

Spring Return Actuator, Ref.: 361C-024-10
Spring return actuator for adjusting dampers in HVAC installations
- Spring return actuator
- 24 VAC/DC, continuous (0)2…10 V
- Torque 10 Nm
- Running time: motor 150 s/90°/ spring 20 s/90°
- Connection with 1m cable
- Feedback signal: (0)2…10 V
- Shaft coupling: O 9-26 mm, square 9-18 mm
- Assembly with mounting strip + screws
- Running time motor: 150 s / 90°
- Running time spring: 20 s / 90°
- Torque motor: 10 Nm
- Torque spring: 10 Nm
- Nominal voltage: 24 VAC/DC
- Control: continuous control (0)2...10 VDC
- Damper size: up to approx. 2 m²
- Shaft coupling: clamp square 9-18 mm / round 9-26 mm
| Electrical data | |
|---|---|
| Nominal voltage | 24 VAC/DC, 50/60 Hz |
| Nominal voltage range | 19...29 VAC/DC |
| Power consumption motor (motion) | 5,0 W |
| Power consumption standby (end position) | 2,0 W |
| Wire sizing | 8,0 VA |
| Control | continuous control (0)2...10 VDC / Ri > (100 kΩ) 50 kΩ (0)4...20 mA |
| Feedback signal | (0)2...10 VDC, max. 5 mA |
| Auxiliary switch | - |
| Contact load | - |
| Switching point | - |
| Connection motor | cable 1000 mm, 4 x 0,75 mm² (halogen free) |
| Connection feedback potentiometer | - |
| Connection auxiliary switch | - |
| Connection GUAC | - |
| Functional data | |
| Torque motor | 10 Nm |
| Torque spring | 10 Nm |
| Damper size | up to approx. 2 m² |
| Synchronised speed | ±5% |
| Direction of rotation | selected by mounting |
| Manual override | manual operation |
| Angle of rotation | 0°...max. 95° can be limited with adjustable mechanical end stops |
| Running time motor | 150 s / 90° |
| Running time spring | 20 s / 90° |
| Sound power level motor | < 35 dB(A) |
| Sound power level spring | < 65 dB(A) |
| Shaft coupling | clamp ◊ 9-18 mm / Ø 9-26 mm |
| Position indication | mechanical with pointer |
| Service life | > 60 000 cycles (0°...95°...0°) > 1 000 000 partial cycles (max. ±5°) |
| Safety | |
| Protection class | III (safety extra-low voltage) |
| Degree of protection | IP 54 |
| EMC | CE (2014/30/EU) |
| LVD | CE (2014/35/EU) |
| RoHS | CE (2011/65/EU - 2015/863/EU - 2017/2102/EU) |
| Mode of operation | Typ 1 (EN 60730-1) |
| Rated impulse voltage | 0,8 kV (EN 60730-1) |
| Control pollution degree | 3 (EN 60730-1) |
| Ambient temperature normal operation | -30°C...+50°C |
| Storage temperature | -30°C...+80°C |
| Ambient humidity | 5...95% r.H., non condensing (EN 60730-1) |
| Maintenance | maintenance free |
| Dimensions / Weight | |

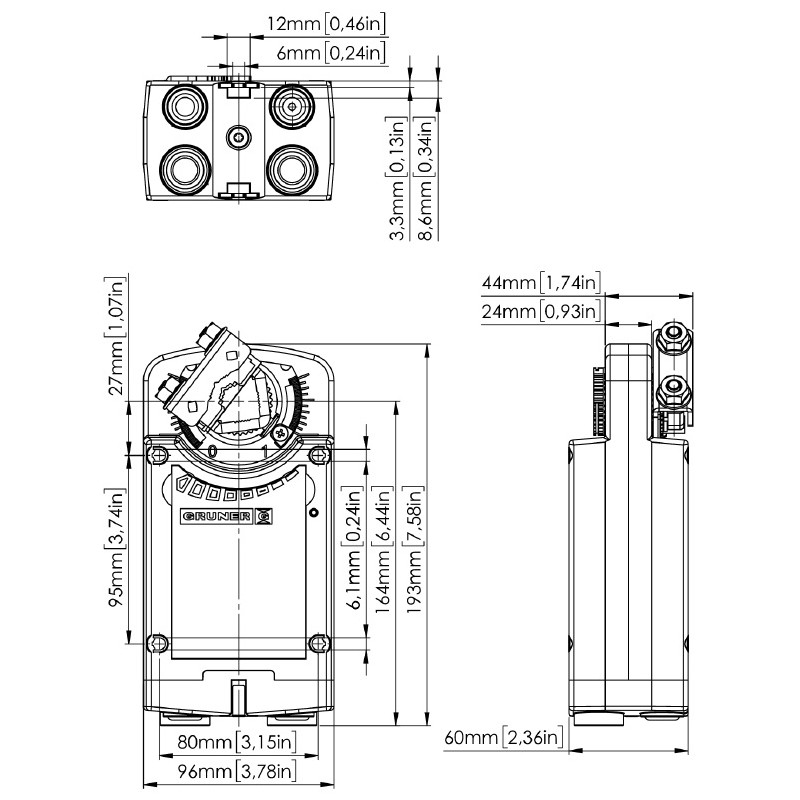

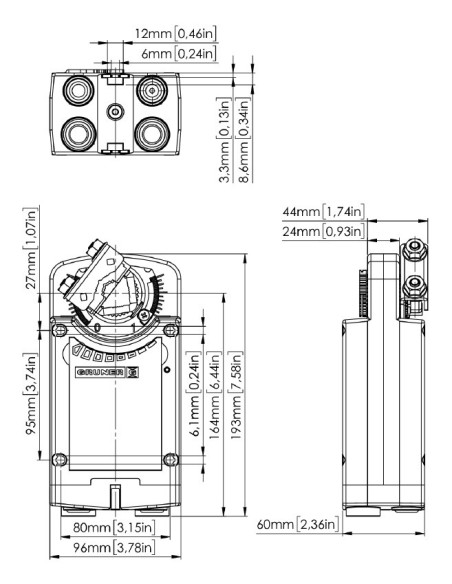

| Dimensions | 193 x 96 x 60 mm |
| Weight | 1600 g |
