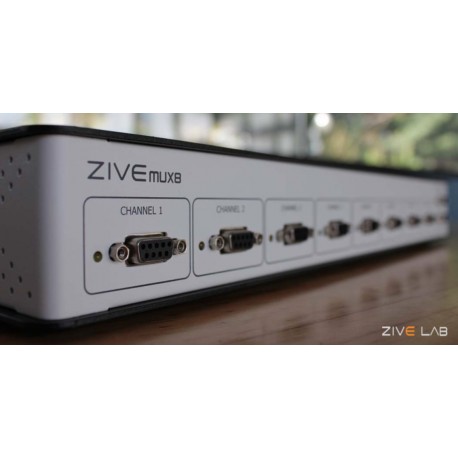

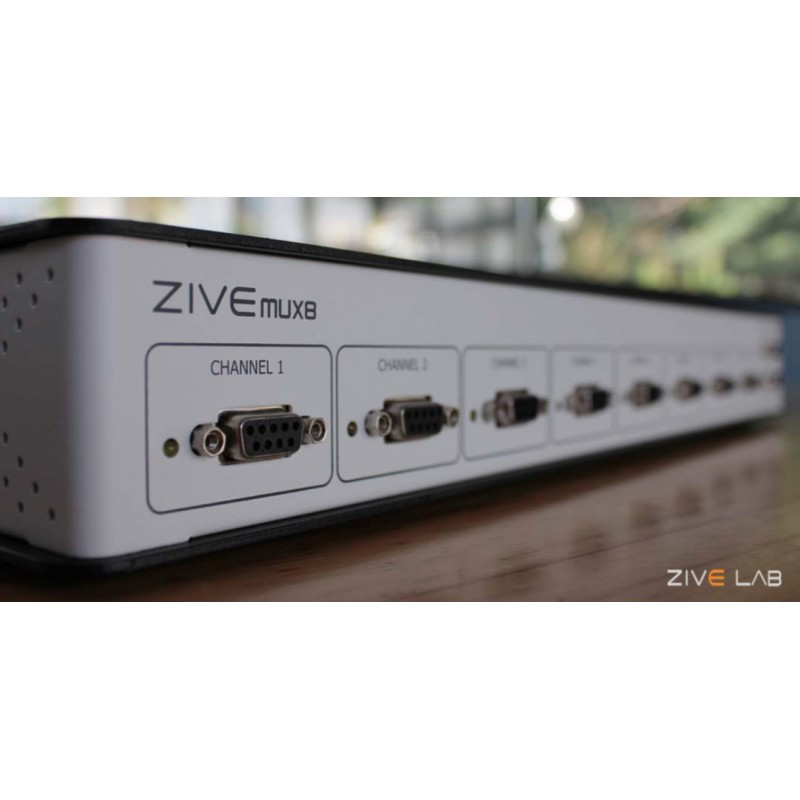

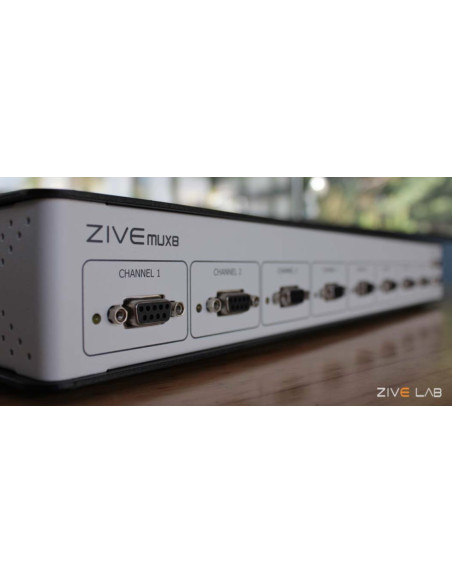

MUX8B Multiplexer for Zive Potentiostats
MUX8B
New
The multiplexer, MUX8B, is designed for use with the ZIVE SP2, SP5 single channel potentiostat, BP2 dual potentiostat and MP2, MP5 multichannel potentiostat.
The MUX8B allows user to covert the single channel potentiostat or multichannel potentiostat into a powerful instrument suitable for sequential 8 cell operation per channel.
Although up to eight cells can be connected simultaneously, it doesn’t mean that user can do simultaneous multichannel experiments across multiple cells.
For simultaneous multiple experiments, ZIVE MP Series Multichannel Electrochemical Workstation is recommended.
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
Using DI/DO interface, Smart Manager software can switch the cell connection to cell channel number. This needs to make sequence file using “DEVICE” DOUT function.
This multiplexer can switch 4 electrodes lead cable and auxiliary voltage sensing cable.
MUX8B can be used all kind of experiments including EIS techniques which Smart Manager supports. Multiplexed experiment data will be saved in one data file. This data file can be divided into several files into parts by Smart Manager software.

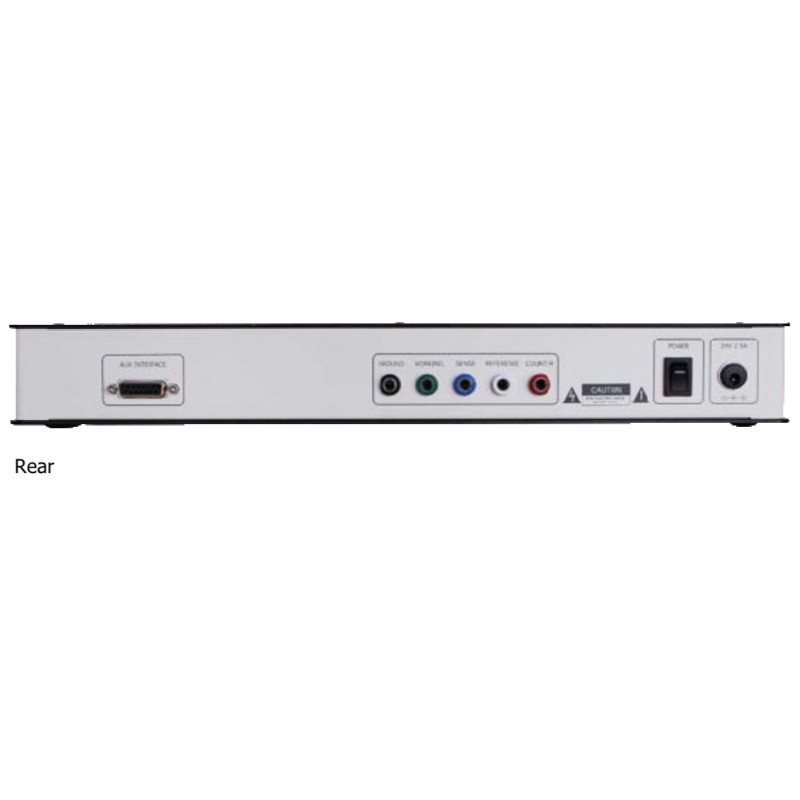

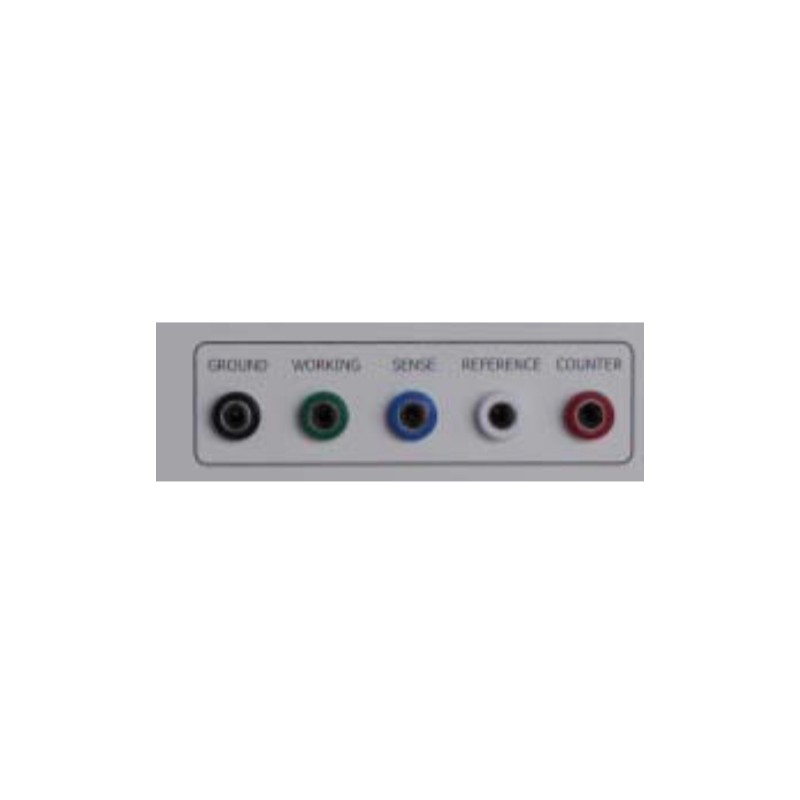

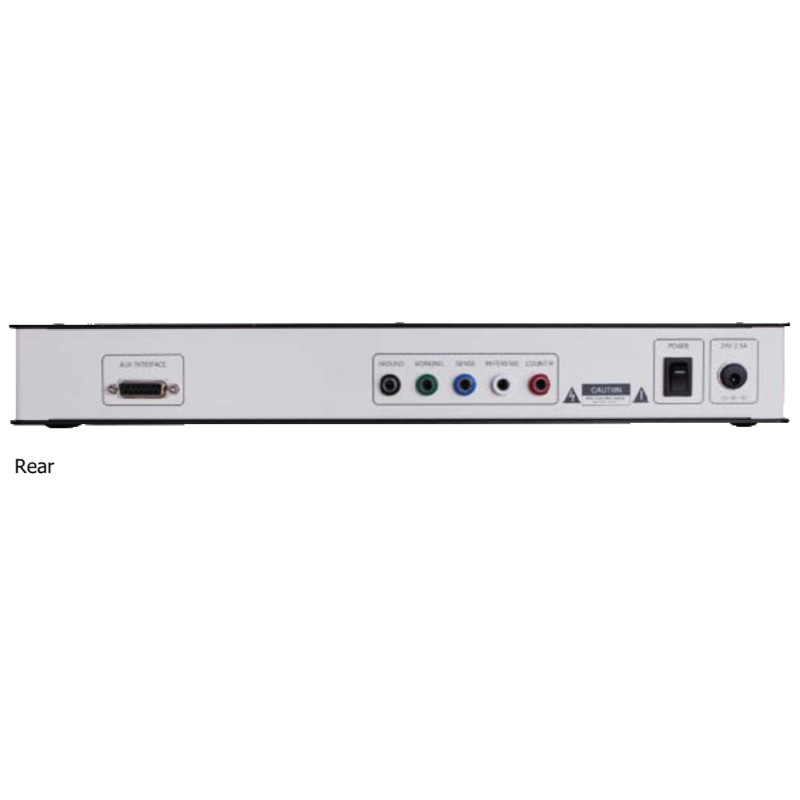

Banana plug cell cable connection from potentiostat

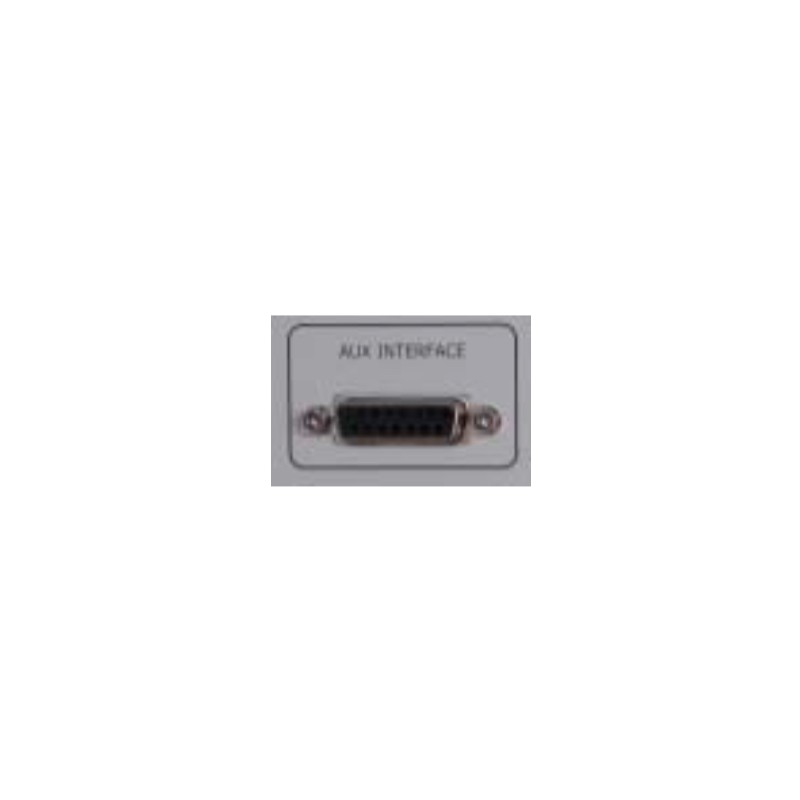

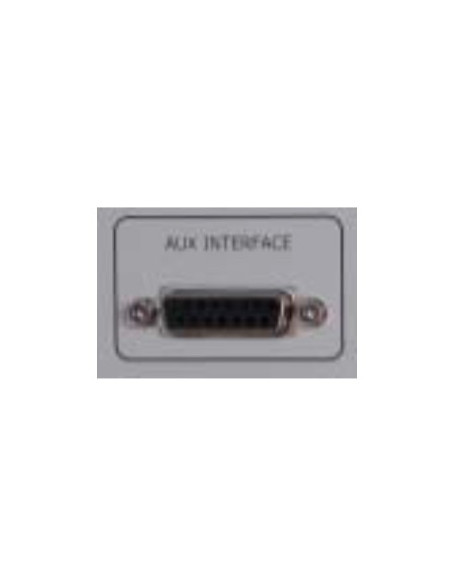

Auxiliary voltage input connection from potentiostat

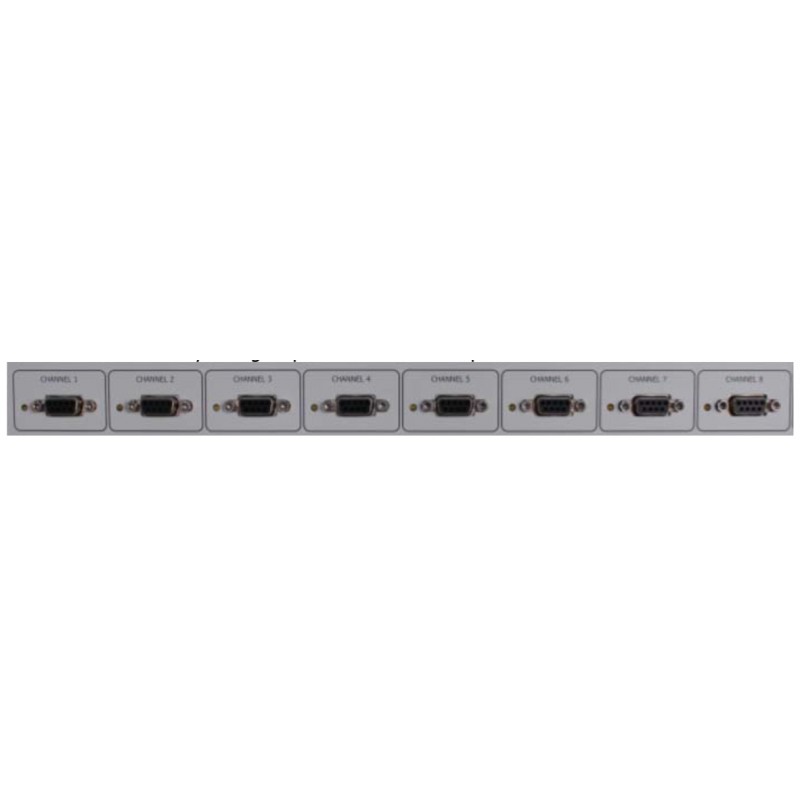

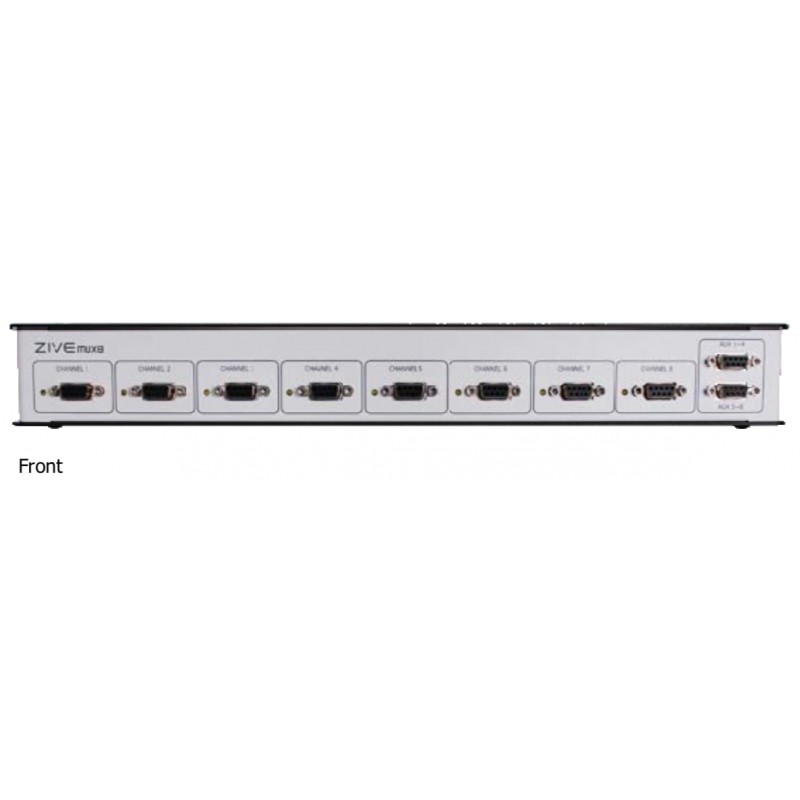

Cell cables connection to the 8 cells under test.

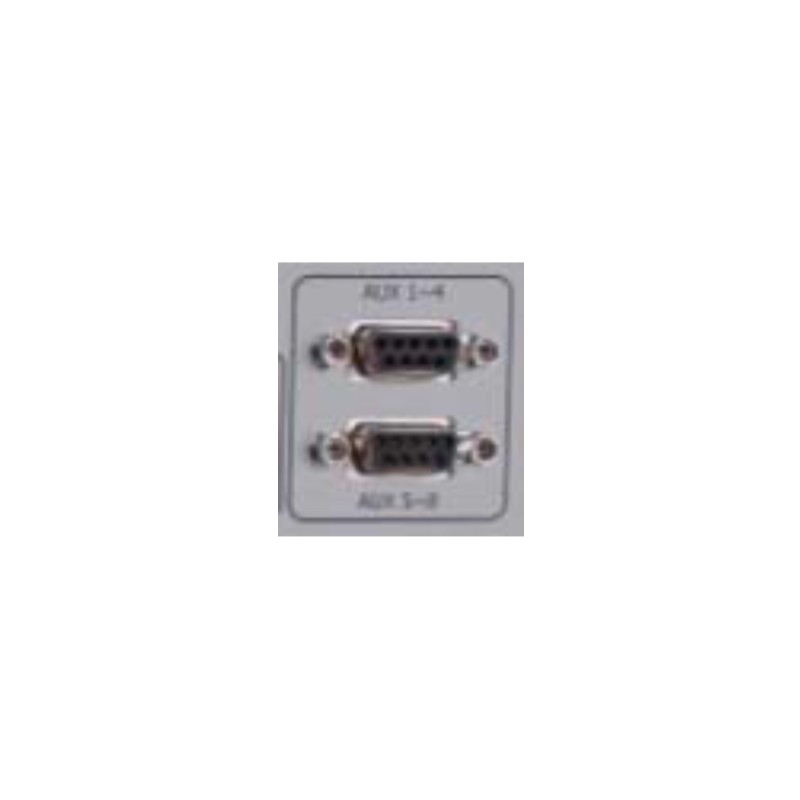

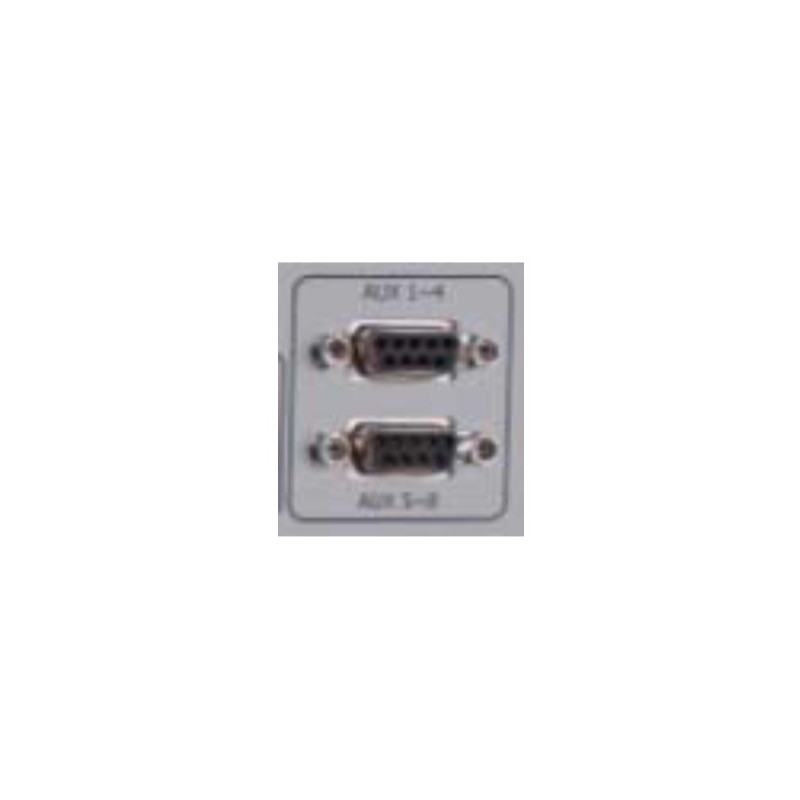

Auxiliary voltage input from 8 cells.
- Multiplexed techniques available
- Basic:
Potentiostatic / Galvanostatic / OCP measurement / Potential Sweep / Current Sweep / CV
- EIS
PEIS / GEIS / OCPEIS / Pseudo galvanostatic EIS / Potentiodynamic PEIS / Galvanodynamic GEIS / Potentiostatic HFR / Galvanostatic HFR / Potentiodynamic HFR / Galvanodynamic HFR / Multisine PEIS / Multisine GEIS
- Energy
CC / CV test / CC / CC test / Discharge test / EVS test / Variable scan rate CV / Pstat IV curve / Gstat IV curve / Steadystate CV
- DC Corrosion
Tafel / Polarization resistance / Potentiodynamic / Galvanodynamic / Cyclic polarization / Ecorr vs. time / Galvanic corrosion / RpEc trend / Reactivation potential
- Electrochemical Analysis
Chronoamperommetry / Chronopotentiometry / Chronocoulometry / Normal pulse voltammetry / Differential pulse voltammetry / Differential pulse amperometry / Reverse normal pulse voltammetry / Differential normal pulse voltammetry / Square wave voltammetry / Linear sweep voltammetry / Sampled DC voltammetry
