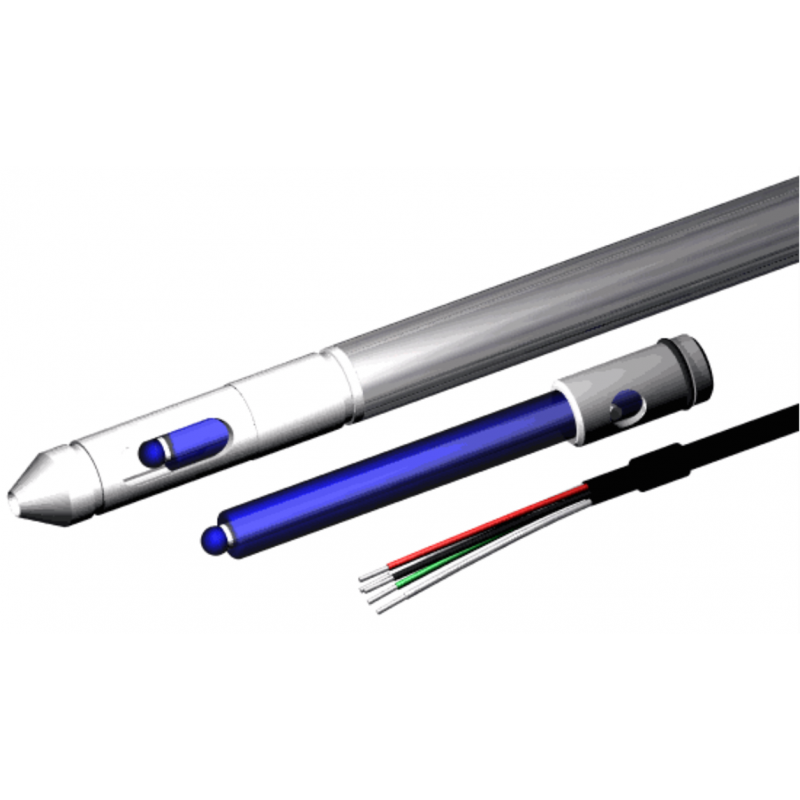

STs014p4_20S PH & Temp. Transmitter
The Transmitters Series STs pH Transmitters are ideal for applications such as Process Control, Data Acquisition, Wastewater Treatment and Groundwater Monitoring.
The ST series of submersible water quality transmitters has an integrated preamplifier and a "cable", 4-20 mA transmitter.
Two independent channels simultaneously transmit a pH and a temperature signal - two cables for the pH and two cables for the temperature.
The compact design offered by the patented pHiConn (TM) keyless connection system - and the 316SS (optional titanium) and the Delrin construction - make the robust sensor / transmitter ideal for applications such as process control, acquisition of data, wastewater treatment and, monitoring of groundwater.
Units can be submerged at 200 feet (approximately 100 psi).
Individual units can be combined to make redundant or multiparameter modules using the patented pHionics pHiKLIP (TM) system.

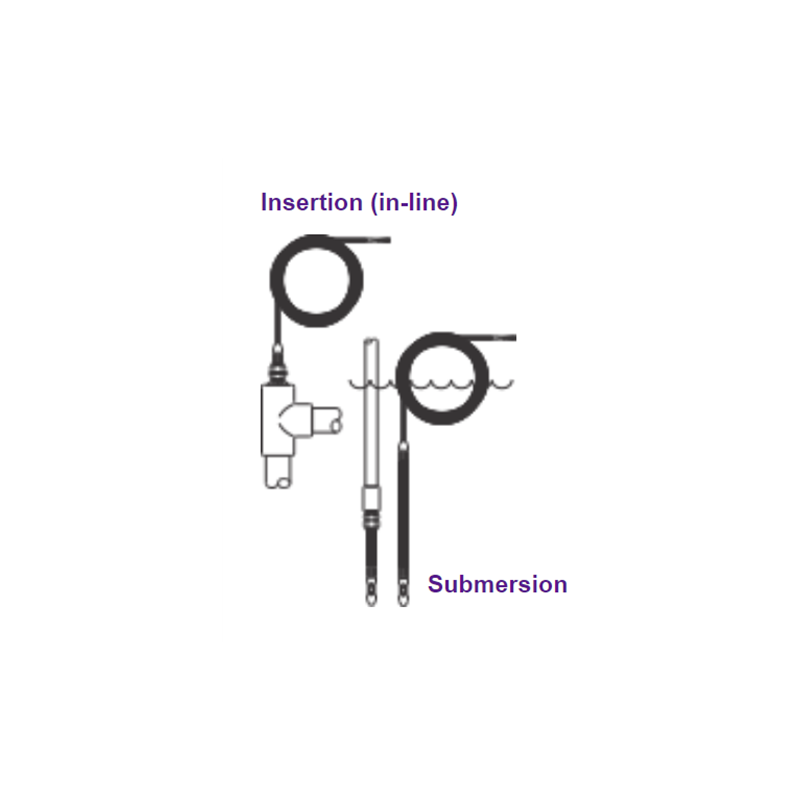

The pHiKLIP (TM) system also allows units to be used in online applications (insertion) without fear of explosion.

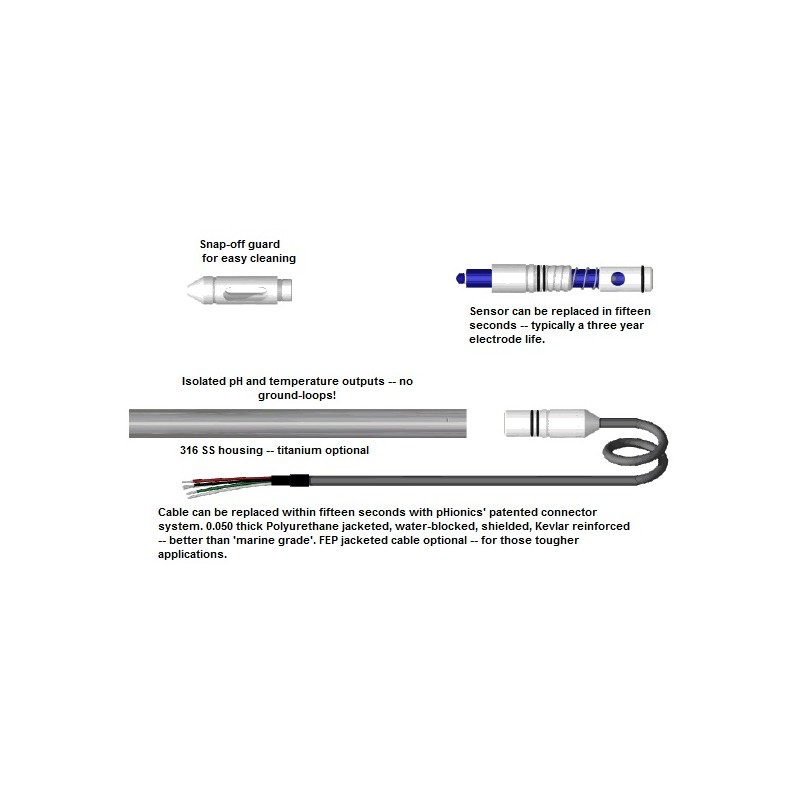

As with all pHionics designs, the sensor / transmitter is designed with "ease of service" as the main objective.
- The Sensor measures:
- pH & Temperature
- Output Signal:
- 4-20 mA
- Cable Length:
- 7.6 meters
- Power Supply:
- 7 - 36 Vdc
- Sensor for use in:
- Outdoor & Underwater
