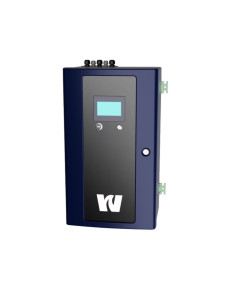

3045 Copper Analyzer

Waltron’s 3045 Copper Analyzer is the most advanced instrument available on the market today for online measurement of dissolved copper.

The 3045 stands alone as capable of delivering the most accurate and precise results for ultra-pure water applications.

Range
0–1000ppb, 0–3000ppb

Accuracy
+/– 2% of full scale

Reproducibility
+/– 2% of reading

Analysis Time
7min, batch process

Sampling Frequency (Cycle Time)
One reading every 15 mins, adjustable

Sensor Classification
Colorimetric with glass flowcell and LED source

Power Supply
110-220Vac, 50-60 Hz 80 VA

Humidity
Up to 90% not condensable

Ambient Temperature Range
10-45°C analyzer (50-113°F)

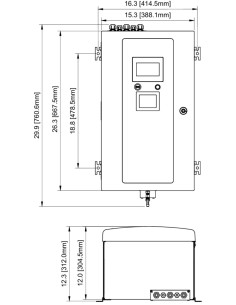

Positioning and Installation Details
Wall mounting, bench supported, or panel mounting (optional)

Alarms
2 or 4 configurable alarm relays

Degree of Protection
IP55 (NEMA 4): Wet section, IP65 (NEMA 4x): Electronics

Required Maintenance
Once a month replenish reagents, Quarterly replace tubing

Reagent Consumption (approximate)
3 reagents, 2L each per month

Materials in Contact with Sample
Glass, Silicone, Plexiglass, Stainless Steel AISI 316

Certification (on request):
Meets low voltage and low electromagnetic compatibility directives

Sample Conditioning Requirements
Filtering between 10 and 60 micron, depending on the matrix, needed only to avoid clogging.

Weight
17 kg (37.5 lbs.)

SAMPLE DELIVERY OPERATING CONDITIONS

Temperature Range
5-55º C (41-131º F)

Inlet Sample
100–500 ml/min, atmospheric, flexible tubing O.D. 1/4" (6 mm)

Outlet Sample
Atmospheric, waste tubing O.D. 3/8 (9 mm)

PH
3-12

SIGNAL OUTPUTS

Analog Outputs
4-20mA (galvanic isolator module available as option) or 0-5V

Serial I/O for Signals
RS232, RS485; MODBUS; PROFIBUS

OPERATIONAL CALIBRATION

Frequency/Intervals
Recommended: 7 days

Single/Multi Point
Multi-Point: zero and mid range

Matrix Corrections
Yes, sample blank correction

Manual/Automatic
Both
