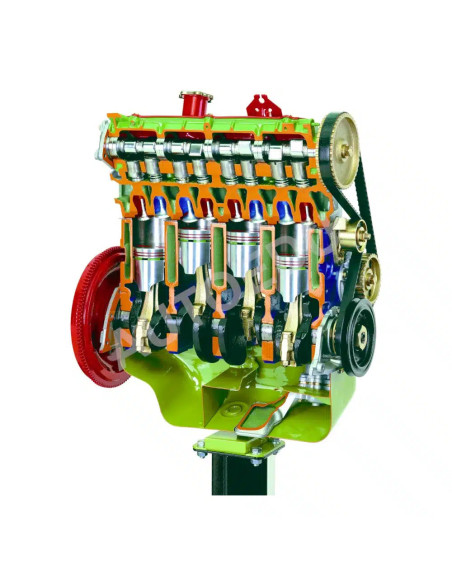

AE45440M Overhead Camshaft (OHC) Engine Cut Off Educational Trainer

Dimensions: 700 mm x 600 mm x 800 mm (27.56 in x 23.62 in x 31.50 in)
Weight: 60 kg (132 lb)
Product Number: AE45440M

Understand and analyze the operating principles of a 4-stroke gasoline engine, including visual observation of the movements of the camshaft and piston, and other essential engine components. Simulate engine movement using a hand crank for detailed analysis of how each part interacts and functions. Analyze the principles between the lubrication, intake, injection, and cooling systems, gaining practical knowledge of how these subsystems operate in real engines. Learn key mechanical concepts, such as overhead camshaft timing and the timing belt, which are fundamental to understanding internal combustion engines.

Provides a clear cross-sectional view of engine components to demonstrate the role of each system in engine operation.
Enhance the teaching experience with the included training manual, which allows instructors to control the engine's speed and movement for detailed learning. Covers topics such as camshaft timing, valve operation, and lubrication flow, enabling students to observe mechanical movements in real time.
Its space-saving design and classroom portability allow for simultaneous use by multiple students.
