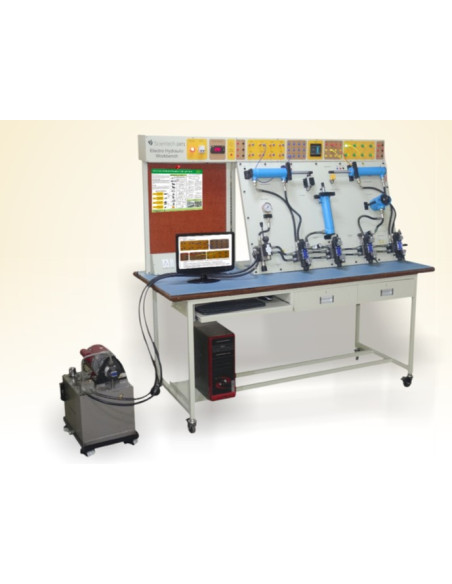

Scientech2471 Electro Hydraulic Workbench

Reference Scientech2471

Condition: New

The Scientech 2471 Electro Hydraulic Workbench is designed to teach the design, construction and application of hydraulic components and circuits. Integrates PLC technology to build hybrid Industrial Automation systems with hydraulic components and modules.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
SPECIFICATIONS
Data sheet
Download

Category	Hydraulic

Scientech2471 Download (1.44M)

Scientech 2471 Electro Hydraulic Workbench is designed to demonstrate the design, construction and application of Hydraulic components and circuits. It integrates PLC technology to build hybrid Industrial Automation systems with Hydraulic components and modules.
Hydraulic technology is found in numerous areas of engineering. Students investigate the basic “building blocks” of modern Hydraulics and how they are interconnected to form systems. Hydraulic Systems provide the power needed to control metal forming machinery , conveyor systems, component test stands, foundries and primary metals plants, presses, including cushions, clutches and brakes, automated assembly systems, packaging systems, pulp and paper industries, material handling, and robotic systems. PLC provides flexibility to design and build numerous systems using software and I/O inter faces without changes to the hard wired connections.

PLC operated Electro Hydraulic platfor m
12 Digital Inputs, 8 Digital Outputs
Open platfor m to explore wide PLC and Hydraulic applications
Industrial feel & look
DIN rail mounting for PLC
Function and identification of Hydraulic components and their symbols
Powerful instruction sets
High execution speed

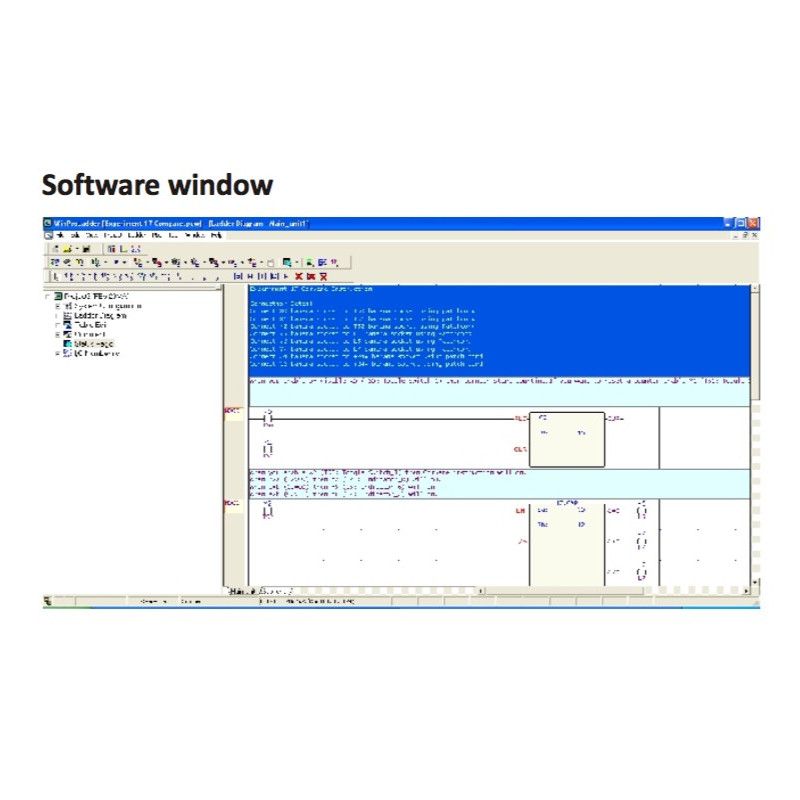

Extremely easy and student friendly software
Several sample Ladder programs
Practice troubleshooting skills
Extensive Learning
Workbench has 4 wheels, suitable for movement installation
Robust construction

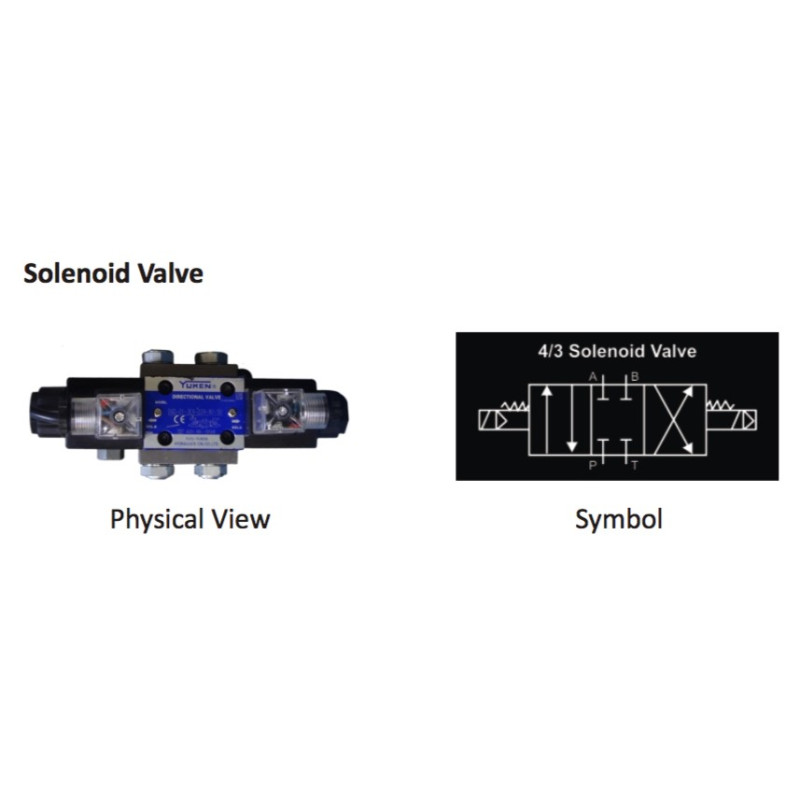

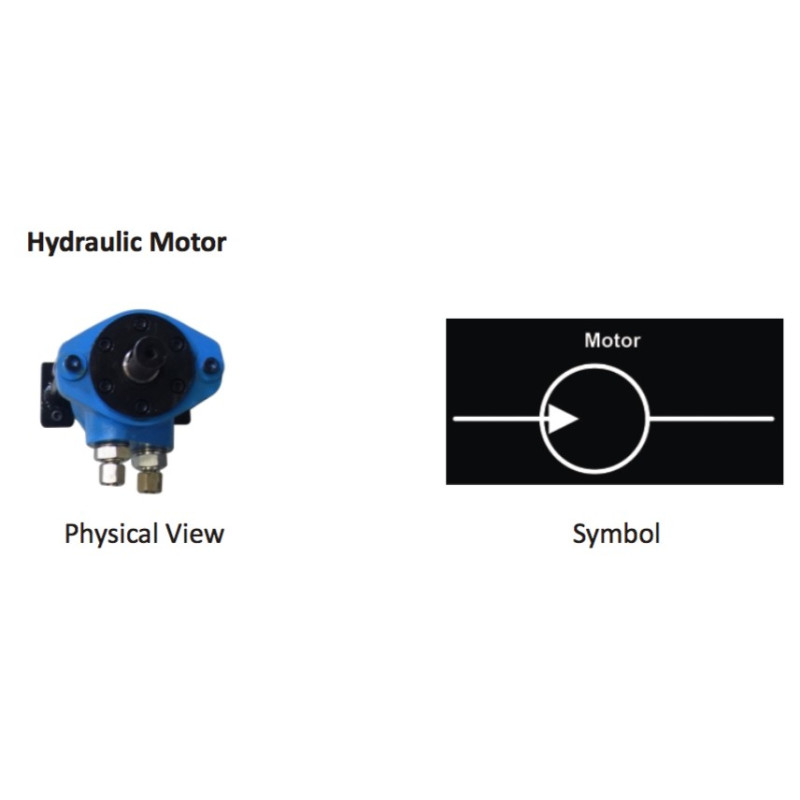

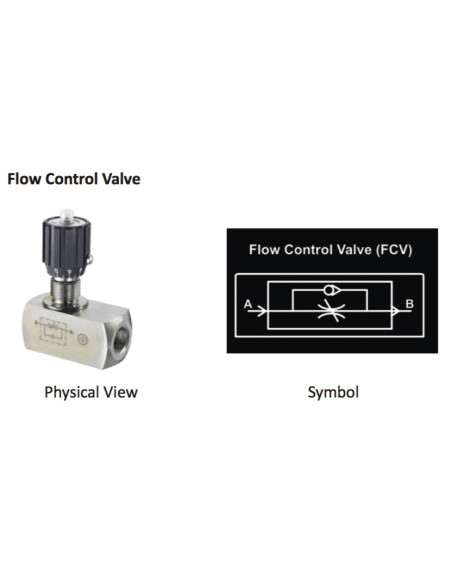

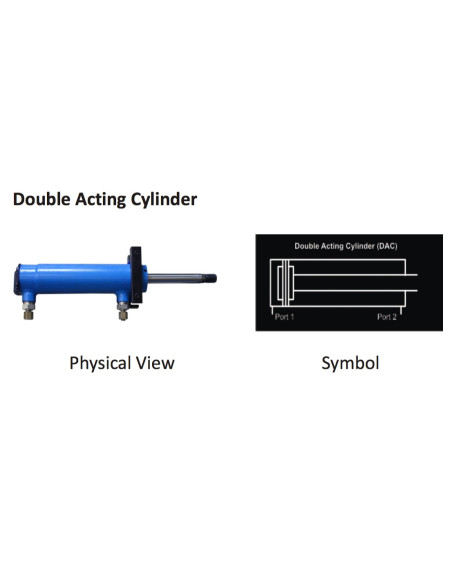

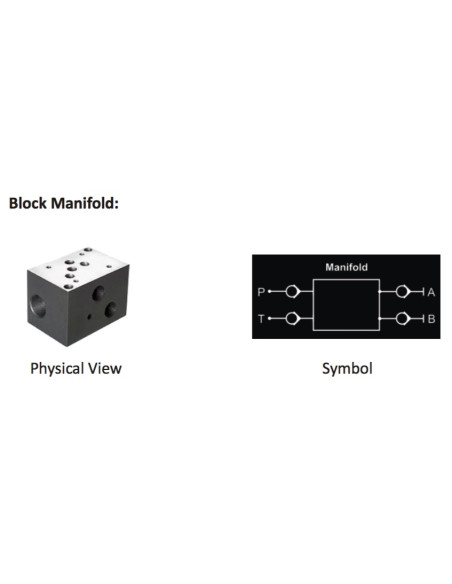

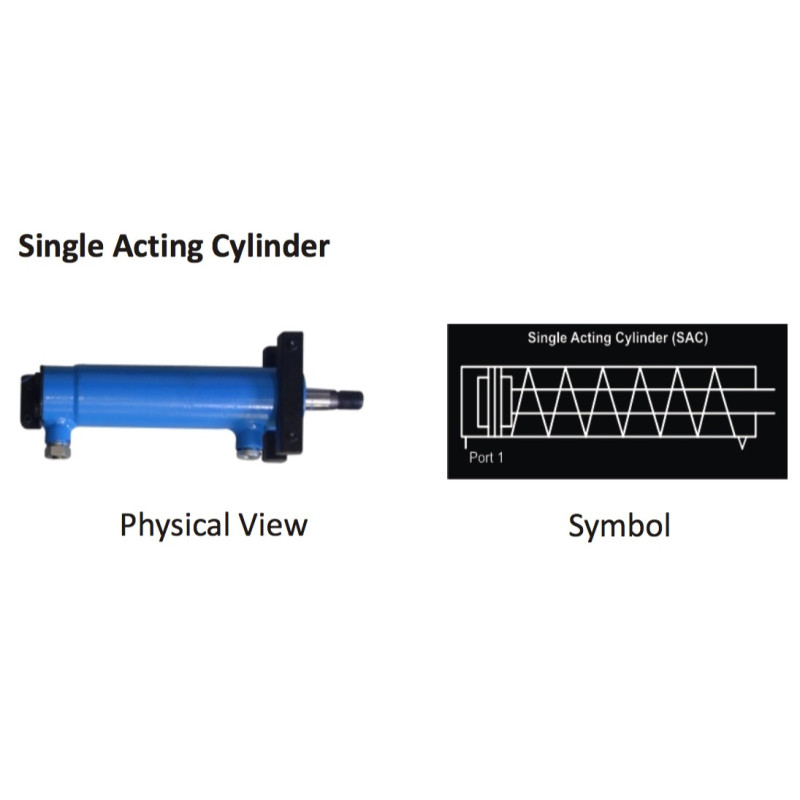

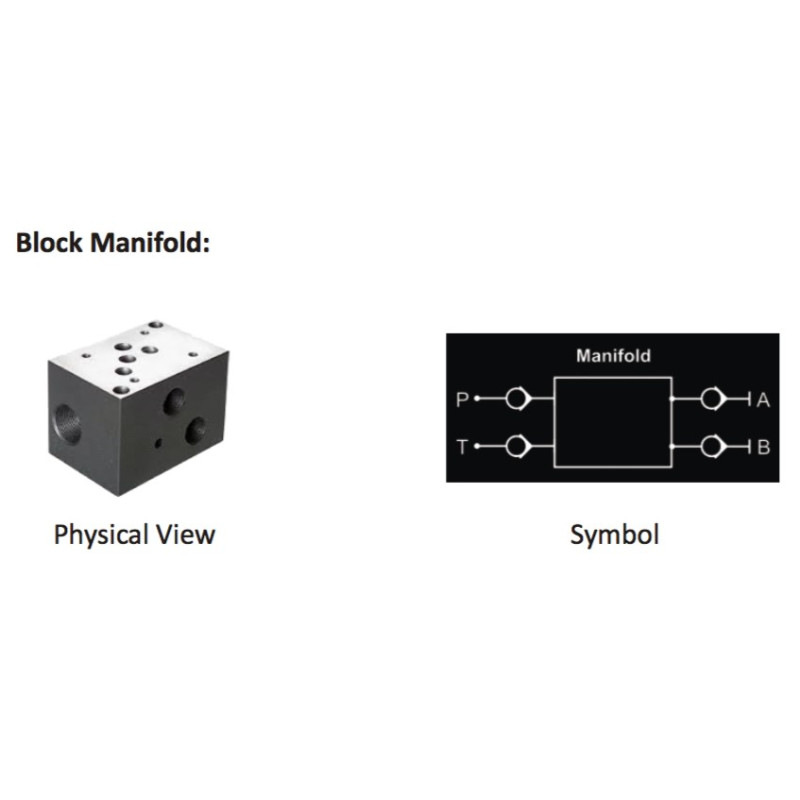

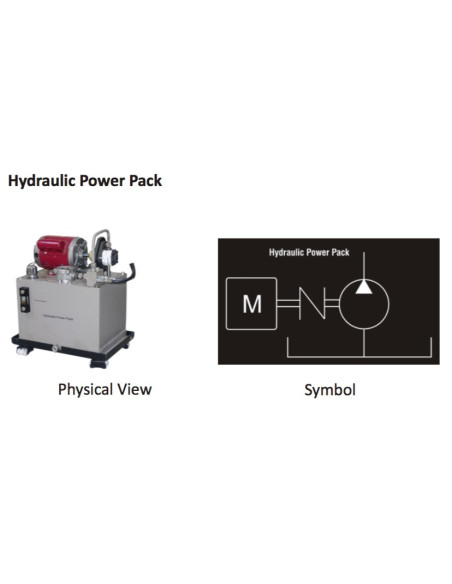

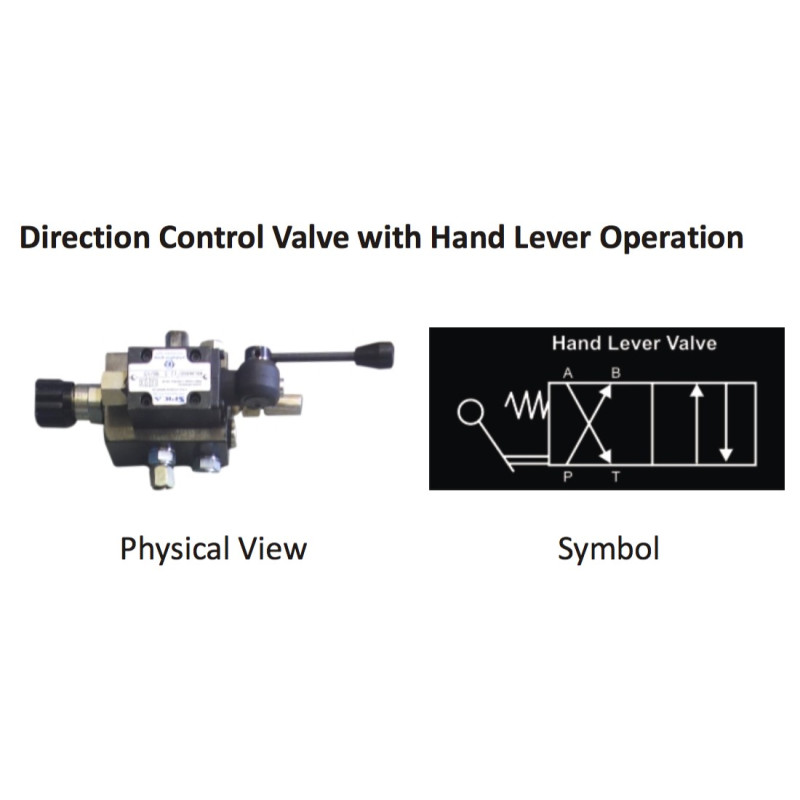

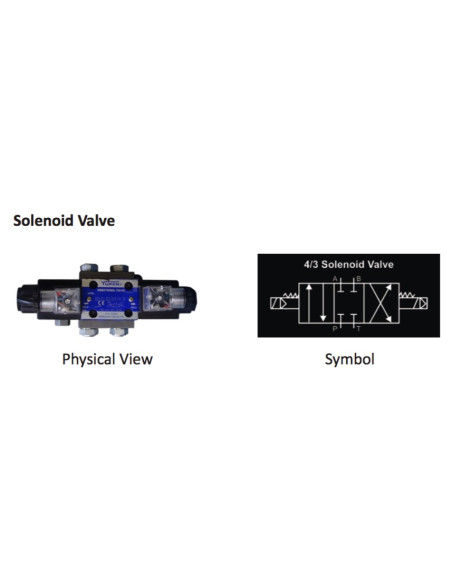

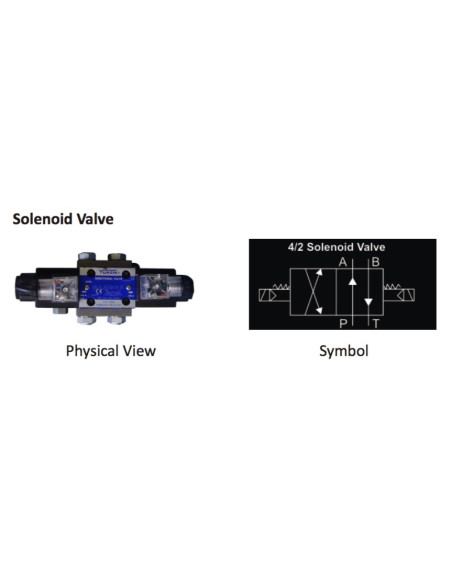

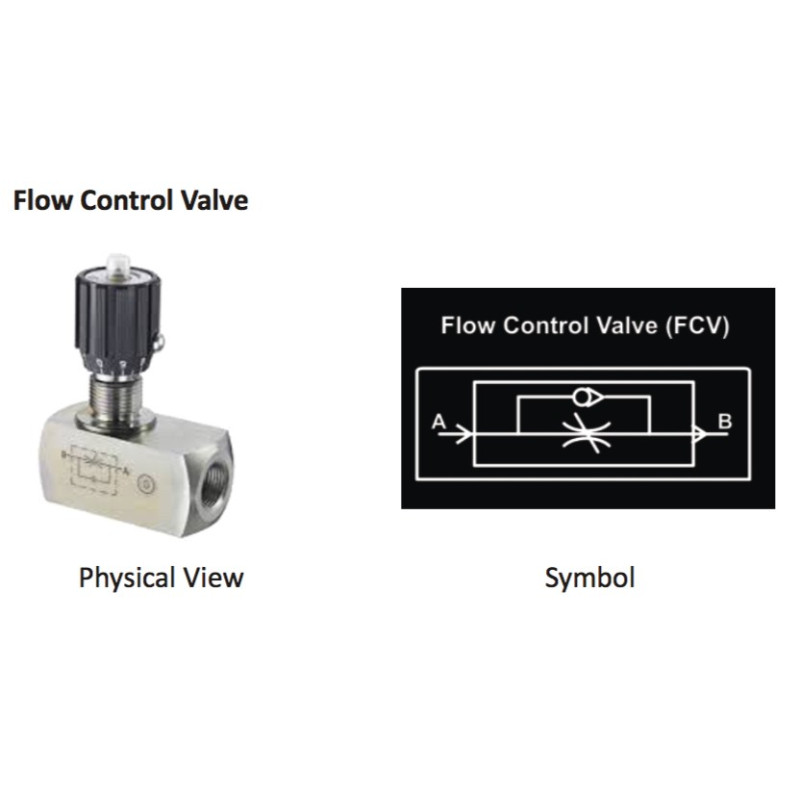

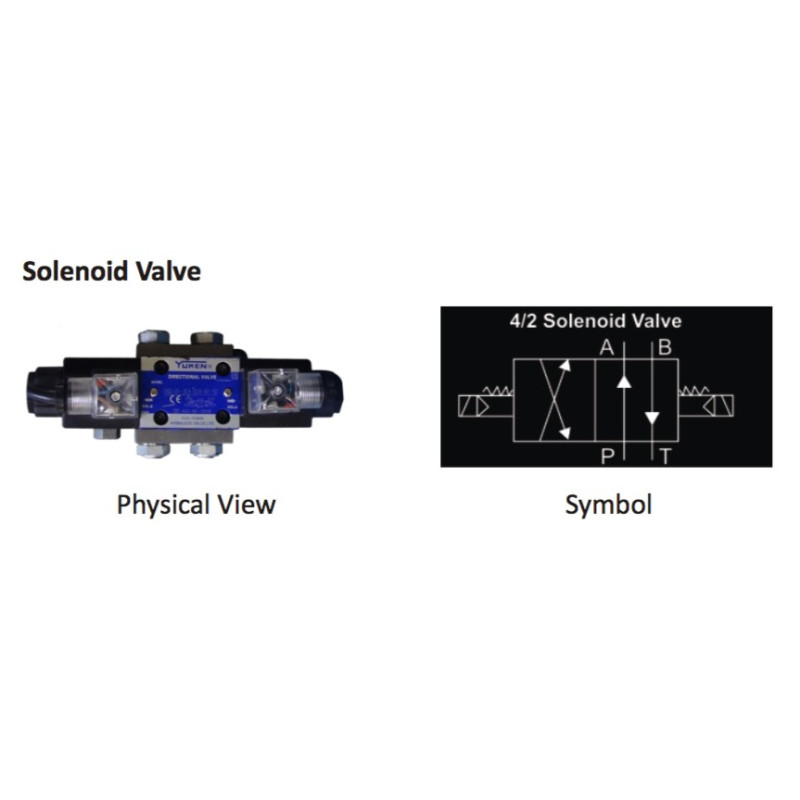

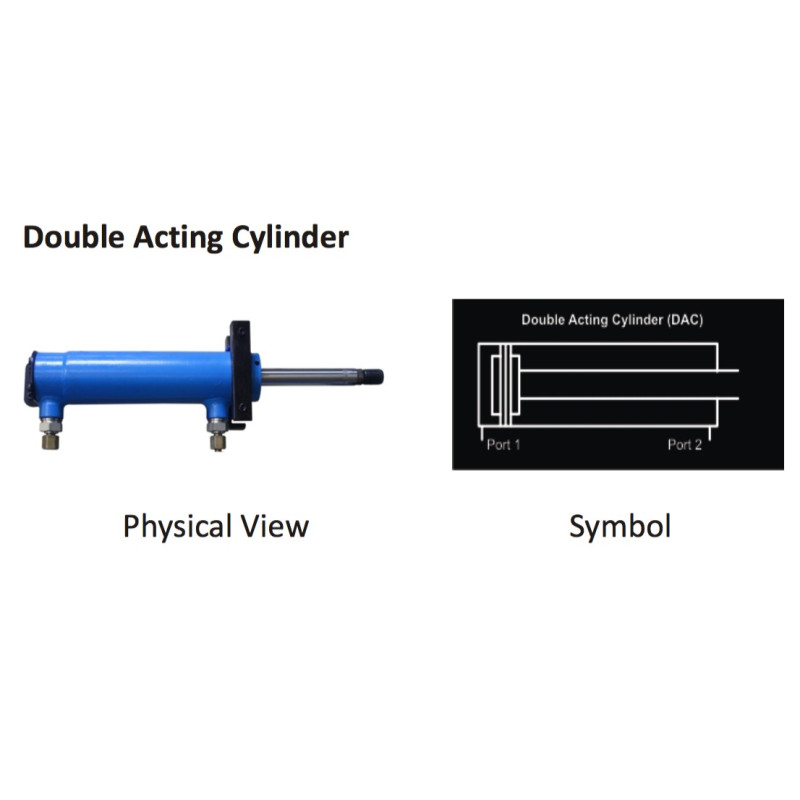

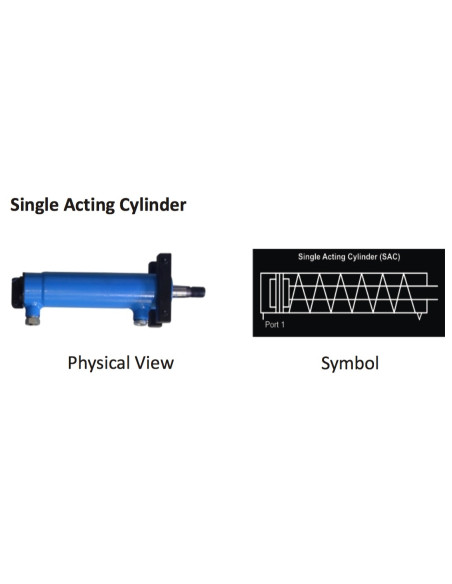

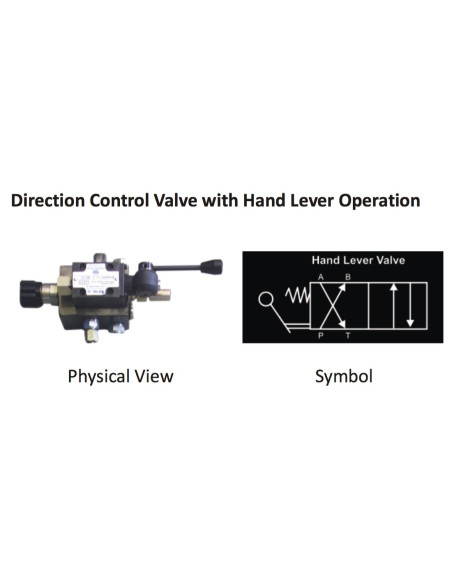

Toggle switches, LEDs, buzzer , double acting cylinder , solenoid valve, flow control valve, manifold, hand lever valve, limit switch, hydraulic motor, single acting cylinder, proximity sensor, power pack
Board to attached documents
4 mm patch cord connections
Mounting panel for Hydraulic components
Two storage drawers with telescopic locking facility, place in drawers for meters, patch cords, components, bread board and otheraccessories for storage, easy identification and access inside the drawers.
MCB for ON/OFF control and over load protection
Provision for PC – CPU
Sequential & linear Hydraulic control
Understanding of Industrial Hydraulic components
Hydraulic safety awareness
Product tutorial-Online
