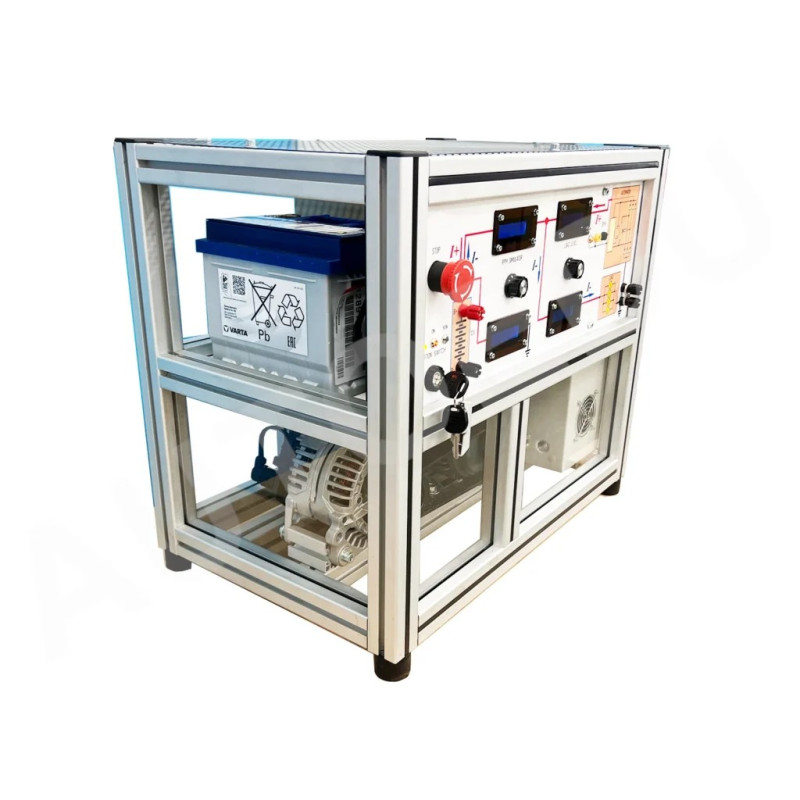

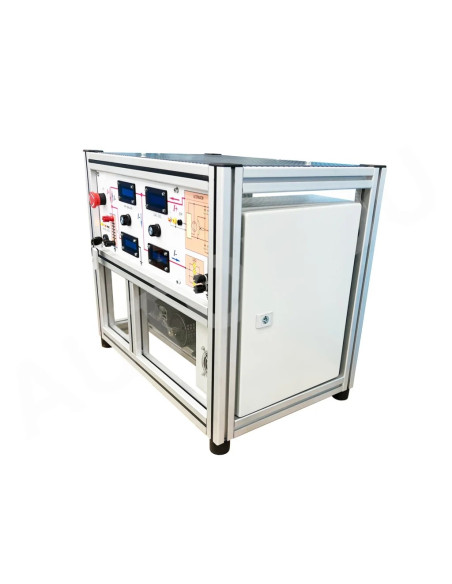

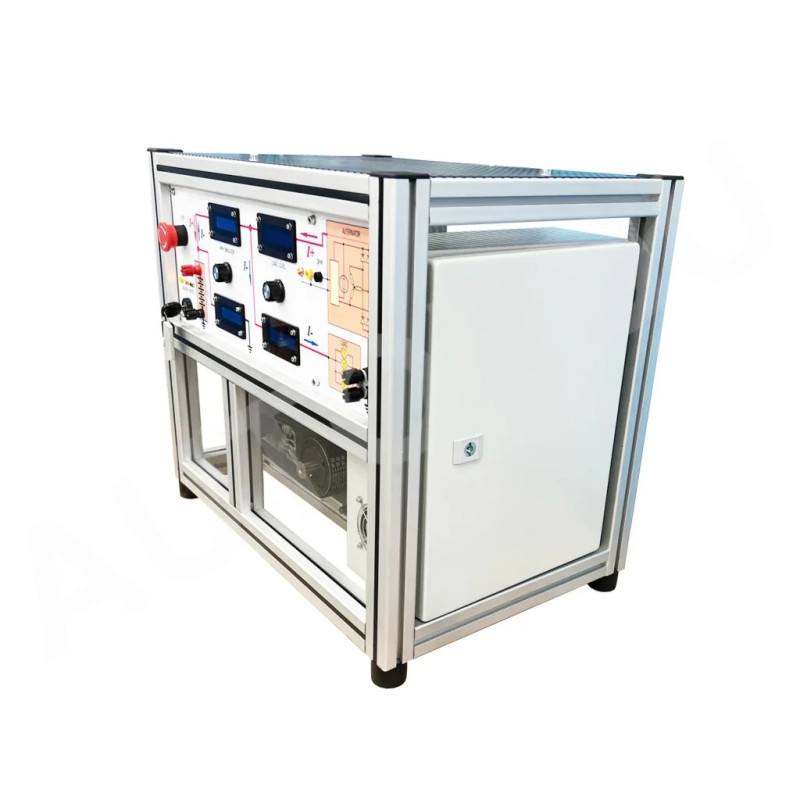

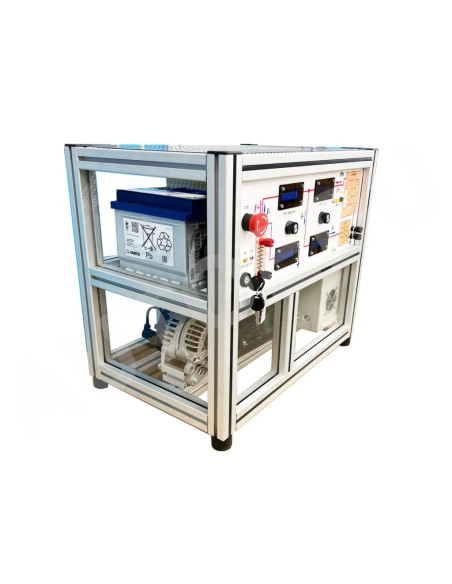

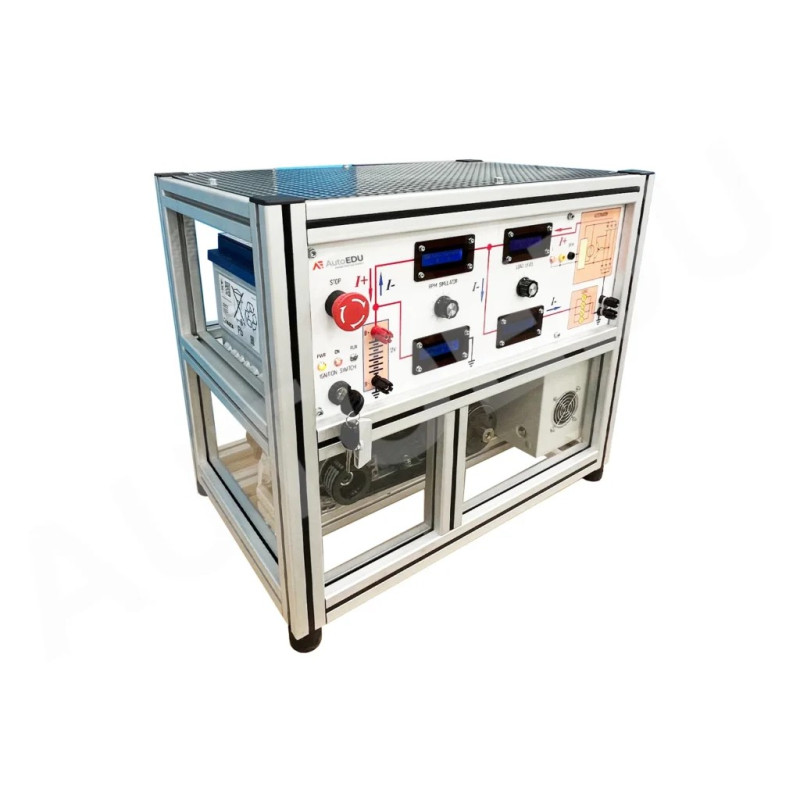

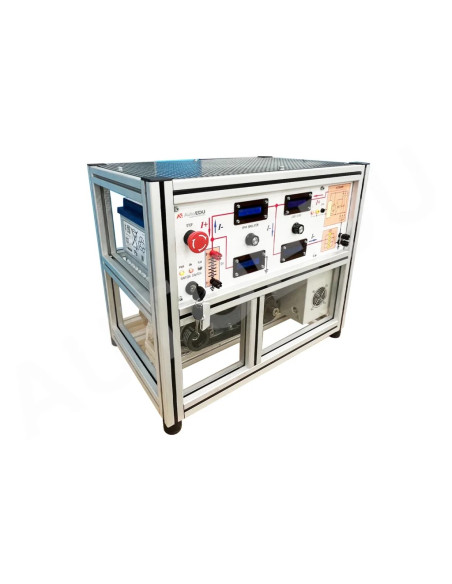

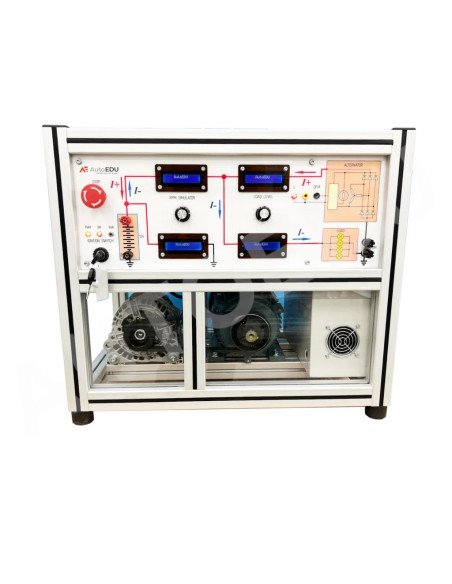

MSMSG01 Automotive charging system Educational Trainer

► Student Value

● A fully functional 12V alternator, battery, and associated components will help you understand the charging and discharging processes. Learn how to perform various measurements and analyze alternator performance under different conditions.

● Practice diagnosis and troubleshooting with the built-in simulation of negative terminal faults. This feature helps develop skills in fault detection and system troubleshooting.

● Adjust the alternator rotational speed and observe the effects on charging performance. This hands-on experience helps you understand the relationship between rotational speed, output voltage, and battery charge.

● Use information panels for real-time monitoring of charge, RPM, and voltage. Take detailed measurements of alternator and battery performance, including load and charging currents, to better understand electrical load management.

● Study the structure and functionality of automotive alternators with open contact points to take detailed measurements. Understand the principles of operation and maintenance through direct interaction with the alternator and associated electrical systems.

● Work with removable safety panels that protect against hot and rotating parts, enhancing both learning and safety. Components are directly accessible through removable panels.

► Value for Instructors

● Provides a practical and visual means of teaching the principles of automotive charging systems, including alternator operation, battery management, and charging simulations.

● Includes key components such as ammeters, voltmeters, and RPM simulators to facilitate a wide range of educational activities. The equipment allows for effective demonstration of both normal operation and fault conditions.

● Includes information panels and basic diagrams that provide clear, visual explanations of alternator operation and charging system principles.

● Constructed with an enclosed aluminum frame, ensuring durability and ease of maintenance. Its compact design integrates an instrument panel, a measurement panel, and a fault simulation panel within a robust structure. The inclusion of safety features, such as an emergency stop switch, ensures a safe learning environment.

● The training support is designed to be simple, requiring only minor adjustments to restore default parameters, making it easy to set up and start each lesson quickly and efficiently.

● 12V alternator mounted on a lightweight aluminum frame for practical demonstration and hands-on learning.

● Realistic battery charging/discharging processes with adjustable alternator rotation speed.

● Built-in negative terminal fault simulation for hands-on troubleshooting practice.

● Displays charge, load, RPM, and voltage for easy real-time monitoring and analysis.

● Open contacts and multiple gauges (ammeter for battery, charge, and charging currents; voltmeter; speedometer) for detailed performance measurement.

● Includes an emergency stop switch, an ignition switch, and a main power switch for added safety and operational control.

● Dimensions: 620 x 540 x 540 mm (24.41 x 21.26 x 21.26 in)
● Power: ~230 V (US 110 V)
● Components: 12 V battery, alternator, electric motor, ammeters, voltmeter, RPM simulator, charge level, charge indicator, and emergency stop switch. Product number: MSMSG01

► Optional Equipment (sold separately)

● TEXA Uniprobe Diagnostic Oscilloscope
● ADK5004D TiePie Automotive Diagnostic Kit
● Foxwell OS100 Diagnostic Oscilloscope
