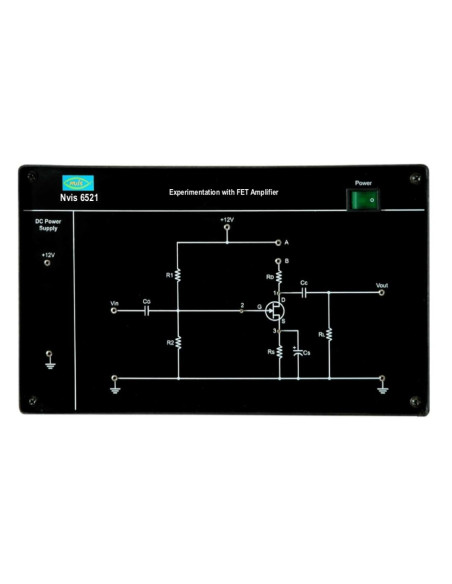

Nvis 6521 Laboratory for Experimentation with FET Amplifier

Reference: Nvis6521 - Manufacturer: NVIS TECHNOLOGIES

Nvis 6521 Laboratory for Experimentation with FET Amplifier is a useful training product for the students to study the operation of FET as an Amplifier. With the help of this product we can analyze various theoretical parameters such as, frequency response, drain current measurements, gate-source voltage measurement, drain-source voltage measurements, etc. The built-in DC power supply makes this product easy to operate.

Nvis 6521 Laboratory for Experimentation with FET Amplifier is an ideal platform to enhance education, training, skills & development amongs our young minds.

Features:

- Easy illustration of FET Amplifier
- In-built DC Power Supply
- Online product tutorial

- To study the theoretical analysis of FET Amplifier
- To study and measure the frequency response of FET Amplifier
- To measure various parameters of FET Amplifier and compare them theoretically
- To observe the output of FET Amplifier in ohmic and cutoff regions

Category: Laboratories

Download (159.26KB)
