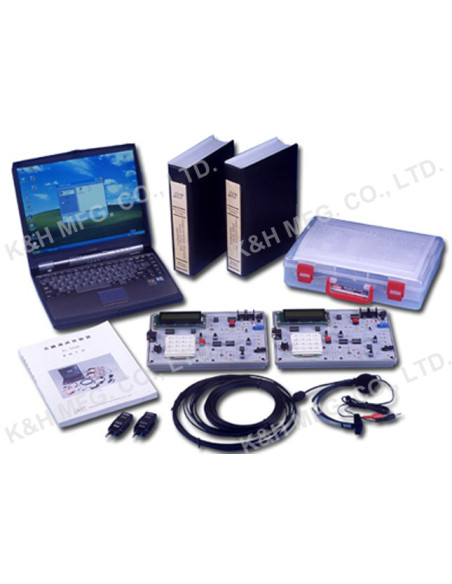

KL-900D Fiber Optic Transmission Training System

Four different methods of data transmission (self-module transmission, module-to-module transmission, PC-to-module transmission and module-to-PC transmission) and various different modulation / demodulation methods (CVSD, ASK, etc.) are introduced in the training system. Users can obtain a clear view of how fiber optic transmission works.

1. Four different methods of data transmission (self-module transmission, module-to-module transmission, PC-to-module transmission, and module-to-PC transmission).
2. Demonstrating productive use of fiber optic materials.
3. Assembled equipment will transmit voice and light from one point  to another traveling through an optical fiber.

01.  Fiber optics at the beginning
02.  Applications of fiber optics
03.  Light sources of fiber optics
04.  Light and optical fiber interaction
05.  Fiber optic transmitter
06.  Fiber optic receiver
07.  Fiber optic network and expand
08.  Fiber optic connectors and fiber polishing
09.  Data transmission - One module
10.  Data transmission - Module to module
11.  Data transmission - PC to module
12.  Data transmission - Module to PC
13.  CVSD data transmission (Optional)
14.  ASK data transmission (Optional)
15.  PSK/QPSK data transmission (Optional)
