Nvis 7010 Scott Connection Trainer Laboratory

Nvis

Nvis 7010 Scott Connection Trainer Laboratory

Nvis

Nvis 7010 Scott Connection Trainer Laboratory

Reference: Nvis7010 - Manufacturer: NVIS TECHNOLOGIES

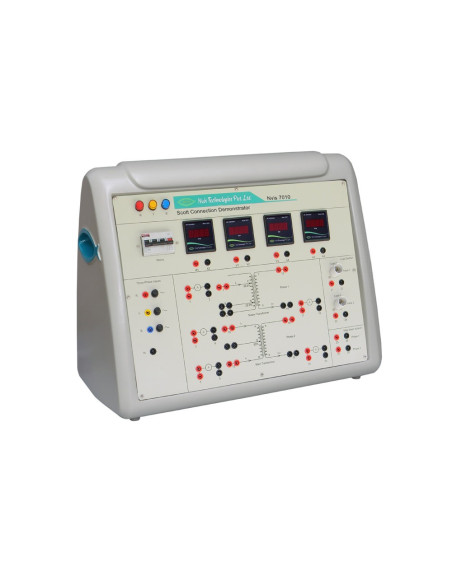

Nvis 7010 Scott Connection Trainer Laboratoryr is a vital training system for the Electrical Laboratories. It provides comprehensive learning of Three Phase to Two Phase Conversion in a very simple manner. It helps to study and analyze the operation of Teaser Transformer and Main Transformer. Students can per for m stand alone operations and observe the two phase step down waveforms on oscilloscope, which will have 90° phase displacement with each other

Features:

- Main and Teaser Transformer are shown separately
- Two Phase Step down Outputs for Waveform Observation
- Control board consist of high grade FRP material to provide utmost safety to the users
- Equipped with supply indication lamps
- Provided with bulb holder to use load externally
- Designed by considering all the safety standards
- Diagrammatic representation for the ease of connections
- Exclusive and Attractive Design
- Online Product Tutorial

- Study of Teaser & Main Transformer
- Study of Scott Connection (Three Phase to Two Phase Conversion)

Category: Laboratories

Download (149.28KB)
