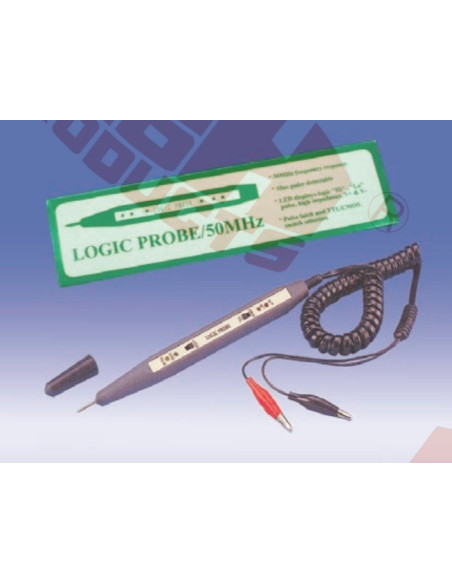

LP-1001 Logic Probe

+ Specifications

- Max. allowable supply voltaje: ± 25V

_________________________________________________________________

--Guaranted operation supply

- Voltage range
: +3 ~ +18V

- Input voltage
: ± 50V

- Operating input voltage range: -25 ~ +25V

- Input impedance: 120 KΩ typical

- Minimum detectable pulse width: 10ns typical

_________________________________________________________________

-- Logic thresholds


- Logic 1 (green LED lights): TTL 2.3 ± 0.2V

                                          CMOS 70%Vcc ± 10%

- Logic 0 (green LED off): TTL 0.8 ± 0.1V

CMOS 30%Vcc ± 10%

- High Impedance
:                                     200 KΩ typical (5V)
(green LED flash at frequency of 1 Hz)

_________________________________________________________________

- Input positive voltage (red LED lights): + 5V Max


_________________________________________________________________

- Input negative voltage (yellow LED lights): - 5V Max


_________________________________________________________________

- Max input frequency displayable
: 50MHz Typical


_________________________________________________________________

- Input overvoltage protection
: ± 50V / 10sec.

_________________________________________________________________


- Pulse LED (yellow flashing time)
: 1sec.


_________________________________________________________________

- Power supply protection
: ± 25V / 15sec.

_________________________________________________________________

- Dimensions
: 16Ø x 160mm ± 5%

_________________________________________________________________

- Weight: Approx: 50g
