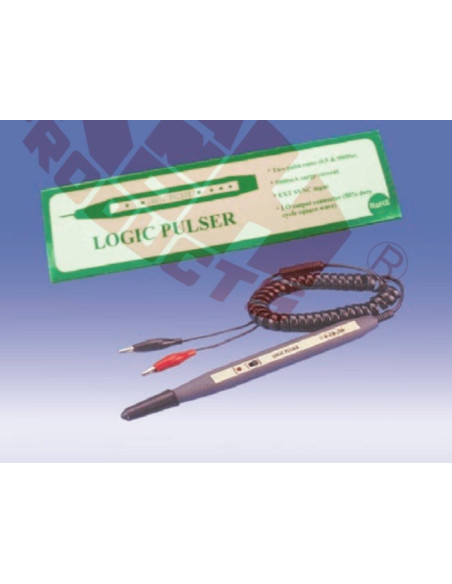

LP-2001 Logic Pulser
LP-2001 Logic Pulser
LP-2001 Logic Pulser
LP-2001 Logic Pulser

LP-2001 Logic Pulser

Reference: LP-2001 - Manufacturer: KandH

01. For TTL, DTL, RTL, HTL, CMOS and MOS
02. Producing 10μs pulse signal
03. Overload protection
04. Output current up to 100mA (pulse)

help_outlineAsk for Quote

LP-2001 Logic Pulser

I accept privacy policy rules



+ Specifications



- Max. allowable supply voltaje: ± 25V

_________________________________________________________________

- Operating voltage range
: +3 ~ +18V


- Max. Output allowable connection voltage: ± 25V


- Max. sync. input voltage
: ± 120V / 15sec.

- Sync. input impedance
: 100 KΩMin


- Pulse repetition rate: 0.5 Hz / 500 Hz

_________________________________________________________________

- Pulse width at pulser output pin: 10μs Typical


                                                  100 mA Load

- Output current: pulse mode
: 100mA sink / source

              50 %pulse mode       4mA sink / source

_________________________________________________________________

- Power supply protection: ± 25V / 15sec.


_________________________________________________________________

- Dimensions
: 6Ø x 160 mm ± 5%

_________________________________________________________________

- Weight: Approx: 54 g
