C3121 Data Loggers Thermo-hygrometer External Probe (-30 to +105°C) (5 to 95%RH)

Reference C3121

Condition: New

Thermo-hygrometer (-30 to +105°C) (5 to 95%RH)

Thermometer, hygrometer is designed for direct measurement of temperature, relative humidity. Audio and optical alarm of measured values. Memory of minimum and maximum measured values. Function Hold - manual storing of actual values for later displaying.

Simultaneous reading of temperature and relative humidity, dew point temperature reading selectable, built-in sensors.

Warranty: 3 years

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Optional Accesories
Data sheet

Type of Instrument	Thermo-Hygrometer
The instrument measures:	Temp. & Relative Hum.

Simultaneous reading of temperature and relative humidity, dew point temperature reading selectable, external temperature-humidity probe with 1meter cable. Cable lengths 2 and 4 meters available optionally.

Included in delivery:

Instrument including the battery

Traceable calibration certificate
Instruction manual
Plastic transport case
Connector for external ac/dc adapter

Measured Value	Relative Humidity + Temperature
Construction Type	With T+RH Probe On Cable
Temperature Measuring Range	-30 to +105°C
Data Logging Function	No
Operating temperature range	-10 to +60°C
Temperature sensor	RTD Ni1000/6180ppm
Accuracy of temperature measurement with built-in sensor	±0.4°C
Accuracy of air humidity measurement	±2.5%RH from 5 to 95% at 23°C, resolution 0.1%
Accuracy of dew point measurement	1.5 °C at ambient T < 25°C and RH>30%, range -60 to +80 °C
Power	battery 9V
Battery life	4 months typically
Dimensions	141 x 71 x 27 mm, probe length 135mm, probe diameter 18mm
IP protection	IP20
Weight including battery without probe	approximately 150 g
Warranty	2 years

ac/dc adapter 230Vac to 12Vdc/0.5A code: A1515	NiMH rechargeable batt. 9V/200mAh code: A3400	plastic sensor protection with stainless filter (black) code: F5200B

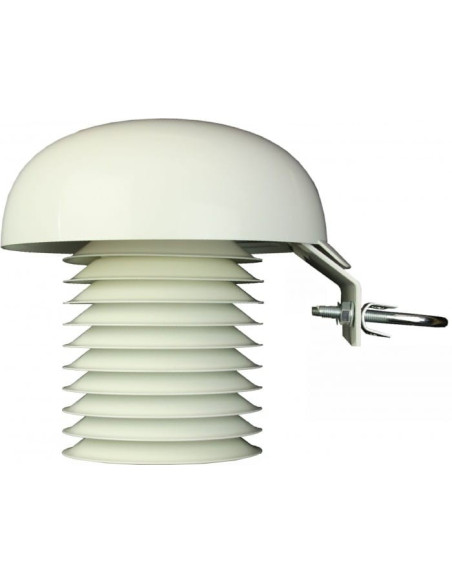

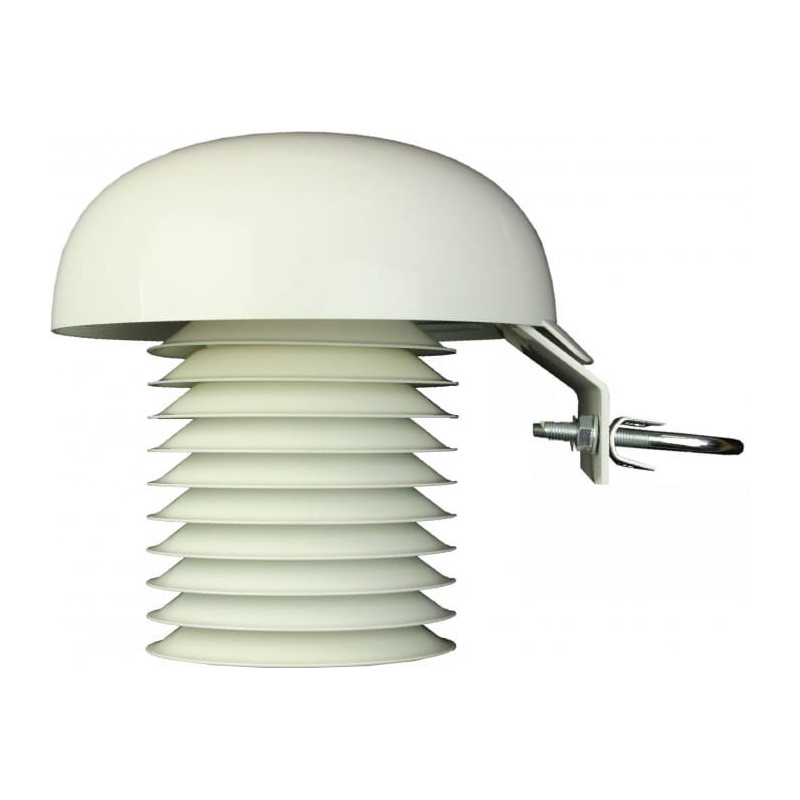

PTFE sensor protection, white code: F5300	Multi-plate radiation shield code: F8000	Humidity Standard 10%RH, set 5pcs code: HM023
Humidity Standard 80%RH, set 5pcs code: HM024	Vessel for adjustment and calibration of humidity code: MD046	PP4 Flat circular flange code: PP4
PP90 Right-angled stainless steel flange code: PP90
