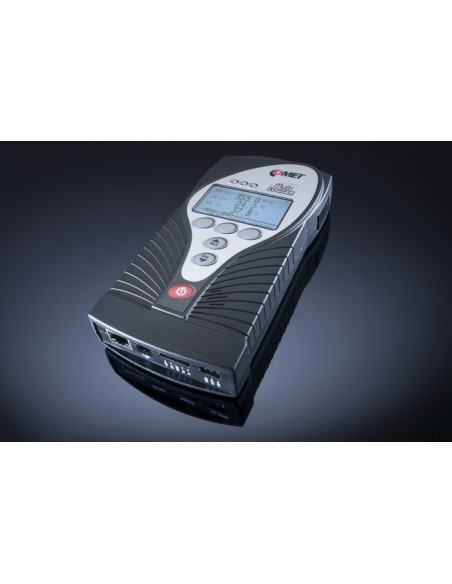

M1322 Thermo-hygro-CO2 meter with 2 MiniDIN and 2 Terminals Multilogger

View larger

M1323 Multilogger Meter Thermo-hygro-CO2-Barometer with 2 MiniDIN and 2 Terminals

Reference M1323

Condition: New

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
TEMP. & REL. HUMIDITY PROBES
ACCESSORIES
Data sheet
Download

Environment of Use	Indoor
Measured Parameters	Multiple parameters (int. & ext. sensors)

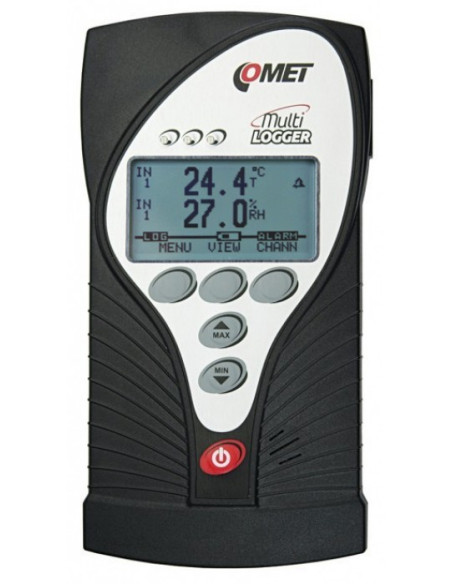

With Display	Multifunction LCD
Warranty Period	3 years

Manual Download (2.34M)

Manual de Inicio Rápido Download (866.03k)

Universal datalogger with 4 hardware inputs, internal CO2 and atmospheric pressure sensors.
Multilogger can be installed permanently to Ethernet network or work as portable device.
Included is traceable calibration certificate in accordance with EN ISO/IEC17025.

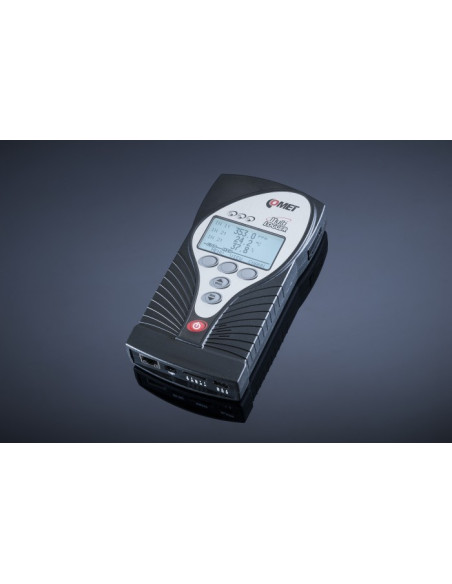

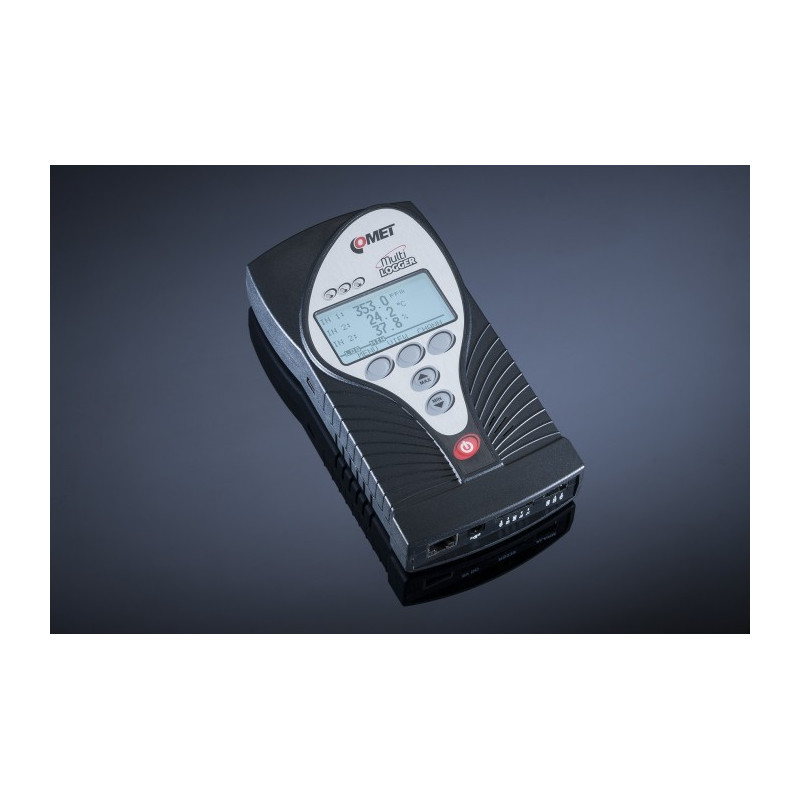

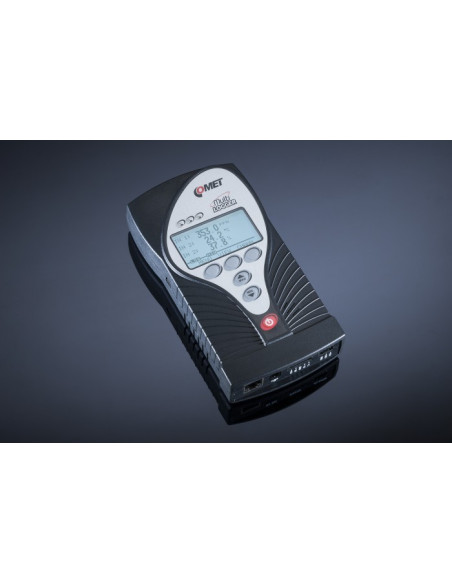

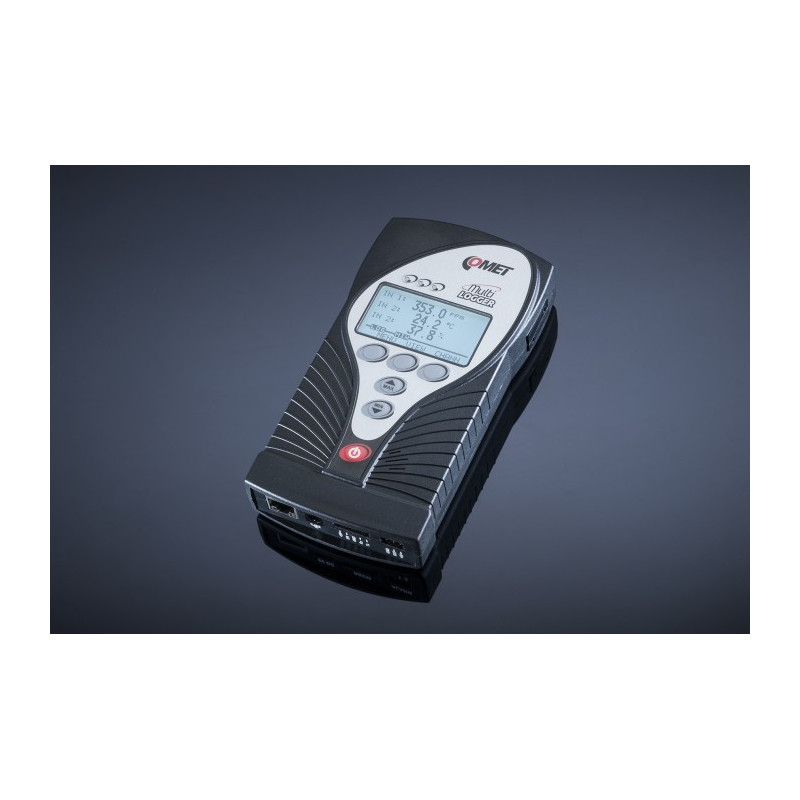

The Multilogger is a battery operated datalogger capable of measuring and recording sensor and electrical values through its inputs.

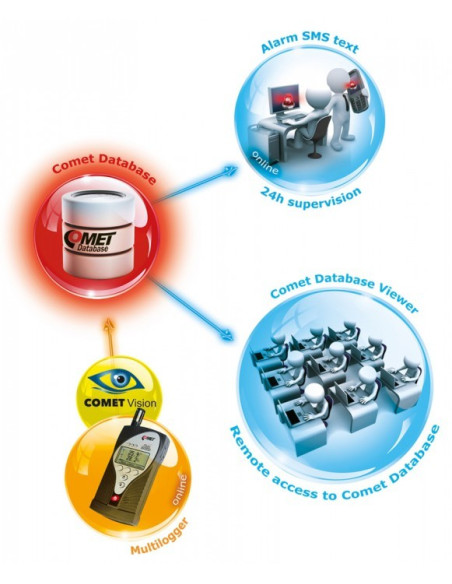

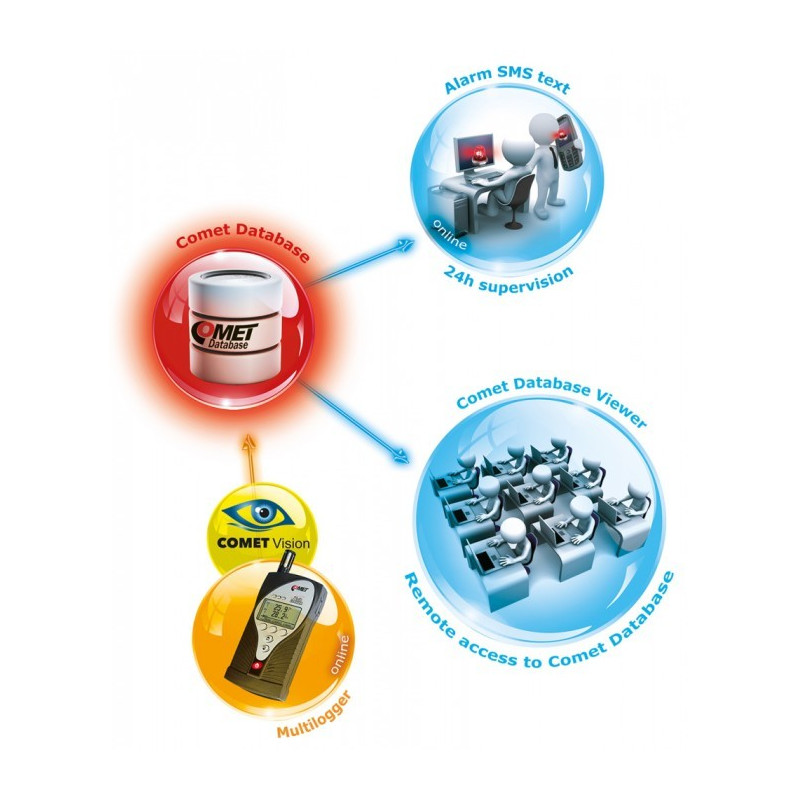

Datalogger can be connected to Ethernet. Then measured values can be viewed on a web browser, as well as stored and downloaded for later analysis.

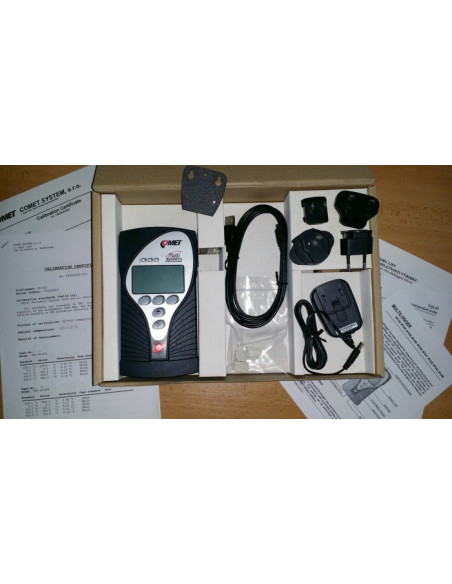

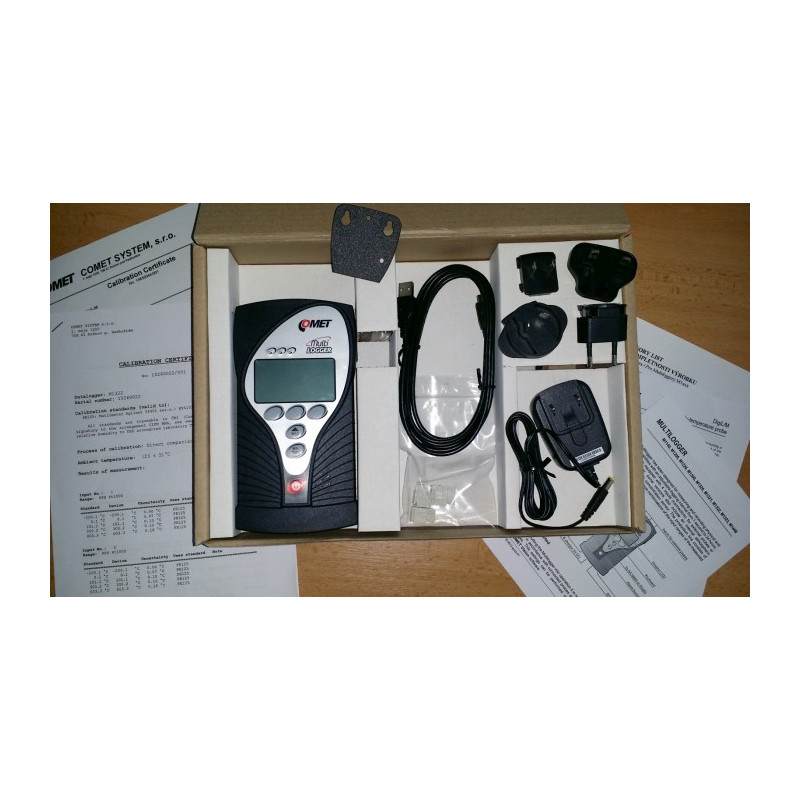

Included in delivery:

M1323 Multilogger with internal sensor of barometric pressure and concetration of CO2
3x rechargeable battery AA, power adapter, wall holder, USB cable
Quick start manual
Traceable calibration certificate

MiniDIN	Temperature probes Pt1000 (serie xxx/M)	Temperature/relative humidity probes with digital output - DigiS/M, DigiL/M
	The probes are interchangeable without calibration to a specific device and regardless of the length of the cable. The length of the cable can be 1, 2, 5, 10, 15 meters.

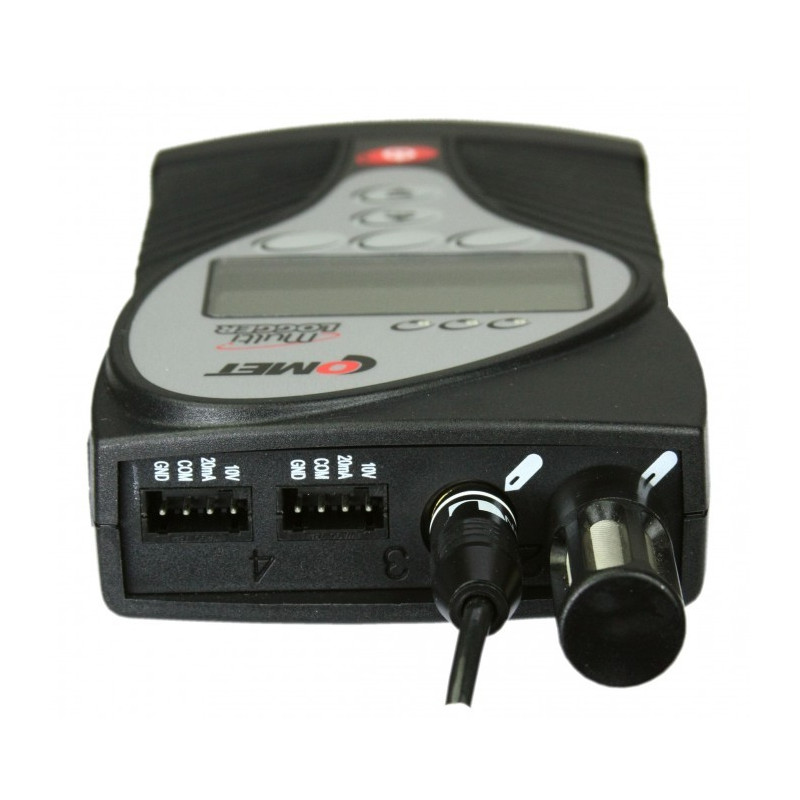

Termininals	Devices with two-state output (monitoring of machine run, door open/close, etc.)	Device with pulse out (gas and water meters, counter pieces on a production line, etc.)	Sensors of physical quantities with voltage output 0-10V (0-5V, 0-1V) or current output 0-20 mA (4-20mA)
	Sensors with voltage output	Range 0 V to 10 V	Accuracy ± 10mV
	Sensors with current output	Range 0 mA to 20 mA	Accuracy ± 20 µA
	Two-state signal As the two-state may be used only input 3 and 4.	Pulse signal As the pulse may be used only input 4.	Potential-less contact
			Voltage signal 0-30 V
Internal sensor	Barometric pressure	Range 600 hPa to 1100 hPa	Accuracy ±1.3 hPa at 23 °C
	the possibility of conversion to sea level
Internal sensor	CO₂	Range 0 to 2000 ppm*	Accuracy ± (50 ppm + 2% of MV) at 23 °C and 1013 hPA
	* custom range 10.000 ppm

Evaluation of up to 16 variables

Up to 16 values can be calculated from 4 connected sensors/signals. This is the sum of measured and calculated values. E.g. dew point temperature, absolute humidity, specific enthalpy, inter-channel conversion (difference between two connected temperature sensors).

COMMUNICATION

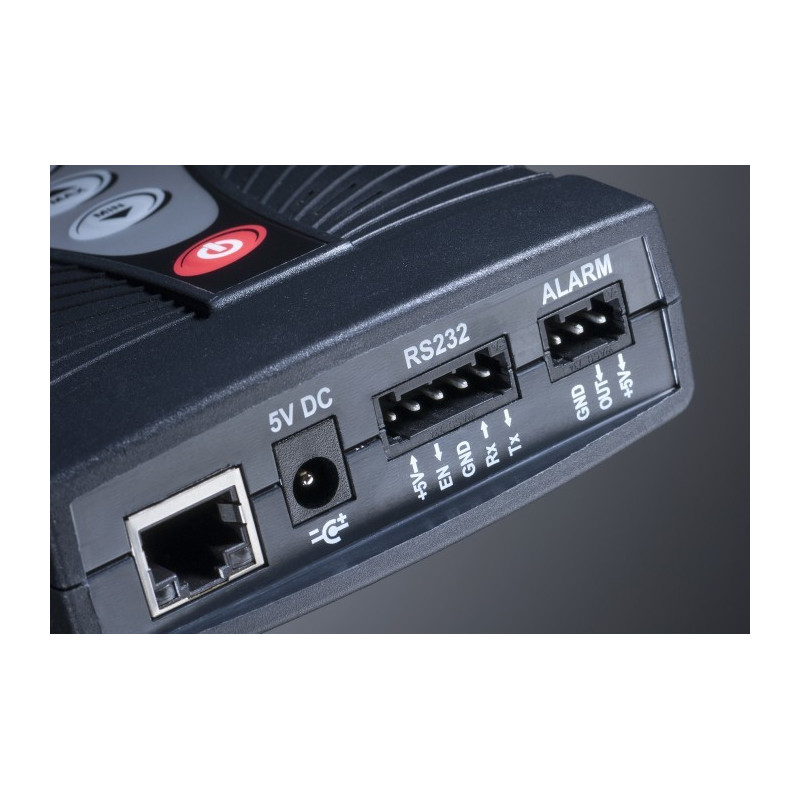

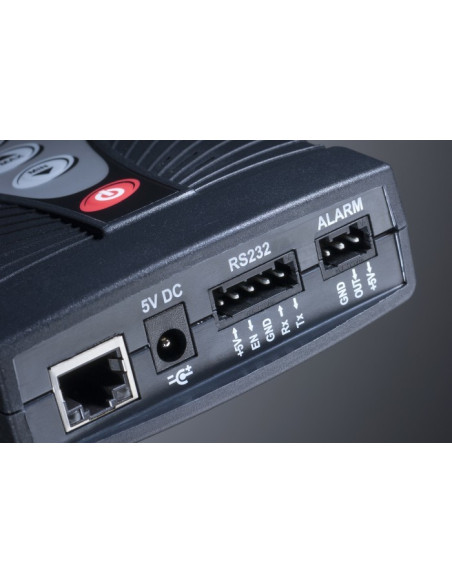

The data logger is equipped with USB, Ethernet and RS232 interfaces.
For WiFi communication the multilogger can be connected to a WiFi router.

Technical parameters	Value
Temperature operating range	-10 to +60°C
Humidity operating range	5% to 85%RH, without condensation
Accuracy and range of dew point temperature output - for more details see graphs in manual	±1.5°C at ambient temperature lower than 25°C and RH>30% range -60 to +80°C
Temperature compensation of the humidity sensor	all temperature range
Measuring interval	1s to 24 hours
Available temperature units	degrees Celsius, degrees Fahrenheit
Computed values	dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Memory capacity (approx.)	1 000 000 values (noncyclic record), 600 000 values (cyclic record)
IP protection	IP20
Communication interface	Ethernet, USB, RS232
Ethernet communication protocols	WWW, SNMPv1, XML, DATALINK
Alarm protocols	E-Mail
Configuration	Comet Vision, WWW configuration
Power	AC adapter 230Vac/5Vdc (neccessary for Ethernet interface)
	NiMH rechargeable batteries 3x 1.2V AA (backup or portable application) or Alkaline batteries 3x 1.5V AA (for portable applications)
Power connector	co-axial, diameter 5.5 x 2.1mm
Dimensions	178 x 95 x 37mm (W x H x D), without attached cables

Pt1000TG8/M, temperature probe, cable 1 m code: SN104M	Pt1000TG8/M, temperature probe, cable 2 m code: SN105M	Pt1000TG8/M, temperature probe, cable 5 m code: SN108M
Pt1000TG8/M, temperature probe, cable 10 m code: SN113M	Pt1000TR050S/M, temperature probe, cable 1 m code: SN247M	Pt1000TR050S/M, temperature probe, cable 2 m code: SN248M
Pt1000TR050S/M, temperature probe, cable 5 m code: SN249M	Pt1000TG7/M, temperature probe, cable 1 m code: SN164M	Pt1000TG7/M, temperature probe, cable 2 m code: SN165M
Pt1000TG7/M, temperature probe, cable 5 m code: SN166M	Pt1000TG7/M, temperature probe, cable 10 m code: SN167M	2301-220/M, temperature probe, cable 1 m code: SN168M
2021-150/M, temperature probe, cable 1 m code: SN169M	2034-220/M, temperature probe, cable 1 m code: SN175M	2061-200/M, temperature probe, cable 1 m code: SN178M
2061-200/M, temperature probe, cable 2 m code: SN179M	2061-200/M, temperature probe, cable 5 m code: SN180M	2061-200/M, temperature probe, cable 10 m code: SN181M
PTS350A-5/M, temperature probe, cable 5 m code: SN182M	PTS350A-10/M, temperature probe, cable 10 m code: SN183M	Pt1000TGL40/M, temperature probe, cable 1 m code: SN185M
Pt1000TGL40/M, temperature probe, cable 2 m code: SN186M	Pt1000TGL40/M, temperature probe, cable 5 m code: SN187M	Pt1000TGL40/M, temperature probe, cable 10 m code: SN188M
Pt1000TR160/M, temperature probe, cable 1 m code: SN199M	Pt1000TR160/M, temperature probe, cable 2 m code: SN200M	Pt1000TR160/M, temperature probe, cable 5 m code: SN201M
Pt1000TR160/M, temperature probe, cable 10 m code: SN202M	Pt1000TR160/M, temperature probe, cable 15 m code: SN203M	2091-250/M, Stick-in probe, cable 1 m code: SN210M
2091-250/M, Stick-in probe, cable 2 m code: SN211M	2091-250/M, Stick-in probe, cable 5 m code: SN212M	2091-250/M, Stick-in probe, cable 10 m code: SN213M
Pt1000TG68/M, temperature probe, cable 2 m code: SN232M	Pt1000TG68/M, temperature probe, cable 5 m code: SN233M	Pt1000TG68/M, temperature probe, cable 10 m code: SN234M
Pt1000TR125/M, temperature probe, cable 1 m code: SN239M	Pt1000TR125/M, temperature probe, cable 2 m code: SN240M	Pt1000TR125/M, temperature probe, cable 5 m code: SN241M
Pt1000TR125/M, temperature probe, cable 10 m code: SN242M

DIGIL/M, digital temperature/humidity probe, for direct insertion code: DIGIL/M	DIGIL/M, digital temperature/humidity probe, cable 1 m code: DIGIL/M-1	DIGIL/M, digital temperature/humidity probe, cable 10 m code: DIGIL/M-10
DIGIL/M, digital temperature/humidity probe, cable 15 m code: DIGIL/M-15	DIGIL/M, digital temperature/humidity probe, cable 2 m code: DIGIL/M-2	DIGIL/M, digital temperature/humidity probe, cable 5 m code: DIGIL/M-5
DIGIS/M, digital temperature/humidity probe, for direct insertion code: DIGIS/M	DIGIS/M, digital temperature/humidity probe, cable 1 m code: DIGIS/M-1	DIGIS/M, digital temperature/humidity probe, cable 10 m code: DIGIS/M-10
DIGIS/M, digital temperature/humidity probe, cable 15 m code: DIGIS/M-15	DIGIS/M, digital temperature/humidity probe, cable 2 m code: DIGIS/M-2	DIGIS/M, digital temperature/humidity probe, cable 5 m code: DIGIS/M-5
DIGIH/M, Ultra thin digital temperature/humidity probe, cable 1 m code: DIGIH/M-1	DIGIH/M, Ultra thin digital temperature/humidity probe, cable 2 m code: DIGIH/M-2	DIGIH/M, Ultra thin digital temperature/humidity probe, cable 5 m code: DIGIH/M-5

Plastic transport case for Multilogger code: BM511	Wall holder for the Multilogger code: MLP002	Holder for mounting the Multilogger on magnetic surfaces code: MLP003
150Mbps Wireless N Nano Router - TL-WR702N code: TL-WIFI	TL-POE10R - PoE splitter code: TL-POE	Wall holder for external probes DIGIL code: SP009

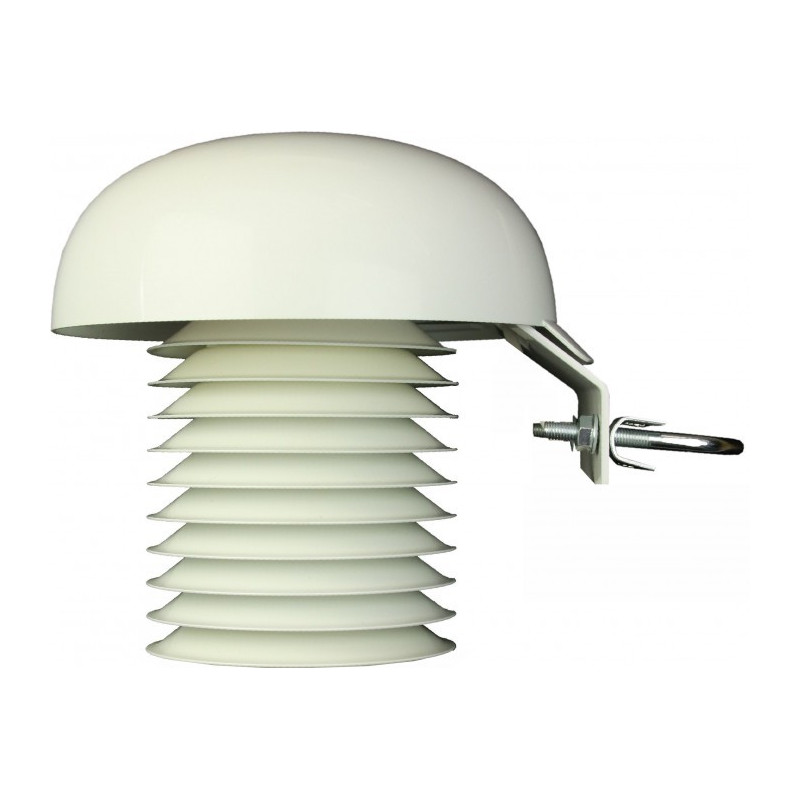

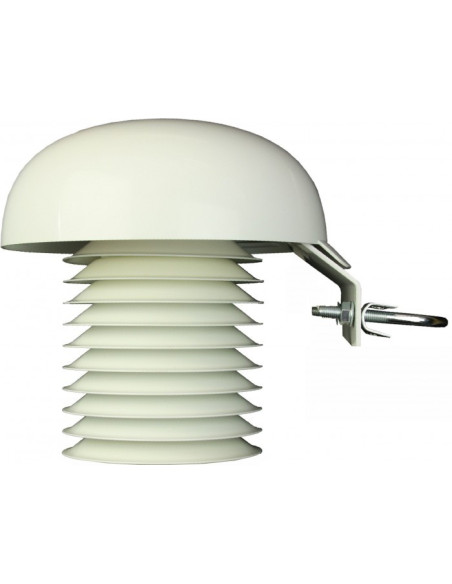

COMETEO Multi-plate Meteo Shield for Weather Sensors code: F8100	External audio unit for MSxx and Multilogger code: MP026	Adapter for easy connection U/I signals to Multilogger code: MLP006
Magnetic door contact SA-200-A code: SA200A	Magnetic door contact with cable length 2m code: SA200A-2	Magnetic door contact with cable length 5m code: SA200A-5
Magnetic door contact with cable length 10m code: SA200A-10	Magnetic door contact with cable length 15m code: SA200A-15	Magnetic door contact with cable length 20m code: SA200A-20
Magnetic door contact with cable length 30m code: SA200A-30	Motion detector JS20 code: JS20	The LD-12 flood detector code: LD12
The optical smoke detector SD-280 code: SD280
