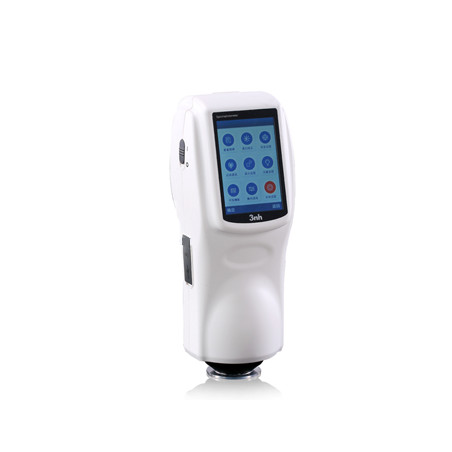

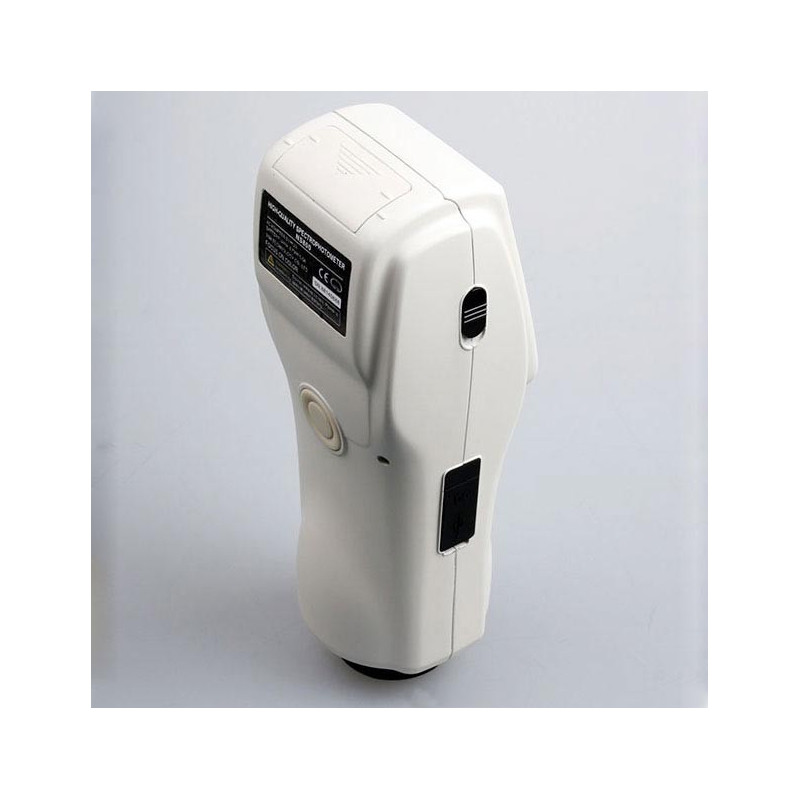

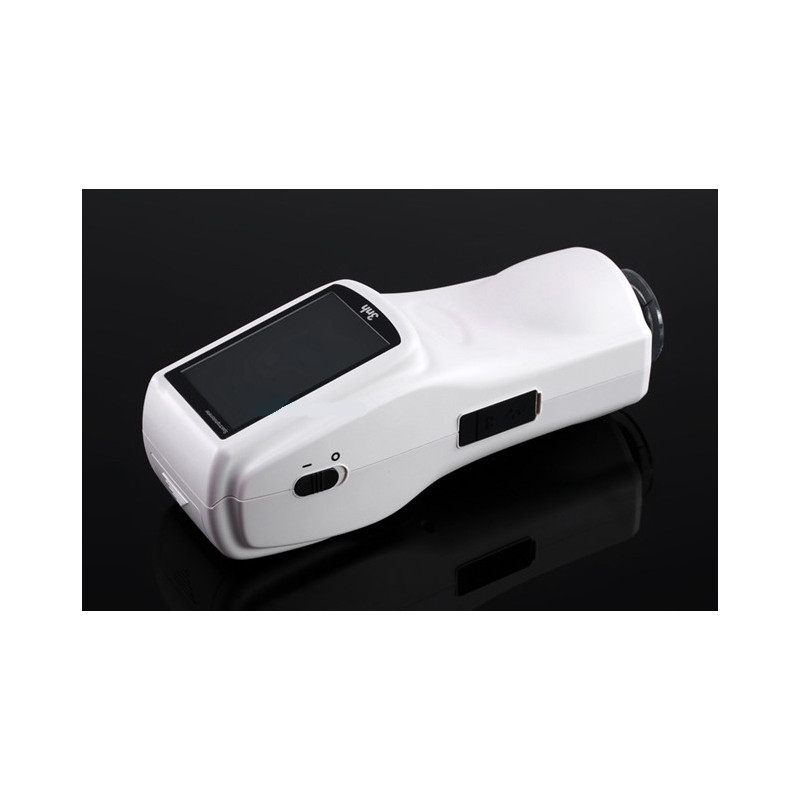

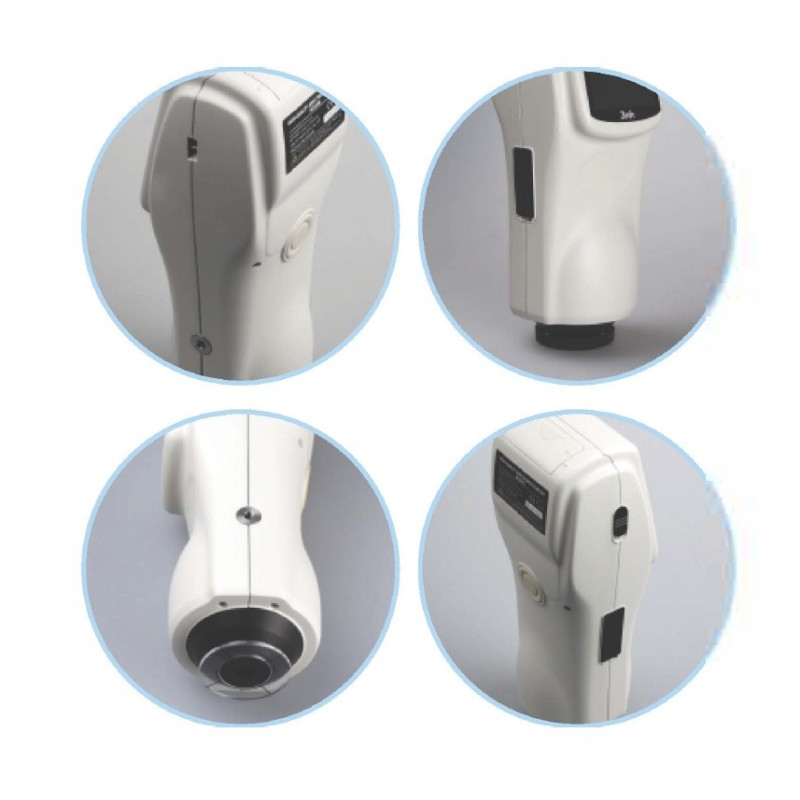

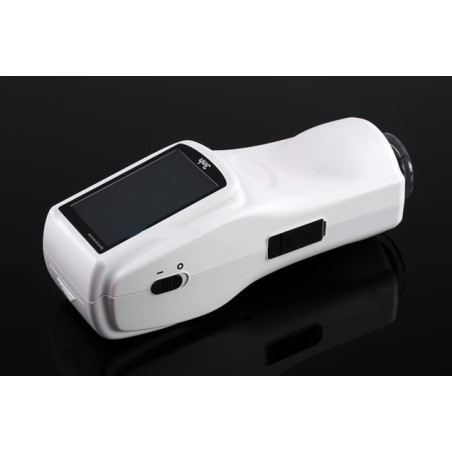

NS810 Portable Spectrophotometer d/8

Reference NS810

Manufacturer: 3nh

Condition: New

The NS810 portable spectrophotometer measures reflectance spectrum and other color indexes precisely.

It uses a d / 8 structure and complies with CIE No.15, GB / T 3978. With 400 ~ 700nm, NS810 features with high precision DeltaE * ab 0.04 and 8mm aperture make the measurement so easy. You can save 1000 standards, 15000 samples.

NS810 spectrophotometer is developed by 3nh with independent intellectual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry.

Volume discounts

Quantity	Price (tax excl.)	You Save %
1+	2 580,00 €	0%
3+	2 322,00 €	10%

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
APPLICATIONS
Data sheet
Download

Type	Color Spectrum-Photometer

NS810 Data Sheet Download (1.29M)

In the R&D process, 3nh scientists and engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.

3nh also analyzed the parameters from Japan, American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS810 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of 3nh high technology which realizes to be fully compatible with international market.

Model	NS810
Illumination/observation system	d/8 (diffused illumination, 8-degree viewing angle) Conforms to CIE No.15, GB/T 3978.
Integrating sphere Size	Φ58mm
Light Source	Combined LED sources
Sensor	Silicon photodiode array
Wavelength range	400~700nm
Wavelength pitch	10nm
Reflectance range	0~200%
Measuring Aperture	Φ8mm
Color Space	CIE LAB, XYZ, Yxy, LCh, CIE LUV，LAB&WI&YI
Color difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔEcmc(l:c),CIE2000ΔE*00，ΔE(h)
Other Chromaticity Data	WI(ASTM E313，CIE/ISO,AATCC, Hunter)， YI(ASTM D1925，ASTM 313), TI(ASTM E313，CIE/ISO), Metamerism Index (Mt), Strength Color Stain, Color Fastness
Observer	2°/10°
Illuminant	D65，A, C, D50，D55，D75，F1，F2(CWF)，F3，F4，F5，F6，F7(DLF)，F8，F9，F10(TPL5)F11(TL84), F12(TL83/U30)
Display Data	Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, color index setting(ΔE94, ΔEcmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting
Measurement Time	1.2s
Repeatability	Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
Inter Instrument Agreement	Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Dimension	LWH=9077230mm
Weight	600g
Battery	Li-ion battery. 2800 times within 8 hours.
Lamp Life	5 years, more than 1.6 million measurements
Display Screen	TFT 3.5inch, Capacitive Touch Screen
Interface	USB/RS-232
Data Memory	1000 Standards, 15000 Samples
Operating Temperature	0~40℃（32~104°F）
Storage temperature	-20~50℃（-4~122°F）
Standard Accessory	Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap
Optional Accessory	Micro Printer, Powder Test Box
Notes	The specifications are subject to change without notice.

NS810 spectrophotometer is widely used in plastic, electronic, painting, coating, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS810 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
