F-73A-S LAQUA Color Touch Table Meter Kit for Water Quality
Horiba
F-73A-S LAQUA Color Touch Table Meter Kit for Water Quality
Horiba

F-73A-S LAQUA Color Touch Table Meter Kit for Water Quality

Reference: F-73A-S (3999960012) - Manufacturer: HORIBA
  • Contain:

• F-73 meter
• Electrode stand
• Protection cover
• Power adaptor with 6 plugs
• Data acquisition software in USB
• 9615S-10D - refillable, glass-body pH electrode with integrated temperature sensor, 1m cable, BNC & phono jack
• 502-S - pH 4.01, 7.00, 10.01, 3.33M KCl solutions (250ml each)



  • Package Details:

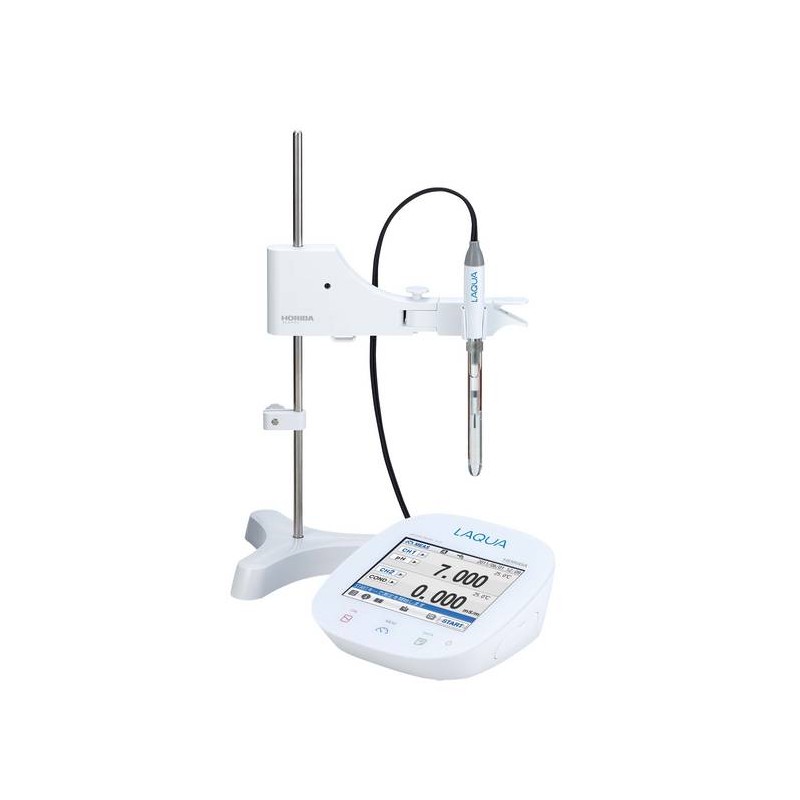

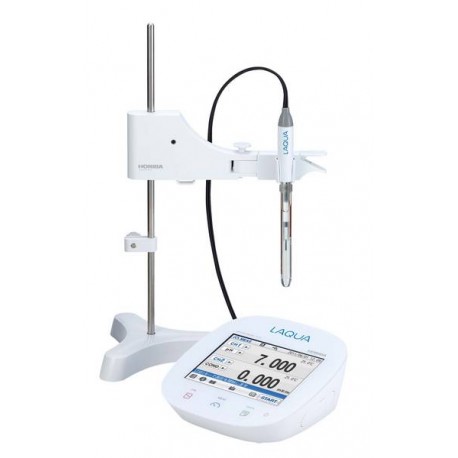

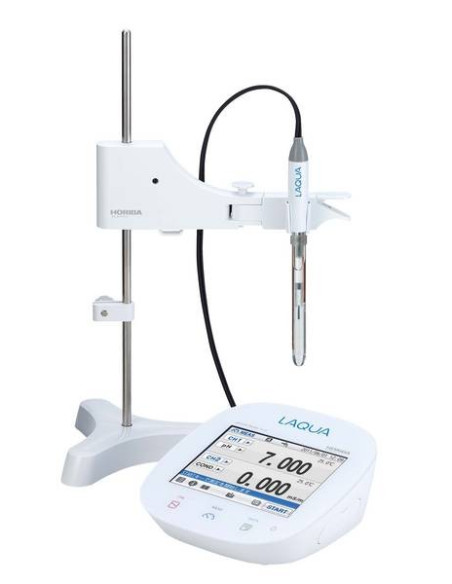

- LAQUA F-73 Dual channel pH/ORP/Ion/Temp colour touchscreen bench meter
- 9615S-10D Standard ToupH, glass-body pH electrode with integrated temperature sensor
- 502-S USA pH buffers: 4.01, 7.00, 10.01 pH buffers & 3.33 M KCl reference electrolyte (250ml each)
- Data acquisition software in USB flash drive (communication cable is sold separately)
- Electrode stand
- Protection cover
- Power adaptor with 6 plugs (US, UK, EU, Australia / New Zealand, Korea, and China)
- Instruction manual


Model

LAQUA F-73
Dual Channel pH/ORP/Ion/Temp (⁰C)

pH Range

-2.000 to 20.000 pH

Resolution

0.01 / 0.001 pH

Accuracy

± 0.001 pH

Calibration Points

Up to 5

Buffer Options

USA / NIST / NIST2 / China / Custom

ORP Range

± 1999.9 mV

Resolution

0.1 mV

Accuracy

± 0.2 mV

Ion Range

0.000 µg/L to 9999 g/L (mol/L)

Resolution

4 significant digits

Accuracy

± 0.3% of full scale

Calibration Points

Up to 5

Temperature Range

­30.0 to 130.0 ⁰C

Resolution

0.1 ⁰C

Accuracy

± 0.4 ⁰C

Calibration Option

Yes

Navigation Function

Yes

Memory

2000

Auto Data-Logging

Yes

Data Search

Yes

Custom Printing

Yes

Real Time Clock

Yes

Date / Time Stamp

Yes

Sample ID Input

Yes

Operator ID Input

Yes

Password Setting

Yes

Auto Stable / Auto Hold

Yes

Offset / Slope Display

Yes
(independent acid and alkaline slopes depending on calibration)

Calibration Alarm Limit

Yes

Electrode Status

On screen display

Diagnostic Messages

Yes

Display

Touchscreen color graphic LCD

Languages

English / Japanese / Chinese /
Korean / Vietnamese

Inputs

Dual BNC, dual phono, DC socket

Outputs

USB, RS232C, analog output

Power Requirements

AC adaptor 100 -­ 240V, 50/60 Hz

Electrode Stand

Stand-alone

Weight

700g

Dimensions

170 (W) x 174 (D) x 73 (H) mm
Number of Channels
2 channels
With Display
Color LCD
Communications
USB, RS232C, analog output
Memory Capacity
2000 data
The Sensor measures:
pH/ORP/Ion/Temp
Power Supply:
AC adaptor 100 ­ 240V, 50/60 Hz
