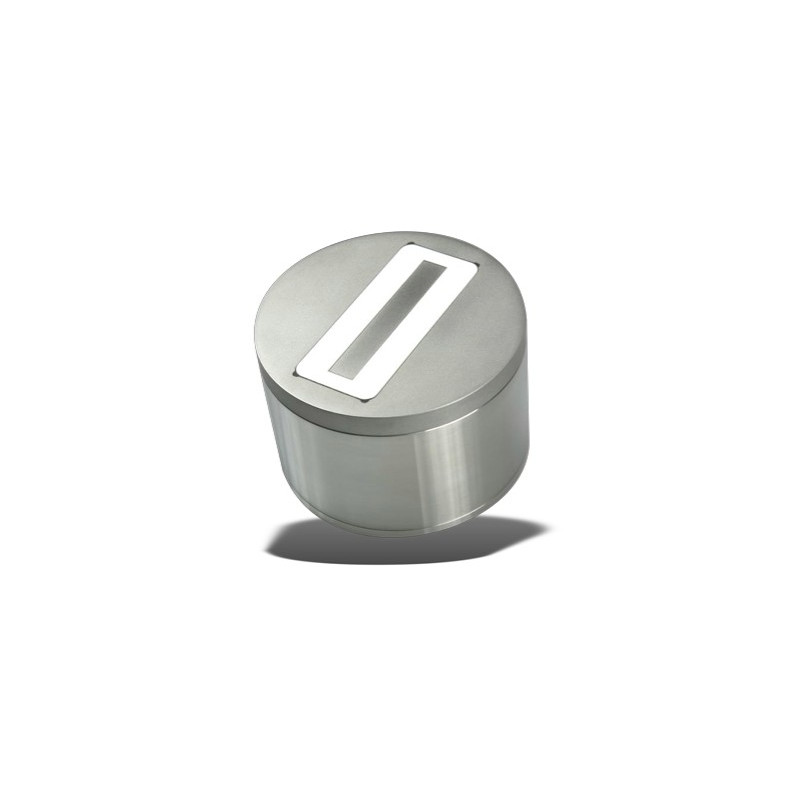

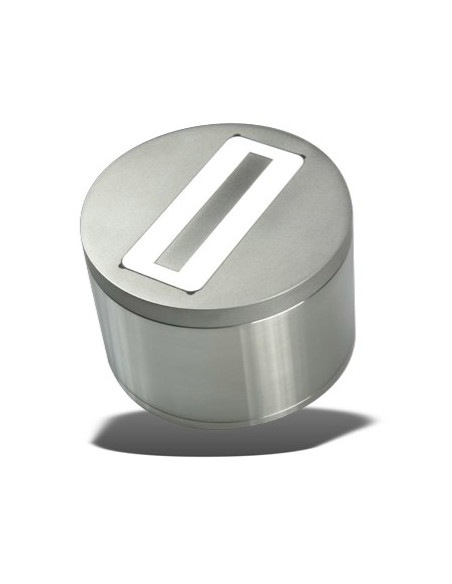

SONO-VARIO LD Moisture Probe for Medium and Low Density Materials
The SONO-VARIO LD probe is designed to measure moisture and conductivity of medium and low-density materials like grains, wood pellets, animal feed, and more. Featuring a stainless steel housing and ceramic window, it integrates easily into containers, wells, conveyor belts, or silos.
The measuring probe SONO-VARIO LD stands for low density. It is suited to determine moisture and conductivity of different materials with middle and lower density like grain types, wood pellets, animal feed and much more.

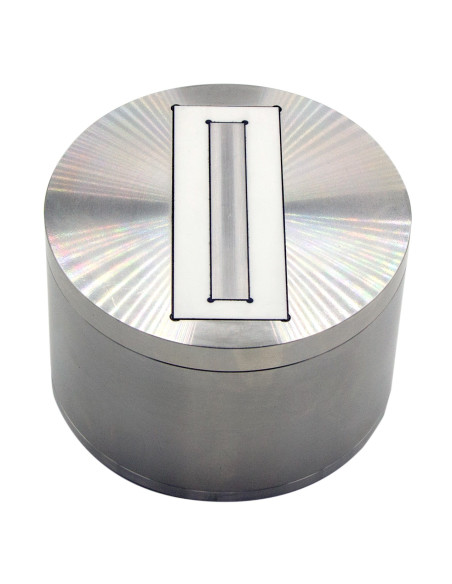

SONO-VARIO LD consists of a stainless steel housing and has a ceramic window as well as the integrated TRIME TDR transducer for fast measurement. You build in the sensor in containers, wells, above conveyor belts or in silos. The standard version is equipped with a MIL plug.

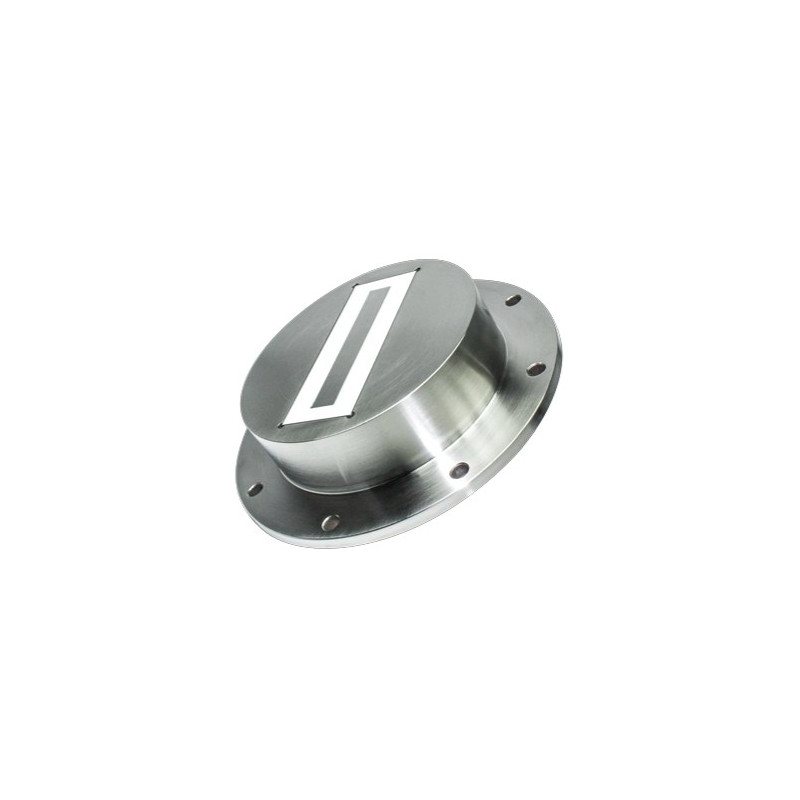

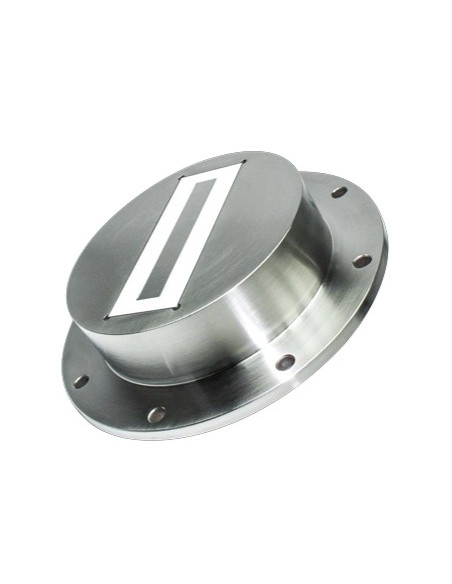

In the FLANGE version the cable feeding occurs via a watertight PG gland. When you deal with loose materials with poor pourability like woodchips we recommend to build the probe in a screw conveyor as the material densifies there relatively constantly.
Benefits
- The cylindric surface probe is especially suitable for grains, pellets, sludge, oil fruits, powder and similar materials.
- Precision thanks to the representative measuring field and the disc-shaped radar scan.
- Interchangeable, robust probe head made of stainless steel and special ceramics.
- You may save up to 15 different material calibration curves in the probe.
- Output of the standard deviation to regulate the air flow within the fluid bed dryer.
- Integrated signal processing and output with intelligent filter algorithms directly in the probe.
- No other evaluation units are needed.
Probe for measuring various low and medium density bulk goods with density in a range of approx. 0,3kg/dm³ up to 1,0kg/dm³ as e.g. corn and oil seeds
The sensor has a pre-installed corn calibration (without temperature compensation) and via software or SONO VIEW further calibrations, stored in the sensor, can be activated/adapted
►Technical data:
• Temperature range: 0..70°C (32..158°F)
• Power supply: 12..24V/DC stabilized
• Power consumption: <3W
• Dimensions: 108x70mm (Øxlength)
• High-grade steel housing IP67
• Measurement surface made of high-grade
steel and aluminium-oxide ceramic- 10-pin connector for signal cable
►Interfaces:
• 2 x analog output 4..20mA
• Output 1: Moisture in % (0..100%; free configurable)
• Output 2: Temperature in °C (0..100°C;
Accessories are not included in the price of the SONO-VARIO LD; a proforma invoice must be requested to include these.
►SONO 4m Sensor Cable 4m:
Sensor Cable, 6 twisted pair wire, 6 x 2 x 0,25mm², screened; 10 pole MIL flange connector weight: 0,4200 kg / 0,4200 kg Goods
►Flange for SONO VARIO Ø108mm:
Flange for SONO VARIO, steel, ø inner: 108mm, ø outer: 132mm weight: 0,3600 kg / 0,3600 kg.
►Universal bracket with tilt mechanism and holding head for SONO-VARIO:
adjustable in three Dimensions. Ideal for fitting under the silo discharge. V2A stainless steel plate weight: 6,3000 kg / 6,3000 kg.
