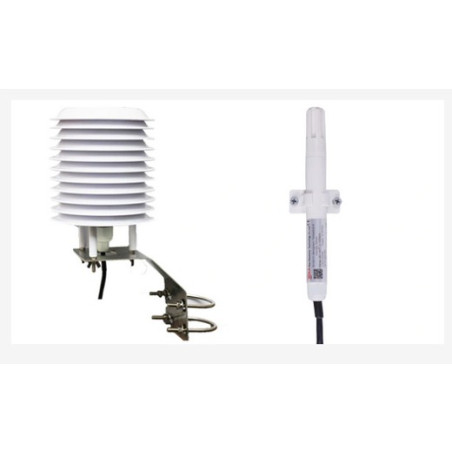

AO-330-01 with AO-95-01 Protector (included)
AO-330-01 with AO-95-01 Protector (included)
AO-330-01 with AO-95-01 Protector (included)
AO-330-01 with AO-95-01 Protector (included)
AO-330-01 with AO-95-01 Protector (included)
AO-330-01 with AO-95-01 Protector (included)

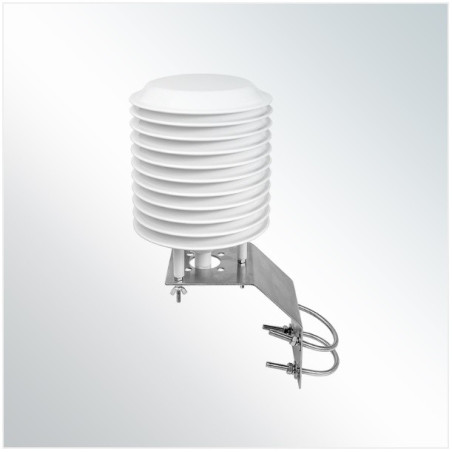

AO-330-01 with AO-95-01 Protector (included) and AO-95-02 clamp (optional)
AO-330-01 with AO-95-01 Protector (included)

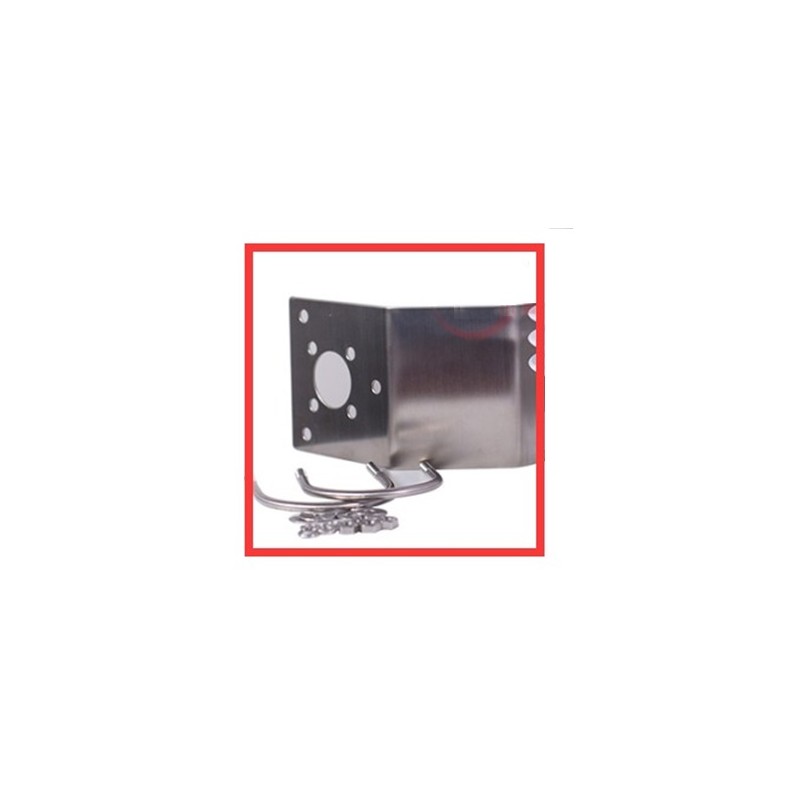

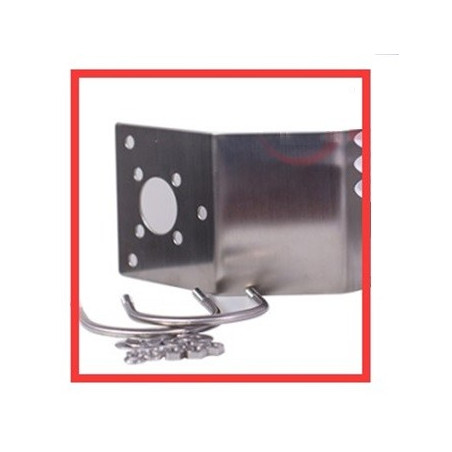

Bracket AO-95-02 (optional)
AO-330-01 with AO-95-01 Protector (included)
AO-330-01 with AO-95-01 Protector (included)
AO-330-01 with AO-95-01 Protector (included)
AO-330-01 with AO-95-01 Protector (included)
AO-330-01 with AO-95-01 Protector (included)
AO-330-01 with AO-95-01 Protector (included)
AO-330-01 with AO-95-01 Protector (included)
AO-330-01 with AO-95-01 Protector (included)
AO-330-01 with AO-95-01 Protector (included) and AO-95-02 clamp (optional)
AO-330-01 with AO-95-01 Protector (included)
Bracket AO-95-02 (optional)
AO-330-01 with AO-95-01 Protector (included)
AO-330-01 with AO-95-01 Protector (included)

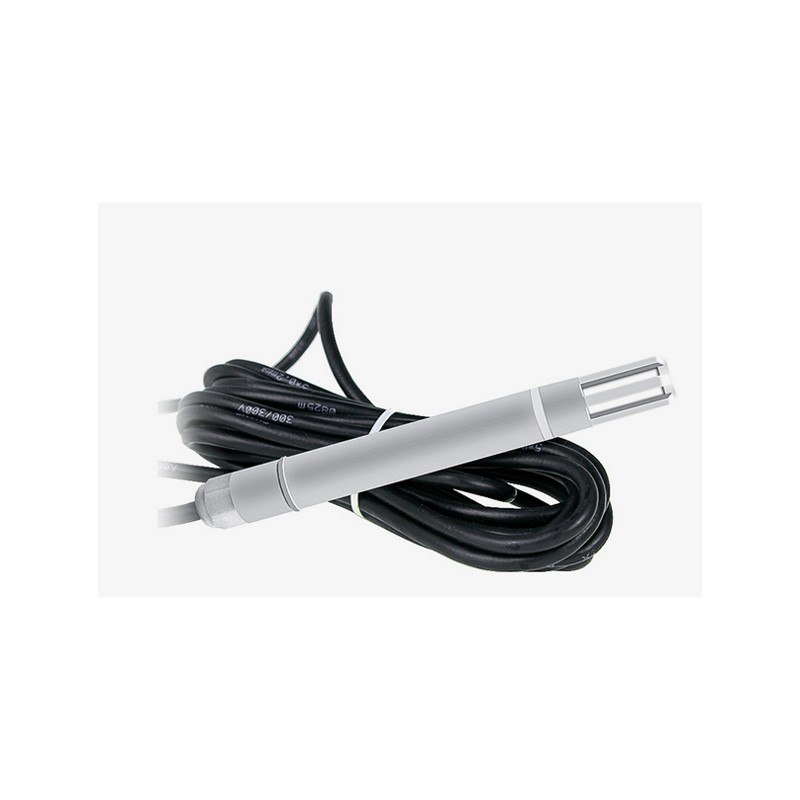

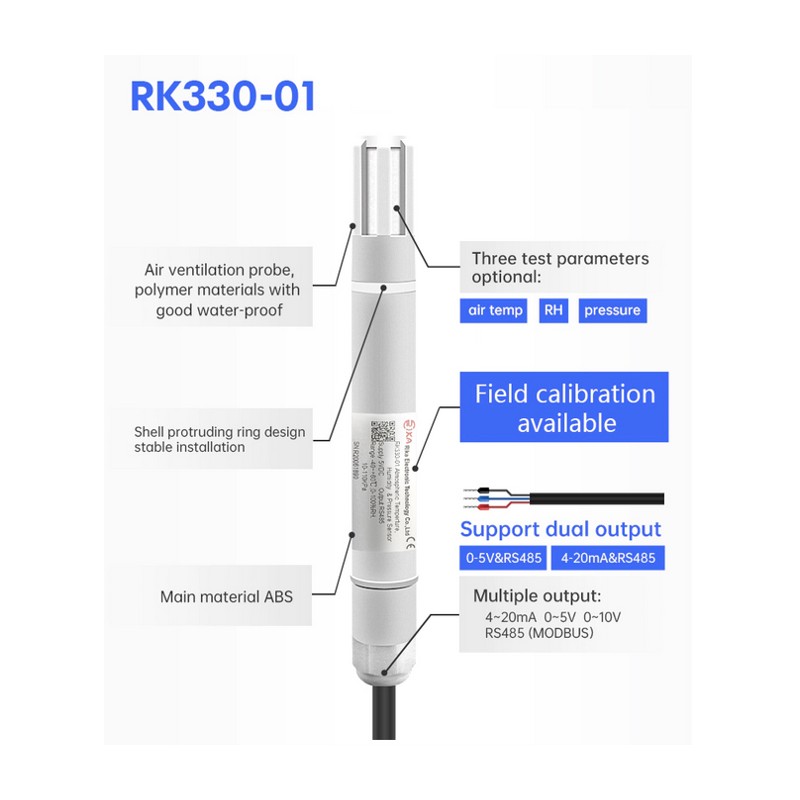

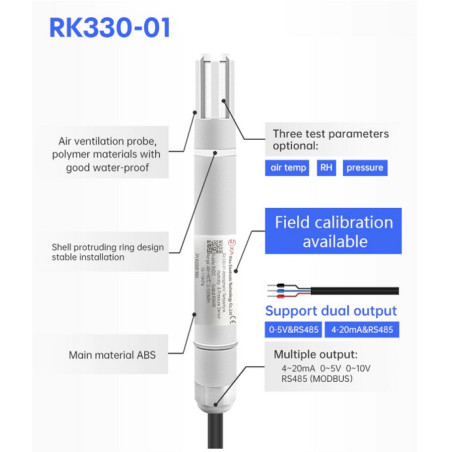

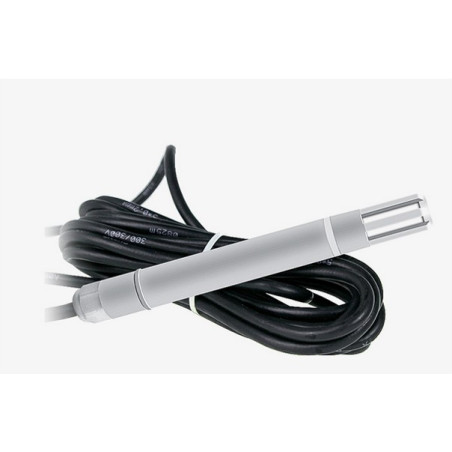

AO-330-01 Ambient Temperature Humidity & Pressure Sensor (with sunscreen), outputs 4-20mA, 0-10Vdc, RS485, SDI-12

Reference: AO-330-01 - Manufacturer: AO-Electronics

4 Models to choose from (Solar Shield included):
AO-330-01A Temperature, Relative Humidity.
AO-330-01B Temperature, Relative Humidity, Pressure.
AO-330-01C Temperature.
AO-330-01D Relative Humidity.

Select Model
Optional Accessories
Output Type
€345.00
Tax excluded Envío: 3 a 6 semanas

Quantity Unit discount You Save
3 5% €51.75
5 8% €138.00
7 10% €241.50
10 15% €517.50


The AO-330-01 temperature, humidity and atmospheric pressure sensor performs professional measurements of air temperature, relative humidity and barometric pressure.

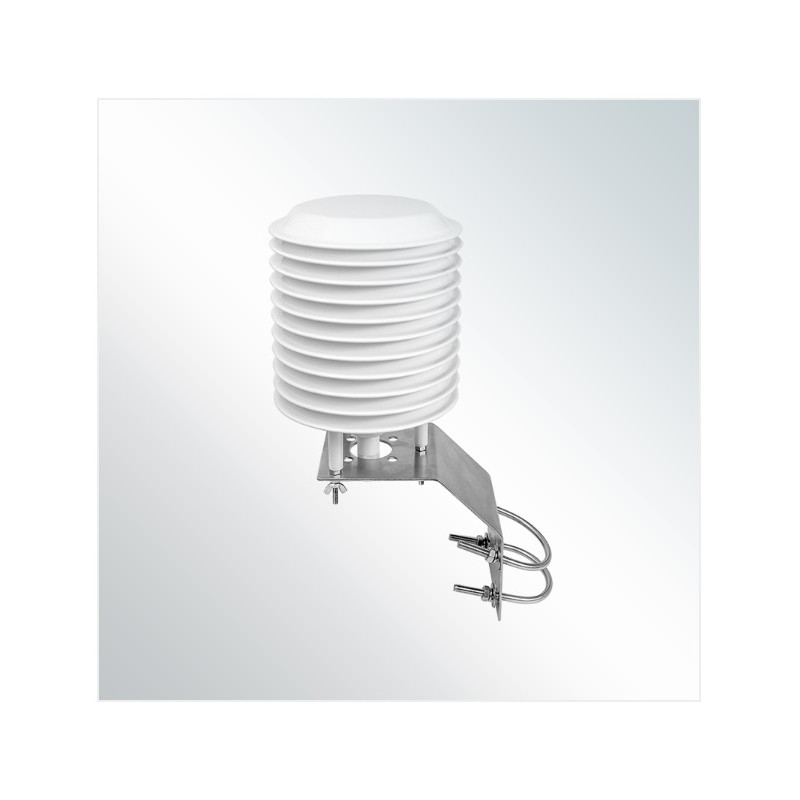

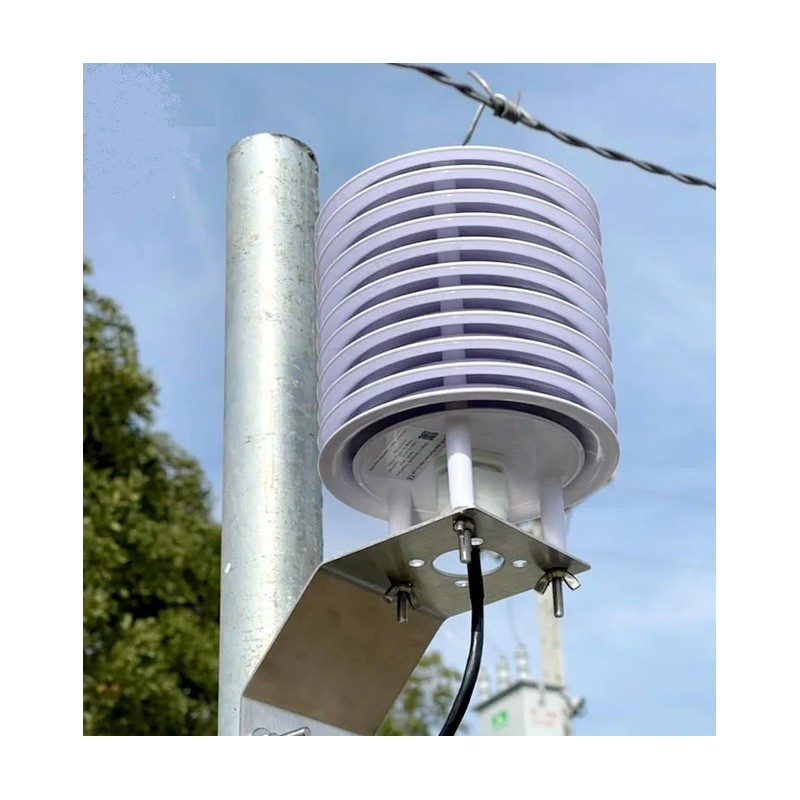

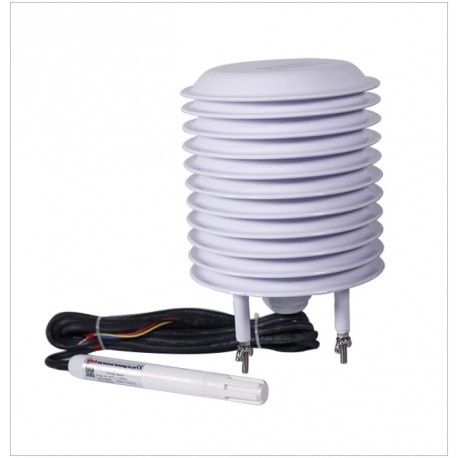

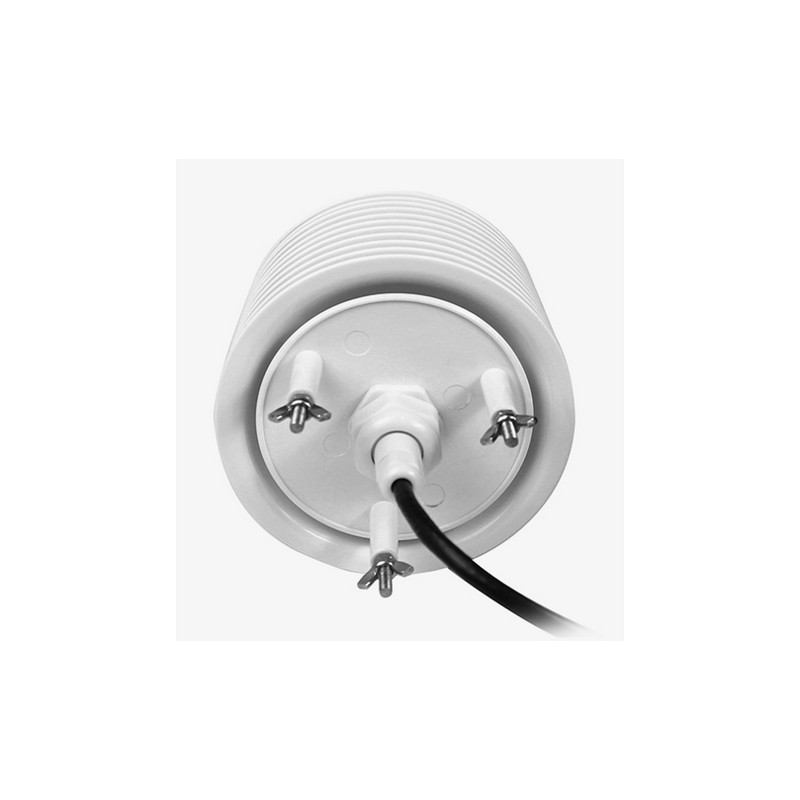

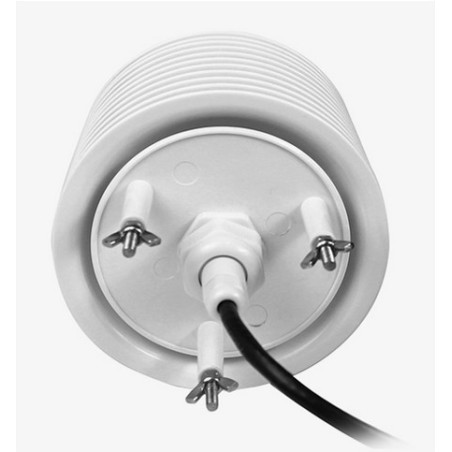

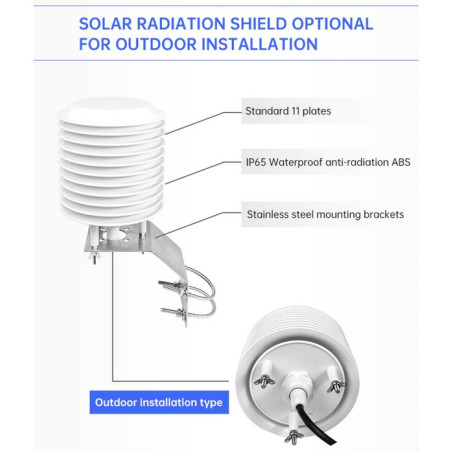

The sensor is integrated in the 11-plate protector (AO-95-01) to protect it from solar radiation (anti-UV) and rain.

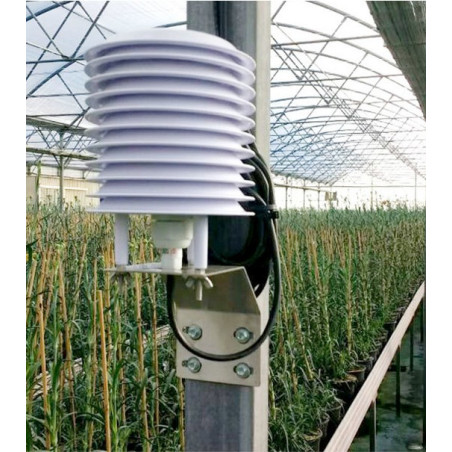

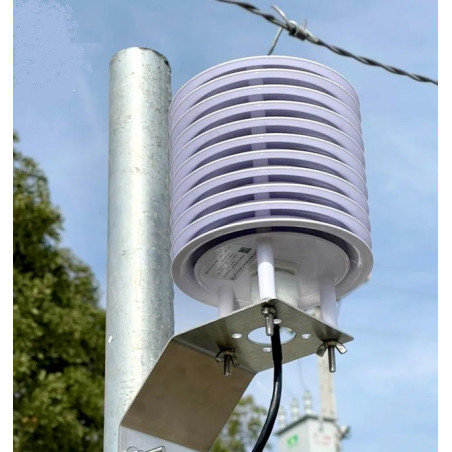

The AO-95-02 Clamp (for wall or mast) is optional.

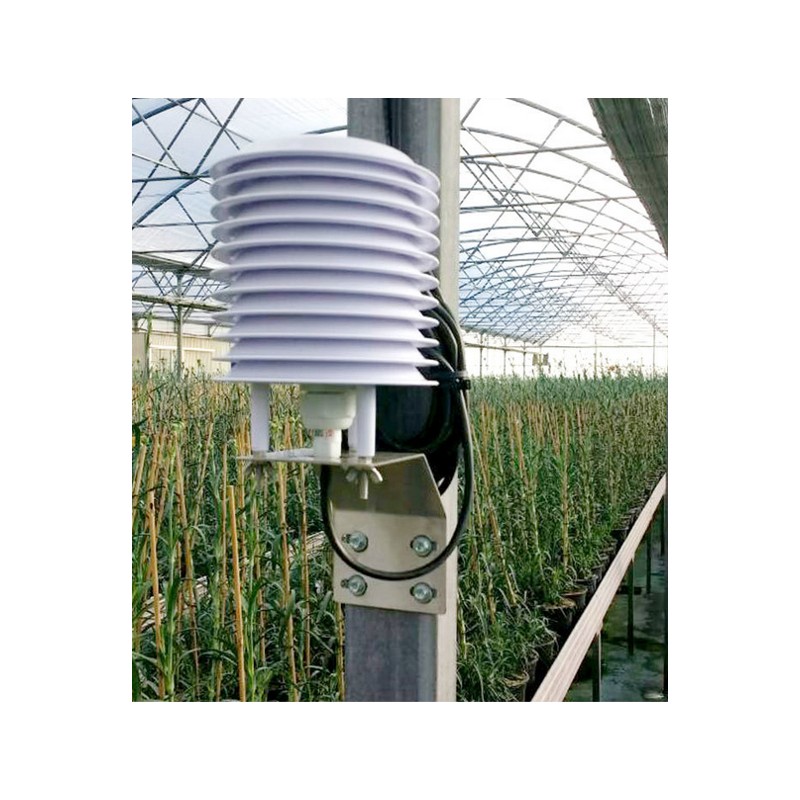

It is widely used in agriculture, forestry, meteorology, climatic chambers, storage rooms and other places.

FEATURES
  * High Sensitivity
  * Fast response time
  * Long service life
  * Low consumption
  * Good stability of output
  * High temperature and high humidity environment for long-term use
  * Can integrate temperature humidity air pressure at the same time


APPLICATIONS
  * Environmental monitoring
  * Livestock farm
  * Storage
  * Forestry
  * Greenhouse
  * Agriculture

TECHNICAL SPECIFICATION

Item

Technical Specification AO-330-01

Temperature

Humidity

Pressure

Range

-40-60℃

0-100%RH

10-110kPa
(10-1100hPa)

Resolution

0.1℃

0.5%RH

0.1hPa

Accuracy

±0.5℃

±3%RH

±1hPa

Supply

5VCD, 12-24VDC

Output Signal

4-20mA,0-5V,0-10V,RS485(MODBUS),IIC

Current Consumption

<20mA

Operate Temperature

-40℃-+80℃

Ingress Protection

IP65

Storage

10-60℃@20%-90%RH

Weight (unpacked)

120g

Probe material

ABS

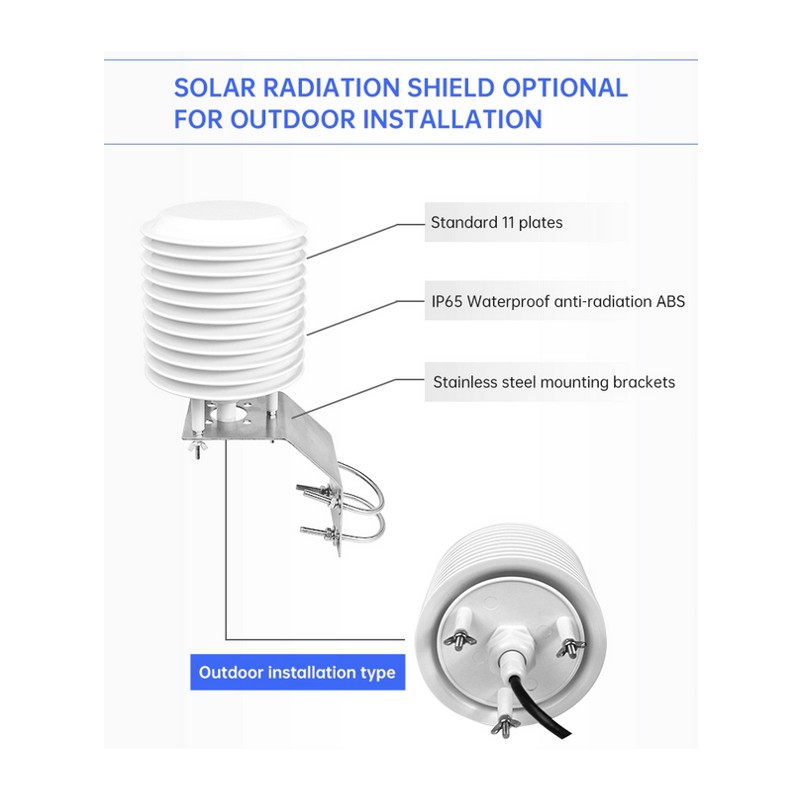

Radiation Shield
(included)

AO-95-01, 11 plates

4-20mA,0-5V, 0-10V output is proper for one or two measurement parameters. If three elements required, only RS485 output is acceptable.

MOUNTING

1. Install the product in stable environment area, avoid direct sunlight, away from windows air-conditioning, heating and other equipment. Otherwise it will cause measurement inaccuracies.

2. Fixing rail is optional.

3. If you use indoor, an installation clamp is recommended.

PARAMETER SELECTION TABLE

Remark

Series

Type

Parameter

Output

Accessory

Cable Length



AO-

















330

















01

















A







Temperature & Humidity







B







Temperature,Humidity,Pressure
      C       Temperature
      D       Humidity









A





4-20mA









B





0-5V









C





0-10V









D





RS485









E





IIC
        F     SDI-12

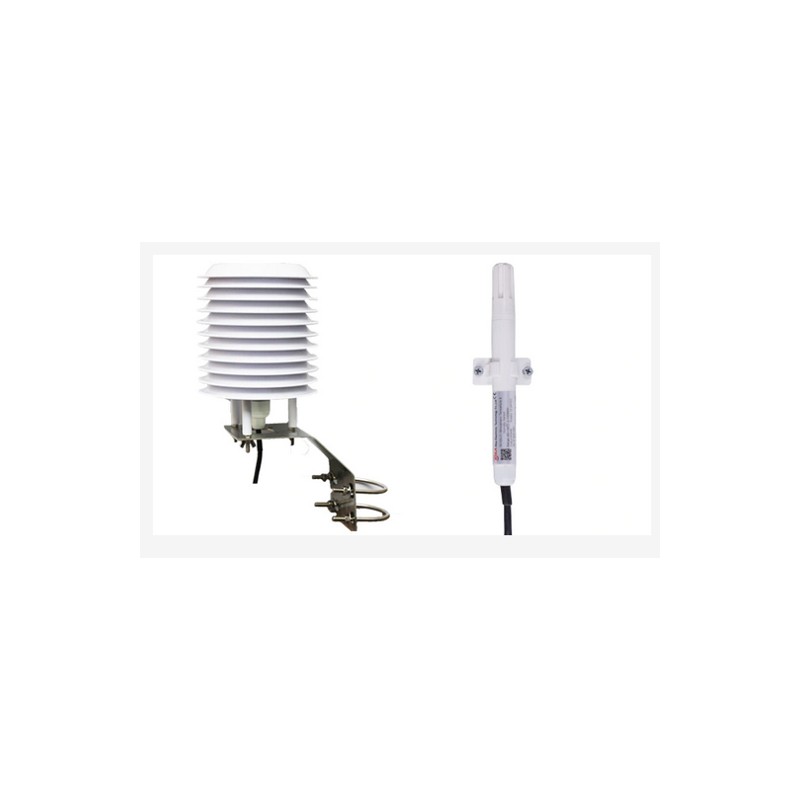

          A











B



With clamp











N



Without any accessory













3000

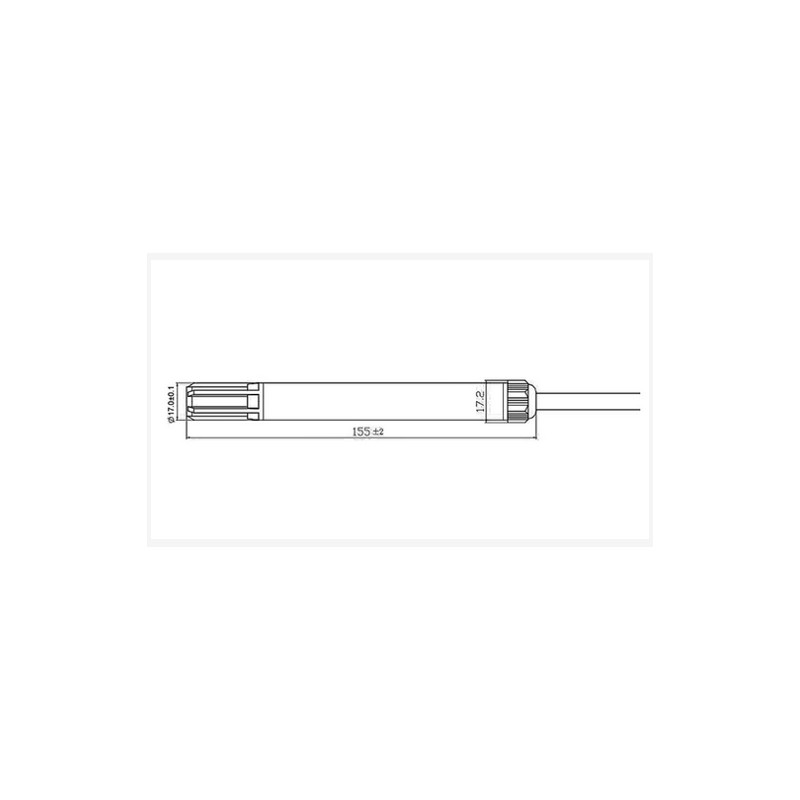

Units:mm（typ）













...

Units:mm

Example: AO-330-01AAN3000 Parameter: temperature & humidity Output: 4-20mA Without any accessory, Cable Length:3m.

The Sensor measures:
Temp./Rel. Humidity
Output Signal:
0-10 Vdc, 4-20 mA, RS485, SDI-12
Power Supply:
5Vdc, 12 - 24Vdc
Sensor for use in:
Outdoor
Sensors Accessories:
Protector & Enclosure, waterproof
Mounting Accessories:
Optional mounting clamp
