FS4408 Transmitter particulate matter / particles, active output (0-10V or 4-20mA)

View larger

FS4408 Transmitter particulate matter/particles PM2.5 and/or PM10, active output (0-10V or 4-20mA)

Reference

Manufacturer: Fuehler Systeme

Condition: New

0 μg/m³ ... 1000 μg/m³
0-10 V, 4-20 mA, Changer
LCD-Display

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

450,00 €

tax excl.

Quantity

Select Model

Add to wishlist

OVERVIEW
SPECIFICATIONS
ORDERING MATRIX
Data sheet
Download

With Display	LCD
IP Classification	IP65
Type of Instrument	Particles in Air Monitor
The instrument measures:	Optical Particle Counting
The Sensor measures:	Particles
Output Signal:	0-10 V or 4-20 mA
Power Supply:	24 Vdc

FS4408 Data Sheet Download (862.67k)

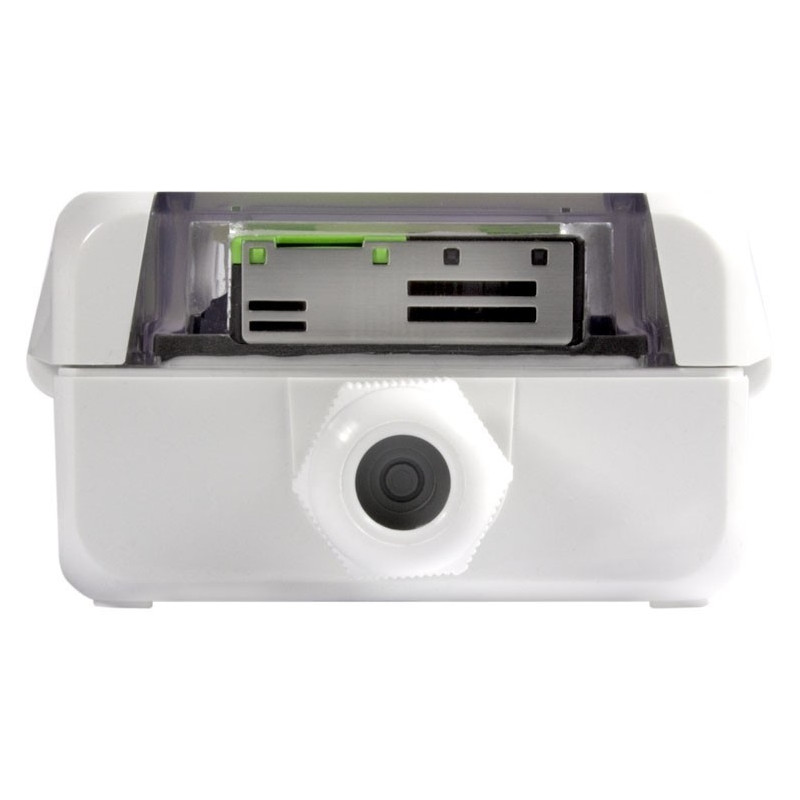

The air quality transmitter detects and counts particles in the ambient air with a laser-based sensor.
The determined fine dust (PM2.5, PM10) is converted into a standard signal (linear output signal) 0-10V or 4-20mA.

There are 2 output variables available (PM2.5 or PM10 or PM2.5 / PM10), which can be conveniently switched by DIP switch technology in the device as required.

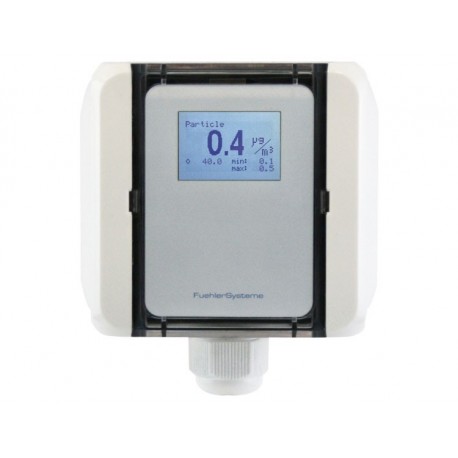

As an option the air quality sensor has a potential-free changeover contact and a backlit display. The display content can be rotated in 90 ° steps using a menu and the measured value, the switching threshold set, the state of the relay, the MIN / MAX measured values for the selected intervals (1 h / 6 h / 12 h / 24 h) etc. can be read out.
