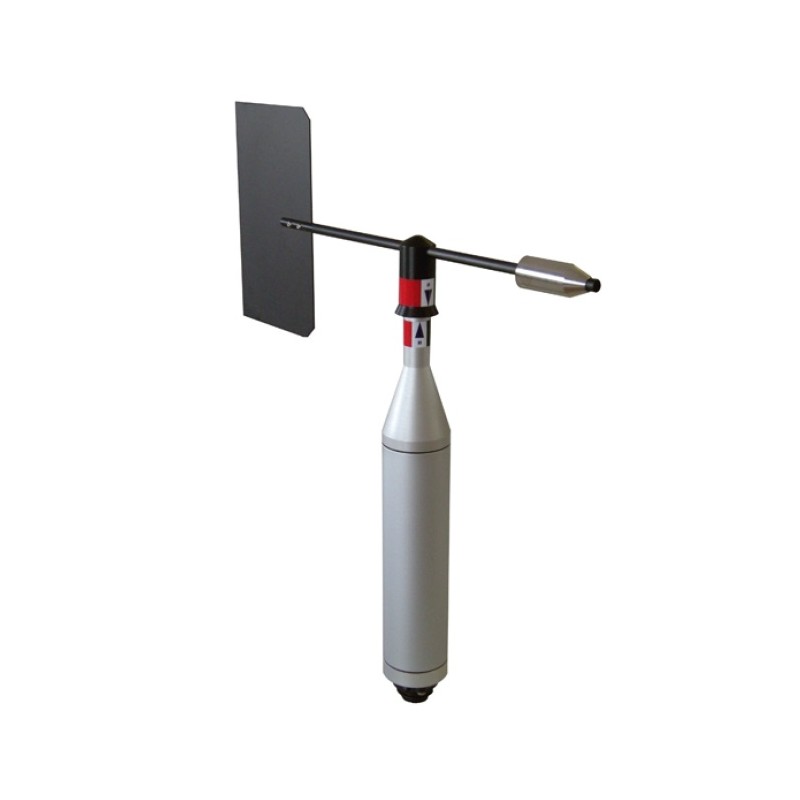

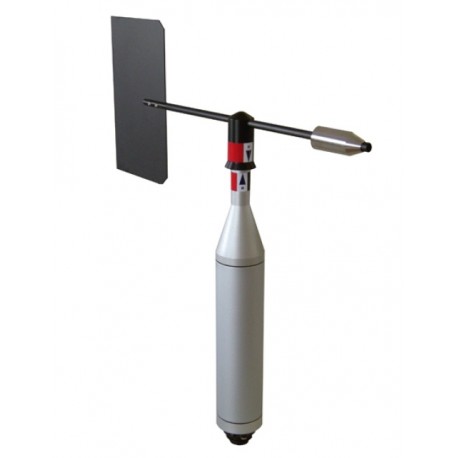

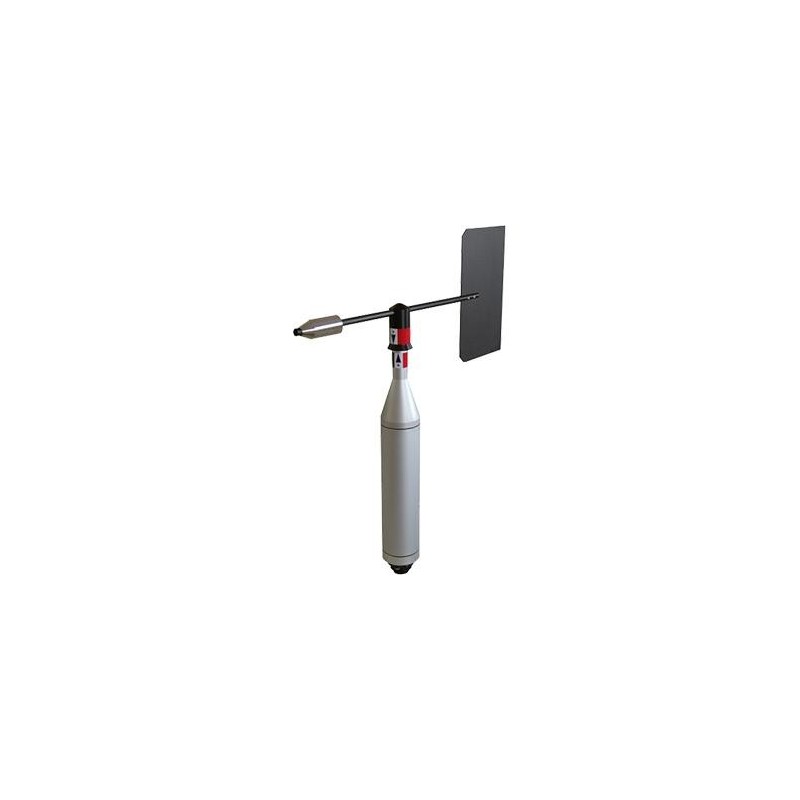

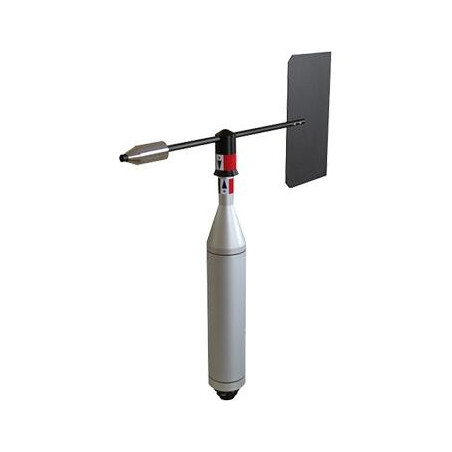

DVE Precision Wind Vane Sensor with 0 ÷ 2Vdc, 4 ÷ 20mA or RS485/ModBus outputs

Reference

Manufacturer: Nesa srl

Condition: New

Very High precision Wind Direction Sensor (better than 0.3°).

According to standards WMO, EN 15518-3:2011

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Select Model

Add to wishlist

Overview
Specifications
MODELS
Data sheet
Download

The Sensor measures:	Wind Direction 0-360º
Output Signal:	0-2Vdc, 4-20mA, RS485

DVE Data Sheet Download (314.6k)

The wind direction measurement sensor (Gonio Anemometer) is made of materials with high reliability and durability, which maintain the characteristics of sensitivity and precision for a long time.

The shape of the mechanical body allows it to resist wind speed or gusts (up to 300km / h).

Using a special magnetic encoder that ensures very high resolution and accuracy by eliminating mechanical friction at a full 360 ° operating angle.

The output signal is normalized in voltage or current (4 ÷ 20mA or 0 ÷ 2Vdc) or digital in RS485 Modbus.

The sensor is manufactured according to the WMO (World Meteorological Organization) standard.

Code DVE-A: signal output 0-2Vdc already programmed.
Code DVE-B: signal output 4-20mA already programmed.
Code DVE-C: signal output ModBus/RS485 already programmed.
