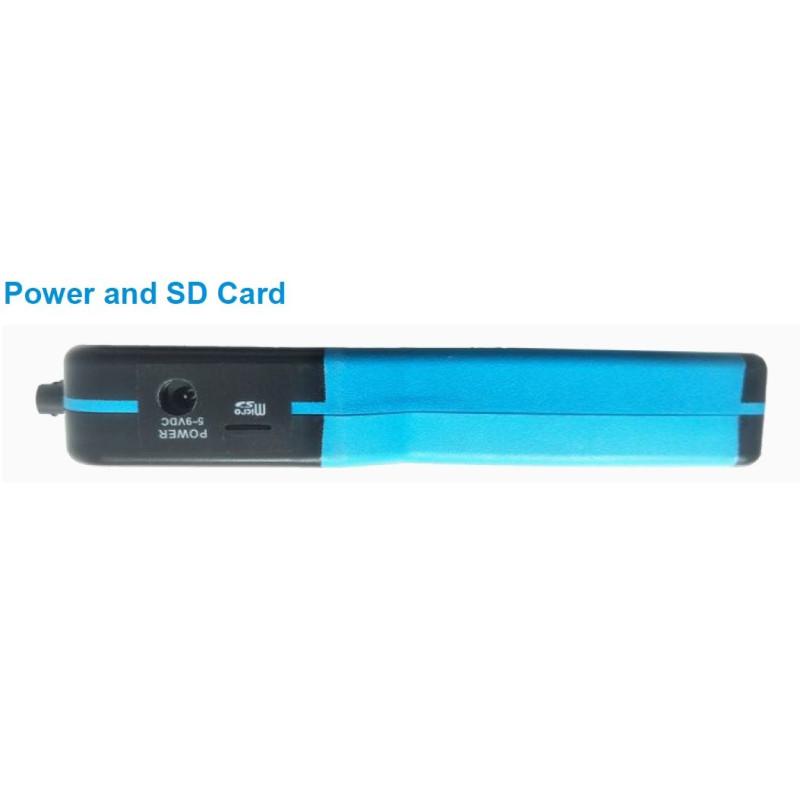

1GB SD Data Card
Power supply for AO-ME435
AO-ME435 with 3 Rogowsky Coils to choose from: 100A, 300A or 600A .
AO-ME435 with 3 Rogowsky Coils to choose from: 100A, 300A or 600A .
AO-ME435 with 3 Rogowsky Coils to choose from: 100A, 300A or 600A .
Optional case for AO-ME435
AO-ME435 with 3 Rogowsky Coils to choose from: 100A, 300A or 600A . Optional BOX-435 case.
3PH3W Three-phase connection AO-ME435

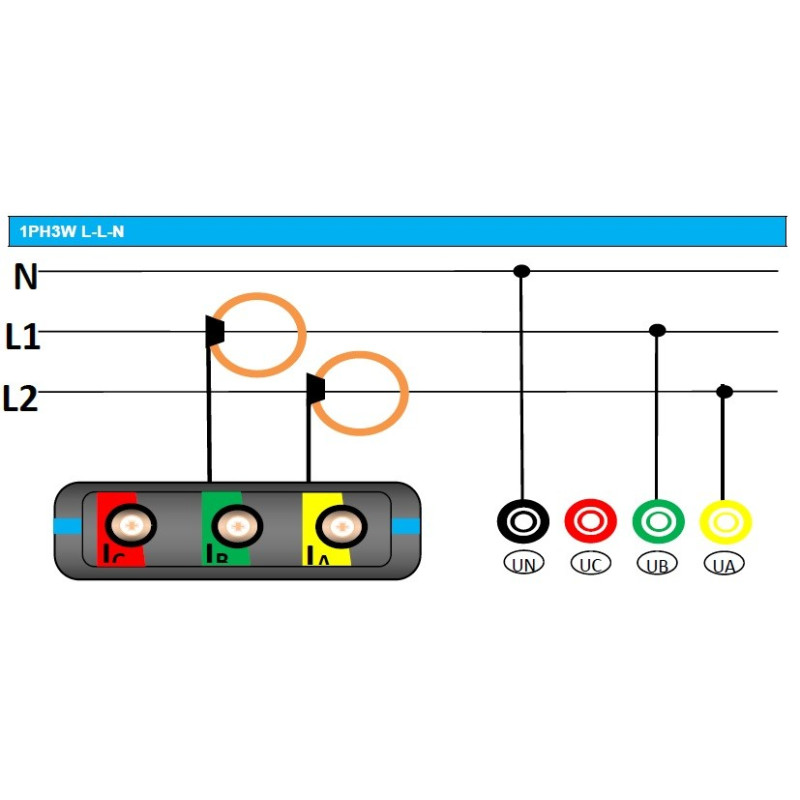

Connection AO-ME435 1PH3W L-L-N
Connection AO-ME435 1PH2W L-L
Connection AO-ME435 1PH2W L-N
3PH3W Three-phase connection AO-ME435
AO-ME435 with 3 Rogowsky Coils to choose from: 100A, 300A or 600A .
AO-ME435 with 3 Rogowsky Coils to choose from: 100A, 300A or 600A .
AO-ME435 with 3 Rogowsky Coils to choose from: 100A, 300A or 600A . Optional BOX-435 case.
3 Rogowsky Coils to choose from: 100A, 300A or 600A .
1GB SD Data Card
Power supply for AO-ME435
AO-ME435 with 3 Rogowsky Coils to choose from: 100A, 300A or 600A .
AO-ME435 with 3 Rogowsky Coils to choose from: 100A, 300A or 600A .
AO-ME435 with 3 Rogowsky Coils to choose from: 100A, 300A or 600A .
Optional case for AO-ME435
AO-ME435 with 3 Rogowsky Coils to choose from: 100A, 300A or 600A . Optional BOX-435 case.
3PH3W Three-phase connection AO-ME435
Connection AO-ME435 1PH3W L-L-N
Connection AO-ME435 1PH2W L-L
Connection AO-ME435 1PH2W L-N
3PH3W Three-phase connection AO-ME435

Handheld 3-Phase Multifunction Power Analyzer for Rogowski Coils - AO-ME435

Reference: AO-ME435 - Manufacturer: Meatrol

Portable multi-function power analyzer with 5 rated current ranges: 100A, 600A, 1kA, 3kA, 6kA for use with Rogowski coils.

Choose Rogowsky Coil
Options
€470.00
Tax excluded Envío: 3 a 6 semanas



Included:
- Power supply: 4 * AA or 5Vdc batteries
- 1GB SD data card
- 4 x voltage clamps

OPTIONS:

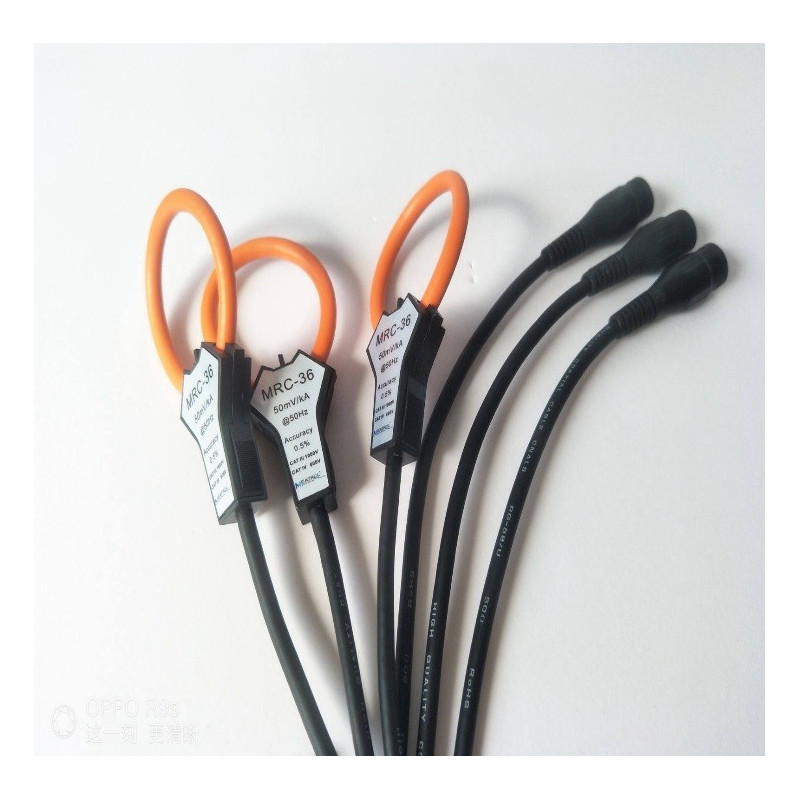

- 3 x Rogowsky Coils to choose from the following models:
- 100A, model MRC-24 diameter 24 mm
- 600A, model MRC-36 diameter 36 mm
- 1kA, model NRC-100 diameter 100 mm
- 3kA, model NRC-150 150 mm diameter
- 6kA, model NRC-200 diameter 200 mm

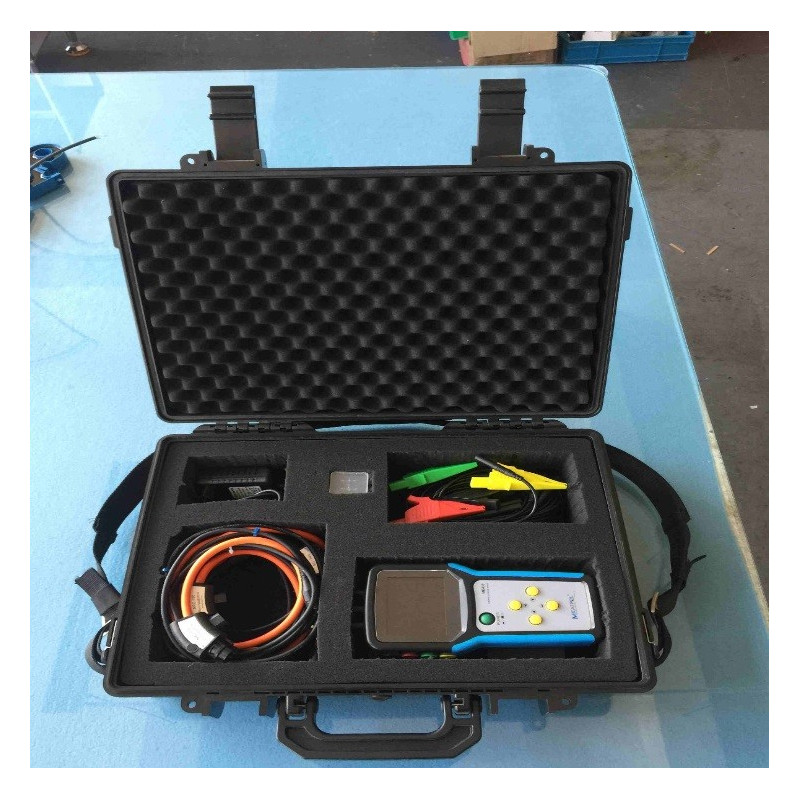

- Optional transport box: BOX-435
- BOX only for ME435
- Dimensions: 456x355x133mm
- Material: Anti-collision ABS
- Weight: 3.1kgs
- IP CLASS: IP67

ME435 has 5 nominal currents, (100A, 600A, 1kA, 3kA, 6kA), different currents require connecting different Rogowski coils.
1） 4 * AA battery
2） 1GB SD card
3） No communication.
4） 5 times harmonic display

ME440 has 3 nominal currents, (600A, 3kA, 6kA), different currents require connecting different Rogowski coils.
1） 2 PANASONIC 2900 mAh lithium batteries
2） 16GB memory, DISC download by USB
3） RJ45-Modbus-TCP
4） PE-N voltage: (5-piece voltage clamp）
5） N phase current measurement: （4 rogowski coils）
6） 51 times harmonic display

The Sensor measures:
AC Current
