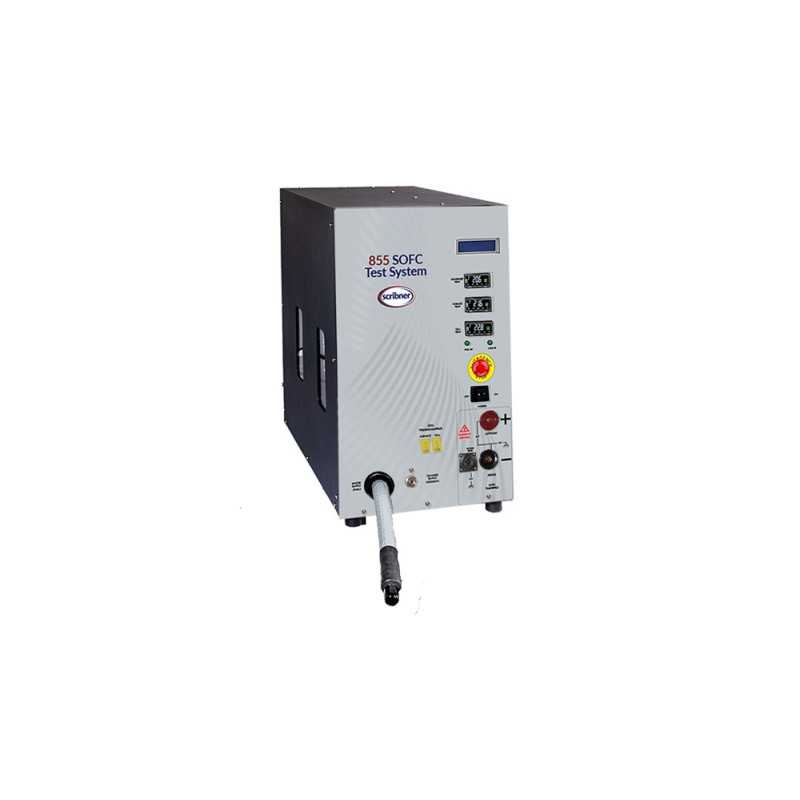

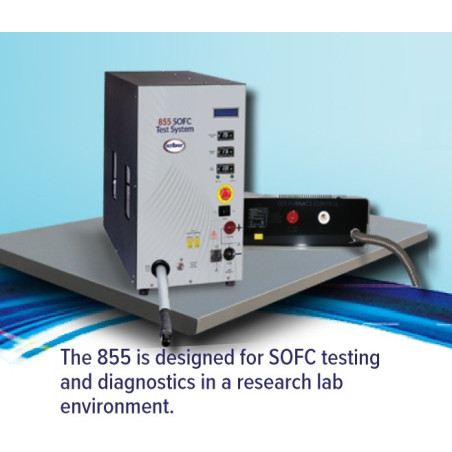

Scribner 855 SOFC Fuel Cell Test System

Reference 855

Manufacturer: Scribner Associates

Condition: New

◆ The 855 SOFC Test system is an integrated, turn-key Solid Oxide Fuel Cell (SOFC) Test System.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Options
SOFTWARE
VIDEO
Download

855 SOFC Data Sheet Download (455.87k)

► This unit has a zero volt capability for lower measurement range. The addition of a programmable Power Supply extends the 855’s capabilities to include electrolysis mode. Automated, hands-free switching between SOFC and SOEC mode via FuelCell® software.

► The 855 SOFC system is known for it’s high performance and accuracy.

► FuelCell® Software and Experimental Methods Manual are included. Optional Impedance Spectroscopy & HFR.

Electronic Load:
Maximum Load Current:	5/25/50 A
Maximum Load Power:	100 W
Minimum Load Resistance:	< 2 mΩ (100 mV @ 50 A at load terminals)
Current Resolution:	1 mA for 5/25/50 A
Current Accuracy:	0.3 % of full scale current rating
Voltage Measurement and Data Acquisition:
Maximum Whole Cell Voltage:	20 V
Maximum Reference Electrode Voltage:	9.999 V
Sense Lead Input Resistance:	> 35 kΩ
Voltage Resolution:	I mV
Voltage Accuracy:	±3 mV ±0.3 % of reading
Voltage and Current Data Update Rate:	100 Hz
Reactant Gas Control System:
	All 316 stainless steel construction of humidifiers, flow path, valves and mass flow controllers, with Swagelok^® fittings
Mass Flow Control:	Anode up to 1 SLPM and cathode up to 3 SLPM*. Software controlled mass flow controllers. Automatic N₂ purge valves on anode and cathode
Alarm Inputs:	Gas supply pressures (3), humidifier water level (1), furnace over temperature (1), and external (1)
Temperature Controllers:
Quantity:	(3) Furnace, anode humidifier, cell temp
Set and Report Accuracy:	±0.25 % of span, ±1 least significant digit
Sensor Type:	Thermocouple, type K (R/S also available)
Temperature Limit Controller:	(1) Furnace over-temp
Humidifier:	Anode only, sparger-type, single passivated 316L W heaters per bottle
Temperature Range:	Ambient to 99 ° C
	Automated humidifier bypass
Environment:
Operating Temperature:	0 - 40 °C
Power Source:	120 V, 50/60 Hz, 900 W
Enclosure Type:	Single bench top enclosure
Size and Weight:	18” H x 11” W x 19” D, 50 lb
	46 cm x 28 cm x 48 cm, 23 kg
Safety Features:	Automatic shutdown and N₂, purge with under voltage, over-current, over-temperature, loss of reactant or purge gas pressure, furnace over-temperature limit, communications failure or external alarm. manual emergency stop switch included for manual shutdown by operator.

881 FRA	Integrated FRA for High Frequency Resistance (HFR) and Electrochemical Impedance Spectroscopy (EIS) measurement from 1 mHz to 10 kHz
Manual and Auto MultiGas Modules	Multiple reactant gas selector
Reformate Simulation
DI Water Tank	Simple solution for pressurized delivery for existing DI/RO water source

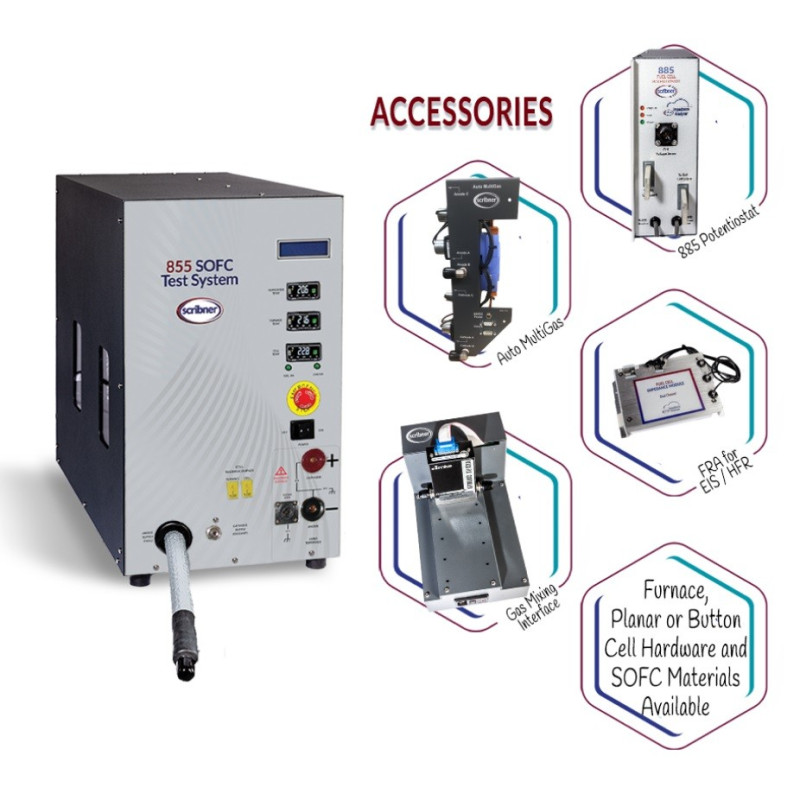

Button Cell and Planar SOFC Test Fixture and Furnace	SOFC fixtures with custom designed furnace and redundant over-temperature control for added safety

FuelCell® software is designed to control or monitor virtually all of the parameters of an operating PEM type fuel cell or stack and perform a wide variety of experiments.
It is technology independent and may also be used with DMFC, PAFC, MCFC or SOFC type fuel cells. FuelCell® software is the most popular software in use worldwide for fuel cell research and development.
FCView is a powerful utility for analyzing, graphing, and comparing data collected from FuelCell® . Basic modeling functions are also included.
CView can be used to analyze Cyclic Voltammetry and other DC data collected from FuelCell® .
