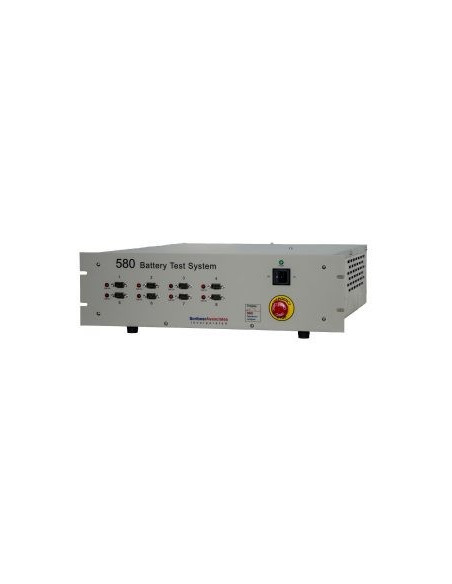

580 Battery Test System (8 channels expandable to 32) (current range from 10 μA to 1 A)

Reference 580

Condition: New

The 580 Battery Test System was designed to meet the specific demands of our loyal customers.
This system is used to test both single cell batteries as well as super-capacitors.
Our powerful, flexible, user friendly BCycle® software is included with the instrument.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Options
Data sheet
Download

Communications	USB

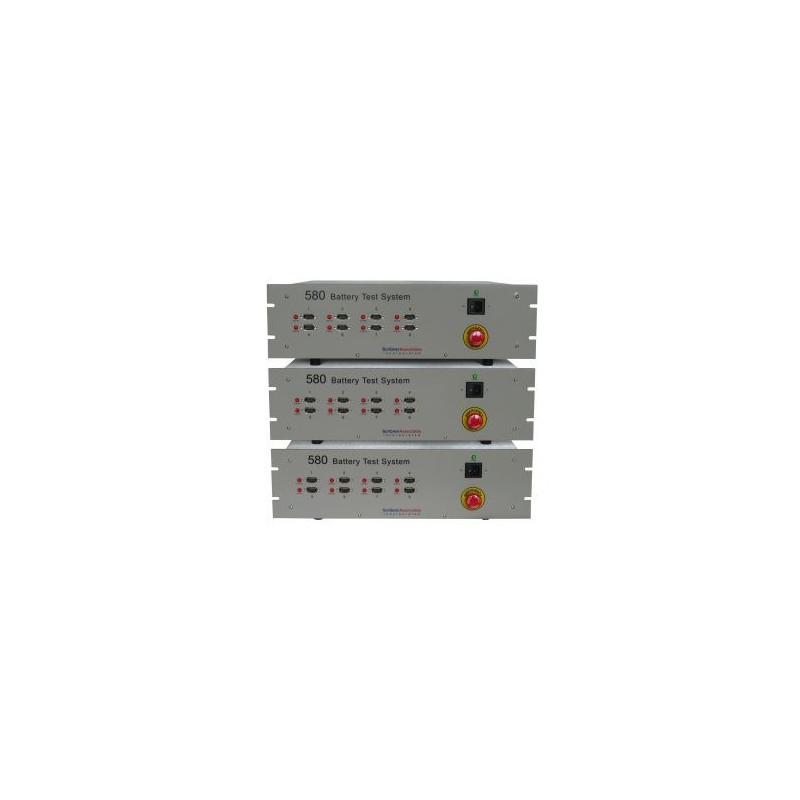

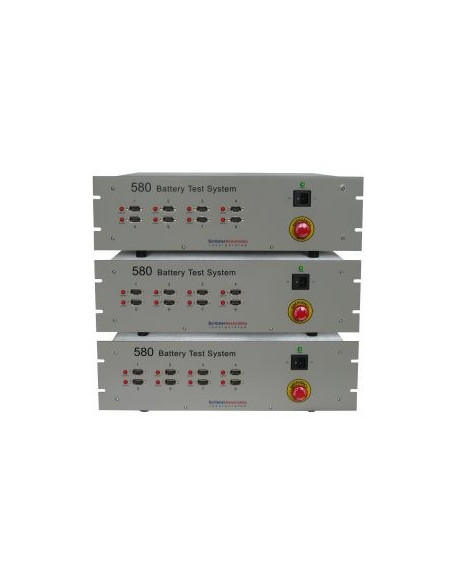

Number of channels	8 (Expandable to 32 Channels)
Current Range	From 10 μA to 1 A
Compliance Voltage	-2.000V to +10.000V
Impedance	2 frequency HFR; user-defined frequencies

Datasheet 580 Download (431.75k)

BCycle Software Datasheet Download (321.36k)

BView Datasheet Download (818.17k)

- 6 current ranges from 10 μA to 1 A
- 5 terminal measurement
- Control modes: current, voltage, power
- HFR for internal resistance
- 100 pts/sec sample rate
- BCycle® software – user-friendly, powerful, flexible
