Scribner 620-ETS PEM/AEM Water Electrolysis Test Station

Reference 620-ETS

Condition: New

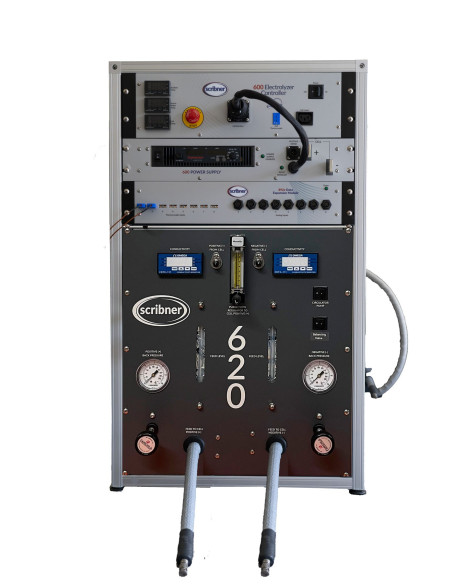

• The 620 Electrolyzer Test System (ETS) is a bench-top, fully-integrated instrument designed for testing and evaluating both Proton Exchange Membrane (PEM) and Anion Exchange Membrane (AEM) Water Electrolysis systems.
• This system provides a comprehensive solution for researchers, engineers, and scientists working on the development and optimization of electrolyzer technologies.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Cell
Options
video
Download

620 ETS Data Sheet Download (704.06k)

620 ETS App Note Download (289.1k)

◆ Integrated Functionality:

- Incorporates an integrated Power Supply, Potentiostat, Impedance Analyzer for Electrochemical - Impedance Spectroscopy (EIS) & Hydrogen Flux Rate (HFR) measurements.
- Real-time sensors for Product Flow Rate and Cross-over Monitoring enhance comprehensive analysis.

◆ Ideal for Detailed Analysis:

- Designed for laboratories requiring detailed control, diagnostics, and analysis of single-cell PEM or AEM water electrolysis cells.

◆ FlowCell-ETS® Software:

- Employs powerful FlowCell-ETS® software for complete control and monitoring of the test cell.
- Offers a range of built-in experiments, including constant, scanning, or step-stair voltage or current controlled measurements.

◆ Versatile Experiments:

- Enables a variety of experiments for detailed evaluation, ensuring flexibility in testing methodologies.

◆ Real-Time Monitoring:

- Provides real-time monitoring capabilities for enhanced insights into electrolysis processes.

◆ The 620 ETS is a sophisticated tool that facilitates precise control, diagnostics, and analysis, making it an invaluable asset for researchers and laboratories engaged in advanced studies of PEM and AEM water electrolyzer technologies.

◆ 4 current range Potentiostat ±0.07 / 0.7 / 7 / 20 A, ±5 V, 100 W
◆ Programmable Power Supply for operation up to 100 A, 5 V, 500 W
◆ Automated switching between Potentiostat and Power Supply mode
◆ Mass flow meters for real-time O₂ and H₂ product flow rate monitoring
◆ Independent, dual heated liquid feeds for cell positive and negative electrodes
◆ EIS and HFR in Potentiostat mode
◆ EIS data compatible with ZView®, the world’s leading impedance analysis & equivalent circuit modelling software
◆ Whole cell voltage plus two high-impedance reference electrode inputs for half-cell data
FlowCell-ETS® application software for complete system control, experiment sequencing, graphing and data acquisition
◆ Integrated back pressure to 2 bar_g
◆ Compatible with DI Water and Alkaline Feed Stocks
◆ N₂ purge on Cathode with Supplemental N₂ on Anode
◆ Recirculating or single-pass operating mode
◆ Feed tank level balancing and recirculating
◆ In-line high-temperature Ion Exchange cartridge to maintain DI water purity
◆ Integrated 892 Data Expansion Module for additional 8 temperature + 8 analog inputs, e.g., pressure transducers
◆ Safety features: E-Stop, Over Voltage/Current, Over Temperature, Product Gas Cross-Contamination

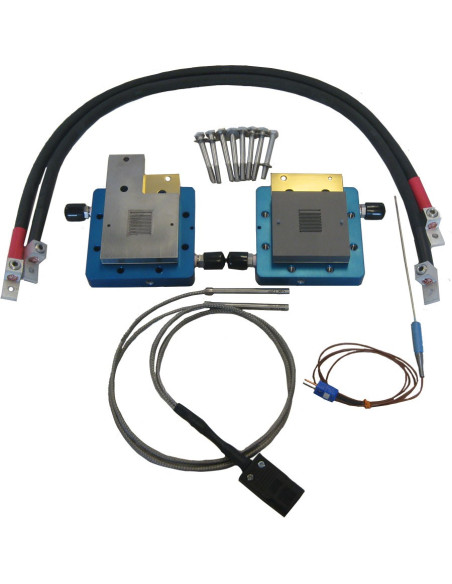

Cell Components:

◆ Flow fields with precision machined serpentine or interdigitated flow pattern (custom flow patterns available)
◆ Gold-plated copper current collectors
◆ End plates with reactant input/output ports, stainless steel Swagelok® compression fittings, cartridge heaters and thermocouple well
◆ 60 cm (24 in.) heavy-gauge copper conductor load cables
◆ Gaskets, gasket templates and additional hardware such as bolts, washers, fittings and O-rings

◆ Ion Power HYDRION PEM Water Electrolyzer Membrane Electrode Assembly
◆ SGL Carbon SIGRACET^® 25 BC Gas Diffusion Media for Negative (H2) Electrode
◆ Platinized Titanium porous media for the electrolyzer cell
