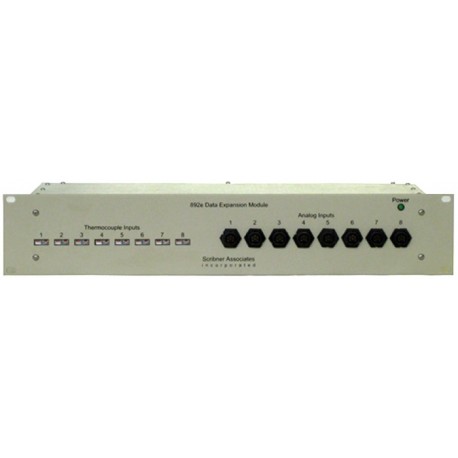

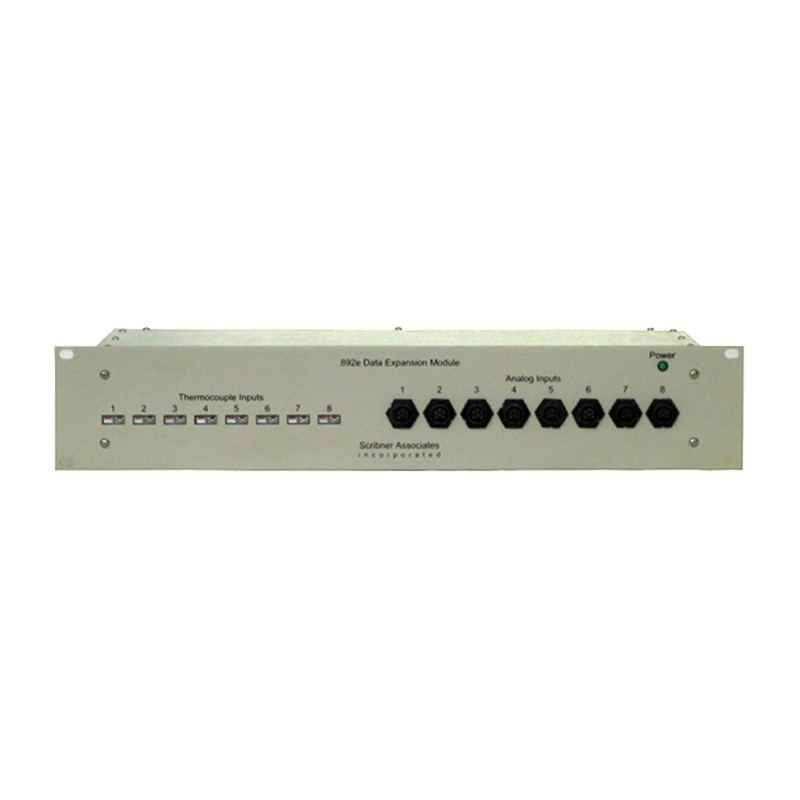

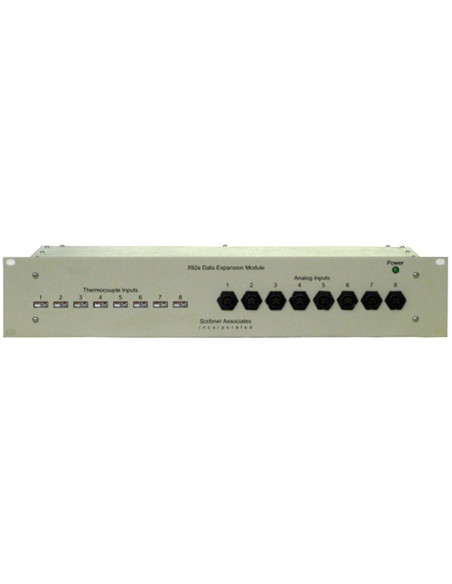

The Model 892e is configured with two factory-installed eight-channel data acquisition modules, each of which is factory-configured for one of several input types.
Our 892e multichannel data collection system for up to 16 additional channels of voltage and/or temperature measurement is ideal for inlet/outlet pressure sensors, cooling or distributed stack temperatures.This system adds temperature, voltage, current, pressure and other data inputs to the Scribner family of Turn-Key Fuel Cell Test Systems.
Our 892e multichannel data collection system for up to 16 additional channels of voltage and/or temperature measurement is ideal for inlet/outlet pressure sensors, cooling or distributed stack temperatures.This system adds temperature, voltage, current, pressure and other data inputs to the Scribner family of Turn-Key Fuel Cell Test Systems.
- Remote operation from RS485 interface of 840, 850C/e, 890C/CL/e, and 857 series test systems.
- 8 thermocouple inputs with cold junction compensation using miniature thermocouple connectors
- 8 Voltage or Current inputs using circular locking connector with cable wired for voltage transducer, current transducer or general analog input
- Pass-through RS485 connector for use with other accessory equipment
- 2U 19” rack-mount enclosure
- Supported by FuelCell®, and FlowCell® software directly
- 8 thermocouple inputs with cold junction compensation using miniature thermocouple connectors
- 8 Voltage or Current inputs using circular locking connector with cable wired for voltage transducer, current transducer or general analog input
- Pass-through RS485 connector for use with other accessory equipment
- 2U 19” rack-mount enclosure
- Supported by FuelCell®, and FlowCell® software directly
