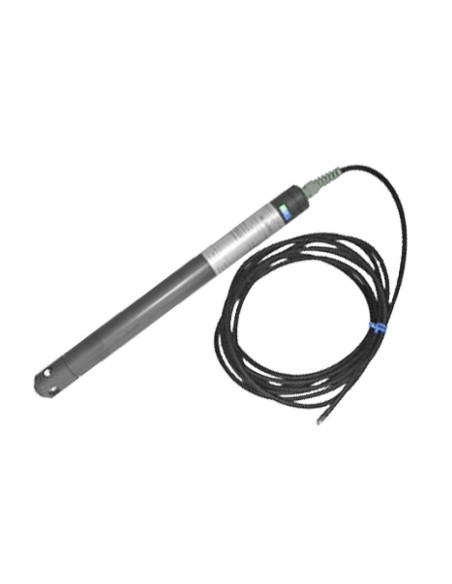

WMP4 Multiparametric Sensor (Ph, Level, Temperature, Conductivity)

Reference WMP4

Manufacturer: Nesa srl

Condition: New

Measure up to 4 parameters simultaneously (Ph, level, temperature, conductivity)
pH 0÷14, level 0÷20m, temperature -5 ÷ +60 ° C, 0÷6000 mS conductivity (0 ÷ 60.000μS autorange ),
Suitable for clear water or fresh and marine water low turbidity
RS485. (USB interface option for PC or data logger)
Working conditions -5 ÷ +60°C, max 3 bar
Easy to clean and maintain
Power supply: 10.8÷16Vdc max 30mA@12Vdc

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
ACCESSORIES
Data sheet
Download

The Sensor measures:	Multiple Parameters
Output Signal:	RS485
Cable Length:	30m
Power Supply:	12 V
Sensor for use in:	Water Quality

WMP4 Download (878.78k)

The WMP4 probe has been developed for the monitoring of aquifers, rivers, basins, landfills or waters, however transparent or semi-transparent.

It allows at the same time to carry out a comparative analysis of various parameters, concurring to real-time reading, local storage or file transfer to a data storage center, through the NESA mod dataloggers via GSM , GPRS, UMTS, or via satellite.
Easy to use in measurement campaigns or in continuous mode, thanks to an RS485 interface and a web program that allows you to transform your PC into an easy data logger.

You can manage the data acquisition system continuously, or at specific programmable intervals.

- Multiparametric probe in PVC ø42mm for water quality analysis, with these measures (4): Level, Temperature, Conductivity, pH.
- Max depth measurable: 20m.
- Complete of 30m shielded self-supporting cable with inside barometric compensation tube.
- External power supply 12Vdc.
- Out protocol: RS485.
- Datalogger excluded.
- Complete of Calibration Report.
- (On Portable configuration, includes S/USB interface and IP68 AMP connector).
