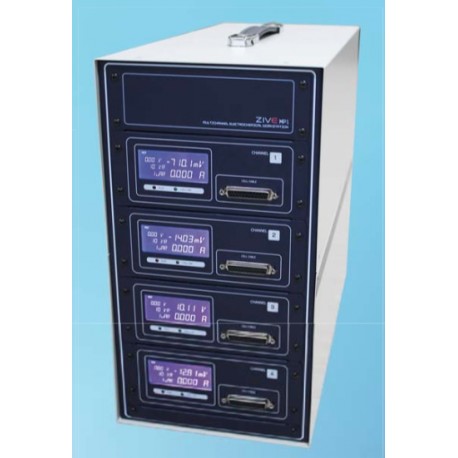

ZIVE MP1 Multichannel Potentiostat (FRA 10uHz~1MHz / ZRA) 4, 8, 32 channels (10 V/1 A, Res. 30fA)

The ZIVE MP1’s each channel is equipped with a frequency response analyzer (FRA) and Smart LCD as standard (LCD display for 4 channel housing system only). It also provides high performance impedance measurement over the frequency range 10uHz to 1MHz. The ZRA (zero resistance ammeter) function can measure max. 1Amp in galvanic corrosion technique. The system is supplied with four (4) advanced software packages, which are catagorized by application fields. With this advanced software packages, user can widen ZIVE MP1’s flexibility.

System Features:

• Versatile, high quality multichannel Potentiostat/Galvanostat/Impedance Analyzer

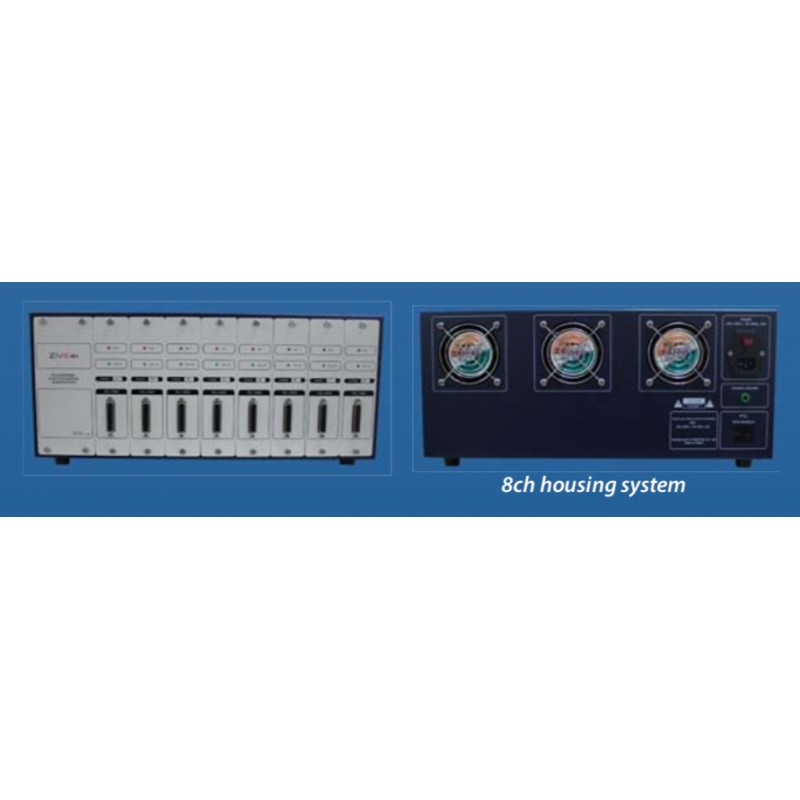

• 4 channel housing or 8 channel housing is available

• 4 or 8 fully independent channels with 14 EIS technique capability including multisine EIS technique at affordable price

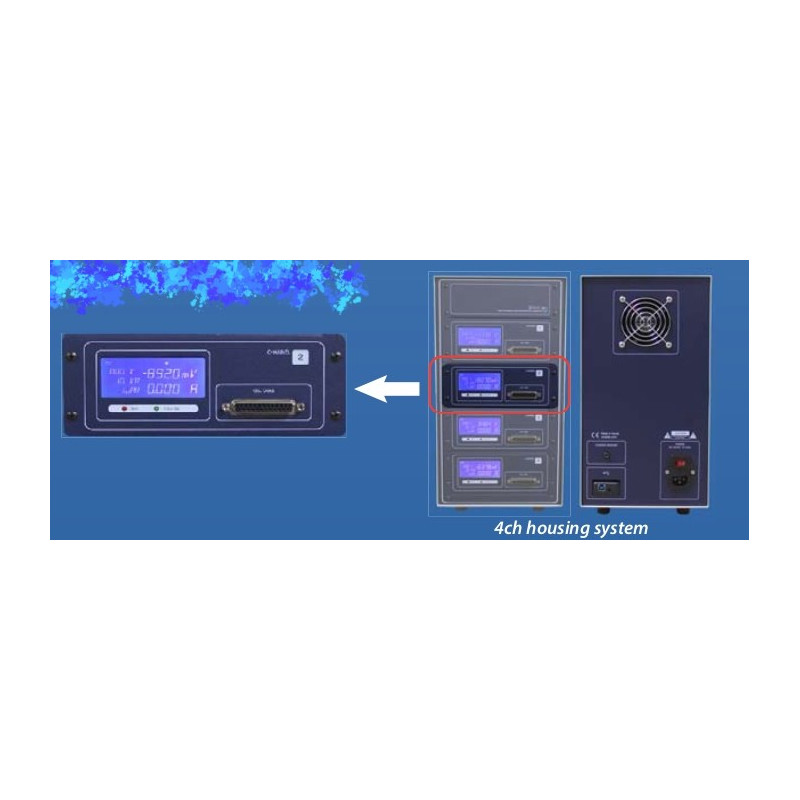

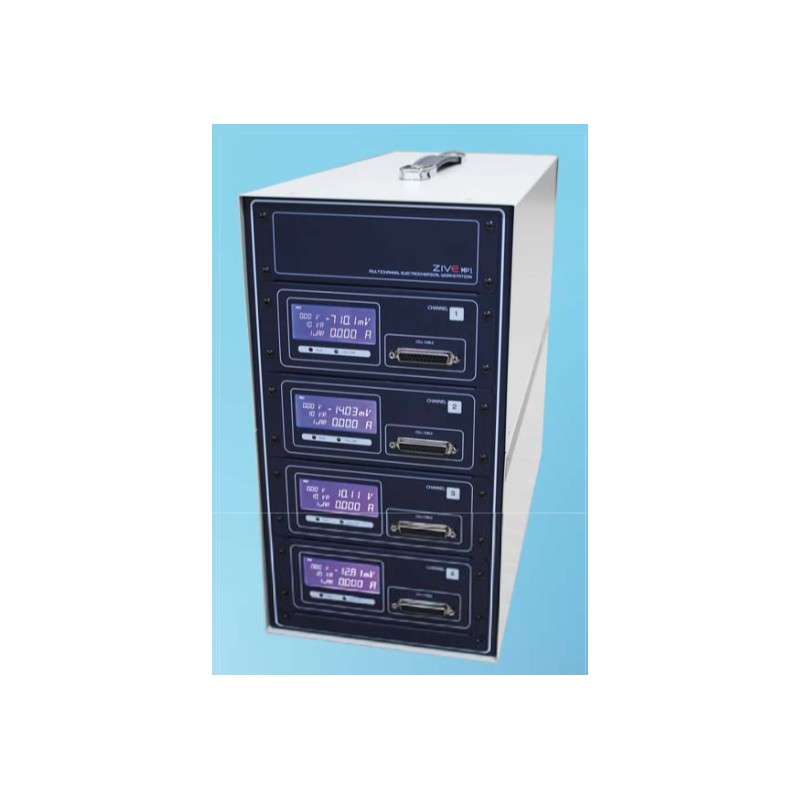

• Compact design with Smart LCD per channel(4 channel housing system only)

• Current Interrupt IR measurement IR compensation available(dynamic, positive feedback)

• Wide current ranges(1nA~1A) for various application (1nA & 10nA with gain)

• Independent operation by DSP with FPGA per channel

• Built-in FRA in each channel: Impedance measurements

• High speed data sampling time

               - 50usec/sample in burst mode

               - 1msec/sample in normal mode

               - 2usec/sample in fast sweep mode

• Fast sweep mode(5000V/sec with 10mV data sampling)

• Internal 295,000 data point storage and test running regardless of PC failure

• Minimum channel per system: 2 channel

• 4 channel system expandable up to 16 channels via USB hub

• Full software packages are included as standard


               - Corrosion test software package(CORe)
               - EIS test software package(EISe)
               - Electrochemical analysis software package(EASe)
               - Energy software package(BATe)

• Voltage pulse or current pulse charge/discharge test(GSM,CDMA etc) and sine wave function for ripple simulation in battery test package & pulse plating available(Bipolar pulse capability)

• Free software upgrade

Versatility:

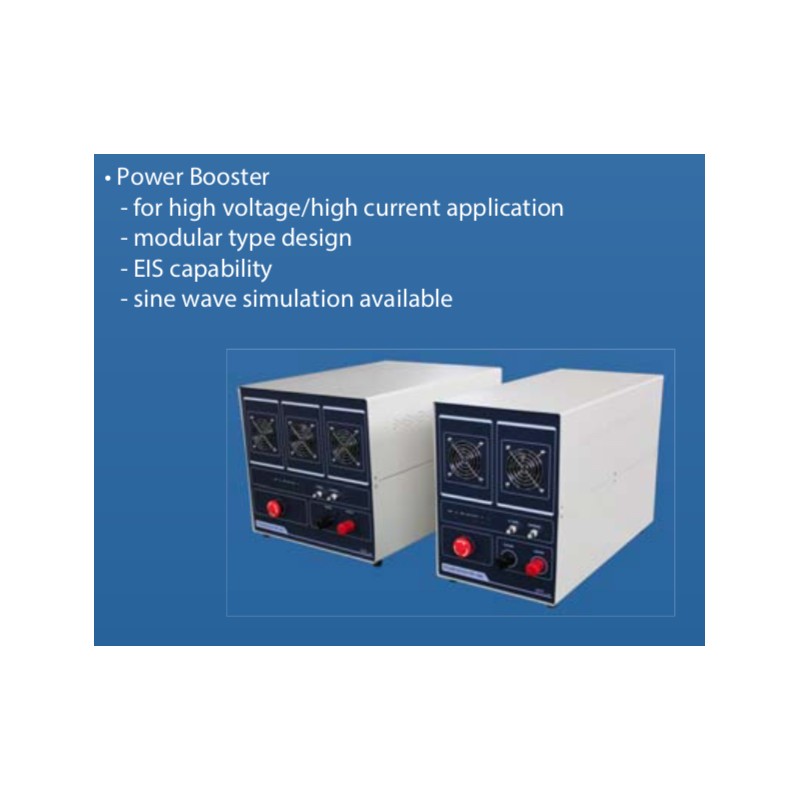

The ZIVE MP1’s system comes with one additional analog input(auxiliary voltage input). Each channel can work on same or different experiment at the same time. This model can interface with ZB series external booster for high current applications. By using an USB hub, the 4 channel system can be expanded to a 8-, and 16-channel system, whereas 8 channel system to 16- and 32-channel system.

Safety:

When communication failure occurs between a PC and ZIVE MP1, the running channels will continue experiments and, at the same time, save the data into ZIVE memory up to 295,000 data point set. When the communication is recovered, ZIVE MP1 will transfer saved data to the PC. User can transfer data set from ZIVE MP1 to PC at any time. This function is highly efficient for long-term experiment and protects experiments from unexpected PC failure.
Users can define safety condition setting by inputting his/her own safety levels for voltage, and current etc. If the measurement value exceeds the setting value, the system will automatically stop to protect the system and cell.
If the control value of voltage or current is different from the measured value, the experiment will stop automatically to protect the cell.
Automatic calibration function is supplied for user calibration.

Maintenance:

- The system has its own hardware parameters and calibration data.
- Each channel is plug & play type and easy to install or to be removed.

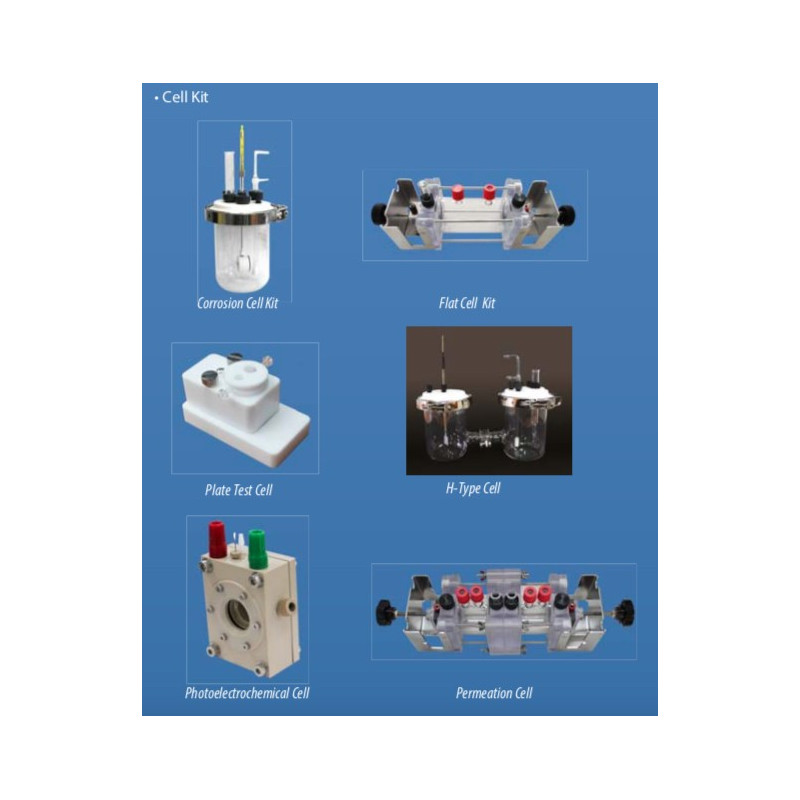

Application:

The ZIVE MP1 multichannel electrochemical workstation is ideal for fundamental research in electrochemistry, development and quality assurance of new sensors, corrosion/coatings, electrode material, membrane, conducting polymer, evaluation power device research such as battery materials, fuel cells, super capacitors and solar cells.

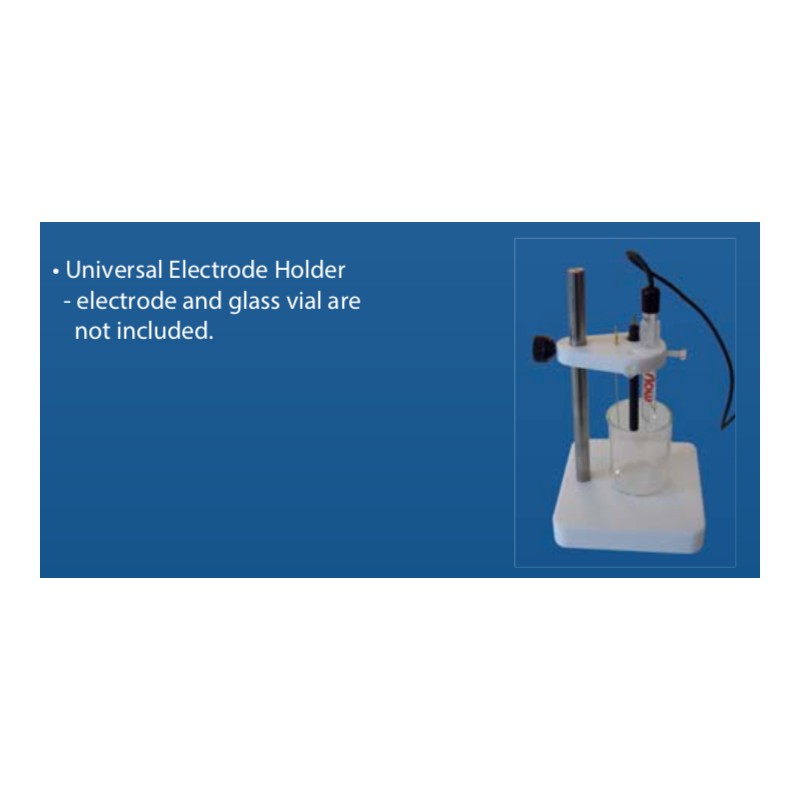

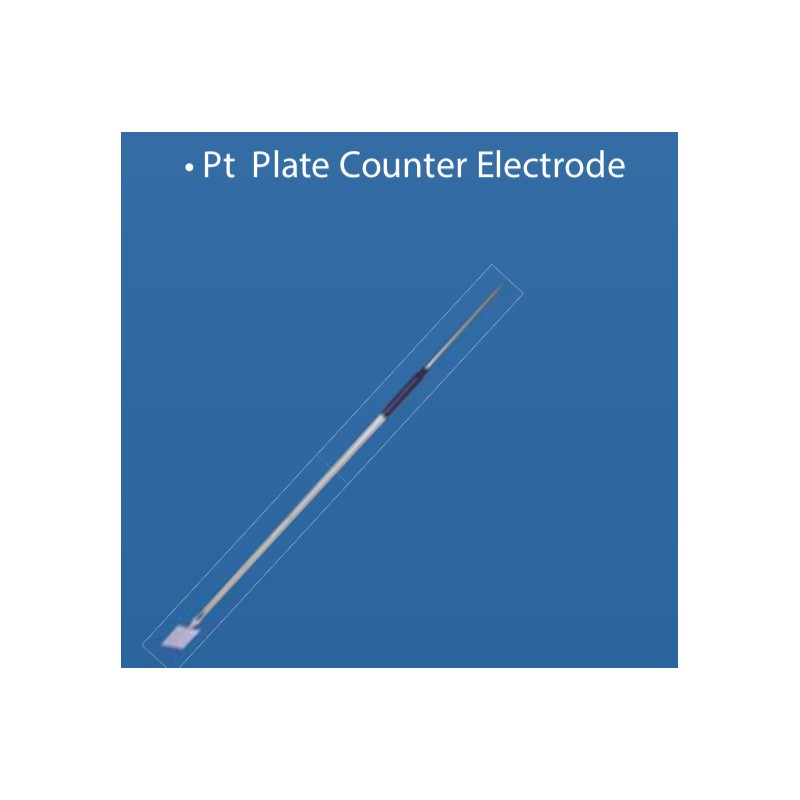

• General Electrochemistry:

The ZIVE MP1 is also suitable for the development of bio-research, electron transfer kinetic studies and electrochemical analysis of compounds at low trace levels, where multichannel DC and impedance analysis is beneficial in providing high throughput of results.

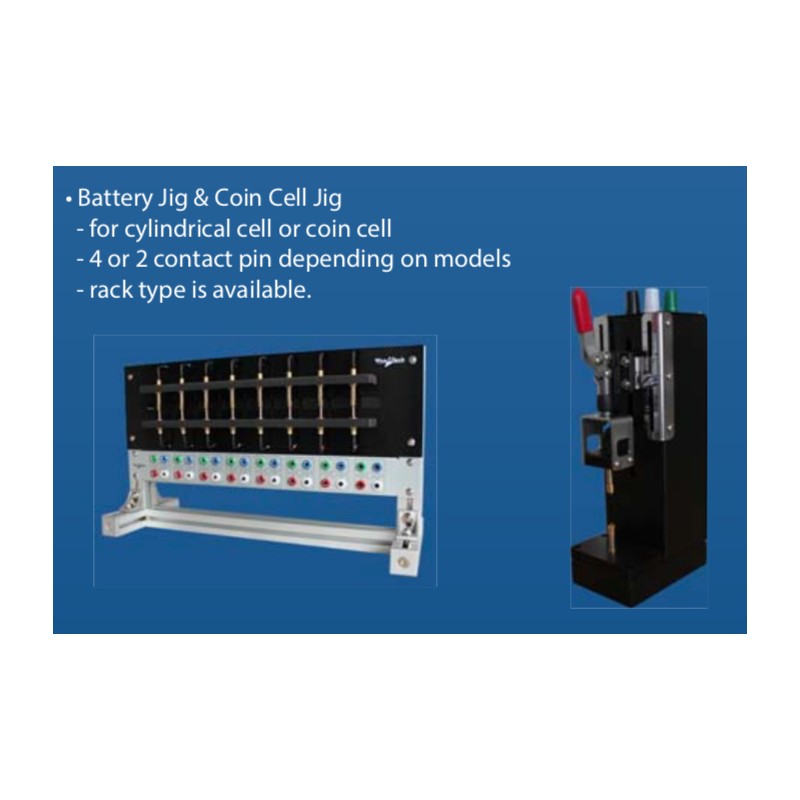

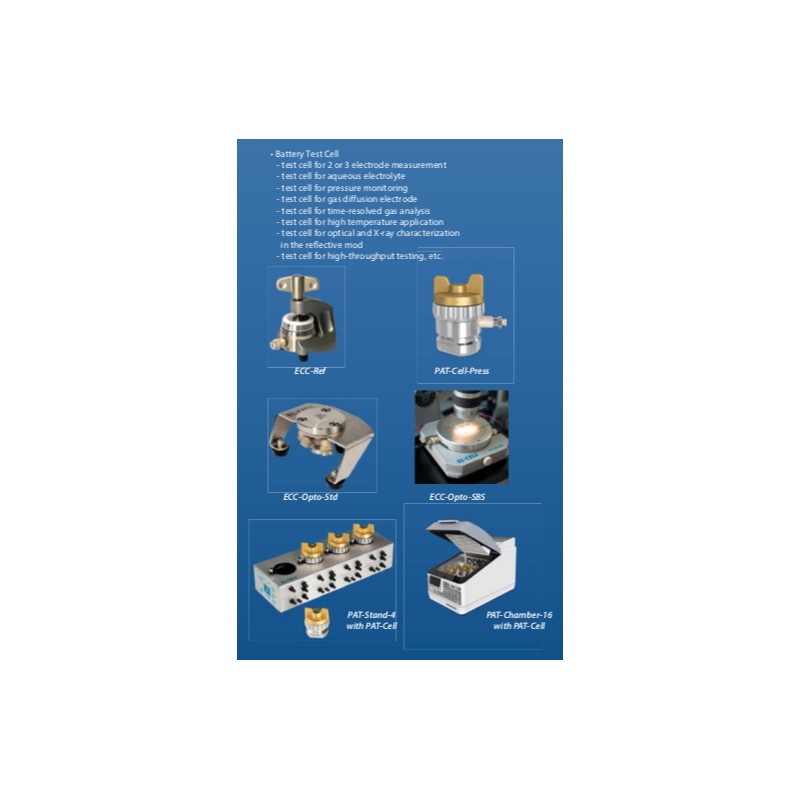

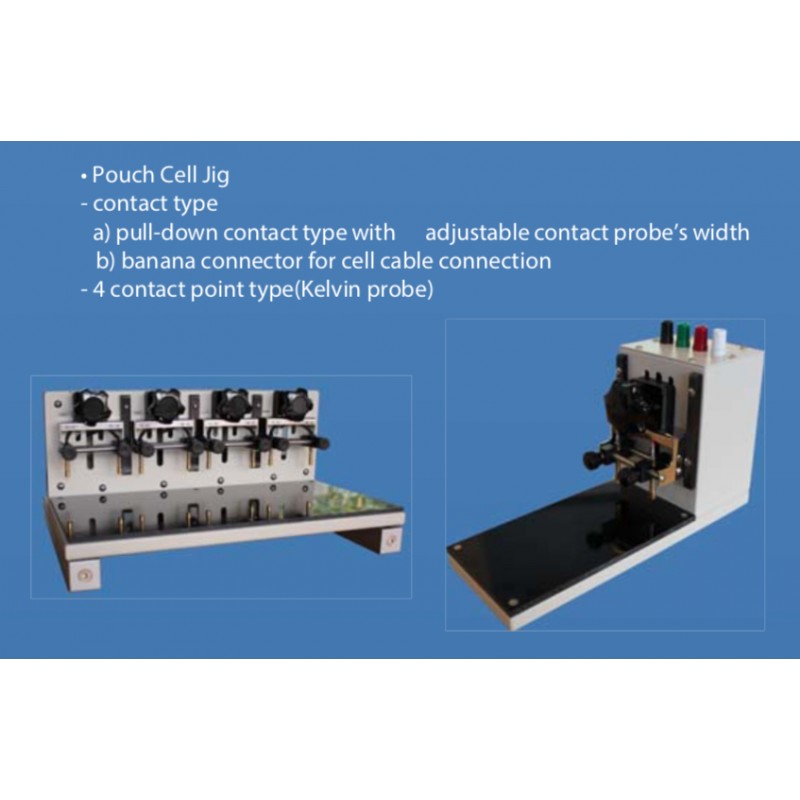

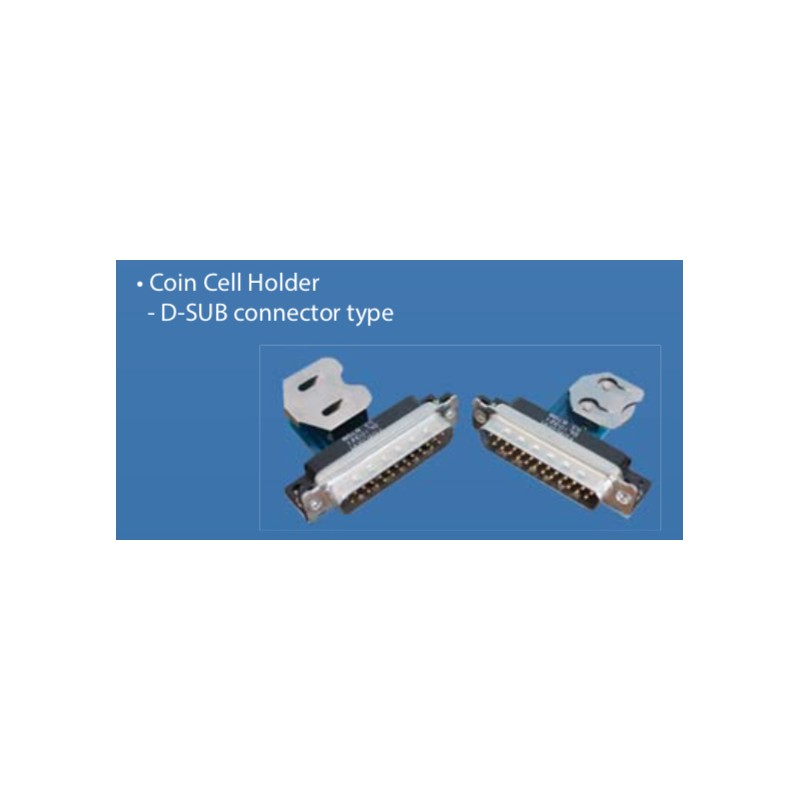

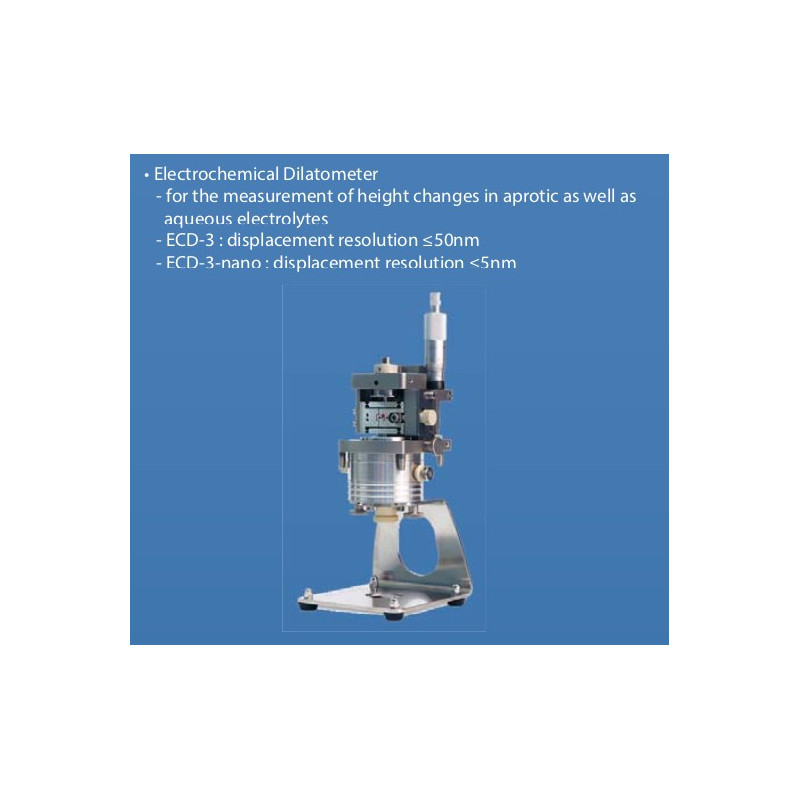

• Batteries:

The system is very well adapted for researches on the cycling behavior of battery. It supports EVS (electrochemical voltage spectroscopy)/GITT/PITT test. Fast pulse capability for GSM, CDMA test is included in battery test software package. Pulse profile measurement function to check pulse shape is available. For ripple simulation test, sine wave charging/discharging is available.

• Solar Cells:

Solar cell development and production requires extensive material and device testing to improve efficiency and match individual cells for panel construction.

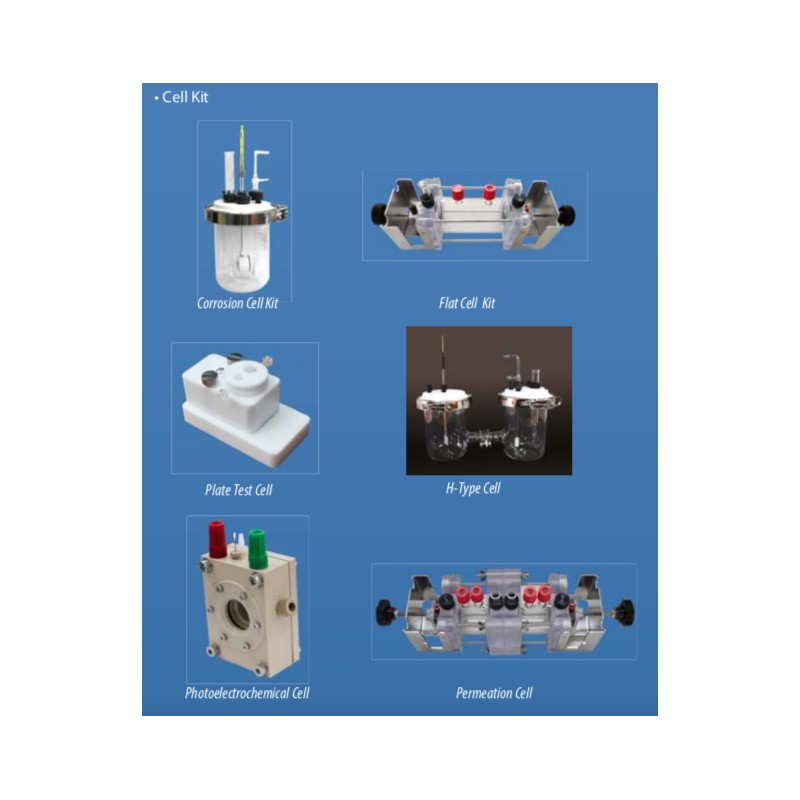

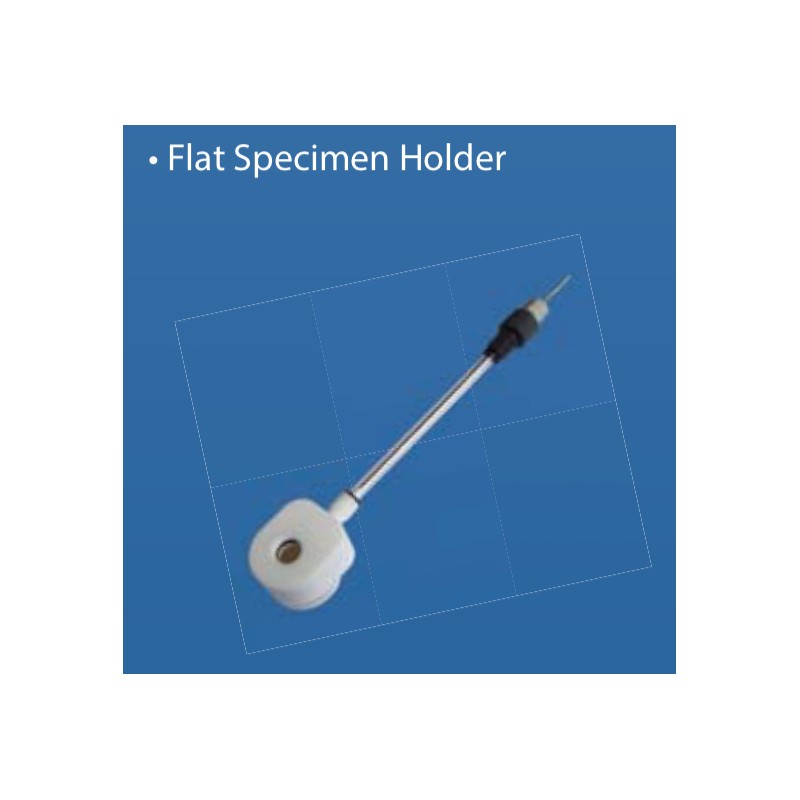

• Corrosion:


The system is suitable for measuring low corrosion rates and EIS test to evaluate corrosion. ZRA function is supplied for galvanic corrosion measurement.

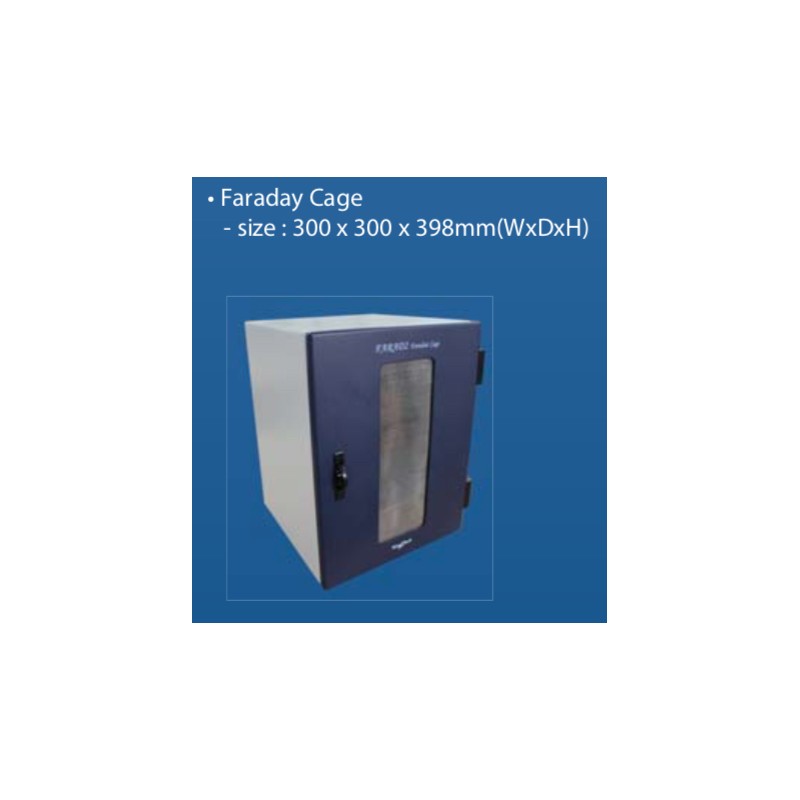

• Sensors:


The ZIVE MP1 can be used for sensor research using with DNA chips or screen printed electrodes. System’s minimum current range is 1nA(with gain) with EIS capability.

• Super Capacitors:

The ZIVE MP1 has fast potentiostat circuit with high speed data acquisition (50usec/point, burst mode). This function is well applicable to super capacitor testing. Charging/discharging capability is used for this application.

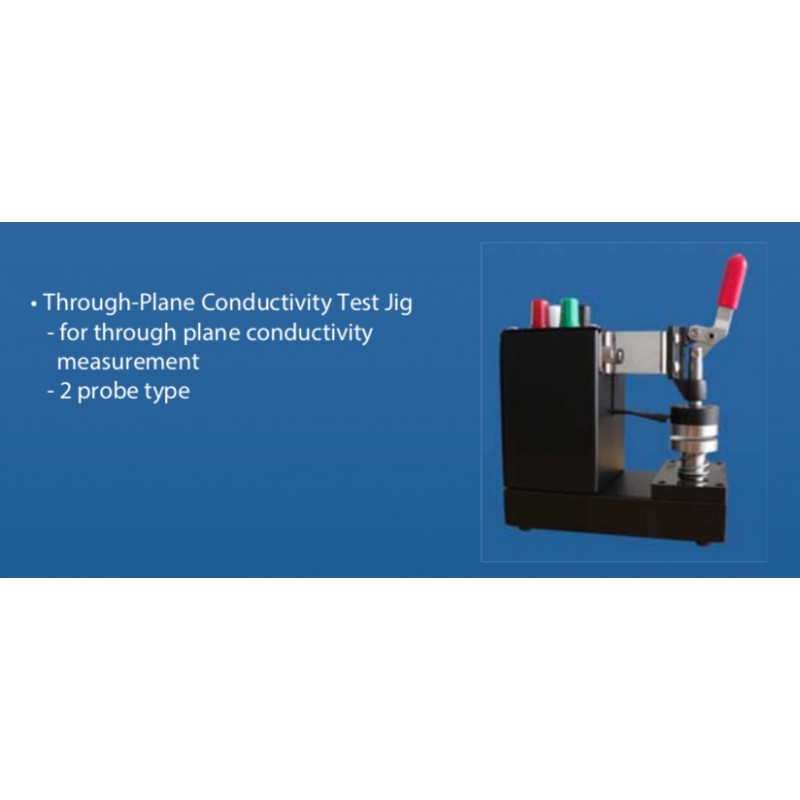

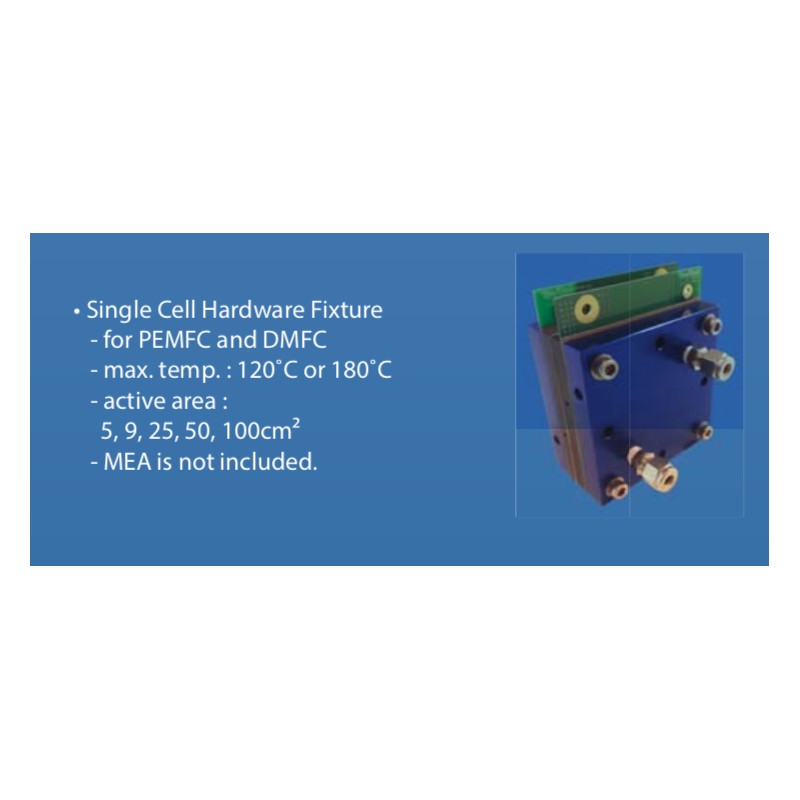

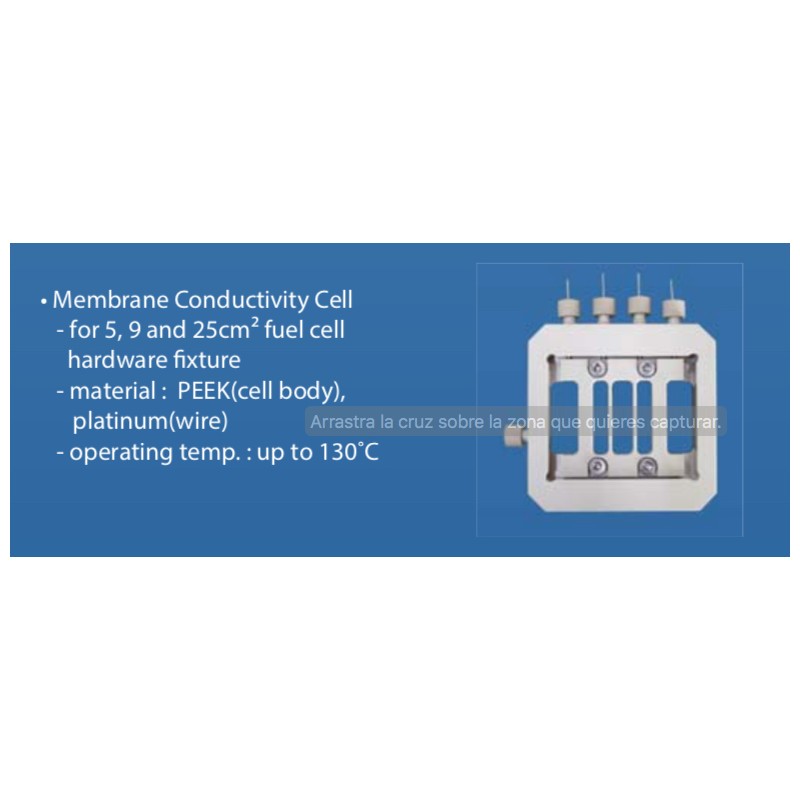

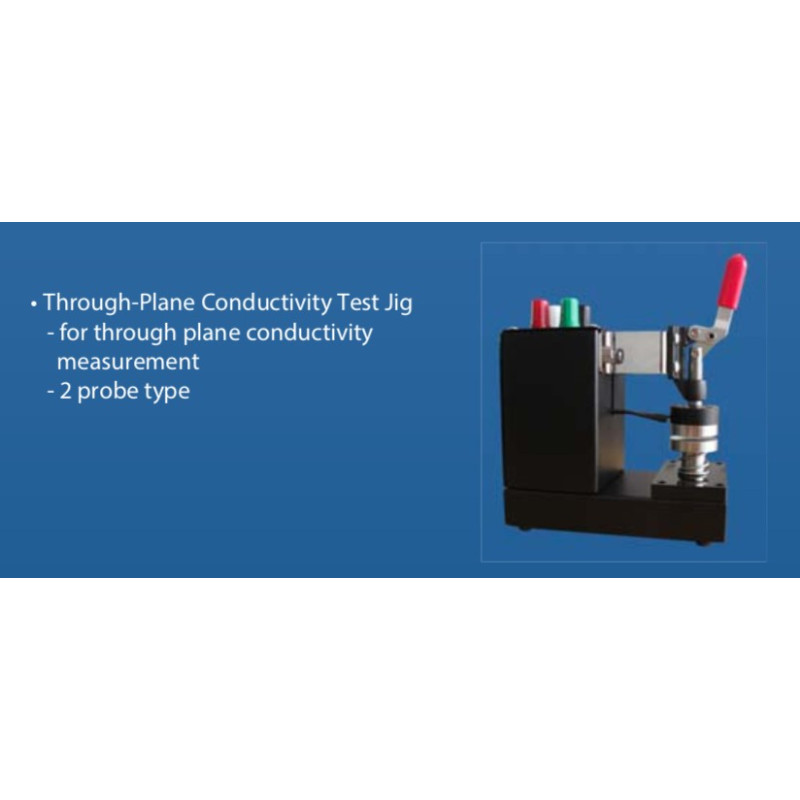

• Fuel Cells:


The ZIVE MP1 is ideal for characterizing the fuel cells and anodic/cathodic process mechanism at development and research grade. This system can be directly used for PEMFC, DMFC, and DEFC etc. Automatic current ranging potentiostatic/ galvanostatic IV curve is available.
