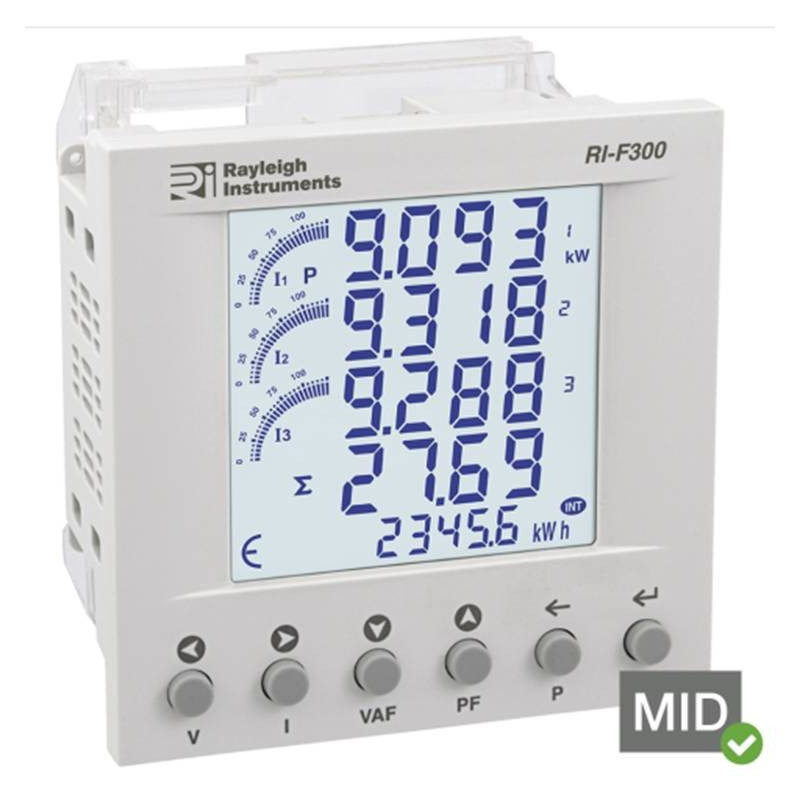

RI-F300 easywire Single and Three Phase Multifunction Energy Meter

The RI-F300 is part of the easywire family of meters.
The easywire system has been designed to save up to
90% installation time compared to a standard meter and
current transformer installation.
These MID approved multifunction energy meters are suitable
for monitoring energy consumption and many other electrical
parameters in industrial and commercial applications. These
meters may be used in single or three phase applications.
A high efficiency white backlit LCD display provides clear
indication of measured values in all light conditions. Quick
select push-buttons on the front of the meter allow the user
fast access to the display page required.
The meter is currently available in two versions:-
•   With single pulse output.
•  With single pulse output and RS485 Modbus communication.
   (Single pulse output and Mbus communication coming soon)
The unit is housed in a compact DIN 96 case suitable for
panel mounting.

easywire SAVE TIME, SAVE MONEY
