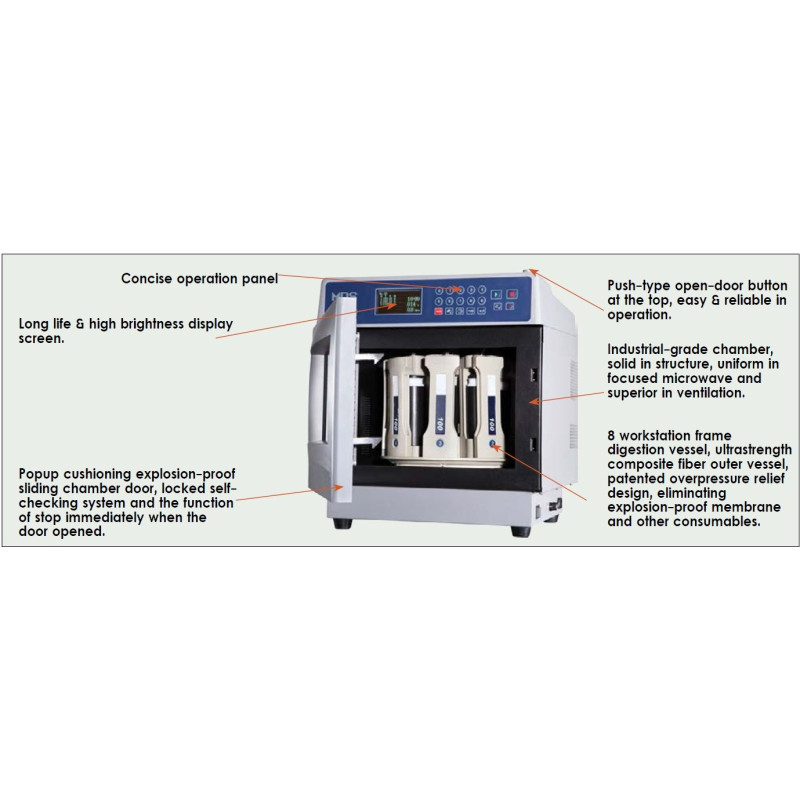

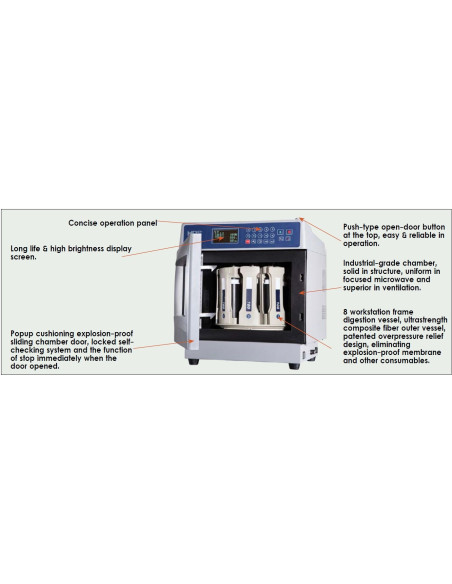

MDS-100G, Closed Microwave Digestion/Extraction System

-  MDS-100G microwave digestion/extraction/synthesis system (nickname: SMART), a subversion of tradition, is a market-oriented practical compact microwave digester made by MRC with its over 20 years’ experience.
-  It highlights the company’s three major ideas of product design and also meets users’ needs in “safety’ “durability” and “convenience of operation.”

-  Microwave frequency: 2450MHz
-  Installed power: 1800W
-  Maximum output power: 1000W, non-pulse continuous automatic variable frequency control
-  Turntable design: Load 8 it closed digestion vessels at same time

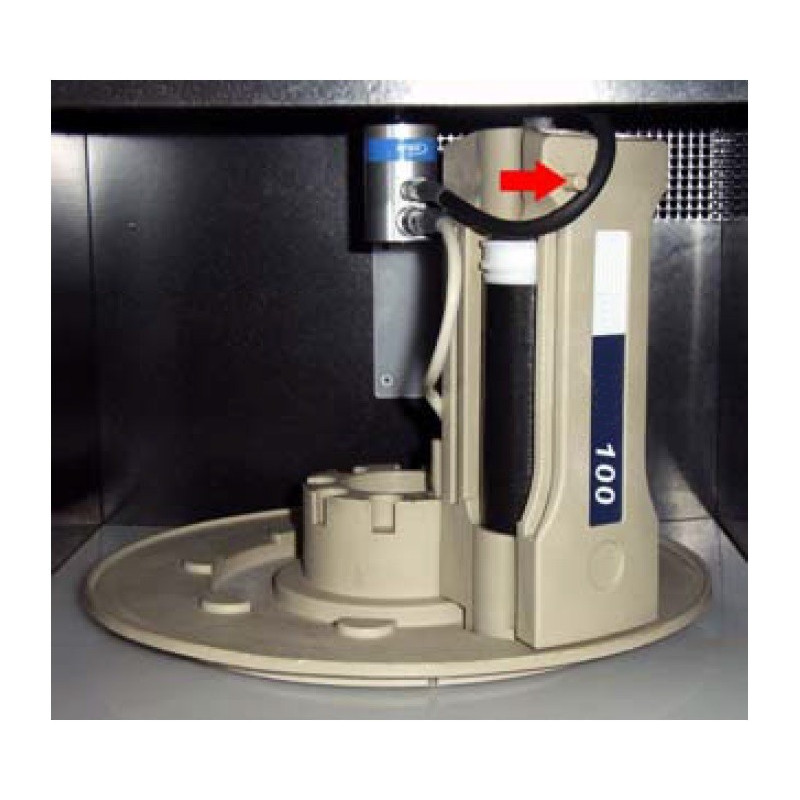

-  Pressure measurement & control system:
Piezoelectric crystal pressure sensor, pressure control range:
-  0-10MPa (1500 psi), accuracy ± 0.01MPa
-  Temperature measurement & control system: High-precision platinum resistor temperature sensor, temperature range: 0-300°C, accuracy ±1°C
-  Outer vessel material: Explosion-proof outer vessel made of aerospace composite fiber
-  Inner vessel materiaI: TFM material
-  Chamber exhaust system: High-power anticorrosion axial fan, exhaust speed: 3.1 m 3/min
-  Operating ambient temperature: 0-40°C
-  Working environment humidity: 15-80%RH
-  Whole physical size: 450 x 515 x 510mm (W x D x H)
-  Net weight: 40 KG
