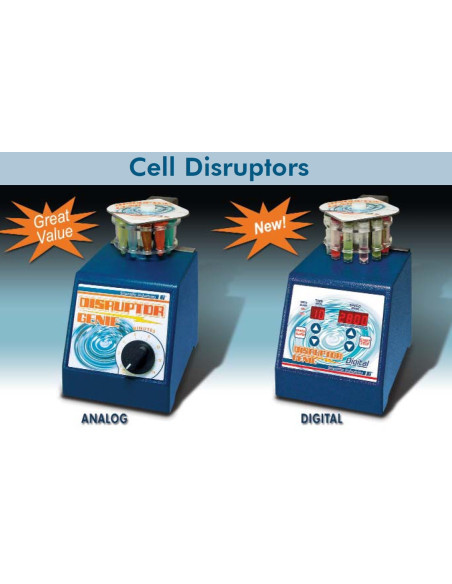

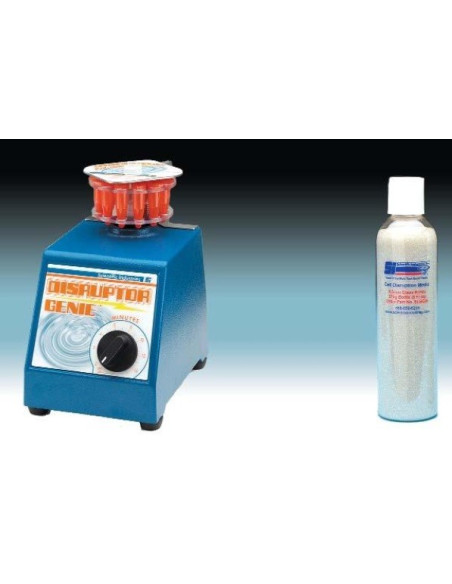

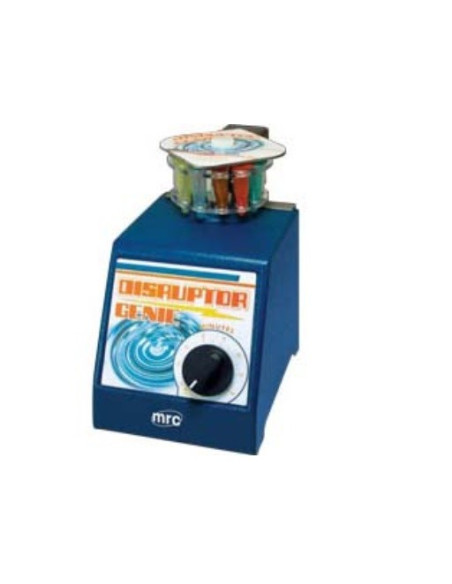

SI-D246 Vortex Mixer - Disruptor Genie, 230V w/o Plug

Reference SI-D246

Manufacturer: MRC

Condition: New

Vortex
In fluid dynamics, a vortex is a region within a fluid where the flow is mostly a spinning motion about an imaginary axis, straight or curved. That motion pattern is called a vortical flow.
A vortex mixer is a simple device used commonly in laboratories to mix small vials of liquid. It consists of an electric motor with the drive shaft oriented vertically and attached to a cupped rubber piece mounted slightly off-center. As the motor runs the rubber piece oscillates rapidly in a circular motion. When a test tube or other appropriate container is pressed into the rubber cup the motion is transmitted to the liquid inside and a vortex is created.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
Data sheet

Function:	Mixers

Applications:
Vortex mixers are quite commonplace in bioscience laboratories. In cell culture and microbiology laboratories they may be used to suspend cells. In a biochemical laboratory they may be used to mix the reagents of an assay or to mix an experimental sample and a dilutant.

·Rapid Cell Disruptor
·Less costly than homogenizer and ultrasonic unit
·Rapid hands free distruption up to
·12 mirotubes1.5/2.0ml at one time.
·Unique agitation,vortexing,and collision
·actions for cell distruption and sample resuspension.
·Max speed (rpm) 2700
·Timer range (min) 0 to 15 minutes
·Platform dimensions 3" dia tube holder
·Dimensions 4-7/8"W x 6-½"H x 6-½" D
·CE Compliance Yes
·Power (VAC) 240
·Power (Hz) 50 Hz
·Power (Amps) 0.5 A
